WT505090-20K2-A10-G

型号:

WT505090-20K2-A10-G

品牌:

TDK[ TDK ELECTRONICS ]

页数:

6 页

PDF大小:

1101 K

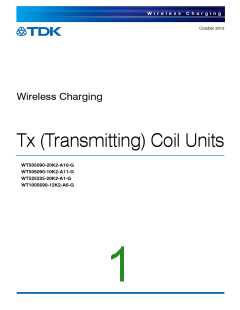

W i r e l e s s C h a r g i n g
October 2013
Wireless Charging
Tx (Transmitting) Coil Units
WT505090-20K2-A10-G
WT505090-10K2-A11-G
WT525225-20K2-A1-G
WT1005690-12K2-A6-G
(2/6)
W i r e l e s s C h a r g i n g
Halogen-free
Wireless Charging
Overview of Tx Coil Units
FEATURES
Tx coil units for WPC low-power (5W) specification.
Got WPC approval for ferrite sheet.
Thinner flexible ferrite sheet type is available for durable construction.
Performance had been confirmed based on WPC equipments.
APPLICATION
Various types of battery chargers (WPC compliant)
PART NUMBER CONSTRUCTION
-
-
-
W
T
5252
25
20
K2
A1
G
L×W Dimensions
(mm)
Sheet thickness
(mm)
Wireless
charging
WPC compliant
Internal
code
Category
Coil turns
Material
Tx type
T
Tx
5050
5252
50.0×50.0
52.0×52.0
25
90
0.25
0.90
K2
A1
A6
10056 100.0×56.0
A10
A11
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
• All specifications are subject to change without notice.
001-01 / 20131003 / wr_tx-coil-wpt-006_en.
(3/6)
W i r e l e s s C h a r g i n g
Tx Coil Units
WT505090-20K2-A10-G
SHAPE & DIMENSIONS
(
)
17.5 min.
Solder coat
ø50.0 1.0
Dimensions in mm
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
Part No.
WPC Compliant
WT505090-20K2-A10-G
WPC A10
19 (A10)
Input Voltage (V)
Inductance (µH)
[100kHz, 1Vrms]
24
DC resistance () max.
[25°C]
0.10
Ferrite type
Flexible
Magnet (mm)
Nothing
Sheet Size (mm)
ø50
Coil Turns
10ts x 2Layers 20Ts
Thickness of Coil + Sheet (mm) typ.
Thickness of Incl. I/O (mm) typ.
Coil Outer Size (mm) typ.
3.13
ø43
• All specifications are subject to change without notice.
001-01 / 20131003 / wr_tx-coil-wpt-006_en.
(4/6)
W i r e l e s s C h a r g i n g
Tx Coil Units
WT505090-10K2-A11-G
SHAPE & DIMENSIONS
(
)
13.0 min.
Solder coat
ø50.0 1.0
Dimensions in mm
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
Part No.
WPC Compliant
WT505090-10K2-A11-G
WPC A11
Input Voltage (V)
Inductance (µH)
[100kHz, 1Vrms]
DC resistance () max.
[25°C]
5 (A11)
6.3
0.06
Ferrite type
Magnet (mm)
Flexible
Nothing
ø50
10ts x 1Layers
2.08
Sheet Size (mm)
Coil Turns
Thickness of Coil + Sheet (mm) typ.
Thickness of Incl. I/O (mm) typ.
Coil Outer Size (mm) typ.
3.13
ø43
• All specifications are subject to change without notice.
001-01 / 20131003 / wr_tx-coil-wpt-006_en.
(5/6)
W i r e l e s s C h a r g i n g
Tx Coil Units
WT525225-20K2-A1-G
SHAPE & DIMENSIONS
(
)
18.5 min.
Solder coat
ø43.0 1.0
52 1.0
Dimensions in mm
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
Part No.
WPC Compliant
WT525225-20K2-A1-G
WPC A1 and WPC A9
19 (A1), 12 (A9)
Input Voltage (V)
Inductance (µH)
[100kHz, 1Vrms]
DC resistance () max.
[25°C]
24
0.10
Ferrite type
Solid
Magnet (mm)
Bond Mg 12.5x2.0
Sheet Size (mm)
Coil Turns
52.0 x 52.0
10ts x 2Layers 20Ts
Thickness of Coil + Sheet (mm) typ.
Thickness of Incl. I/O (mm) typ.
Coil Outer Size (mm) typ.
4.63
ø43
• All specifications are subject to change without notice.
001-01 / 20131003 / wr_tx-coil-wpt-006_en.
(6/6)
W i r e l e s s C h a r g i n g
Tx Coil Units
WT1005690-12K2-A6-G
SHAPE & DIMENSIONS
56.0 1.5
45.2 1.0
80ref.
4.81max.
Dimensions in mm
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
Part No.
WT1005690-12K2-A6-G
WPC Compliant
WPC A6
12 (A6)
Input Voltage (V)
Inductance (µH)
[100kHz, 1Vrms]
DC resistance () max.
[25°C]
11.5 to 12.5
0.08
Ferrite type
Flexible
Magnet (mm)
Nothing
Sheet Size (mm)
Coil Turns
Thickness of Coil + Sheet (mm) typ.
Thickness of Incl. I/O (mm) typ.
Coil Outer Size (mm) typ.
100.0 x 56.0
12ts x 1Layers, 3 coils
Bottom 2.53
Top Coil 4.03
53.2 x 45.2
• All specifications are subject to change without notice.
001-01 / 20131003 / wr_tx-coil-wpt-006_en.
