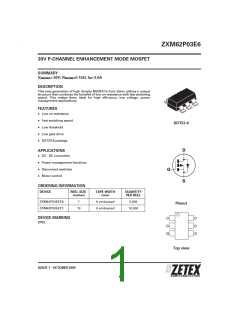

ZXM62P03E6
30V P-CHANNEL ENHANCEMENT MODE MOSFET
SUMMARY
V(BR)DSS=-30V; RDS(ON)=0.15 ID=-2.6A
DESCRIPTION
This new generation of high density MOSFETs from Zetex utilizes a unique
structure that combines the benefits of low on-resistance with fast switching
speed. This makes them ideal for high efficiency, low voltage, power
management applications.
FEATURES
• Low on-resistance
• Fast switching speed
• Low threshold
SOT23-6
• Low gate drive
• SOT23-6 package
APPLICATIONS
• DC - DC converters
• Power management functions
• Disconnect switches
• Motor control
ORDERING INFORMATION
DEVICE
REEL SIZE
(inches)
TAPE WIDTH
(mm)
QUANTITY
PER REEL
ZXM62P03E6TA
ZXM62P03E6TC
7
8 embossed
8 embossed
3,000
Pinout
13
10,000
DEVICE MARKING
2P03
Top view
ISSUE 1 - OCTOBER 2005
SEMICONDUCTORS
1
ZXM62P03E6
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
LIMIT
UNIT
Drain-Source Voltage
Gate Source Voltage
V
V
20
V
V
A
DSS
GS
Ϯ12
Continuous Drain Current (V =4.5V; T =25°C)(a)
I
1.5
1.2
GS
GS
A
A
D
(V =4.5V; T =70°C)(a)
Pulsed Drain Current (c)
I
I
I
7.4
0.54
7.4
A
A
A
DM
S
Continuous Source Current (Body Diode)
Pulsed Source Current (Body Diode)
SM
Power Dissipation at T =25°C (a)
A
Linear Derating Factor
P
625
5
mW
mW/°C
D
Power Dissipation at T =25°C (b)
A
Linear Derating Factor
P
806
6.4
mW
mW/°C
D
Operating and Storage Temperature Range
T :T
-55 to +150
°C
j
stg
THERMAL RESISTANCE
PARAMETER
SYMBOL
VALUE
113
UNIT
°C/W
°C/W
Junction to Ambient (a)
R
R
θJA
θJA
Junction to Ambient (b)
73
NOTES:
(a) For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions
(b) For a device surface mounted on FR4 PCB measured at tр5 secs.
(c) Repetitive rating - pulse width limited by maximum junction temperature. Refer to Transient Thermal Impedance graph.
ISSUE 1 - OCTOBER 2005
SEMICONDUCTORS
2
ZXM62P03E6
CHARACTERISTICS
ISSUE 1 - OCTOBER 2005
SEMICONDUCTORS
3
ZXM62P03E6
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated)
PARAMETER
SYMBOL MIN. TYP.
MAX.
UNIT CONDITIONS
STATIC
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Body Leakage
V
I
-30
V
I =-250µA, V =0V
(BR)DSS
D
GS
-1
V
=-30V, V =0V
GS
µA
nA
V
DSS
GSS
DS
GS
I
V
=Ϯ20V, V =0V
Ϯ100
DS
Gate-Source Threshold Voltage
V
R
-1.0
1.1
I =-250µA, V = V
GS(th)
DS(on)
DS
GS
D
Static Drain-Source On-State Resistance
(1)
0.15
0.23
V
V
=-10V, I =-1.6A
Ω
Ω
GS
GS
D
=-4.5V, I =-0.8A
D
Forward Transconductance (3)
DYNAMIC (3)
g
S
V
=-10V,I =-0.8A
D
fs
DS
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
SWITCHING (2) (3)
Turn-On Delay Time
Rise Time
C
C
C
330
120
45
pF
pF
pF
iss
V
=-25 V, V =0V,
DS
GS
f=1MHz
oss
rss
t
t
t
t
2.8
6.4
ns
ns
ns
ns
d(on)
V
=-15V, I =-1.6A
D
r
DD
G
R =6.2Ω, R =25Ω
(Refer to test circuit)
D
Turn-Off Delay Time
Fall Time
13.9
10.3
d(off)
f
Total Gate Charge
Gate-Source Charge
Gate Drain Charge
SOURCE-DRAIN DIODE
Diode Forward Voltage (1)
Q
Q
Q
10.2 nC
g
V
=-24V,V =-10V,
GS
DS
1.5
3
nC
nC
ID=-1.6A
gs
gd
(Refer to test circuit)
V
-0.95
V
T =25°C, I =-1.6A,
j S
V
SD
=0V
GS
Reverse Recovery Time (3)
Reverse Recovery Charge(3)
t
19.9
13
ns
T =25°C, I =-1.6A,
j F
di/dt= 100A/µs
rr
Q
nC
rr
(1) Measured under pulsed conditions. Width=300µs. Duty cycle Յ2%.
(2) Switching characteristics are independent of operating junction temperature.
(3) For design aid only, not subject to production testing.
ISSUE 1 - OCTOBER 2005
SEMICONDUCTORS
4
ZXM62P03E6
TYPICAL CHARACTERISTICS
ISSUE 1 - OCTOBER 2005
SEMICONDUCTORS
5
ZXM62P03E6
TYPICAL CHARACTERISTICS
600
500
400
300
200
100
0
10
Vgs=0V
f=1Mhz
ID=-1.6A
9
8
7
6
5
4
3
2
1
0
Ciss
Coss
Crss
VDS=-15V
VDS=-24V
0.1
1
10
100
0
1
2
3
4
5
6
7
8
9
10
DS
-V - Drain Source Voltage (V)
Q -Charge (nC)
Capacitance v Drain-Source Voltage
Gate-Source Voltage v Gate Charge
ISSUE 1 - OCTOBER 2005
SEMICONDUCTORS
6
ZXM62P03E6
PACKAGE OUTLINE
PAD LAYOUT DETAILS
0.95
0.037
1.06
0.042
2.2
0.087
mm
inches
0.65
0.026
DIM
Millimeters
Inches
Min.
0.90
0.00
0.90
0.35
0.09
2.80
2.60
1.50
0.10
Max.
1.45
0.15
1.30
0.50
0.20
3.00
3.00
1.75
0.60
Min.
0.35
Max.
0.057
0.006
0.051
0.019
0.008
0.118
0.118
0.069
0.002
A
A1
A2
b
0
0.035
0.014
0.0035
0.110
0.102
0.059
0.004
C
D
E
E1
L
e
0.95 REF
1.90 REF
0.037 REF
0.074 REF
e1
L
0°
10°
0°
10°
© Zetex Semiconductors plc 2005
Europe
Americas
Asia Pacific
Corporate Headquarters
Zetex GmbH
Zetex Inc
Zetex (Asia) Ltd
Zetex Semiconductors plc
Zetex Technology Park
Chadderton, Oldham, OL9 9LL
United Kingdom
Streitfeldstraße 19
D-81673 München
Germany
700 Veterans Memorial Hwy
Hauppauge, NY 11788
USA
3701-04 Metroplaza Tower 1
Hing Fong Road, Kwai Fong
Hong Kong
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
europe.sales@zetex.com
Telephone: (1) 631 360 2222
Fax: (1) 631 360 8222
usa.sales@zetex.com
Telephone: (852) 26100 611
Fax: (852) 24250 494
asia.sales@zetex.com
Telephone (44) 161 622 4444
Fax: (44) 161 622 4446
hq@zetex.com
These offices are supported by agents and distributors in major countries world-wide.
This publication is issued to provide outline information only which (unless agreed by the Company in writing) may not be used, applied or reproduced
for any purpose or form part of any order or contract or be regarded as a representation relating to the products or services concerned. The Company
reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service.
For the latest product information, log on to www.zetex.com
ISSUE 1 - OCTOBER 2005
SEMICONDUCTORS
7
