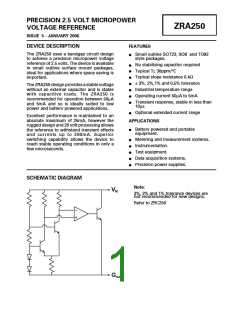

PRECISION 2.5 VOLT MICROPOWER
VOLTAGE REFERENCE
ZRA250
ISSUE 5 - JANUARY 2006
DEVICE DESCRIPTION
FEATURES
The ZRA250 uses a bandgap circuit design
to achieve a precision micropower voltage
reference of 2.5 volts. The device is available
in small outline surface mount packages,
ideal for applications where space saving is
important.
Small outline SOT23, SO8 and TO92
style packages.
•
No stabilising capacitor required
Typical TC 30ppm/°C
•
•
•
•
•
•
•
Typical slope resistance 0.4Ω
± 3%, 2%,1% and 0.5% tolerance
Industrial temperature range
Operating current 50µA to 5mA
The ZRA250designprovidesastablevoltage
without an external capacitor and is stable
with capacitive loads. The ZRA250 is
recommended for operation between 50µA
and 5mA and so is ideally suited to low
power and battery powered applications.
Transient response, stable in less than
10µs
Optional extended current range
•
Excellent performance is maintained to an
absolute maximum of 25mA, however the
rugged design and 20 volt processing allows
the reference to withstand transient effects
and currents up to 200mA. Superior
switching capability allows the device to
reach stable operating conditions in only a
few microseconds.
APPLICATIONS
Battery powered and portable
equipment.
•
Metering and measurement systems.
•
Instrumentation.
•
Test equipment.
•
Data acquisition systems.
•
Precision power supplies.
•
SCHEMATIC DIAGRAM
Note:
VR
3%, 2% and 1% tolerance devices are
not recommended for new designs.
Refer to ZRC250
Gnd
