OX-0462-AET-5080-250M000000

型号：

OX-0462-AET-5080-250M000000

品牌：

MICROSEMI[ Microsemi ]

页数：

5 页

PDF大小：

807 K

下载PDF手册

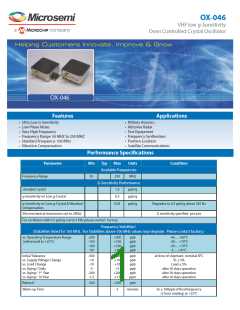

OX-046
VHF low g-Sensitivity
Oven Controlled Crystal Oscillator
OX-046
Features
• Ultra Low G-Sensitivity
Applications
• Military Avionics
• Low Phase Noise
• Very High Frequency
• Airborne Radar
• Test Equipment
• Frequency Range: 50 MHZ to 250 MHZ
• Standard Frequency: 100 MHz
• Vibration Compensation
• Frequency Synthesizers
• Position Location
• Satellite Communications
Performance Specifications
Parameter
Min
Typ
Max
Units
Condition
Available Frequencies
Frequency Range
50
250
MHz
G-Sensitivity Performance
standard crystal
1.5
0.5
ppb/g
ppb/g
ppb/g
g-Sensitivity w\ Low g-Crystal
g-Sensitivity w\ Low g-Crystal & Vibration
compensation
0.05
Degrades to 0.5 ppb/g above 250 Hz
G sensitivity specified per axis
(No mechanical resonances out to 2KHz)
For oscillators with 0.2 ppb/g out to 2 KHz please contact factory.
Frequency Stabilities1
(Stabilities listed for 100 MHz. For Stabilities above 100 MHz values may degrade. Please contact factory.)
vs. Operating Temperature Range
(referenced to +25°C)
-200
-150
-100
-50
+200
+150
+100
+50
ppb
ppb
ppb
ppb
-40… +85°C
-40… +70°C
-20… +70°C
0… +70°C
Initial Tolerance
vs. Supply Voltage Change
vs. Load Change
-500
-10
-10
-5
-200
-1.5
+500
+10
+10
+5
+200
+1.5
ppb
ppb
ppb
ppb
ppb
ppm
at time of shipment, nominal EFC
Vs 5ꢀ
Load 5ꢀ
vs. Aging / Daily
after 30 days operation
after 30 days operation
after 30 days operation
vs. Aging / 1st Year
vs. Aging / 10 Year
Retrace2
-200
+200
5
ppb
Warm-up Time
minutes
to 100ppb of final frequency
(2 hour reading) @ +25°C
Performance Specifications
Parameter
Min
Typ
Max
Units
Condition
Supply Voltage (Vs)
Supply voltage
14.25
11.4
15.0
12.0
15.75
12.6
10.0
3.8
VDC
VDC
ordering code A
ordering code B
Watts
Watts
Watts
Watts
during warm-up all temperatures
steady state @ +25°C
steady state @ -40°C
steady state @ +85°C
Oven Power Consumption
7.0
1.0
RF Output
Start Time
Signal
1
2
s
time required to achieve 90ꢀ of amplitude
Sinewave
Load
50
Ohm
dBm
dBc
Output Power
Harmonics
Subharmonics
+7.0
2.0
+10
+13
-30
-30
dBc
for oscillator with output frequency > 120 MHz
Electronic frequency control
Frequency Tuning (EFC)
Tuning Range
3.0
20
ppm
ꢀ
Linearity
Positive
+5.0 +10.0
Tuning Slope
0.0
15
VDC
kOhm
Hz
Control Voltage Range
Input Resistance
Modulation Bandwidth
150
Phase Noise
Phase Noise3
(@ 100 MHZ)
(under static conditions - no vibration)
-100
-130
-150
-165
-175
dBc/Hz
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Phase Noise3
(@ 200 MHZ)
(under static conditions - no vibration)
-90
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
-120
-140
-155
-165
Parameter
Min
Typ
Max
Units
Condition
Additional Parameters1
Weight
150
g
Absolute Maximum Ratings
Supply voltage (Vs)
Output Load
28
V
25
open
ohm
Operable Temperature Range
-55
+85
°C
Environmental Specifications
Shock (Operating)
MIL-STD-202, Method 213, Condition J, 30G, 11ms, half sine
Mil-STD-202, Method 213, Condition C, 100G, 6ms, half sine
Mil-STD-202, Method 204, Condition C, 10 G
Shock (Endurance)
Sine Vibration (Operating)
Sine Vibration (Endurance)
Mil-STD-202, Method 204, Condition D, 20 G
Mil-STD-202, Method 214, Condition I-C, 9.26 Grms, 3-5min/axis (without vibe comp)
Mil-STD-202, Method 214, Condition I-A, 5.35 Grms, 3-5min/axis (with vibe comp)
Random Vibration (Operating)
Random Vibration (Endurance)
Seal
Mil-STD-202, Method 214, Condition I-D, 11.95 Grms, 3hrs/axis
Nonhermetic - Mil-STD-202, Method 112, Condition D available only as custom part
number - please contact factory
Humidity
MIL-STD-202, Method 103, Condition B, 90ꢀ rh
MIL-STD-202, Method 105, sea level to 30,000 ft
MIL-STD-202, Method 210, Condition A,B,C
not RoHS compliant
Altitude
Resistance to Soldering Heat
RoHS
Terminal Strength
Moisture Sensitivity Level
Storage Temperature Range
MIL-STD-202, Method 211, Condition C (5 bends at 45o, 2 lbs)
1
-55
+125
°C
Outline Drawing / Enclosure
Dimensions in inches
Package configuration A
ordering Height
code
“H”
0.80
1.05
5
0
Pin Connections
Electronic Frequency Control (EFC)
Ground (Case)
1
2
3
4
5
Supply Voltage
Microsemi Internal Use Only / NC
Microsemi Internal Use Only / NC
Package configuration C
ordering Height
code
“H”
0.80
1.05
7
2
Pin Connections
Electronic Frequency Control (EFC)
Ground (Case)
1
2
3
4
5
Supply Voltage
Microsemi Internal Use Only / NC
Microsemi Internal Use Only / NC
Ordering Information4
OX - 046 0 - A E T-508 3 - 100M000000
Frequency
Product Family
OX: OCXO
Platform Code
Low g, Compensation option
0:: Standard crystal
1: Low g Crystal
Package
50 x 50 mm
3: Low g Crystal, w\vibe comp
Mounting Style
0: Type A, 1.05
2: Type C, 1.05
5; Type A, 0.80
7: Type C, 0.80
Temperature Range / Stability Code
Supply Voltage
E-207: -40°C to +85°C, 200 ppb
A: 15 Vdc
D-157: -40°C to +70°C, 150 ppb
B: 12 Vdc
J-107: -20°C to +70°C, 100 ppb
T-508: 0°C to +70°C, 50 ppb
RF Output Code
E: Sinewave
Additional Ordering Options
Additional ordering options available include custom temperature ranges, custom temperature stabilities, custom phase noise
requirements, low profile, custom supply voltage, hermetic option and improved g-sensitvity. These modifications require a
custom dash number - please contact the factory for additional information.
Notes:
1. Unless otherwise stated, all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, and temperature (25°C).
2. Retrace is defined as the frequency difference between the end of two 24 hour on power periods with a 24 hour off period in
between while at a constant temperature.
3. Phase noise degrades with increasing output frequency.
4. Not all options and codes available at all frequencies.
Rev: 11/8/2018 drs
