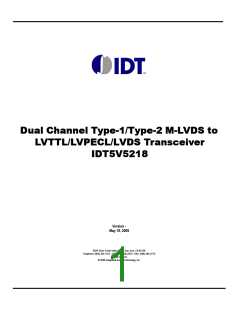

Dual Channel Type-1/Type-2 M-LVDS to
LVTTL/LVPECL/LVDS Transceiver
IDT5V5218
Version -
May 18, 2006
6024 Silver Creek Valley Road, San Jose, CA 95138
Telephone: (800) 345-7015 • TWX: 910-338-2070 • FAX: (408) 284-2775
Printed in U.S.A.
© 2006 Integrated Device Technology, Inc.
DISCLAIMER
Integrated Device Technology, Inc. reserves the right to make changes to its products or specifications at any time, without notice, in order to improve design or performance
and to supply the best possible product. IDT does not assume any responsibility for use of any circuitry described other than the circuitry embodied in an IDT product. The
Company makes no representations that circuitry described herein is free from patent infringement or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent, patent rights or other rights, of Integrated Device Technology, Inc.
LIFE SUPPORT POLICY
Integrated Device Technology's products are not authorized for use as critical components in life support devices or systems unless a specific written agreement pertaining to
such intended use is executed between the manufacturer and an officer of IDT.
1. Life support devices or systems are devices or systems which (a) are intended for surgical implant into the body or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury to the user.
2. A critical component is any components of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device
or system, or to affect its safety or effectiveness.
Table of Contents
TABLE OF CONTENTS ........................................................................................................................................................... 3
LIST OF TABLES .................................................................................................................................................................... 4
LIST OF FIGURES ................................................................................................................................................................... 5
FEATURES.............................................................................................................................................................................. 6
APPLICATIONS....................................................................................................................................................................... 6
DESCRIPTION......................................................................................................................................................................... 6
FUNCTIONAL BLOCK DIAGRAM.......................................................................................................................................... 7
1
2
3
PIN ASSIGNMENT .......................................................................................................................................................... 8
PIN DESCRIPTION ......................................................................................................................................................... 9
ELECTRICAL SPECIFICATION ................................................................................................................................... 11
3.1
3.2
ABSOLUTE MAXIMUM RATING AND RECOMMENDED OPERATION CONDITIONS ................................. 11
LVTTL/LVDS/LVPECL DRIVER/RECEIVER CHARACTERISTICS ................................................................ 12
3.2.1 M-LVDS to LVTTL................................................................................................................................ 12
3.2.2 M-LVDS to LVDS ................................................................................................................................. 13
3.2.3 M-LVDS to LVPECL............................................................................................................................. 16
M-LVDS DRIVER TYPE-1/TYPE-2 RECEIVER CHARACTERISTICS ............................................................ 17
3.3
ORDERING INFORMATION.................................................................................................................................................. 24
Table of Contents
3
May 18, 2006
List of Tables
Table-1
Table-2
Table-3
Table-4
Table-5
Table-6
Table-7
Table-8
Table-9
Table-10
Table-11
Table-12
Table-13
Table-14
Table-15
Table-16
Table-17
Pin Description............................................................................................................................................... 9
Absolute Maximum Rating........................................................................................................................... 11
Recommended Operation Conditions.......................................................................................................... 11
LVTTL DC Parameters ................................................................................................................................ 12
LVTTL AC Parameters................................................................................................................................. 12
LVDS DC Parameters.................................................................................................................................. 13
LVDS AC Parameters.................................................................................................................................. 15
Differential LVPECL DC Parameters ........................................................................................................... 16
Differential LVPECL AC Parameters ........................................................................................................... 16
M-LVDS Type-1 Receiver Input Threshold Test Voltages........................................................................... 17
M-LVDS Type-2 Receiver Input Threshold Test Voltages........................................................................... 17
M-LVDS DC Parameters.............................................................................................................................. 18
M-LVDS Input Current Parameters.............................................................................................................. 20
M-LVDS AC Parameters.............................................................................................................................. 21
M-LVDS Type-1/Type-2 Receiver AC Parameters ...................................................................................... 22
M-LVDS Receiver output DC Parameters ................................................................................................... 23
M-LVDS Driver AC Parameter..................................................................................................................... 23
List of Tables
4
May 18, 2006
List of Figures
Figure-1
Figure-2
Figure-3
Figure-4
Figure-5
Figure-6
Figure-7
Figure-8
Figure-9
Figure-10
Figure-11
Figure-12
Figure-13
Figure-14
Figure-15
Figure-16
Functional Block Diagram .............................................................................................................................. 7
IDT5V5218 TSSOP24 Package Pin Assignment ........................................................................................... 8
LVTTL Output Test Circuit and Waveforms ................................................................................................. 12
LVDS Receiver Input Common-mode Range Test Circuit ........................................................................... 13
LVDS Driver Output Voltage Test Circuit ..................................................................................................... 14
LVDS Driver Shorted to Ground .................................................................................................................. 14
LVDS Driver Shorted Together .................................................................................................................... 14
LVDS Output Test Circuit ............................................................................................................................. 15
LVPECL Driver Output Test Circuit and Waveforms ................................................................................... 16
M-LVDS Driver Output Voltage Test Circuit ................................................................................................. 18
M-LVDS Driver Short-Circuit Test Circuit ..................................................................................................... 18
M-LVDS Type-1/Type-2 Receiver Input Common-mode Range Test Circuit .............................................. 19
Various Input Currents Test Circuit .............................................................................................................. 20
Differential Skew .......................................................................................................................................... 21
M-LVDS Output Voltage Test Circuit ........................................................................................................... 21
Timing and Voltage Definitions for the Output Signal .................................................................................. 23
List of Figures
5
May 18, 2006
Dual Channel Type-1/Type-2 M-
LVDS to LVTTL/LVPECL/LVDS
IDT5V5218
‹
Other Features
FEATURES
–
–
–
Low power consumption < 220 mW
Hot swappable
24-pin TSSOP package
‹
Main Features
–
–
–
Two independent channels
Type-2 M-LVDS receiver supports 100 mV offset threshold
Up to 166 MHz selectable input/output signals: LVTTL/
LVPECL/LVDS
APPLICATIONS
–
–
–
M-LVDS interface allows common-mode voltage: -1 V to 3.4 V
Power up and power down glitch free
M-LVDS interface pins in high impedance state when the
device is powered down or VDD < 1.5 V
–
–
–
–
Backplane transmission
Telecommunication system
Data communications
ATCA clock distribution
–
Capable of driving bus load from 30 Ω to 55 Ω
DESCRIPTION
The IDT5V5218 is a dual-channel transceiver which can interchange
data across multipoint data bus structures.
between LVTTL/LVPECL/LVDS signals and M-LVDS signals. The
drivers and the receivers can be enabled or disabled by external pins.
The M-LVDS driver is capable of driving bus load from 30 Ω to 55 Ω.
The M-LVDS interface allows common-mode voltage range of -1 V to
3.4 V.
In the device, the two channels operate independently. Each channel
has selectable LVTTL/LVPECL/LVDS drivers and receivers, a selectable
Type-1/Type-2 M-LVDS receiver and M-LVDS driver. It translates
IDT and the IDT logo are trademarks of Integrated Device Technology, Inc.
6
May 18, 2006
DSC-6966/-
2006 Integrated Device Technology, Inc.
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
FUNCTIONAL BLOCK DIAGRAM
RE1_EN
OUT1_A
OUT1_B
LVTTL/LVPECL/
LVDS Interface 1
IN1_A
IN1_B
M1_A
M-LVDS Interface 1
M1_B
DR1_EN
RE2_EN
OUT2_A
OUT2_B
LVTTL/LVPECL/
LVDS Interface 2
M2_A
IN2_A
IN2_B
M-LVDS Interface 2
M2_B
DR2_EN
DIFF_SEL
I/O Config
TYPE_SEL
Figure-1 Functional Block Diagram
Functional Block Diagram
7
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
1
PIN ASSIGNMENT
DR2_EN
1
24
23
22
21
20
19
18
17
16
15
14
13
RE2_EN
OUT2_B
OUT2_A
DIFF_SEL
TYPE_SEL
VDD1
IN2_A
IN2_B
OUT1_A
OUT1_B
RE1_EN
DR1_EN
IN1_A
IN1_B
NC
2
3
4
5
6
IDT5V5218
7
M1_B
8
M1_A
9
GND1
10
11
12
VDD2
NC
M2_B
GND2
M2_A
Figure-2 IDT5V5218 TSSOP24 Package Pin Assignment
Pin Assignment
8
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
2
PIN DESCRIPTION
Table-1 Pin Description
Name
Pin No.
I/O
Type
Description
Global Signal
I
DR1_EN: M-LVDS Driver 1 Enable
This pin controls the M-LVDS driver for channel 1: high for enable and low for disable.
DR1_EN
RE1_EN
DR2_EN
RE2_EN
7
6
LVTTL
LVTTL
LVTTL
LVTTL
Pull-down
RE1_EN: Type-1/Type-2 M-LVDS Receiver 1 and LVTTL/LVPECL/LVDS Drivers 1 Enable
This pin controls the Type-1/Type-2 M-LVDS receiver and LVTTL/LVPECL/LVDS drivers for
channel 1: high for disable and low for enable. Note that the LVTTL driver is in high impedance
state when disabled.
I
Pull-up
I
DR2_EN: M-LVDS Driver 2 Enable
This pin controls the M-LVDS driver for channel 2: high for enable and low for disable.
1
Pull-down
RE2_EN: Type-1/Type-2 M-LVDS Receiver 2 and LVTTL/LVPECL/LVDS Drivers 2 Enable
This pin controls the Type-1/Type-2 M-LVDS receiver and LVTTL/LVPECL/LVDS drivers for
channel 2: high for disable and low for enable. Note that the LVTTL driver is in high impedance
state when disabled.
I
24
Pull-up
TYPE_SEL: Type-1/Type-2 M-LVDS Receiver Selection
This pin globally controls the Type-1/Type-2 M-LVDS receiver selection: high for Type-2 and
low for Type-1.
I
TYPE_SEL
DIFF_SEL
20
21
LVTTL
LVTTL
Pull-down
DIFF_SEL: Type Selection for LVTTL/LVPECL/LVDS Interface Input/Output 1 and 2
This pin globally determines the type of input/output 1 and 2 of the LVTTL/LVPECL/LVDS
interface: high for LVDS, floating for LVTTL and low for LVPECL.
I
Pull to VDD/2
LVTTL/LVPECL/LVDS Interface
IN1_A/IN1_B: Positive/Negative LVPECL/LVDS Input 1
An up to 166 MHz differential signal is input on this pair of pins. The input signal can be
LVPECL or LVDS, as selected by the DIFF_SEL pin.
IN1_A
IN1_B
8
9
LVTTL/LVPECL/LVDS
LVPECL/LVDS
I
I
IN1_A: LVTTL Input 1
An up to 166 MHz LVTTL signal is input on this pin, as selected by the DIFF_SEL pin. In this
case, the IN1_B pin will be in high impedance state.
IN2_A/IN2_B: Positive/Negative LVPECL/LVDS Input 2
An up to 166 MHz differential signal is input on this pair of pins. The input signal can be
LVPECL or LVDS, as selected by the DIFF_SEL pin.
IN2_A
IN2_B
2
3
LVTTL/LVPECL/LVDS
LVPECL/LVDS
IN2_A: LVTTL Input 2
An up to 166 MHz LVTTL signal is input on this pin, as selected by the DIFF_SEL pin. In this
case, the IN2_B pin will be in high impedance state.
OUT1_A/OUT1_B: Positive/Negative LVPECL/LVDS Output 1
This pair of pins output an up to 166 MHz differential signal. The output signal can be LVPECL
or LVDS, as selected by the DIFF_SEL pin.
OUT1_A
OUT1_B
4
5
LVTTL/LVPECL/LVDS
LVPECL/LVDS
O
OUT1_A: LVTTL Output 1
This pin outputs an up to 166 MHz LVTTL signal, as selected by the DIFF_SEL pin. In this
case, the OUT1_B pin will be in high impedance state.
Pin Description
9
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
Table-1 Pin Description (Continued)
Name
Pin No.
I/O
Type
Description
OUT2_A/OUT2_B: Positive/Negative LVPECL/LVDS Output 2
This pair of pins output an up to 166 MHz differential signal. The output signal can be LVPECL
or LVDS, as selected by the DIFF_SEL pin.
OUT2_A
OUT2_B
22
23
LVTTL/LVPECL/LVDS
LVPECL/LVDS
O
OUT2_A: LVTTL Output 2
This pin outputs an up to 166 MHz LVTTL signal, as selected by the DIFF_SEL pin. In this
case, the OUT2_B pin will be in high impedance state.
M-LVDS Interface
M1_A
M1_B
17
18
M1_A/M1_B: Positive/Negative M-LVDS Data Bus Interface 1
This pair of pins are connected to the M-LVDS data bus.
I/O
I/O
M-LVDS
M-LVDS
M2_A
M2_B
13
14
M2_A/M2_B: Positive/Negative M-LVDS Data Bus Interface 2
This pair of pins are connected to the M-LVDS data bus.
Power Supply and Ground
3.3 V Power Supply for Channel 1
3.3 V Power Supply for Channel 2
Ground for Channel 1
VDD1
VDD2
GND1
GND2
19
15
16
12
Power
Power
-
-
-
-
Ground
Ground
Ground for Channel 2
Others
NC
10, 11
-
-
NC: No Connection
Pin Description
10
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
3
ELECTRICAL SPECIFICATION
3.1 ABSOLUTE MAXIMUM RATING AND RECOMMENDED OPERATION CONDITIONS
Table-2 Absolute Maximum Rating
Symbol
Parameter
Range
VDD
VIN
Supply Voltage
-0.5 V to 4.1 V
-0.5 V to 4.1 V
-1.8 V to 4 V
-0.3 V to 4 V
-1.8 V to 4 V
±8 kV
Input Voltage
Output Voltage
REn_EN(1), DRn_EN, INn_A, INn_B
Mn_A, Mn_B
OUTn_A, OUTn_B
Mn_A, Mn_B
VOUT
Electrostatic Discharge
Human Body Model Mn_A, Mn_B
All pins
±2 kV
TJ
Junction Temperature
Storage Temperature
150°C
TS
-65°C to 165°C
1. n = 1, 2
Table-3 Recommended Operation Conditions
Symbol
Parameter
Min
Typ
Max
Unit
VDD
Power Supply
3.0
2
3.3
3.6
3.0
0.8
3.8
3.0
85
V
V
VIH
VIL
High Level Input Voltage
Low Level Input Voltage
0
V
Voltage at any Bus Terminal
Magnitude of Differential Input Voltage
Ambient Operating Temperature
-1.4
0.05
-40
V
V
TA
°C
Electrical Specification
11
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
3.2 LVTTL/LVDS/LVPECL DRIVER/RECEIVER CHARACTERISTICS
3.2.1 M-LVDS TO LVTTL
Table-4 LVTTL DC Parameters
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
VIHL
VILL
IILL
Input High Level
Input Low Level
2.0
-0.3
-1.0
2.4
VDD + 0.3
0.8
V
V
Input Leakage Current
Output High Voltage
Output Low Voltage
1.0
µA
V
VOHL
VOLL
Output Current = 17 mA, VDD = 3 V
Output Current = 12 mA, VDD = 3 V
0.4
V
Table-5 LVTTL AC Parameters
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
tr
tf
Rise Time
Fall Time
Frequency
Cload = 15 pF, 10% - 90%
Cload = 15 pF, 10% - 90%
1.2
1.2
ns
ns
fML
166
MHz
OUTn
VOUT
15 pF
VA
1.2 V
VB
1.0 V
VID
0.2 V
0 V
-0.2 V
tpHL
tpLH
VO
VOH
VOL
90%
10%
tf
tr
Figure-3 LVTTL Output Test Circuit and Waveforms
Electrical Specification
12
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
3.2.2 M-LVDS TO LVDS
Table-6 LVDS DC Parameters
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
VCM
VDIFF
VIDTH
IIN
Input Common-mode Voltage Range
Input Peak Differential Voltage
Input Differential Threshold
Input Leakage Current
0
1200
2400
900
100
20
mV
mV
mV
µA
100
-100
VOH
VOL
Output Voltage High
Rload = 100 Ω ± 1%
Rload = 100 Ω ± 1%
Rload = 100 Ω ± 1%
Rload = 100 Ω ± 1%
1350
925
250
1100
80
1475
1100
450
1300
120
25
mV
mV
mV
mV
Ohm
mV
mV
mA
mA
Output Voltage Low
VOD
VOS
Differential Output Voltage
Output Offset Voltage
R0
Differential Output Impedance
Change in VOD between Logic 0 and Logic 1
Change in VOS between Logic 0 and Logic 1
Output Current
V
CM = 1.0 V or 1.4 V
100
∆VOD
∆VOS
Rload = 100 Ω ± 1%
Rload = 100 Ω ± 1%
Driver shorted to GND
Driver shorted together
25
I
SAISB
24
ISAB
Output Current
12
10 kΩ
INn_A
Mn_A
VOUT
LVTTL/LVPECL/
LVDS Interface
M-LVDS Interface
INn_B
1 µF
10 kΩ
Mn_B
+
-
VTEST
0 V to 2.4 V
1 µF
0~166 MHz
Figure-4 LVDS Receiver Input Common-mode Range Test Circuit
Electrical Specification
13
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
50 W
OUTn_A
OUTn_B
VOD
VOS
50 W
VA
VB
1.2 V
1.0 V
VID
0.2 V
0 V
-0.2 V
tpHL
tpLH
VO
VOH
VOL
80%
20%
tf
tr
Figure-5 LVDS Driver Output Voltage Test Circuit
OUTn_A
High or Low Steady
State Logic Input
+
-
VTEST
OUTn_B
-1 V to 3.4 V
Figure-6 LVDS Driver Shorted to Ground
OUTn_A
High or Low Steady
State Logic Input
OUTn_B
Figure-7 LVDS Driver Shorted Together
Electrical Specification
14
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
Table-7 LVDS AC Parameters
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
tr
tf
Rise Time
Fall Time
20% - 80%
20% - 80%
150
150
-50
350
350
50
ps
ps
tTSP
fMM
Differential Skew
Frequency
ps
166
MHz
OUTn_A
3.74 kΩ
3.74 kΩ
High or Low Steady
State Logic Input
VT
100 Ω
+
VTEST
0 V to 2.4 V
OUTn_B
-
Figure-8 LVDS Output Test Circuit
Electrical Specification
15
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
3.2.3 M-LVDS TO LVPECL
Table-8 Differential LVPECL DC Parameters
Symbol
Parameter
Min
Typ
Max
Unit
VIL
VIH
VID
IIH
Input Low Voltage, Differential Inputs
Input High Voltage, Differential Inputs
Input Differential Voltage
VDD-2.5
VDD-2.4
0.1
VDD-0.5
VDD-0.4
1.4
V
V
V
Input High Current, VID = 1.4 V
Input Low Current, VID = 1.4 V
Output Voltage Low
-10
10
µA
µA
V
IIL
-10
10
VOL
VOH
VOS
VDD-2.1
VDD-1.25
580
VDD-1.6
VDD-0.88
950
Output Voltage High
V
Output Differential Voltage
mV
OUTn_A
OUTn_B
50 Ω
50 Ω
VOS
VDD - 2 V
VA
VB
1.2 V
1.0 V
VID
0.2 V
0 V
-0.2 V
tpHL
tpLH
VO
VOH
VOL
80%
20%
tf
tr
Figure-9 LVPECL Driver Output Test Circuit and Waveforms
Table-9 Differential LVPECL AC Parameters
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
tr
tf
Rise Time
Fall Time
20% - 80%
20% - 80%
150
150
-50
350
350
50
ps
ps
tTSP
fMM
Differential Skew
Frequency
ps
166
MHz
Electrical Specification
16
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
3.3 M-LVDS DRIVER TYPE-1/TYPE-2 RECEIVER CHARACTERISTICS
Table-10 M-LVDS Type-1 Receiver Input Threshold Test Voltages
Applied Voltages
Resulting Differential Input Voltage
Resulting Common-mode Input Voltage
Receiver Output(1)
VA
VB
2.400
0.000
3.425
3.375
-0.975
-1.025
0.000
2.400
3.375
3.425
-1.025
-0.975
2.400
-2.400
0.050
-0.050
0.050
-0.050
1.200
1.200
3.4
High
Low
High
Low
High
Low
3.4
-1
-1
1. The receiver is enabled ( The RE1_EN or RE2_EN pin is pulled low).
Table-11 M-LVDS Type-2 Receiver Input Threshold Test Voltages
Applied Voltages
Resulting Differential Input Voltage
Resulting Common-mode Input Voltage
Receiver Output(1)
VA
VB
2.400
0.000
3.475
3.425
-0.925
-0.975
0.000
2.400
3.325
3.375
-1.075
-1.025
2.400
-2.400
0.150
0.050
0.150
0.050
1.200
1.200
3.4
High
Low
High
Low
High
Low
3.4
-1
-1
1. The receiver is enabled (The RE1_EN or RE2_EN pin is pulled low).
Electrical Specification
17
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
Table-12 M-LVDS DC Parameters
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
VODM
Differential Output Voltage
480
-50
650
50
mV
mV
∆VODM
Change in VODM for Complimentary Output States,
∆VODM = |VODM1 - VODM0
|
VOSM
∆VOSM
VOSM(p-p)
IOM
Offset Voltage
0.8
-50
1.2
50
V
Change in VOSM for Complimentary Output States
Peak-to-peak Common-mode Output Voltage
Output Short Circuit Current
mV
mV
mA
µA
mV
150
20
IIZM
High Impedance Input Current
-10
10
VTHM
Differential Input High Threshold
Type-1
Type-2
50
150
VTLM
Differential Input Low Threshold
Type-1
Type-2
-50
+50
mV
VCMM
IINM
Input Common-mode Range
Input Current
VINA - VINB = 200 mV
-1
3.4
20
V
Input Voltage = 0 V to 2.4 V
-20
µA
24.9 Ω
24.9 Ω
∆VOSM
Mn_A
Mn_B
VOSM(p-p)
VODM
VOSM
VOSM
VAB
0 V
VODM0
VODM1
Figure-10 M-LVDS Driver Output Voltage Test Circuit
Mn_A
High or Low Steady
State Logic Input
+
-
VTEST
- 1 V to 3.4 V
Mn_B
Figure-11 M-LVDS Driver Short-Circuit Test Circuit
Electrical Specification
18
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
10 kΩ
10 kΩ
Mn_A
M-LVDS Interface
Mn_B
OUTn_A
LVTTL/LVPECL/
LVDS Interface
VOUT
OUTn_B
+
VTEST
-
-1 V to 3.4 V
1 µF
1 µF
0 ~ 166 MHz
Figure-12 M-LVDS Type-1/Type-2 Receiver Input Common-mode Range Test Circuit
Electrical Specification
19
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
Table-13 M-LVDS Input Current Parameters
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
IA
Receiver or Transceiver with Driver Disabled Input Current
VA = 3.8 V, VB = 1.2 V
VA = 0 V or 2.4 V, VB = 1.2 V
0
32
20
0
µA
-20
-32
0
VA = - 1.4 V, VB = 1.2 V
IB
Receiver or Transceiver with Driver Disabled Input Current
VB = 3.8 V, VA = 1.2 V
32
20
0
µA
VB = 0 V or 2.4 V, VA = 1.2 V
-20
-32
-4
VB = -1.4 V, VA = 1.2 V
IAB
Receiver or Transceiver with Driver Differential Current (IA - IB)
Receiver or Transceiver Power-off Input Current
VA = VB, -1.4 V < VA < 3.8 V
4
µA
µA
IA(OFF)
VA = 3.8 V, VB = 1.2 V, 0 V < VDD < 1.5 V
VA = 0 or 2.4 V, VB = 1.2 V, 0 V < VDD < 1.5 V
VA = -1.4 V, VB = 1.2 V, 0 V < VDD < 1.5 V
VB = 3.8 V, VA = 1.2 V, 0 V < VDD < 1.5 V
VB = 0 or 2.4 V, VA = 1.2 V, 0 V < VDD < 1.5 V
VB = -1.4 V, VA = 1.2 V, 0 V < VDD < 1.5 V
0
32
20
0
-20
-32
0
IB(OFF)
Receiver or Transceiver Power-off Input Current
32
20
0
µA
-20
-32
-4
IAB(OFF) Receiver or Transceiver Power-off Differential Input Current (IA - IB) VA = VB, 0 V < VDD< 1.5 V, -1.4 V < VA < 3.8 V
4
µA
pF
CAB
Transceiver with driver disabled differential input capacitance
VAB = 0.4 sin (30E6πt) V
4
Mn_A
Mn_B
V
A
V
B
Figure-13 Various Input Currents Test Circuit
Electrical Specification
20
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
Table-14 M-LVDS AC Parameters
Symbol
Parameter
Test Conditions
Min.
Typ
Max.
Unit
tr
tf
Rise Time
Fall Time
10% - 90%
10% - 90%
0.8
0.8
1.5
1.5
ns
ns
tTSL
fML
Differential Skew, tTSL = {tTSL1, tTSL2
Frequency
}
-100
100
166
ps
MHz
VA
tTSL1
tTSL2
VB
Figure-14 Differential Skew
3.32 kΩ
Mn_A
VODM
50 Ω
+
VTEST
-1 V to 3.4 V
-
Mn_B
3.32 kΩ
Figure-15 M-LVDS Output Voltage Test Circuit
Electrical Specification
21
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
Table-15 M-LVDS Type-1/Type-2 Receiver AC Parameters
Output mode
Symbol
Parameter
Test Condition
Min Typ Max Unit
LVTTL
tpLH
tpHL
Type-1
Type-2
Delay, Low to High Level
Delay, High to Low Level
Pulse Skew, tsk = |tpLH - tpHL
Input clock: freq = 50 MHz, Impedance = 150 Ω,
Voltage = -200 mV - 200 mV. See Figure-3
2.5 5.5
2.5 5.5
6.5
6.5
ns
ns
ps
ps
ns
ns
ps
ps
ns
ns
ps
ps
ps
ps
ps
ps
ns
ns
ps
ps
ps
ps
ps
ps
tsk
|
100 300
300 500
2.4
Tr (10% - 90%)
Tf (10% - 90%)
Tjit(per)
Rise Time
Fall Time
1
1
2.4
Period jitter, rms(1 standard deviation)
Output to Output Skew
4
7
200
5.5
5.5
LVDS
tpLH
tpHL
Delay, Low to High Level
Input clock: freq = 50 MHz, Impedance = 150 Ω,
Voltage = -200 mV - 200 mV. See Figure-5
2.5 4.0
2.5 4.0
Delay, High to Low Level
tsk
Type-1
Type-2
Pulse Skew, tsk = |tpLH - tpHL
|
150 300
250 500
Tr (20% - 80%)
Tf (20% - 80%)
Tjit(per)
Rise Time
Fall Time
150 200 350
150 200 350
Period jitter, rms(1 standard deviation)
Output to Output Skew
4
7
200
5.5
5.5
LVPECL
tpLH
tpHL
Delay, Low to High Level
Input clock: freq = 50 MHz, Impedance = 150 Ω,
Voltage = -200 mV - 200 mV. See Figure-9
2.5
2.5
4
4
Delay, High to Low Level
tsk
Type-1
Type-2
Pulse Skew, tsk = |tpLH - tpHL
|
150 300
200 500
Tr (20% - 80%)
Tf (20% - 80%)
Tjit(per)
Rise Time
Fall Time
150 250 350
150 250 350
Period jitter, rms(1 standard deviation)
Output to Output Skew
4
7
200
Electrical Specification
22
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
Table-16 M-LVDS Receiver output DC Parameters
Output mode
Symbol
Parameter
Test Condition
Min
Typ
Max
Unit
LVPECL
LVDS
VOD
VOS
VOD
Differential Output Voltage
Output Offset Voltage
Differential Output Voltage
Output Current
580
1100
250
950
1300
450
28
mV
mV
mV
mA
mV
1200
350
I
SA, ISB
VODM
Differential Output Voltage
480
650
Table-17 M-LVDS Driver AC Parameter
Symbol
Parameter
Test Condition
Min
Typ
Max
Unit
tpLH
tpHL
Delay, Low to High Level
Delay, High to Low Level
Pulse Skew, tsk = |tpLH - tpHL|
Input clock: freq = 15 MHz, Tr = Tf =
1.2 ns, Impedance = 300 Ω,
Voltage = 0 V - 3.3 V. See Figure-10
2.5
2.5
3.7
3.7
40
5.5
5.5
100
400
1.5
1.5
3
ns
ns
ps
ps
ns
ns
ps
ps
Tsk
LVTTL input
LVDS/LVPECL input
250
1.1
1.1
2
Tr (10% - 90%)
Rise Time
Fall Time
0.7
0.7
Tf (10% - 90%)
Tjit(per)
Period jitter, rms (1 standard deviation)
Output to Output Skew
100
Input
tpLH
tpHL
Vs
0.8Vs/0.9Vs
Output
0.2Vs/0.1Vs
tf
0 Vs
tr
Figure-16 Timing and Voltage Definitions for the Output Signal
Electrical Specification
23
May 18, 2006
IDT5V5218
Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
ORDERING INFORMATION
XXXXXXX
Device Type
XX
X
IDT
Process/
Temperature
Range
I
Industrial (-40 °C to +85 °C)
Green Thin Shrink Small Outline Package (TSSOP, PGG24)
PGG
Dual Channel Type-1/Type-2 M-LVDS to
LVTTL/LVPECL/LVDS Transceiver
5V5218
CORPORATE HEADQUARTERS
6024 Silver Creek Valley Road
San Jose, CA 95138
for SALES:
for Tech Support:
408-360-1552
email:TELECOMhelp@idt.com
1-800-345-7015 or 408-284-8200
fax: 408-284-2775
www.idt.com
IDT and the IDT logo are trademarks of Integrated Device Technology, Inc.
24
厂商 型号 描述 页数 下载

IDT

 		5V50009DCG 扩频时钟发生器[ SPREAD SPECTRUM CLOCK GENERATOR ] 8 页

IDT

 		5V50009DCG8 扩频时钟发生器[ SPREAD SPECTRUM CLOCK GENERATOR ] 8 页

IDT

 		5V50012LCG [ PLL Based Clock Driver, 5V Series, 1 True Output(s), 0 Inverted Output(s), CMOS, LCC-16 ] 11 页

IDT

 		5V50012LCG8LF [ PLL Based Clock Driver, 5V Series, 1 True Output(s), 0 Inverted Output(s), CMOS, ROHS COMPLIANT, LCC-16 ] 11 页

IDT

 		5V50012LCGLF [ PLL Based Clock Driver, 5V Series, 1 True Output(s), 0 Inverted Output(s), CMOS, ROHS COMPLIANT, LCC-16 ] 11 页

IDT

 		5V50013PGG [ Clock Driver, 5V Series, 1 True Output(s), 0 Inverted Output(s), CMOS, PDSO8, ROHS COMPLIANT, TSSOP-8 ] 9 页

IDT

 		5V50013PGG8 [ Clock Driver, 5V Series, 1 True Output(s), 0 Inverted Output(s), CMOS, PDSO8 ] 9 页

IDT

 		5V50015DCG 低EMI时钟发生器[ LOW EMI CLOCK GENERATOR ] 9 页

IDT

 		5V50015DCG8 低EMI时钟发生器[ LOW EMI CLOCK GENERATOR ] 9 页

IDT

 		5V50015PGG 低EMI时钟发生器[ LOW EMI CLOCK GENERATOR ] 9 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.186469s
