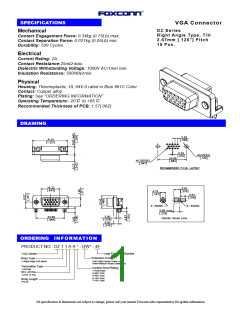

SPECIFICATIONS
VGA Connector
DZ Series
Mechanical
Right Angle Type, T/H
2.67mm [.125"] Pitch
15 Pos.
Contact Engagement Force: 0.34kg (0.75Lb) max.
Contact Separation Force: 0.021kg (0.05Lb) min.
Durability: 500 Cycles
Electrical
Current Rating: 2A
Contact Resistance:25mꢀ max.
Dielectric Withstanding Voltage: 1000V AC/1min min.
Insulation Resistance: 5000Mꢀ min.
Physical
Housing: Thermoplastic, UL 94V-0 rated in Blue 661C Color
Contact: Copper alloy
Plating: See “ORDERING INFORMATION”
Operating Temperature: -20℃ to +85℃
Recommended Thickness of PCB: 1.57[.062]
DRAWING
ORDERING INFORMATION
PRODUCT NO.: DZ 1 1 A A * - HW* - 4F
Lead Free Part Number
Extension Code
VGA Series
Body Type
1=Right Angle PCB Mount
HW7=With Female Screw Lock
HW6=Without Female Screw Lock
Termnation Type
Contact Area Plating
1=Gold Flash
2=20u" Gold
1=Female
NO. of Pos.
A=H/D 15 Pos.
3=30u" Gold
6=10u" Gold
7=15u" Gold
Body Length
A=5.00
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
