2W005G/1

型号:

2W005G/1

品牌:

VISHAY[ VISHAY ]

页数:

4 页

PDF大小:

82 K

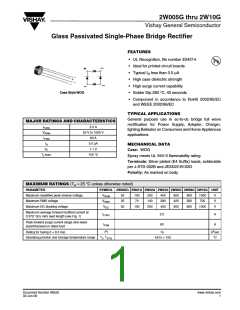

2W005G thru 2W10G
Vishay General Semiconductor
Glass Passivated Single-Phase Bridge Rectifier
FEATURES
• UL Recognition, file number E54214
• Ideal for printed circuit boards
• Typical I less than 0.5 µA
R
~
• High case dielectric strength
• High surge current capability
• Solder Dip 260 °C, 40 seconds
~
Case Style WOG
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
General purpose use in ac-to-dc bridge full wave
rectification for Power Supply, Adapter, Charger,
lighting Ballaster on Consumers and Home Appliances
applications.
MAJOR RATINGS AND CHARACTERISTICS
IF(AV)
VRRM
IFSM
IR
2.0 A
50 V to 1000 V
60 A
5.0 µA
MECHANICAL DATA
Case: WOG
VF
1.1 V
Tj max.
150 °C
Epoxy meets UL 94V-0 flammability rating
Terminals: Silver plated (E4 Suffix) leads, solderable
per J-STD-002B and JESD22-B102D
Polarity: As marked on body
MAXIMUM RATINGS (T = 25 °C unless otherwise noted)
A
PARAMETER
SYMBOL 2W005G 2W01G 2W02G 2W04G 2W06G 2W08G 2W10G UNIT
Maximum repetitive peak reverse voltage
Maximum RMS voltage
VRRM
VRMS
VDC
50
35
50
100
70
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
V
V
V
Maximum DC blocking voltage
100
1000
Maximum average forward rectified current at
0.375" (9.5 mm) lead length (see Fig. 1)
IF(AV)
2.0
60
A
Peak forward surge current single sine-wave
superimposed on rated load
IFSM
A
Rating for fusing (t < 8.3 ms)
I2t
15
A2sec
°C
Operating junction and storage temperature range
TJ, TSTG
- 55 to + 150
Document Number 88528
02-Jun-06
www.vishay.com
1
2W005G thru 2W10G
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS (T = 25 °C unless otherwise noted)
A
PARAMETER
TEST CONDITIONS
SYMBOL
2W005G 2W01G 2W02G 2W04G 2W06G 2W08G 2W10G UNIT
Maximum
instantaneous forward
voltage drop per leg
at 2.0 A
VF
1.1
V
Maximum DC reverse
current at rated DC
blocking voltage per leg
TA = 25 °C
TA = 125 °C
5.0
500
IR
µA
pF
Typical junction
capacitance per leg
at 4.0 V, 1 MHz
CJ
40
20
THERMAL CHARACTERISTICS (T = 25 °C unless otherwise noted)
A
PARAMETER
SYMBOL
2W005G 2W01G 2W02G 2W04G 2W06G 2W08G 2W10G UNIT
RθJA
RθJL
40
15
Typical thermal resistance per leg (1)
°C/W
Note:
(1) Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5 mm) lead length P.C.B. mounting
ORDERING INFORMATION
PREFERRED P/N
UNIT WEIGHT (g)
PREFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
2W06G-E4/51
1.12
51
100
Plastic Bag
RATINGS AND CHARACTERISTICS CURVES
(T = 25 °C unless otherwise noted)
A
2.4
60
60 Hz
T
A
= 25 °C
Resistive or
Inductive Load
Single Sine-Wave
2.0
1.6
1.2
0.8
0.4
0
50
40
30
0.375"
(9.5 mm)
P.C.B.
Copper Pads
0.22 x 0.22"
(5.5 x 5.5 mm)
20
10
0
Capacitive Load
I(pk)
5.0
10
20
=
I(AV)
1.0 Cycle
(per Leg)
0
25
50
75
100
125
150
1
10
Number of Cycles at 60 Hz
100
Ambient Temperature (°C)
Figure 1. Derating Curve Output Rectified Current
Figure 2. Maximum Non-Repetitive Peak Forward Surge
Current Per Leg
www.vishay.com
2
Document Number 88528
02-Jun-06
2W005G thru 2W10G
Vishay General Semiconductor
20
10
100
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
1
10
TJ = 25 °C
Pulse Width = 300 µs
1 % Duty Cycle
0.1
0.01
1
0.1
1
10
100
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Figure 3. Typical Forward Characteristics Per Leg
Figure 5. Typical Junction Capacitance Per Leg
100
10
100
10
T
J
= 125 °C
T
J = 100 °C
1
0.1
1
T
J
= 25 °C
60
0.01
0.1
0.01
0
20
40
80
100
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
t - Heating Time (s)
Figure 4. Typical Reverse Leakage Characteristics Per Leg
Figure 6. Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
Case Style WOG
0.388 (9.86)
0.348 (8.84)
0.220 (5.6)
0.160 (4.1)
1.0
(25.4)
MIN.
0.032 (0.81)
0.028 (0.71)
0.060 (1.52)
0.020 (0.51)
0.220 (5.6)
0.180 (4.6)
0.348 (8.84)
0.308 (7.82)
0.220 (5.6)
0.180 (4.6)
Document Number 88528
02-Jun-06
www.vishay.com
3
Legal Disclaimer Notice
Vishay
Notice
Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc.,
or anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, by
estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Vishay's
terms and conditions of sale for such products, Vishay assumes no liability whatsoever, and disclaims any express
or implied warranty, relating to sale and/or use of Vishay products including liability or warranties relating to fitness
for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify Vishay for any damages resulting from such improper use or sale.
Document Number: 91000
Revision: 08-Apr-05
www.vishay.com
1
