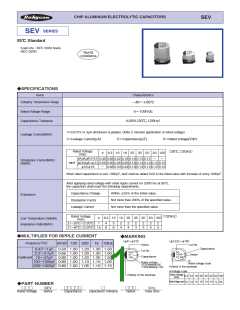

CHIP ALUMINUM ELECTROLYTIC CAPACITORS
SEV
SERIES
SEV
85℃ Standard
・Load Life : 85℃ 2000 hours.
・AEC-Q200.
RoHS
compliance
◆SPECIFICATIONS
Items
Characteristics
Category Temperature Range
Rated Voltage Range
－40～＋85℃
4～100Vdc
Capacitance Tolerance
±20％（20℃，120Hz）
I＝0.01CV or 3μA whichever is greater. (After 2 minutes application of rated voltage)
Leakage Current(MAX)
I＝Leakage Current(μA) ꢀꢀꢀꢀC＝Capacitance(μF) ꢀꢀꢀꢀV＝Rated Voltage(Vdc)
Rated Voltage
(Vdc)
（20℃，120Hz）
4
6.3 10 16 25 35 50 63 100
φ4,φ5,φ6.3×5.5
φ6.3×8,φ8～φ12.5
φ16,φ18
0.40 0.26 0.22 0.18 0.16 0.13 0.12
－
－
Dissipation Factor(MAX)
(tanδ)
tanδ
0.50 0.35 0.26 0.20 0.16 0.14 0.12 0.12 0.10
0.48 0.34 0.24 0.18 0.14 0.12 0.12 0.10
－
When rated capacitance is over 1000μF, tanδshall be added 0.02 to the listed value with increase of every 1000μF.
After applying rated voltage with rated ripple current for 2000 hrs at 85℃,
the capacitors shall meet the following requirements.
Within ±25％ of the initial value.
Capacitance Change
Dissipation Factor
Leakage Current
Endurance
Not more than 200％ of the specified value.
Not more than the specified value.
Rated Voltage
（120Hz）
6.3 10 16 25 35 50 63 100
4
Low Temperature Stability
Impedance Ratio(MAX)
(Vdc)
Z（－25℃）/Z（20℃）
Z（－40℃）/Z（20℃）
7
15
4
8
3
8
2
4
2
4
2
3
2
3
2
5
2
5
◆MULTIPLIER FOR RIPPLE CURRENT
◆MARKING
〈φ4～φ10〉
〈φ12.5～φ18〉
Frequenc（y Hz）
60（50） 120 500
1k 10k≦
Series
Lot No.
Capacitance
0.47～1μF 0.50 1.00 1.20 1.30 1.50
2.2～4.7μF 0.65 1.00 1.20 1.30 1.50
10～47μF 0.80 1.00 1.20 1.30 1.50
100～1000μF 0.80 1.00 1.10 1.15 1.20
2200～10000μF 0.80 1.00 1.05 1.10 1.15
Lot No.
AA
UAA
47
16V
1000
1C SE
Series
Capacitance
Coefficient
※
Rated voltage
Rated voltage code
（6.3V：Marking 6V）
（100V：Marking 100）
Polarity of the terminals
※Voltage code
Rated Voltage
Polarity of the terminals
6.3 10 16 25 35 50 63 100
(Vdc)
Rated Voltage code
0J 1A 1C 1E 1V 1H 1J 2A
◆PART NUMBER
□□□
SEV
□□□□□
□
□□□
D×L
Rated Voltage
Series
Capacitance
Capacitance Tolerance
Option
Case Size
