PXT2907A/T1

型号：

PXT2907A/T1

描述：

晶体管开关\n[ TRANSISTOR SWITCHING ]

品牌：

ETC[ ETC ]

页数：

8 页

PDF大小：

50 K

下载PDF手册

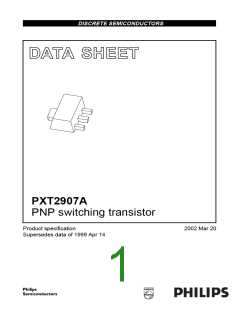

DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage
PXT2907A
PNP switching transistor
Product specification
2002 Mar 20
Supersedes data of 1999 Apr 14
Philips Semiconductors
Product specification
PNP switching transistor
PXT2907A
FEATURES
PINNING
PIN
• High current (max. 600 mA)
• Low voltage (max. 60 V).
DESCRIPTION
1
2
3
emitter
collector
base
APPLICATIONS
• Switching and linear amplification.
handbook, halfpage
DESCRIPTION
2
1
PNP switching transistor in a SOT89 plastic package.
NPN complement: PXT2222A.
3
MARKING
1
2
3
TYPE NUMBER
PXT2907A
MARKING CODE
Bottom view
MAM297
p2F
Fig.1 Simplified outline (SOT89) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL
PARAMETER
collector-base voltage
CONDITIONS
open emitter
MIN.
MAX.
−60
UNIT
VCBO
VCEO
VEBO
IC
−
−
−
−
−
−
−
V
V
V
collector-emitter voltage
emitter-base voltage
collector current (DC)
peak collector current
peak base current
open base
−60
open collector
−5
−600
−800
−200
1.3
mA
mA
mA
W
ICM
IBM
Ptot
Tstg
Tj
total power dissipation
storage temperature
junction temperature
operating ambient temperature
Tamb ≤ 25 °C; note 1
−65
−
+150
150
°C
°C
Tamb
−65
+150
°C
Note
1. Device mounted on a printed-circuit board, single-sided copper, tinplated, mounting pad for collector 6 cm2.
For other mounting conditions, see “Thermal considerations for SOT89 in the General Part of associated Handbook”.
2002 Mar 20
2
Philips Semiconductors
Product specification
PNP switching transistor
PXT2907A
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
CONDITIONS
note 1
VALUE
UNIT
Rth j-a
Rth j-s
thermal resistance from junction to ambient
97
17
K/W
K/W
thermal resistance from junction to soldering point
Note
1. Device mounted on a printed-circuit board, single-sided copper, tinplated, mounting pad for collector 6 cm2.
For other mounting conditions, see “Thermal considerations for SOT89 in the General Part of associated Handbook”.
CHARACTERISTICS
Tj = 25 °C unless otherwise specified.
SYMBOL
ICBO
PARAMETER
CONDITIONS
IE = 0; VCB = −50 V
MIN.
MAX.
−10
UNIT
nA
collector cut-off current
−
−
−
IE = 0; VCB = −50 V; Tamb = 125 °C
IC = 0; VEB = −5 V
−10
−50
−
µA
IEBO
hFE
emitter cut-off current
DC current gain
nA
IC = −0.1 mA; VCE = −1 V
IC = −1 mA; VCE = −1 V
75
100
100
100
50
−
−
IC = −10 mA; VCE = −1 V
IC = −150 mA; VCE = −2 V
IC = −500 mA; VCE = −10 V
IC = −150 mA; IB = −15 mA
IC = −500 mA; IB = −50 mA
IC = −150 mA; IB = −15 mA
IC = −500 mA; IB = −50 mA
IE = ie = 0; VCB = −10 V; f = 1 MHz
−
300
−
VCEsat
collector-emitter saturation
voltage
−400
−1.6
−1.3
−2.6
8
mV
V
−
VBEsat
base-emitter saturation voltage
−
V
−
V
Cc
Ce
fT
collector capacitance
emitter capacitance
transition frequency
−
pF
pF
MHz
IC = ic = 0; VEB = −500 mV; f = 1 MHz −
35
IC = −20 mA; VCE = −10 V;
200
−
f = 100 MHz
Switching times (between 10% and 90% levels); (see Fig.2)
ton
td
tr
turn-on time
delay time
rise time
ICon = −150 mA; IBon = −15 mA;
IBoff = 15 mA
−
−
−
−
−
−
40
ns
ns
ns
ns
ns
ns
12
30
toff
ts
turn-off time
storage time
fall time
365
300
65
tf
2002 Mar 20
3
Philips Semiconductors
Product specification
PNP switching transistor
PXT2907A
V
B
V
C
BB
CC
R
R
V
(probe)
(probe)
o
oscilloscope
oscilloscope
450 Ω
450 Ω
R2
V
DUT
i
R1
MGD624
Vi = −9.5 V; T = 500 µs; tp = 10 µs; tr = tf ≤ 3 ns.
R1 = 68 Ω; R2 = 325 Ω; RB = 325 Ω; RC = 160 Ω.
VBB = 3.5 V; VCC = −29.5 V.
Oscilloscope input impedance Zi = 50 Ω.
Fig.2 Test circuit for switching times.
2002 Mar 20
4
Philips Semiconductors
Product specification
PNP switching transistor
PXT2907A
PACKAGE OUTLINE
Plastic surface mounted package; collector pad for good heat transfer; 3 leads
SOT89
B
A
D
b
3
E
L
H
E
1
2
3
c
b
2
w
M
b
1
e
1
e
0
2
4 mm
scale
DIMENSIONS (mm are the original dimensions)
L
min.
UNIT
A
b
b
b
c
D
E
e
e
H
E
w
1
2
3
1
1.6
1.4
0.48
0.35
0.53
0.40
1.8
1.4
0.44
0.37
4.6
4.4
2.6
2.4
4.25
3.75
mm
3.0
1.5
0.8
0.13
REFERENCES
EUROPEAN
PROJECTION
OUTLINE
VERSION
ISSUE DATE
IEC
JEDEC
EIAJ
97-02-28
99-09-13
SOT89
TO-243
SC-62
2002 Mar 20
5
Philips Semiconductors
Product specification
PNP switching transistor
PXT2907A
DATA SHEET STATUS
PRODUCT
DATA SHEET STATUS(1)
STATUS(2)
DEFINITIONS
Objective data
Development This data sheet contains data from the objective specification for product
development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.
Preliminary data
Qualification
This data sheet contains data from the preliminary specification.
Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.
Product data
Production
This data sheet contains data from the product specification. Philips
Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Changes will be
communicated according to the Customer Product/Process Change
Notification (CPCN) procedure SNW-SQ-650A.
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was
published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
DEFINITIONS
DISCLAIMERS
Short-form specification
The data in a short-form
Life support applications
These products are not
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips
Semiconductors customers using or selling these products
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Limiting values definition Limiting values given are in
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
at these or at any other conditions above those given in the
Characteristics sections of the specification is not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Right to make changes
Philips Semiconductors
reserves the right to make changes, without notice, in the
products, including circuits, standard cells, and/or
software, described or contained herein in order to
improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for
the use of any of these products, conveys no licence or title
under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that
these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified.
Application information
Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
no representation or warranty that such applications will be
suitable for the specified use without further testing or
modification.
2002 Mar 20
6
Philips Semiconductors
Product specification
PNP switching transistor
PXT2907A
NOTES
2002 Mar 20
7
Philips Semiconductors – a worldwide company
Contact information
For additional information please visit http://www.semiconductors.philips.com.
Fax: +31 40 27 24825
For sales offices addresses send e-mail to: sales.addresses@www.semiconductors.philips.com.
© Koninklijke Philips Electronics N.V. 2002
SCA74
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands
613514/04/pp8
Date of release: 2002 Mar 20
Document order number: 9397 750 09423
