XW2Z-500AA

型号：

XW2Z-500AA

品牌：

OMRON[ OMRON ELECTRONICS LLC ]

页数：

13 页

PDF大小：

382 K

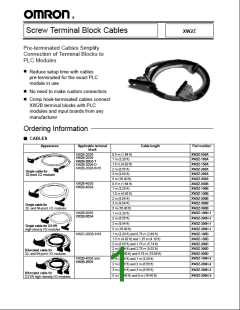

下载PDF手册
XW2Z
XW2Z
Dimensions
Unit: mm (inch)
3 XW2Z-PPPA FOR 32-POINT PLC I/O MODULES (CONNECTOR TYPE)
The G79-PC Cable with a connector for the G7TC cannot be
used for the XW2C due to a difference in wiring. The G79-PC
Cable can be used for some of the XW2B Screw Terminal
Blocks, refer to the XW2B data sheet.
Wiring Diagram
FCN-367J024-AU/F
(mated side)
XG4M-2030
(mated side)
Cable length L
Part number
XW2Z-050A
Cable length L
0.5 m (1.64 ft)
XW2Z-100A
XW2Z-150A
XW2Z-200A
XW2Z-300A
XW2Z-500A
1 m (3.28 ft)
1.5 m (4.92 ft)
2 m (6.56 ft)
3 m (9.84 ft)
5 m (16.40 ft)
Triangle mark
Combinations of Omron PLC I/O Modules and Screw Terminal Blocks
PLC I/O module
C200H-ID215
C200H-OD215
C200H-MD215
C200H-MD115
C200H-MD501
C200H-ID501
I/O points
32 points input
32 points output
16 points in/16 points out
16 points in/16 points out
16 points in/16 points out
32 points input
Terminal block
XW2B-20G5
XW2B-20G4
XW2B-40G5-T
XW2B-20G5-D
Dedicated cable
XW2Z-PPPA
C200H-OD501
C500-ID218CN
C500-ID501CN
C500-OD415CN
C500-MD211CN
C500-OD501CN
32 points output
32 points input
32 points input
32 points output
16 points in/16 points out
32 points output
C200H-ID215
C200H-ID501
C500-ID218CN
C500-ID501CN
C200H-MD215
C200H-MD115
C200H-MD501
C500--MD211CN
32 points input
32 points input
32 points input
32 points input
16 points in/16 points out
16 points in/16 points out
16 points in/16 points out
16 points in/16 points out
XW2C-20G5-IN16
(See Note 3)
Note: 1. The G79-P Cable with a connector for the G7TC cannot be used for the XW2C due to a difference in wiring. The G79-PC
Cable can be used for some of the XW2B Screw Terminal Blocks, refer to the XW2B data sheet.
2. The Input or Output Modules above have two connectors, so each one can use up to two Terminal Blocks and two dedicated
cables.
3. The XW2C is a dedicated Input Terminal Block. If the XW2C is connected to a PLC module that handles both input and output
signals (modules with “MD” in the part number), only the input portion of the PLC module can be used.
3
XW2Z
XW2Z
Unit: mm (inch)
3 XW2Z-PPPB FOR 32-POINT AND 64-POINT PLC I/O MODULES (CONNECTOR TYPE)
Wiring Diagram
FCN-367J040-AU/F
Cable length L
(mated side)
0
e)
Part number
XW2Z-050B
Cable length L
0.5 m (1.64 ft)
XW2Z-100B
XW2Z-150B
XW2Z-200B
XW2Z-300B
XW2Z-500B
1 m (3.28 ft)
1.5 m (4.92 ft)
2 m (6.56 ft)
3 m (9.84 ft)
5 m (16.40 ft)
Triangle mark
Combinations of Omron PLC I/O Modules and Screw Terminal Blocks
PLC I/O module
CQM1-ID213
CQM1-OD213
C200H-ID216
C200H-OD218
C200H-OD21B
I/O points
32 points
Terminal block
XW2B-40G5
XW2B-40G4
Dedicated cable
XW2Z-
PPP
B
C200H-ID111
C200H-ID217
C200H-OD219
C500-ID114
64 points
3G2A5-ID219
3G2A5-OD213
Note: 32-point I/O modules use one Terminal Block and one dedicated cable.
64-point I/O modules use two Terminal Blocks and two dedicated cables.
4
XW2Z
3 XW2Z-PPPD FOR 32-POINT AND 64-POINT PLC I/O MODULES (CONNECTOR TYPE)
XW2Z
Part number
XW2Z-100D
Cable length A
1 m (3.28 ft)
Cable length B
0.75 m (2.46 ft)
1.25 m (4.10 ft)
1.75 m (5.74 ft)
2.75 m (9.02 ft)
4.75 m (15.58 ft)
XW2Z-150D
XW2Z-200D
XW2Z-300D
XW2Z-500D
1.5 m (4.92 ft)
2 m (6.56 ft)
3 m (9.84 ft)
XW2Z-P00D
5 m (16.40 ft)
Note: 1. CN2 (black cable side) is wired to line A of CN1 and
CN3 (yellow cable side) is wired to line B of CN1.
Cable length for A and B
B
250 (9.84)
2. The G79-PC Cable for the G7TC Terminal Block can-
Yellow
not be used for the XW2C due to a difference in wiring.
Black
Line Line
500 (19.68)
A
A
B
Wiring Diagram
FCN-367J024-AU/F
CN1 (mated side)
XG4M-2030
CN3 (mated side)
XG4M-2030
CN2 (mated side)
Triangle mark
Triangle mark
Combinations of Omron PLC I/O Modules and Screw Terminal Blocks
PLC I/O module
CQM1-ID213
I/O points
32 points
Terminal block
Dedicated cable
Two XW2C-20GS-IN16 input blocks One XW2Z-
PPP
D cable
C200H-ID216
C200H-ID217
C500-ID114
64 points
Four XW2C-20GS-IN16 input blocks Two XW2Z-
PPP
D cables
3G2A5-ID219
5
XW2Z
XW2Z
Unit: mm (inch)
3 XW2Z-PPPH-P FOR 96-POINT CS1 PLC I/O MODULES (CONNECTOR TYPE)
XW2Z-P00H-1
XW2Z-P00H-2
XW2Z-P00H-3
A
A
A
B
B
C
Cable length
B
Part number
Part number
Cable length A
1 m (3.28 ft)
A
C
XW2Z-100H-1
XW2Z-100H-3 1 m (3.28 ft) 0.75 ft (2.45 ft) 1 m (3.28 ft)
XW2Z-200H-3 2 m (6.56 ft) 1.75 ft (5.74 ft) 2 m (6.56 ft)
XW2Z-300H-3 3 m (9.84 ft) 2.75 ft (9.02 ft) 3 m (9.84 ft)
XW2Z-200H-1
XW2Z-300H-1
XW2Z-500H-1
2 m (6.56 ft)
3 m (9.84 ft)
5 m (16.40 ft)
XW2Z-500H-3 5 m
(16.40 ft)
4.75 ft
(15.58 ft)
5 m
(16.40 ft)
Part number
XW2Z-100H-2
XW2Z-200H-2
XW2Z-300H-2
XW2Z-500H-2
Cable length A
1 m (3.28 ft)
Cable length B
1 m (3.28 ft)
2 m (6.56 ft)
3 m (9.84 ft)
5 m (16.40 ft)
2 m (6.56 ft)
3 m (9.84 ft)
5 m (16.40 ft)
Combinations of Omron PLC I/O Modules and Screw Terminal Blocks
PLC I/O module
CS1W-ID291,
CS1W-OD291, CS1W-OD292
CS1W-MD291, CS1W-MD292
I/O points
96 points
Terminal blocks
Dedicated cable
Two XW2B-60G terminal blocks
P
Two XW2Z-
PPP
PPP
PPP
H-1 cables
H-2 cables
H-3 cables
CS1W-ID291,
CS1W-OD291, CS1W-OD292
CS1W-MD291, CS1W-MD292
96 points
96 points
Two XW2B-40G4 + XW2B-20G4 or
two XW2B-40G5 + XW2B-20G5
terminal blocks
Two XW2Z-
CS1W-ID291,
CS1W-OD291, CS1W-OD292
CS1W-MD291, CS1W-MD292
Six XW2B-20G4 or six XW2B-20G5 Two XW2Z-
terminal blocks
Note: For detailed information about connector pin-outs, refer to CS1 Operation Manual (W339), Appendix A.
6
XW2Z
XW2Z
3 XW2Z-PPPF CABLE WITH CRIMP TERMINALS (20 POLES)
Wiring Diagram
XG4M-2030
(mated side)
Cable length L
Terminal Y
(M3.5)
Terminal Y
XG4M-2030
(M3.5)
To
devices
300
(11.81)
Triangle mark
Part number
XW2Z-100F
Cable length L
1 m (3.28 ft)
XW2Z-150F
XW2Z-200F
XW2Z-300F
XW2Z-500F
1.5 m (4.92 ft)
2 m (6.56 ft)
3 m (9.84 ft)
5 m (16.40 ft)
Combinations of Omron PLC I/O Modules and Screw Terminal Blocks
PLC I/O module
Terminal block
Dedicated cable
Use any I/O module with a terminal block
XW2B-20G5
XW2Z- F
PPP
from Omron or another manufacturer, or an XW2B-20G4
I/O board for a computer.
7
XW2Z
XW2Z
Installation
3 CONNECTIONS BETWEEN OMRON’S I/O MODULES AND SCREW TERMINAL BLOCKS
Item
Input (ID)
Output (OD)
PLC I/O modules
C200H-OD215
C200H-ID215
C200H-ID501
C500-ID501CN
C500-ID218CN
C200H-OD501
C500-OD501CN
32-point output modules use two
blocks and two cables.
32-point input modules use two
blocks and two cables.
Terminal blocks
XW2B-20G5
XW2B-20G4
XW2B-20G5
XW2B-20G4
Cable
XW2Z-PPPA
XW2Z-PPPA
Connection
diagram
XW2B--20G5
XW2B--20G5
Cable
G79-PC
G79-PC
Connection
diagram
XW2B-20G5
XW2B-20G5
8
XW2Z
XW2Z
Item
Output (OD)
PLC I/O module
C500-OD415CN
32-point output module uses
two blocks and two cables.
Terminal block
XW2B-20G5
XW2B-20G4
Cable
G79-PC
XW2Z-PPPA
Connection
diagram
XW2B-20G5
XW2B-20G5
XW2B-20G5
XW2B-20G5
9
XW2Z
XW2Z
Item
Mixed I/O (MD)
PLC I/O modules
C200H-MD115
C200H-MD215
C200H-MD501
C500-MD211CN
16-point input/16-point output mixed I/O
modules use two blocks and two cables.
Terminal blocks
XW2B-20G5
XW2B-20G4
Cable
G79-PC
XW2Z-PPPA
Connection
diagram
XW2B-20G5
XW2B-20G5
XW2B-20G5
XW2B-20G5
10
XW2Z
XW2Z
Item
Group 2 High--density Input/Output
PLC I/O module
CQM1-ID213
32-point Use one terminal block and one cable.
32-point Use one terminal block and one cable.
64-point Use two terminal blocks and two cables.
64-point Use two terminal blocks and two cables.
64-point Use two terminal blocks and two cables.
64-point Use two terminal blocks and two cables.
C200H-ID216
C200H-ID111
C200H-ID217
C500-ID114
3G2A5-ID219
CQM1-OD213
C200H-OD218
C200H-OD219
32-point Use one terminal block and one cable.
32-point Use one terminal block and one cable.
64-point Use two terminal blocks and two cables.
Terminal block
XW2B-40G5
XW2B-40G4
Cable
XW2Z-PPPB
Connection
diagram
(
)
XW2B-40G5
(
)
(
)
11
XW2Z
XW2Z
Item
PLC I/O module
High-density I/O 1:1 Connection
CS1W-ID29P
CS1W-OD29P
CS1W-MD29P
Use two terminal blocks and two cables.
Terminal block
One XW2B-60G5 or
one XW2B-60G4 per cable
Cable
XW2Z-PPPH-1
Connection
XW2B-60GP
Item
High-density I/O 1:2 Connection
PLC I/O module
CS1W-ID29P
CS1W-OD29P
CS1W-MD29P
Use two 40-point and two 20-point
terminal blocks and two cables.
Terminal block
XW2B-40G5 + XW2B-20G5 blocks or
XW2B-40G4 + XW2B-20G4 blocks
per cable
Cable
XW2Z-PPPH-2
XW2B-20GP
Connection
XW2B-40GP
Note: For detailed information about connector pin-outs, refer to CS1 Operation Manual (W339), Appendix A.
12
XW2Z
XW2Z
Item
High-density I/O 1:3 Connection
PLC I/O module
CS1W-ID29P
CS1W-OD29P
CS1W-MD29P
Use six 20-point terminal blocks of
the same kind and two cables.
Terminal block
Three XW2B-20G5 blocks or
three XW2B-20G4 blocks
per cable
Cable
XW2Z-PPPH-3
Connection
XW2B-20GP
XW2B-20GP
XW2B-20GP
Note: For detailed information about connector pin-outs, refer to CS1 Operation Manual (W339), Appendix A.
NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4.
9
OMRON ELECTRONICS, INC.
OMRON CANADA, INC.
One East Commerce Drive
885 Milner Avenue
Schaumburg, IL 60173
Scarborough, Ontario M1B 5V8
1-800-55-OMRON
416-286-6465
Cat. No. GC RIO-1
04/00
Specifications subject to change without notice.
Printed in U.S.A.
厂商 型号 描述 页数 下载

OMRON

 		XW2B 简化了连接器和接线盒的更换，并且需要更少的面板布线。[ Simplifies Connector and terminal block replacement, and requires less in-panel wiring. ] 10 页

OMRON

 		XW2B-1 [ ACCY EXPANSION UNIT FOR XW2B ] 11 页

OMRON

 		XW2B-20G4 螺丝接线端子电缆[ Screw Terminal Block Cables ] 13 页

OMRON

 		XW2B-20G5 螺丝接线端子电缆[ Screw Terminal Block Cables ] 13 页

OMRON

 		XW2B-20G5-D 螺丝接线端子电缆[ Screw Terminal Block Cables ] 13 页

OMRON

 		XW2B-20J6-1B 多应用控制器：从高性能计算机C ONTROL高度可靠的过程控制[ Multi-application Controllers: From High-performance Machine C ontrol to Highly Reliable Process Control ] 70 页

OMRON

 		XW2B-20J6-3B 简化电机控制和欧姆龙位置控制PLC模块之间的接线[ Simplify Wiring between Motor Controls and Omrons Position Control PLC Modules ] 12 页

OMRON

 		XW2B-20J6-6 [ Multi-application Controllers: From High-performance Machine C ontrol to Highly Reliable Process Control ] 70 页

OMRON

 		XW2B-20J6-8A 自2001年以来， CJ1M系列PLC是在全球范围内广泛应用的控制。[ Since 2001, CJ1M-series PLCs are in control of a wide variety of applications worldwide. ] 29 页

OMRON

 		XW2B-20X5 [ INTERFACE MOD RCPT 34POS ] 11 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.267268s
