QSL11TR

型号:

QSL11TR

品牌:

ROHM[ ROHM ]

页数:

5 页

PDF大小:

82 K

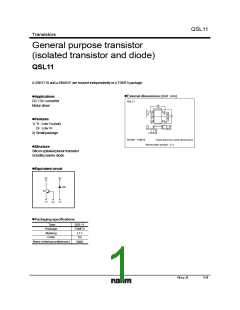

QSL11
Transistors
General purpose transistor
(isolated transistor and diode)
QSL11
A 2SB1710 and a RB461F are housed independently in a TSMT5 package.
zExternal dimensions (Unit : mm)
zApplications
DC / DC converter
Motor driver
QSL11
2.8
1.6
zFeatures
1) Tr : Low VCE(sat)
Di : Low VF
0.3 to 0.6
2) Small package
ROHM : TSMT5
Each lead has same dimensions
Abbreviated symbol : L11
zStructure
Silicon epitaxial planar transistor
Schottky barrier diode
zEquivalent circuit
(5)
(4)
Di2
Tr1
(1)
(2)
(3)
zPackaging specifications
Type
Package
QSL11
TSMT5
L11
Marking
Code
TR
Basic ordering unit(pieces)
3000
Rev.A
1/4
QSL11
Transistors
zAbsolute maximum ratings (Ta=25°C)
Tr1
Parameter
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Symbol
Limits
30
30
6
Unit
V
V
VCBO
VCEO
VEBO
V
I
C
1
2
0.9
A
A
Collector current
1
I
CP
Power dissipation
Junction temperature
Range of storage temperature
Pc
Tj
Tstg
W/ ELEMENT2
150
40 to +125
°C
°C
1 Single pulse, Pw=1ms
2 Mounted on a 25mm 25mm+ t0.8mm ceramic substrate
+
Di2
Parameter
Peak reverse voltage
Symbol
Limits
25
Unit
V
RM
V
Reverse voltage (DC)
V
R
20
V
Average rectified forward current
I
F
700
3
mA
F
orward current surge peak (60H
Z
, 1)
I
FSM
A
W/ ELEMENT
°C
Power dissipation
P
D
0.7
125
Junction temperature
Tj
Range of storage temperature
Tstg
40 to +125
°C
Mounted on a 25mm 25mm+ t0.8mm ceramic substrate
+
Tr1&Di2
Parameter
Symbol
Limits
0.5
Unit
1
2
W/ TOTAL
Total power dissipation
PD
W/ TOTAL
1.25
1
Each terminal mounted on a recommended land
2 Mounted on a 25mm 25mm+ t0.8mm ceramic substrate
+
zElectrical characteristics (Ta=25°C)
Tr1
Parameter
Symbol
Min.
30
30
6
270
Typ.
Max.
Unit
V
Conditions
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cutoff current
BVCBO
BVCEO
BVEBO
I
I
I
C
=10µA
=1mA
V
C
V
E
=10µA
CB=30V
EB=6V
I
CBO
EBO
CE(sat)
FE
100
100
350
680
nA
nA
mV
MHz
pF
V
V
Emitter cutoff current
I
Collector-emitter saturation voltage
DC current gain
V
150
320
7
I
C
=500mA, I
B
=25mA
=100mA∗
=100mA, f=100MHz ∗
=0A, f=1MHz
h
V
V
V
CE=2V, I
CE=2V, I
CB=10V, I
C
Transition frequency
f
T
E
Collector output capacitance
Cob
E
Pulsed
Di2
Parameter
Forward voltage
Symbol
Min.
Typ.
450
Max.
Unit
mV
µA
Conditions
IF=700mA
V
F
490
I
R
Reverse current
200
V
R=20V
t
rr
ns
Reverse recovery time
9
I
F
=I
R=100mA, Irr=0.1I
R
Rev.A
2/4
QSL11
Transistors
zElectrical characteristic curves
Tr1
1000
10
1
10
1
V
CE=2V
Ta=25°C
Pulsed
I
C B=20/1
/I
Ta=100°C
Pulsed
Pulsed
Ta=25°C
Ta= −40°C
Ta=25°C
Ta=100°C
Ta=40°C
V
BE(sat)
IC/IB=20/1
100
0.1
I
C/I
B
=50/1
IC/IB=10/1
0.1
Ta=100°C
Ta=25°C
Ta= −40°C
0.01
0.001
V
CE(sat)
10
0.001
0.01
0.01
0.1
1
10
0.001
0.01
0.1
1
0.001
0.01
0.1
1
COLLECTOR CURRENT : I
C
(A)
COLLECTOR CURRENT : IC (A)
COLLECTOR CURRENT : IC (A)
Fig.1 DC current gain
Fig.3 Collector-emitter saturation voltage
vs. collector current
Fig.2 Collector-emitter saturation voltage
base-emitter saturation voltage
vs. collector current
vs. collector current
1
0.1
1000
1000
Ta=25°C
V
CE=2V
Ta=25°C
V
CE=5V
Pulsed
V
CE=2V
tstg
I
C/I
B
=20/1
f=100MHz
Ta=100°C
Ta=25°C
100
tf
Ta=40°C
100
tr
tdon
0.01
0.001
10
1
10
0.01
0
0.5
1
1.5
0.01
0.1
COLLECTOR CURRENT : IC (A)
1
0.1
1
BASE TO EMITTER CURRENT : VBE (V)
EMITTER CURRENT : I
E
(A)
Fig.5 Gain bandwidth product
vs. emitter current
Fig.6 Switching time
Fig.4 Grounded emitter propagation
characteristics
100
Ta
=
25°C
0A
1MHz
I
C=
Cib
f
=
Cob
10
1
0.1
1
10
100
EMITTER TO BASE VOLTAGE : VEB V)
(
COLLECTOR TO BASE VOLTAGE : VCB V)
(
Fig.7 Collector output capacitance
vs. collector-base voltage
Emitter input capacitance
vs. emitter-base voltage
Rev.A
3/4
QSL11
Transistors
Di2
10
1000m
100m
10m
1m
1
100m
10m
Ta=125°C
C
°
25
100µ
10µ
=
Ta=25°C
Ta
1m
1µ
Ta=25°C
0.1m
0.1µ
0
0.1
0.2
0.3
0.4
0.5
(V)
0.6
0
10
20
30
40
50
60
(V)
70
FORWARD VOLTAGE : V
F
REVERSE VOLTAGE : V
R
Fig.9 Forward characteristics
Fig.10 Reverse characteristics
Rev.A
4/4
Appendix
Notes
No technical content pages of this document may be reproduced in any form or transmitted by any
means without prior permission of ROHM CO.,LTD.
The contents described herein are subject to change without notice. The specifications for the
product described in this document are for reference only. Upon actual use, therefore, please request
that specifications to be separately delivered.
Application circuit diagrams and circuit constants contained herein are shown as examples of standard
use and operation. Please pay careful attention to the peripheral conditions when designing circuits
and deciding upon circuit constants in the set.
Any data, including, but not limited to application circuit diagrams information, described herein
are intended only as illustrations of such devices and not as the specifications for such devices. ROHM
CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any
third party's intellectual property rights or other proprietary rights, and further, assumes no liability of
whatsoever nature in the event of any such infringement, or arising from or connected with or related
to the use of such devices.
Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or
otherwise dispose of the same, no express or implied right or license to practice or commercially
exploit any intellectual property rights or other proprietary rights owned or controlled by
ROHM CO., LTD. is granted to any such buyer.
Products listed in this document are no antiradiation design.
The products listed in this document are designed to be used with ordinary electronic equipment or devices
(such as audio visual equipment, office-automation equipment, communications devices, electrical
appliances and electronic toys).
Should you intend to use these products with equipment or devices which require an extremely high level of
reliability and the malfunction of with would directly endanger human life (such as medical instruments,
transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other
safety devices), please be sure to consult with our sales representative in advance.
About Export Control Order in Japan
Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control
Order in Japan.
In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)
on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.
Appendix1-Rev1.1
