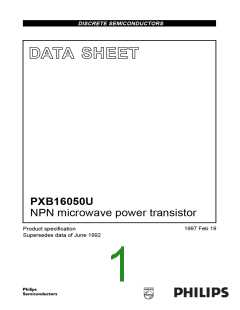

DISCRETE SEMICONDUCTORS
DATA SHEET
PXB16050U
NPN microwave power transistor
1997 Feb 19
Product specification
Supersedes data of June 1992
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
FEATURES
QUICK REFERENCE DATA
Microwave performance up to Tmb = 25 °C in a common base class C
• Input and output matching cells
allow an easier design of circuits
narrowband amplifier.
• Diffused emitter ballasting resistors
providing excellent current sharing
and withstanding a high VSWR
MODE OF
OPERATION
f
VCC
(V)
PL
(W)
Gpo
(dB)
ηC
(%)
Zi/ZL
(Ω)
(GHz)
Class C (CW)
1.65
28
>45
>8.5
>45
see Figs 6 and 7
• Interdigitated structure provides
high emitter efficiency
PINNING - SOT439A
PIN
• Gold metallization realizes very
stable characteristics and excellent
lifetime
DESCRIPTION
1
2
3
collector
emitter
• Multicell geometry gives good
balance of dissipated power and
low thermal resistance.
base connected to flange
APPLICATIONS
Common-base class C power
amplifiers at frequencies between
1.5 and 1.8 GHz.
1
handbook, 4 columns
c
b
DESCRIPTION
3
3
NPN silicon planar epitaxial
microwave power transistor in a
SOT439A metal ceramic flange
package with base connected to the
flange.
e
2
MAM045
Top view
Fig.1 Simplified outline and symbol.
WARNING
Product and environmental safety - toxic materials
This product contains beryllium oxide. The product is entirely safe provided that the BeO slab is not damaged.
All persons who handle, use or dispose of this product should be aware of its nature and of the necessary safety
precautions. After use, dispose of as chemical or special waste according to the regulations applying at the location of
the user. It must never be thrown out with the general or domestic waste.
1997 Feb 19
2
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
VCBO
PARAMETER
collector-base voltage
CONDITIONS
open emitter
MIN.
MAX.
45
UNIT
−
−
−
−
−
−
V
VCEO
VCES
VEBO
IC
collector-emitter voltage
collector-emitter voltage
emitter-base voltage
collector current (DC )
total power dissipation
storage temperature
junction temperature
soldering temperature
open base
RBE = 0 Ω
15
V
45
V
open collector
3
V
6
A
Ptot
Tstg
Tj
Tmb = 75 °C
67
W
°C
°C
°C
−65
−
+200
200
235
Tsld
t ≤ 10 s; note 1
−
Note
1. Up to 0.2 mm from ceramic.
MGL037
MGL038
100
60
handbook, halfpage
handbook, halfpage
P
tot
P
L
(W)
(W)
80
40
60
40
20
20
0
0
0
−
50
0
100
200
2
4
6
8
T
(°C)
mb
P (W)
i
VCC = 28 V; f = 1.65 GHz.
Ptot max = 67 W.
Fig.3 Load power as a function of input power
(see Fig.4).
Fig.2 Power derating curve.
1997 Feb 19
3
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
CONDITIONS
Tj = 100 °C
note 1
MAX.
1.5
UNIT
K/W
K/W
Rth j-mb
Rth mb-h
thermal resistance from junction to mounting base
thermal resistance from mounting base to heatsink
0.2
Note
1. See “Mounting recommendations in the General part of handbook SC19a”.
CHARACTERISTICS
Tmb = 25 °C unless otherwise specified.
SYMBOL
PARAMETER
collector cut-off current
CONDITIONS
MAX.
UNIT
ICBO
VCB = 40 V; IE = 0
3
mA
V
CB = 45 V; IE = 0
15
3
mA
mA
µA
ICES
IEBO
collector cut-off current
emitter cut-off current
VCE = 30 V; RBE = 0
VEB = 1.5 V; IC = 0
300
APPLICATION INFORMATION
Microwave performance up to Tmb = 25 °C measured in the common base test circuit as shown in Fig.4 and working in
CW class C mode.
MODE OF
OPERATION
f
VCC
(V)
PL
(W)
Gpo
(dB)
ηC
(%)
Zi/ZL
(Ω)
(GHz)
Class C (CW); 1.65
see note 1
28
≥45; typ. 50
≥8.5; typ. 9.5
≥45; typ. 52
see Figs 6
and 7
Note
1. Type PXB16050U may be used for narrowband or broadband amplifiers within the frequency range 1.5 to 1.8 GHz.
Operation below 1.5 GHz may damage the transistor due to resonance of the internal output prematching circuit.
1997 Feb 19
4
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
−V
+V
CC
CC
C2
L2
L1
C1
C3
C4
MGK069
Substrate: Teflon fibreglass.
Permittivity: εr = 2.55.
Thickness: 0.8 mm.
The narrowband test circuit is split into two totally independent halves each being 30 × 40 mm in size.
Fig.4 Narrowband test circuit.
1997 Feb 19
5
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
2.5
7
5
5
4
5
3
5
4
3
2.24
2.24
3.5
input
50 Ω
output
50 Ω
10.5
4
3
7.5
MGL036
9
5
7.5
4
9.5
Dimensions in mm.
Fig.5 Narrowband test circuit dimensions.
List of components (see Fig.4)
COMPONENT
DESCRIPTION
VALUE
CATALOGUE NO.
L1
4 turns 0.5 mm diameter copper wire
internal diameter = 2 mm
−
−
−
L2
5 turns 0.5 mm diameter copper wire
internal diameter = 2 mm
−
C1
DC blocking capacitor
feedthrough bypass capacitor
trimmer
100 pF
ATC
C2
−
Erie 1250-003
C3, C4
0.6 to 4.5 pF
Tekelec AT-3-7271SL
1997 Feb 19
6
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
1
0.5
2
0.2
5
1.5 GHz
10
Z
i
+
j
1.8
0.2
0.5
1
2
5
10
0
∞
– j
10
5
0.2
2
0.5
MCD623
1
VCC = 28 V; ZO = 10 Ω.
Fig.6 Input impedance as a function of frequency; typical values.
1
0.5
2
Z
L
0.2
5
1.8 GHz
10
1.5
+ j
– j
0.2
0.5
1
2
5
10
0
∞
10
5
0.2
2
0.5
MCD622
1
VCC = 28 V; ZO = 10 Ω.
Fig.7 Optimum load impedance as a function of frequency; typical values.
7
1997 Feb 19
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
PACKAGE OUTLINE
12.85 max
0.15 max
6
max
3.3
2.9
1.6 max
3
23 max
seating plane
3.7
max
2.7
min
1
9.85
max
10.3
10.0
3.3
2.7
min
2
MBC881
8.25
16.5
Dimensions in mm.
Torque on screws: max. 0.4 Nm.
Recommended screw: M3.
Recommended pitch for mounting screws: 19 mm.
Fig.8 SOT439A.
1997 Feb 19
8
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
DEFINITIONS
Data sheet status
Objective specification
Preliminary specification
Product specification
This data sheet contains target or goal specifications for product development.
This data sheet contains preliminary data; supplementary data may be published later.
This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of this specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
1997 Feb 19
9
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
NOTES
1997 Feb 19
10
Philips Semiconductors
Product specification
NPN microwave power transistor
PXB16050U
NOTES
1997 Feb 19
11
Philips Semiconductors – a worldwide company
Argentina: see South America
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,
Tel. +43 1 60 101, Fax. +43 1 60 101 1210
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 200 733, Fax. +375 172 200 773
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Belgium: see The Netherlands
Brazil: see South America
Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. +48 22 612 2831, Fax. +48 22 612 2327
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 689 211, Fax. +359 2 689 102
Portugal: see Spain
Romania: see Italy
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,
Tel. +65 350 2538, Fax. +65 251 6500
Colombia: see South America
Czech Republic: see Austria
Slovakia: see Austria
Slovenia: see Italy
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,
Tel. +45 32 88 2636, Fax. +45 31 57 1949
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. +27 11 470 5911, Fax. +27 11 470 5494
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615800, Fax. +358 9 61580/xxx
South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 829 1849
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,
Tel. +33 1 40 99 6161, Fax. +33 1 40 99 6427
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 3 301 6312, Fax. +34 3 301 4107
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 23 53 60, Fax. +49 40 23 536 300
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 632 2000, Fax. +46 8 632 2745
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,
Tel. +30 1 4894 339/239, Fax. +30 1 4814 240
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2686, Fax. +41 1 481 7730
Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.
Worli, MUMBAI 400 018, Tel. +91 22 4938 541, Fax. +91 22 4938 722
Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2870, Fax. +886 2 2134 2874
Indonesia: see Singapore
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,
Tel. +972 3 645 0444, Fax. +972 3 649 1007
Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. +90 212 279 2770, Fax. +90 212 282 6707
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,
Tel. +81 3 3740 5130, Fax. +81 3 3740 5077
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax. +44 181 754 8421
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Uruguay: see South America
Vietnam: see Singapore
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 625 344, Fax.+381 11 635 777
Middle East: see Italy
For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Internet: http://www.semiconductors.philips.com
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. 1997
SCA53
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands
127147/00/02/pp12
Date of release: 1997 Feb 19
Document order number: 9397 750 01732
厂商 型号 描述 页数 下载

ETC

 		PXB.M0.8GG.NV [ CONN RCPT FMALE 8POS GOLD SOLDER ] 76 页

NXP

 		PXB16050U NPN微波功率晶体管[ NPN microwave power transistor ] 12 页

INFINEON

 		PXB4110 [ ATM Segmentation and Reassembly Device, 1-Func, CMOS, PQFP208, FINE PITCH, PLASTIC, QFP-208 ] 148 页

INFINEON

 		PXB4219 IWE8互通元素为8个E1 / T1线路[ IWE8 Interworking Element for 8 E1/T1 Lines ] 290 页

INFINEON

 		PXB4219E 互通元素为8个E1 / T1线路[ Interworking Element for 8 E1/T1 Lines ] 290 页

INFINEON

 		PXB4220 英飞凌ATM芯片组的成员[ members of Infineon ATM Chipset ] 2 页

INFINEON

 		PXB4220E 互通元素为8个E1 / T1线路[ Interworking Element for 8 E1/T1 Lines ] 290 页

INFINEON

 		PXB4221 IWE8互通元素为8个E1 / T1线路[ IWE8 Interworking Element for 8 E1/T1 Lines ] 290 页

INFINEON

 		PXB4221E 互通元素为8个E1 / T1线路[ Interworking Element for 8 E1/T1 Lines ] 290 页

INFINEON

 		PXB4225 [ Support Circuit, 1-Func, CMOS, PBGA388, PLASTIC, BGA-388 ] 430 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.179430s
