FZT792ATC

型号:

FZT792ATC

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

3 页

PDF大小:

80 K

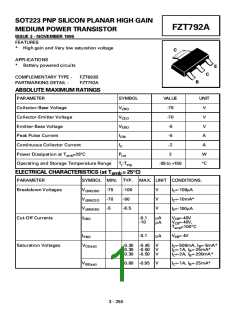

SOT223 PNP SILICON PLANAR HIGH GAIN
MEDIUM POWER TRANSISTOR
ISSUE 3 - NOVEMBER 1995
FZT792A
FEATURES
*
High gain and Very low saturation voltage
C
APPLICATIONS
Battery powered circuits
*
E
C
COMPLEMENTARY TYPE -
PARTMARKING DETAIL -
FZT692B
FZT792A
B
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
VCBO
VCEO
VEBO
ICM
VALUE
UNIT
V
Collector-Base Voltage
-75
Collector-Emitter Voltage
-70
V
Emitter-Base Voltage
-5
V
Peak Pulse Current
-5
A
Continuous Collector Current
Power Dissipation at Tamb=25°C
Operating and Storage Temperature Range
ELECTRICAL CHARACTERISTICS (at T
IC
-2
2
A
Ptot
W
°C
Tj:Tstg
= 25°C)
-55 to +150
amb
PARAMETER
SYMBOL MIN. TYP. MAX. UNIT CONDITIONS.
Breakdown Voltages
V(BR)CBO
V(BR)CEO
V(BR)EBO
ICBO
-75
-70
-5
-100
-90
V
V
V
IC=-100µA
IC=-10mA*
IE=-100µA
-8.5
Cut-Off Currents
-0.1
-10
V
CB=-40V
VCB=-40V,
amb=100°C
µA
µA
T
IEBO
-0.1
VEB=-4V
µA
Saturation Voltages
VCE(sat)
-0.30 -0.45
-0.30 -0.50
-0.30 -0.50
V
V
V
IC=-500mA, IB=-5mA*
IC=-1A, IB=-25mA*
IC=-2A, IB=-200mA*
VBE(sat)
-0.80 -0.95
V
IC=-1A, IB=-25mA*
3 - 250
FZT792A
ELECTRICAL CHARACTERISTICS (at T
amb
= 25°C)
PARAMETER
SYMBOL MIN. TYP. MAX. UNIT CONDITIONS.
Base-Emitter
Turn-On Voltage
VBE(on)
-0.75
V
IC=-1A, VCE=-2V*
Static Forward
Current Transfer
hFE
300
250
200
800
IC=-10mA, VCE=-2V*
IC=-500mA, VCE=-2V*
IC=-1A, VCE=-2V*
Transition Frequency
fT
100
160
MHz IC=-50mA, VCE=-5V
f=50MHz
Input Capacitance
Output Capacitance
Switching Times
Cibo
225
22
pF
pF
VEB=0.5V, f=1MHz
VCB=-10V, f=1MHz
Cobo
ton
toff
35
750
ns
ns
IC=-500mA,
IB1=-50mA,
I
B2=-50mA, VCC=-10V
*Measured under pulsed conditions. Pulse width=300µs. Duty cycle 2%
Spice parameter data is available upon request for this device
3 - 251
FZT792A
TYPICAL CHARACTERISTICS
I
- Collector Current (Amps)
I
- Collector Current (Amps)
VCE(sat) v IC
VCE(sat) v IC
I
- Collector Current (Amps)
I
- Collector Current (Amps)
hFE v IC
VBE(sat) v IC
µ
I
- Collector Current (Amps)
V
- Collector Emitter Voltage (V)
VBE(on) v IC
Safe Operating Area
3 - 252
