0RSB-40U12L

型号：

0RSB-40U12L

品牌：

BEL[ BEL FUSE INC. ]

页数：

12 页

PDF大小：

271 K

下载PDF手册

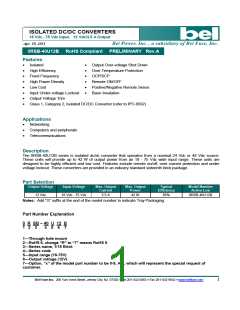

ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
0RSB-40U12B RoHS Compliant PRELIMINARY Rev.A
Features
Isolated
Output Over-voltage Shut Down
Over Temperature Protection
OCP/SCP
High Efficiency
Fixed Frequency
High Power Density
Low Cost
Remote ON/OFF
Positive/Negative Remote Sense
Basic Insulation
Input Under-voltage Lockout
Output Voltage Trim
Class 1, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
Applications
Networking
Computers and peripherals
Telecommunications
Description
The 0RSB-40U12B series is isolated dc/dc converter that operates from a nominal 24 Vdc or 48 Vdc source.
These units will provide up to 42 W of output power from an 18 - 75 Vdc wide input range. These units are
designed to be highly efficient and low cost. Features include remote on/off, over current protection and under
voltage lockout. These converters are provided in an industry standard sixteenth brick package.
Part Selection
Output Voltage
Input Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Active Low
12 Vdc
18 Vdc - 75 Vdc
3.5 A
42 W
85%
0RSB-40U12B
Notes: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R SB – 40 U 12 B
1
2
3
4
5
6
7
1---Through hole mount
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name, 1/16 Brick
4---Series code
5---Input range (18-75V)
6---Output voltage (12V)
7---Option, “x” of the model part number to be 0-9, A-Z, which will represent the special request of
customer.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Absolute Maximum Ratings
Unit
Parameter
Min
Typ
Max
Notes
Continuous Input Voltage
-0.3
-
80
V
Input Transient Voltage
Remote On/Off
-
-
-
-
-
-
100
18
V
V
100mS maximum
-0.3
-
I/O isolation voltage
Ambient Temperature
Storage Temperature
1500
85
V
-40
-55
C
C
125
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Operating Input Voltage
18
48
75
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
60
1
3.5
120
3
A
mA
mA
Input Reflected Ripple Current
(rms)
With simulated source impedance of
15uH, 5Hz to 20MHz. Use a
100uF/100V electrolytic capacitor with
ESR=1 ohm max, at 200KHz@25°C.
-
-
3
7
mA
Input Reflected Ripple Current
(pk-pk)
20
50
mA
I2t Inrush Current Transient
Input Over Voltage Lockout
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
0.01
-
0.02
82
A2s
V
78
16.6
16.2
17.2
16.8
17.8
17.4
V
V
Note: All specifications are typical at 25 C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Output Voltage Set Point
11.75
12
12.25
V
Vin=48V, Io=50% load
Load Regulation
Line Regulation
-
-
±9
±6
±18
±15
mV
mV
Regulation Over Temperature
(-40deg.C-85deg.C)
-
-
±20
±35
mV
mV
0-20MHz BW, with a 1µF
ceramic capacitor and a 10uF
Tantalum cap at output.
Output Ripple and Noise (pk-pk)
90
180
Output Ripple and Noise (rms)
Output Current Range
-
0
30
-
55
3.5
6
mV
A
Output DC Current Limit
3.7
5
A
Hiccup mode, auto recovery
Short Circuit Surge Transien
Turn on Time
-
-
0.5
25
1
A2s
mS
50
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Output Specifications (continued)
Parameter
Min
Typ
Max
Unit
Notes
Overshoot at Turn on
-
0
5
%
Output Capacitance
10
-
220
uF
Transient Response
△V
25%~50%
of Max Load
Overshoot
Settling Time
Overshoot
-
400
150
400
150
650
300
650
300
mV
uS
di/dt=0.1A/us, Vin=48Vdc, Ta=25°C,
with a 1µF ceramic capacitor and a
10uF Tantalum cap at output.
-
-
-
Vo=
12 V
△V
50%~25%
of Max Load
mV
uS
Settling Time
Note: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=48V, full load
Efficiency
83
85
-
%
Switching Frequency
-
500
-
kHz
The OTP threshold is set at 125°C in
non-latch mode, and the module will
restart automatically when
Over Temperature Protection
-
125
-
℃
temperature falls down to 115°C.
This voltage is achieved by trimming
up output slowly.
Over Voltage Protection(Static)
-
-
130
14
160
-
%
g
Weight
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
1.30 x 0.90 x 0.46
33.02 x 22.86 x 11.69
-
Isolation characteristics
Input to Output
-
10M
-
-
-
1500
V
Isolation Resistance
Isolation Capacitance
-
-
Ohm
pF
3900
Note: All specifications are typical at 25 C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Efficiency Data
90%
85%
80%
75%
70%
65%
60%
55%
50%
18V
24V
48V
75V
0.35
0.88
1.75
2.63
3.50
OUTPUT CURRENT (A)
Remote On/Off
Parameter
Min
Typ
Max
Unit
Notes
Signal Low (Unit On)
Signal High (Unit Off)
Current Sink
-0.3
2.4
0
-
0.8
18
1
V
Active Low
Remote on/off pin open, Unit off.
-
-
V
mA
Recommended remote on/off circuit for active low
Vin+
Vin+
On/off
Vin-
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Thermal Derating Curve
Maximum junction temperature of semiconductors derated to 120 degree C.
Vin=24V
Vin=48V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Thermal Derating Curve (continued)
The OTP is achieved by thermistor R65 and it is in non-latch mode when the hottest component Q5 reaches
130°C with 100LFM air flow correspondingly. It will restart automatically when the temperature falls down to
110°C. The protecting point will be varied a little under different conditions (air flow, ambient temperature, input
voltage, load...).
Temperature reference points on top side
Temperature reference points on bottom side
Ripple and Noise Waveform
48Vdc input, 12Vdc output
Note: Ripple and noise at full load, with a 1uF ceramic cap and a 10 uF Tantalum cap at output, Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Transient Response Waveforms
Vout= 12V 25%-50% Load Transients
Vout= 12V 50%-25% Load Transients
Note: Transient Response at Vin=48V, di/dt=0.1A/uS, with External 10uF Tantalum Cap and 1uF Ceramic Cap
at the output, Ta=25 deg C.
Startup & Shutdown
Rise Time
Startup time
Startup from Vin
Ch1: Vout
Vin=48V, Vout=12V, 100% Load
Ch2: Vin
Vin=48V, Vout=12V, 100% Load
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Output Trim Equations
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected
between the Trim pin and Ground pin. The Trim Up resistor should be connected between the Trim pin and the
Vout. Only one of the resistors should be used for any given application.
Vout
511
Module
Module
Trim
GND
Rtrimdown
10.22
k
Rtrimdown
Rtrimup
delta
Vout
Trim
GND
(100delta)Vo 5.11626
1.225delta
Rtrimup 
10.22
k
Note:
Vo _ req Vo
delta 
100
%

Vo
Vo_req=Desired (trimmed) output voltage [V]
Output voltage Vo=12.007 V
5000
4500
4000
3500
3000
2500
2000
1500
1000
500
400
360
320
280
240
200
160
120
80
40
0
0
12
12.12 12.24 12.36 12.48 12.6 12.72 12.84 12.96 13.08 13.2
Adjusted output voltage Vo,adj(V)
9.8 10.02 10.24 10.46 10.68 10.9 11.12 11.34 11.56 11.78 12
Adjusted output voltage Vo,adj (V)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
8
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Remote Sense
This module has remote sense compensation feature. It can minimize the effects of resistance between
module’s output and load in system layout and facilitates accurate voltage regulation at load terminals or
other selected point.
1. The remote sense lines carries very little current and hence do not require a large cross-sectional area.
2. This module compensates for a maximum drop of 10% of the nominal output voltage.
3. If the unit is already trimmed up, the available remote sense compensation range should be
correspondingly reduced. The total voltage increased by trim and remote sense should not exceed 10%
of the nominal output voltage.
4. When using remote sense compensation, all the resistance, parasitic inductance and capacitance of the
system are incorporated within the feedback loop of this module. It can make an effect on the module's
compensation, affecting the stability and dynamic response. A 0.1uF ceramic capacitor can be
connected at the point of load to de-couple noise on the sense wires.
5. Recommend the connection of remote sense compensation as below figure. There are a resistor RS+
(100 ohm) from Vo+ to Sense+ and a resistor RS- (51 ohm)) from Vo- to Sense- inside of this module.
Vo+
Sense+
Load
Sense-
Vo-
6. If not using remote sense compensation, please connect sense directly to output at module's pin, that is,
connect sense+ to Vo+ and sense- to Vo- at module's pin, the shorter the better. See below figure.
Vo+
Sense+
Load
Sense-
Vo-
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
9
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Over Current Protection
To provide protection in a fault output overload condition, the module is equipped with internal current-limiting
circuitry and can endure current limiting for a few mili-seconds. If the over current condition persists beyond a few
milliseconds, the module will shut down into hiccup mode and restart once every 400mS. The module operates
normally when the output current goes into specified range. The typical average output current is 0.5A during
hiccup.
Vin=48V
Vin=24V
Input Under-voltage Lockout
Under-voltage Lockout
Voltage Falling
Voltage Rising
V1=16.8V
V2=17.2V
Input Voltage (V)
V1
V2
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
10
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Mechanical Outline
Pin
1
Function
Vin(+)
Dia.
0.04’’
0.04’’
0.04’’
0.062’’
Pin
5
Function
SENSE(-)
TRIM
Dia.
0.04’’
0.04’’
0.04’’
0.062’’
2
On/Off
Vin(-)
6
3
7
SENSE(+)
Vout(+)
4
Vout(-)
8
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260 ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
11
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input, 12 Vdc/3.5 A Output
Apr. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Revision History
Date
Revision
PA
Changes Detail
Approval
2011-04-19
First release
JZ Wang
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
2011 Bel Fuse Inc. Specifications subject to change without notice. 041911
12
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RSB-30T033G [ DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30T03LG [ DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30T120 [ DC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30T12L [ DC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV20 [ DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV50 [ DC-DC Regulated Power Supply Module, 1 Output, 19.5W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV80G [ DC-DC Regulated Power Supply Module, 1 Output, 23W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV8LG [ DC-DC Regulated Power Supply Module, 1 Output, 23W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-40U033 [ DC-DC Regulated Power Supply Module, 1 Output, 33W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 21 页

BEL

 		0RSB-40U03A 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.243462s
