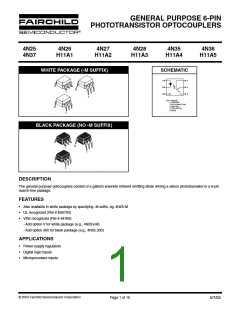

GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
WHITE PACKAGE (-M SUFFIX)
SCHEMATIC
1
2
3
6
5
4
6
6
1
NC
1
PIN 1. ANODE
2. CATHODE
3. NO CONNECTION
4. EMITTER
5. COLLECTOR
6. BASE
6
1
BLACK PACKAGE (NO -M SUFFIX)
6
6
1
1
6
1
DESCRIPTION
The general purpose optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin
dual in-line package.
FEATURES
•
•
•
Also available in white package by specifying -M suffix, eg. 4N25-M
UL recognized (File # E90700)
VDE recognized (File # 94766)
- Add option V for white package (e.g., 4N25V-M)
- Add option 300 for black package (e.g., 4N25.300)
APPLICATIONS
•
•
•
Power supply regulators
Digital logic inputs
Microprocessor inputs
© 2003 Fairchild Semiconductor Corporation
Page 1 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
ABSOLUTE MAXIMUM RATINGS (T = 25°C unless otherwise specified)
A
Parameter
Symbol
Value
Units
TOTAL DEVICE
T
Storage Temperature
-55 to +150
-55 to +100
°C
°C
°C
STG
T
Operating Temperature
OPR
T
Wave solder temperature (see page 14 for reflow solder profiles)
260 for 10 sec
250
SOL
Total Device Power Dissipation @ T = 25°C
Derate above 25°C
A
P
mW
D
3.3 (non-M), 2.94 (-M)
EMITTER
I
DC/Average Forward Input Current
Reverse Input Voltage
100 (non-M), 60 (-M)
6
mA
V
F
V
R
I (pk)
Forward Current - Peak (300µs, 2% Duty Cycle)
3
A
F
150 (non-M), 120 (-M)
2.0 (non-M), 1.41 (-M)
mW
LED Power Dissipation @ T = 25°C
Derate above 25°C
A
P
D
mW/°C
DETECTOR
V
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Collector Voltage
30
70
V
V
CEO
CBO
ECO
V
V
7
150
V
mW
Detector Power Dissipation @ T = 25°C
Derate above 25°C
A
P
D
2.0 (non-M), 1.76 (-M)
mW/°C
© 2003 Fairchild Semiconductor Corporation
Page 2 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
ELECTRICAL CHARACTERISTICS (T = 25°C unless otherwise specified)
A
INDIVIDUAL COMPONENT CHARACTERISTICS
Parameter
Test Conditions
Symbol
Min
Typ*
Max
Unit
EMITTER
Input Forward Voltage
(I = 10 mA)
V
1.18
1.50
10
V
F
F
Reverse Leakage Current
DETECTOR
(V = 6.0 V)
I
0.001
µA
R
R
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Collector Breakdown Voltage
Collector-Emitter Dark Current
Collector-Base Dark Current
Capacitance
(I = 1.0 mA, I = 0)
BV
BV
BV
30
70
7
100
120
10
V
V
C
F
CEO
CBO
ECO
(I = 100 µA, I = 0)
C
F
(I = 100 µA, I = 0)
V
E
F
(V = 10 V, I = 0)
I
I
1
50
20
nA
nA
pF
CE
F
CEO
CBO
(V = 10 V)
CB
(V = 0 V, f = 1 MHz)
C
8
CE
CE
ISOLATION CHARACTERISTICS
Characteristic
Test Conditions Symbol Min
Typ*
Max
Units
(Non ‘-M’, Black Package) (f = 60 Hz, t = 1 min)
(‘-M’, White Package) (f = 60 Hz, t = 1 sec)
(V = 500 VDC)
5300
7500
Vac(rms)
Vac(pk)
Ω
Input-Output Isolation Voltage
V
ISO
11
Isolation Resistance
Isolation Capacitance
R
C
10
I-O
ISO
ISO
(V = &, f = 1 MHz)
0.5
0.2
pF
I-O
(‘-M’ White Package)
2
pF
Note
* Typical values at T = 25°C
A
© 2003 Fairchild Semiconductor Corporation
Page 3 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
TRANSFER CHARACTERISTICS (T = 25°C Unless otherwise specified.)
A
DC Characteristic
Test Conditions
Symbol
Device
Min
Typ*
Max
Unit
4N35
4N36
4N37
100
H11A1
H11A5
50
30
4N25
4N26
H11A2
H11A3
(I = 10 mA, V = 10 V)
F
CE
20
CTR
%
Current Transfer Ratio,
Collector to Emitter
4N27
4N28
H11A4
10
40
40
4N35
4N36
4N37
(I = 10 mA, V = 10 V, T = -55°C)
F
CE
A
4N35
4N36
4N37
(I = 10 mA, V = 10 V, T = +100°C)
F
CE
A
4N25
4N26
4N27
4N28
(I = 2 mA, I = 50 mA)
0.5
0.3
C
F
4N35
4N36
4N37
Collector-Emitter
Saturation Voltage
V
V
CE (SAT)
H11A1
H11A2
H11A3
H11A4
H11A5
(I = 0.5 mA, I = 10 mA)
C
F
0.4
AC Characteristic
4N25
4N26
4N27
4N28
(I = 10 mA, V = 10 V, R = 100Ω)
F
CC
L
Non-Saturated
Turn-on Time
T
H11A1
H11A2
H11A3
H11A4
H11A5
2
2
µs
ON
(Fig.20)
4N35
4N36
4N37
(I = 2 mA, V = 10 V, R = 100Ω)
Non Saturated
Turn-on Time
C
CC
L
T
10
µs
ON
(Fig.20)
© 2003 Fairchild Semiconductor Corporation
Page 4 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
TRANSFER CHARACTERISTICS (T = 25°C Unless otherwise specified.) (Continued)
A
AC Characteristic
Test Conditions
Symbol
Device
Min
Typ*
Max
Unit
4N25
4N26
4N27
4N28
(I = 10 mA, V = 10 V, R = 100Ω)
F
CC
L
H11A1
H11A2
H11A3
H11A4
H11A5
2
(Fig.20)
T
Turn-off Time
µs
OFF
4N35
4N36
4N37
(I = 2 mA, V = 10 V, R = 100Ω)
C
CC
L
2
10
(Fig.20)
* Typical values at T = 25°C
A
© 2003 Fairchild Semiconductor Corporation
Page 5 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
TYPICAL PERFORMANCE CURVES
Fig. 1 LED Forward Voltage vs. Forward Current
(Black Package)
Fig. 2 LED Forward Voltage vs. Forward Current
(White Package)
1.8
1.7
1.6
1.5
1.4
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
T
T
T
= -55°C
= 25°C
= 100°C
A
A
T
= -55°C
A
1.3
1.2
1.1
1.0
T
T
= 25°C
A
A
A
= 100°C
1
10
100
1
10
I - LED FORWARD CURRENT (mA)
F
100
I
F
- LED FORWARD CURRENT (mA)
Fig.3 Normalized CTR vs. Forward Current
(Black Package)
Fig.4 Normalized CTR vs. Forward Current
(White Package)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
V
= 5.0V
V
= 5.0V
CE
CE
= 25°C
Normalized to
= 10 mA
Normalized to
I = 10 mA
F
T
T
= 25°C
A
I
A
F
0
5
I
10
- FORWARD CURRENT (mA)
15
20
0
2
4
6
8
10
- FORWARD CURRENT (mA)
F
12
14
16
18
20
I
F
Fig. 5 Normalized CTR vs. Ambient Temperature
(Black Package)
Fig. 6 Normalized CTR vs. Ambient Temperature
(White Package)
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
1.4
1.2
1.0
0.8
0.6
0.4
I = 5 mA
F
I
= 5 mA
F
I
= 10 mA
F
I
= 10 mA
F
I
= 20 mA
F
Normalized to
= 10 mA
Normalized to
= 10 mA
I
I
= 20 mA
F
F
I
F
T
= 25°C
A
T
= 25°C
A
-75
-50
-25
0
25
50
75
100
125
-60
-40
-20
0
20
40
60
80
100
T
A
- AMBIENT TEMPERATURE (°C)
T - AMBIENT TEMPERATURE (°C)
A
© 2003 Fairchild Semiconductor Corporation
Page 6 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
Fig. 8 CTR vs. RBE (Unsaturated)
(White Package)
Fig. 7 CTR vs. RBE (Unsaturated)
(Black Package)
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
I
F
= 20 mA
V
= 5.0 V
CE
I
= 10 mA
F
I
I
= 20 mA
= 10 mA
F
I
F
= 5 mA
F
I
F
= 5 mA
V
CE
= 5.0 V
10
100
1000
10
100
- BASE RESISTANCE (kΩ)
1000
R
- BASE RESISTANCE (kΩ)
BE
R
BE
Fig. 9 CTR vs. RBE (Saturated)
(Black Package)
Fig. 10 CTR vs. RBE (Saturated)
(White Package)
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
V
CE
= 0.3 V
V
CE
= 0.3 V
I
I
= 20 mA
= 10 mA
F
I
= 20 mA
= 10 mA
F
F
I
F
I
F
= 5 mA
I
F
= 5 mA
10
100
- BASE RESISTANCE (k Ω)
1000
10
100
- BASE RESISTANCE (k Ω)
1000
R
R
BE
BE
Fig. 12 Collector-Emitter Saturation Voltage vs Collector Current
(White Package)
Fig. 11 Collector-Emitter Saturation Voltage vs Collector Current
(Black Package)
100
10
1
100
T
A
= 25˚C
10
1
I
F
= 2.5 mA
I = 2.5 mA
F
0.1
0.01
0.1
I
F
= 20 mA
I
F
= 10 mA
I
F
= 20 mA
0.01
I
F
= 5 mA
0.1
I
F
= 5 mA
I
F
= 10 mA
T
A
= 25˚C
0.001
0.001
0.01
1
10
0.01
0.1
1
10
I
- COLLECTOR CURRENT (mA)
C
I
- COLLECTOR CURRENT (mA)
C
© 2003 Fairchild Semiconductor Corporation
Page 7 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
Fig. 14 Switching Speed vs. Load Resistor
(White Package)
Fig. 13 Switching Speed vs. Load Resistor
(Black Package)
1000
100
10
1000
100
10
I
V
T
= 10 mA
= 10 V
I
V
T
= 10 mA
F
F
= 10 V
CC
CC
= 25°C
= 25°C
A
A
T
off
T
off
T
T
f
f
T
on
r
T
on
1
1
T
T
r
0.1
0.1
0.1
1
10
100
0.1
1
10
100
R-LOAD RESISTOR (kΩ)
R-LOAD RESISTOR (kΩ)
Fig. 15 Normalized t vs. R
on
Fig. 16 Normalized t vs. R
on
BE
BE
(Black Package)
(White Package)
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
V
10 V
= 2 mA
= 100 Ω
V
I
10 V
= 2 mA
= 100 Ω
CC =
CC =
I
C
L
C
R
R
L
10
100
R
1000
- BASE RESISTANCE (k Ω)
BE
10000
100000
10
100
R
1000
10000
100000
- BASE RESISTANCE (k Ω)
BE
Fig. 17 Normalized t vs. R
off
Fig. 18 Normalized t vs. R
off
BE
BE
(Black Package)
(White Package)
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
V
10 V
= 2 mA
= 100 Ω
V
10 V
CC =
= 2 mA
= 100 Ω
CC =
I
I
C
L
C
L
R
R
10
100
1000
10000
100000
10
100
1000
10000
100000
R
- BASE RESISTANCE (k Ω)
R
BE
- BASE RESISTANCE (k Ω)
BE
© 2003 Fairchild Semiconductor Corporation
Page 8 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
Fig. 19 Dark Current vs. Ambient Temperature
10000
1000
100
10
V
T
= 10 V
CE
A
= 25°C
1
0.1
0.01
0.001
0
20
40
60
80
100
T
A
- AMBIENT TEMPERATURE (°C)
TEST CIRCUIT
WAVE FORMS
VCC = 10V
INPUT PULSE
IC
IF
RL
10%
90%
INPUT
OUTPUT
OUTPUT PULSE
RBE
tr
tf
toff
ton
I
I
Adjust
F
t
o
p
r
o
d
u
c
e
C
=
2
m
A
Figure 20. Switching Time Test Circuit and Waveforms
© 2003 Fairchild Semiconductor Corporation
Page 9 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
Black Package (No -M Suffix)
Package Dimensions (Through Hole)
Package Dimensions (Surface Mount)
PIN 1
ID.
0.350 (8.89)
0.330 (8.38)
PIN 1
ID.
3
1
0.270 (6.86)
0.240 (6.10)
0.270 (6.86)
0.240 (6.10)
0.350 (8.89)
0.330 (8.38)
6
0.070 (1.78)
0.045 (1.14)
0.300 (7.62)
TYP
0.070 (1.78)
0.045 (1.14)
0.200 (5.08)
0.115 (2.92)
0.200 (5.08)
0.165 (4.18)
0.016 (0.41)
0.008 (0.20)
0.020 (0.51)
MIN
0.020 (0.51)
0.154 (3.90)
0.100 (2.54)
0.016 (0.40) MIN
MIN
0.022 (0.56)
0.016 (0.41)
0.100 (2.54)
TYP
0.315 (8.00)
MIN
0.016 (0.40)
0.008 (0.20)
0.405 (10.30)
MAX
0.300 (7.62)
TYP
0.022 (0.56)
0.016 (0.41)
0° to 15°
Lead Coplanarity : 0.004 (0.10) MAX
0.100 (2.54)
TYP
Package Dimensions (0.4” Lead Spacing)
Recommended Pad Layout for
Surface Mount Leadform
PIN 1 ID
0.070 (1.78)
0.270 (6.86)
0.240 (6.10)
0.060 (1.52)
0.350 (8.89)
0.330 (8.38)
0.415 (10.54)
0.100 (2.54)
0.295 (7.49)
0.070 (1.78)
0.045 (1.14)
0.030 (0.76)
0.200 (5.08)
0.135 (3.43)
0.154 (3.90)
0.100 (2.54)
0.016 (0.40)
0.008 (0.20)
0.004 (0.10)
MIN
0° to 15°
0.022 (0.56)
0.016 (0.41)
0.400 (10.16)
TYP
0.100 (2.54) TYP
NOTE
All dimensions are in inches (millimeters)
© 2003 Fairchild Semiconductor Corporation
Page 10 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
White Package (-M Suffix)
Package Dimensions (Through Hole)
Package Dimensions (Surface Mount)
0.350 (8.89)
0.320 (8.13)
0.350 (8.89)
0.320 (8.13)
PIN 1 ID
Pin 1 ID
0.390 (9.90)
0.332 (8.43)
0.260 (6.60)
0.240 (6.10)
0.260 (6.60)
0.240 (6.10)
0.070 (1.77)
0.040 (1.02)
0.070 (1.77)
0.040 (1.02)
0.320 (8.13)
0.014 (0.36)
0.010 (0.25)
0.320 (8.13)
0.014 (0.36)
0.010 (0.25)
0.200 (5.08)
0.115 (2.93)
0.200 (5.08)
0.115 (2.93)
0.012 (0.30)
0.008 (0.20)
0.025 (0.63)
0.020 (0.51)
0.100 (2.54)
0.015 (0.38)
0.100 [2.54]
0.035 (0.88)
0.006 (0.16)
0.020 (0.50)
0.016 (0.41)
0.020 (0.50)
0.016 (0.41)
15°
0.100 (2.54)
0.012 (0.30)
Package Dimensions (0.4” Lead Spacing)
Recommended Pad Layout for
Surface Mount Leadform
0.350 (8.89)
0.320 (8.13)
PIN 1 ID
0.070 (1.78)
0.260 (6.60)
0.240 (6.10)
0.060 (1.52)
0.070 (1.77)
0.040 (1.02)
0.014 (0.36)
0.425 (10.79)
0.100 (2.54)
0.305 (7.75)
0.010 (0.25)
0.030 (0.76)
0.200 (5.08)
0.115 (2.93)
0.100 (2.54)
0.015 (0.38)
0.012 (0.30)
0.100 [2.54]
0.020 (0.50)
0.016 (0.41)
0.008 (0.21)
0.425 (10.80)
0.400 (10.16)
NOTE
All dimensions are in inches (millimeters)
© 2003 Fairchild Semiconductor Corporation
Page 11 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
ORDERING INFORMATION
Order Entry Identifier
Black Package (No Suffix)
White Package (-M Suffix)
Option
.S
.SD
S
SR2
T
Surface Mount Lead Bend
Surface Mount; Tape and reel
0.4" Lead Spacing
.W
.300
.300W
.3S
V
VDE 0884
TV
VDE 0884, 0.4" Lead Spacing
VDE 0884, Surface Mount
VDE 0884, Surface Mount, Tape & Reel
SV
SR2V
.3SD
MARKING INFORMATION
1
2
1
2
4N25
V XX YY K
4N25
6
6
V X YY Q
5
3
4
5
3
4
Black Package, No Suffix
White Package, -M Suffix
Definitions
1
2
Fairchild logo
Device number
VDE mark (Note: Only appears on parts ordered with VDE
option – See order entry table)
3
One or two digit year code
4
• Two digits for black package parts, e.g., ‘03’
• One digit for white package parts, e.g., ‘3’
5
6
Two digit work week ranging from ‘01’ to ‘53’
Assembly package code
*Note – Parts built in the white package (M suffix) that do not have the ‘V’ option (see
definition 3 above) that are marked with date code ‘325’ or earlier are marked in the
portrait format.
© 2003 Fairchild Semiconductor Corporation
Page 12 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
QT Carrier Tape Specifications (Black Package, No Suffix)
12.0 0.1
4.85 0.20
4.0 0.1
Ø1.55 0.05
0.30 0.05
4.0 0.1
1.75 0.10
7.5 0.1
16.0 0.3
13.2 0.2
9.55 0.20
Ø1.6 0.1
10.30 0.20
0.1 MAX
User Direction of Feed
QT Carrier Tape Specifications (White Package, -M Suffix)
12.0 0.1
4.5 0.20
2.0 0.05
Ø1.5 MIN
1.75 0.10
0.30 0.05
4.0 0.1
11.5 1.0
24.0 0.3
9.1 0.20
21.0 0.1
Ø1.5 0.1/-0
10.1 0.20
0.1 MAX
User Direction of Feed
© 2003 Fairchild Semiconductor Corporation
Page 13 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
Reflow Profile (White Package, -M Suffix)
300
230°C, 10–30 s
250
245°C peak
200
150
Time above 183°C, 120–180 sec
Ramp up = 2–10°C/sec
100
50
0
• Peak reflow temperature: 245°C (package surface temperature)
• Time of temperature higher than 183°C for 120–180 seconds
• One time soldering reflow is recommended
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
Time (Minute)
Reflow Profile (Black Package, No Suffix)
300
250
215°C, 10–30 s
225 C peak
200
150
Time above 183°C, 60–150 sec
Ramp up = 3C/sec
100
50
0
• Peak reflow temperature: 225°C (package surface temperature)
• Time of temperature higher than 183°C for 60–150 seconds
• One time soldering reflow is recommended
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
Time (Minute)
© 2003 Fairchild Semiconductor Corporation
Page 14 of 15
5/7/03
GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
4N36
H11A5
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME
ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES
OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR
CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body, or
(b) support or sustain life, and (c) whose failure to perform
when properly used in accordance with instructions for use
provided in the labeling, can be reasonably expected to
result in a significant injury of the user.
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
© 2003 Fairchild Semiconductor Corporation
Page 15 of 15
5/7/03
厂商 型号 描述 页数 下载

APITECH

 		4N200W-03F [ Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		4N200W-10 [ Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		4N200W-20 [ Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		4N200W-30 [ Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		4N200W-30F [ Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		4N200W-30M [ Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		4N200W-40 [ Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		4N200W-40F [ Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		4N200W-40M [ Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

MII

 		4N22 JAN ， JANTX ， JANTXV ，单通道光耦合器[ JAN, JANTX, JANTXV, SINGLE CHANNEL OPTOCOUPLERS ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

代理产品

代理品牌

代理器件

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.229712s
