DX110

型号：

DX110

描述：

脱焊和返修工作站[ Desoldering & Rework Stations ]

品牌：

ETC[ ETC ]

页数：

24 页

PDF大小：

1322 K

下载PDF手册
Content

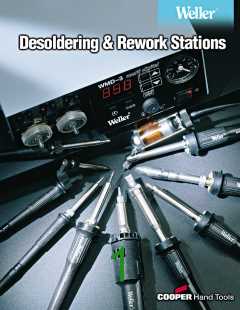

Weller Desoldering & Rework stations
Soldering Tips
Weller Multi-Digital Rework Station WMD 3
(With In-Built Pump)
4
5
6
7
8
9
Soldering Tips
for soldering iron LR 82
16
17
18
19
20
21
22
Weller Multi-Digital Hot Air Station
WMD 1A (With In-Built Pump)
Soldering Tips
for soldering pencil LR 21
Weller Multi-Digital Desoldering Station
WMD 1D (With In-Built Pump)
Soldering Tips
for soldering pencil MLR 21
Weller Multi-Functional,
Digital Desoldering Station WDD 161V
Soldering Tips
for micro soldering pencil WMP
Weller Multi-Functional,
Digital Desoldering Station WDD 81V
Soldering Tips
for WSP 80, WSP 80IG, WSP 80FE and MPR 80
Weller Multi-Functional, Digital
Hot Air Station WAD 101
Soldering Tips
for WSP 80, WSP 80IG, WSP 80FE and MPR 80
Soldering Tips
for soldering iron WSP 150
for WT 50 and WTA 50 tweezer
Weller Flexibility.
Refer to the matrix to make your choice of
connecting tools for the WMD 3, WMD 1A + D,
WDD 161V, WDD 81V + VIL and WAD 101
10-11
Additional Safety Rests
Safety rests with Stop+Go Function
Standard Safety rests
23
Accessories
CSF Accessories
12
13
for DS 80 (DS 80UNC), DSX 80, DSV 80
(DSV 80UNC), DSXV 80, DXV 80 and DSVT 80
for SMD’s chip desoldering tiplets for flat packs
Accessories
For easier rework and repair, Weller has a
large range of desoldering nozzles and
soldering nozzles.
Hot Air Nozzle
Hot Air Nozzle
for hot air pencil HAP 1
14
15
Hot Air Nozzles
for hot air pencil HAP 1
2
Matrix
Weller brings to the market an extended generation of
versatile soldering/desoldering, SMD rework stations and
tools. Performance has been increased with soldering
irons and desoldering irons up to 150 W.
All Weller stations easily connect to a variety of new and
existing Weller tools and accessories to provide even
greater flexibility. The matrix below makes selection easy,
and puts you firmly in control of all your workbench
needs.
Choose between Weller stations with powerful in-built
pumps, or smaller units without pumps that allow you to
connect to your own factory line.
WMD 3
WMD 1
WAD 101
WDD 81V
WDD 161V
HAP 1 Hot Air Pencil
(KH 20 Support for HAP 1)
DSX 80 Desoldering Iron 80 W
(AK 20 Support for DSX 80)
DXV 80 Desoldering Iron 80 W
(AK V Support for DXV 80)
LR 21 Soldering Pencil 50 W
(KH 20 Support for LR 21)
LR 82 Soldering Iron
(KH 27 Support for LR 82)
WSP 80 Micro Soldering Pencil
(WPH 80 Support for WSP 80)
WSP 80 IG Inert Gas Micro Soldering
Pencil (WPH 81T Support for WSP 80 IG)
WSP 150 Soldering Iron 150 W
(KH 27 Support for WSP 150)
MPR 80 Antistatic Peritronic 80 W
(KH 25P Support for MPR 80)
WMP Micro Soldering Pencil 65 W
(WPHM Support for WMP)
WST 20 Thermal Wire Stripper 50 W
(support included)
WST 82 Thermal Wire Stripper 80 W
(support included)
WHP 80 Preheating Plate
WTA 50 Tweezer
(AK 51 Support for WTA 50)
WSB 80 Solder Bath
WSB 150 Solder Bath
WCB 2 Calibration Unit
3
Weller Multi-Digital Rework Station WMD 3
(With In-Built Pump)
Weller WMD 3 state-of-the-art technology simultaneously
provides multi-digital control of working temperatures
when reworking conventional ICs and SMDs.
A soldering iron, desoldering iron and hot air pencil can
all be operated simultaneously because of the WMD 3’s
in-built micro-processor that infinitely controls each tool’s
set temperature and airflow. The display visually monitors
each chosen working temperature and times preset hot
gas pencil operations.
Technical Data
Dimensions:
Line Voltage:
Power Input:
Safety Class:
Fuse:
240 x 270 x 105 mm (W x D x H)
230 V, 50 Hz
310 W
1 and 3
T 1,5 A located at the power entry module
Soldering/Desoldering iron 2% of the final value
Hot air pencil 30°C
Controlling Tolerance:
Temperature Control with
zero Voltage cross switching:
Pump:
Soldering/Desoldering iron continuously 50°C– 450°C (WSP 150 150°C–550°C)
Hot air pencil continuously 50°C–550°C
Max. low pressure 0,7 bar; max. conveyance 20 l/min
Hot air: max. 10 l/min
Potential Balance:
Via 3,5 mm switch jack socket on the back of the unit
Socket for potential
balance.
Multi-digital display shows the set
and read temperature of each tool
and air volume.
Two connections for two
optional foot switches.
Microprocessor controlled channel.
Continuously adjustable for
Three connectors for variable
combinations of hot air pencil,
desoldering iron, soldering iron
or other variable combinations.
soldering iron, desoldering iron and hot
air pencil or other connectable tools.
Antistatic coating on
housing meets ESD safety
specifications.
Pilot light showing
heating pulses.
Manometer for
vacuum control.
LED indicates
channel in
display.
Mains switch.
Connector for
hot air pencil with
filter cartridge.
Timer/set back.
Channel selector
for temperature and
air volume.
Lock-out key for set function
parameters of each channel.
Vacuum connector
with filter cartridge.
4
Weller Multi-Digital Hot Air Station
WMD 1A (With In-Built Pump)
The multi application ability of this station makes it ideal
for use in situations where the maximum amount of flexi-
bility is required. The station has an in built pump to pro-
vide the air movement for the hot air pencil and the vacu-
um for the desoldering tool and can be used to rework
both surface mounted and through hole components.
The WMD 1S control unit is the base and incorporates a
micro processor controlled system to regulate the solder
processes. The processor can also identify which tool is
being used and calibrate the output automatically with-
out the need for manual adjustment.
By use of the WCB 2 control box, additional functions can
be programmed into the base unit such as, temperature
lock, set back time, temperature offset, deg C/deg F,
factory setting reset.
Technical Data
Dimensions:
Line Voltage:
Power Input:
Safety Class:
Fuse:
240 x 270 x 105 mm (W x D x H)
230 V, 50 Hz
175 W
1 and 3
Glass tube fuse Ø 5 x 20; T 800 mA located at the power entry module
Soldering/Desoldering iron 2% of the final value
Hot air pencil 30°C
Controlling Tolerance:
Temperature Control with
zero Voltage cross switching:
Pump:
Hot air pencil continuously 50°C–550°C
Max. low pressure 0,7 bar; max. conveyance 20 l/min
Hot air: max. 10 l/min
Potential Balance:
Via 3,5 mm switch jack socket on the back of the unit
over adapter as accessories
Foot switch connector:
Multi-digital display shows
the set and read temperature
of each tool and air volume.
Socket for potential balance.
Temperature and hot air
control.
Antistatic coating on
housing meets
ESD safety specifications.
Manometer for
vacuum control.
Seven-pin connector for
all desoldering, soldering
and accessory tools.
Holder KH 27 for
HAP 1 Hot air
pencil.
Pilot light showing
heating pulses.
Mains switch.
Vacuum connector and filter cartridge.
Air connector for hot air pencil.
HAP 1 Hot air pencil.
Hot air nozzles. Different inter-
changeable types available.
5
Weller Multi-Digital Desoldering Station
WMD 1D (With In-Built Pump)
The multi application ability of this station makes it ideal
for use in situations where the maximum amount of
flexibility is required.The station has an in built pump to
provide the vacuum for the desoldering tool and can be
used to rework both surface mounted and through hole
components.
desolder processes. The processor can also identify which
tool is being used and calibrate the output automatically
without the need for manual adjustment.
By use of the WCB 2 control box, additional functions can
be programmed into the base unit such as, temperature
lock, set back time, temperature offset, deg C/deg F,
factory setting reset.
The WMD 1S control unit is the base and incorporates
a micro processor controlled system to regulate the
Technical Data
Dimensions:
Line Voltage:
Power Input:
Safety Class:
Fuse:
240 x 270 x 105 mm (W x D x H)
230 V, 50 Hz
175 W
1 and 3
Glass tube fuse Ø 5 x 20; T 800 mA located at the power entry module
Soldering/Desoldering iron 2% of the final value
Hot air pencil 30°C
Controlling Tolerance:
Temperature Control with
zero Voltage cross switching:
Pump:
Soldering/Desoldering iron continuously 50°C– 450°C , (WSP 150 150°C–550°C)
Hot air pencil 50°C– 550°C
Max. low pressure 0,7 bar; max. conveyance 20 l/min
Hot air: max. 10 l/min
Potential Balance:
Via 3,5 mm switch jack socket on the back of the unit
over adapter as accessories
Foot switch connector:
Multi-digital display shows the set and read
temperature of each tool and air volume.
Socket for potential balance.
Antistatic coating
on housing meets
ESD specifications.
Temperature and hot
air control.
Holder AK 20 for
DSX 80 desoldering
iron.
Pilot light showing
heating pulses.
Seven-pin connector for
all desoldering, soldering
and accessory tools.
Manometer for
vacuum control.
Vacuum connector
and filter cartridge.
Mains switch.
DSX 80, 24V Desoldering iron
with 80W heating element.
“Longlife” tiplets.
Different interchangeable types available.
6
Weller Multi-Functional,
Digital Desoldering Station WDD 161V
The WDD 161V rework station is a dual output unit
supplied with soldering and desoldering tools. It features
a micro processor controlled system which allows inde-
pendent temperature control of both tools. The station
will automatically recognize the tool in use and calibrate
itself for that tool. Vacuum for the desoldering tool is
generated by an internal venturi driven from an external
compressed air source.
grammed into the base unit such as, temperature lock,
set back time, temperature offset, deg C/deg F, factory
setting reset.
The selected operating temperatures are displayed on
a digital display switchable between tools. By use of the
WCB 2 control box, additional functions can be pro-
Technical Data
Dimensions:
115 x 166 x 101 mm (W x D x H)
165 W
Power Input:
Temperature Control:
Compressed Air:
Soldering/Desoldering iron continuously 50°C– 450°C
Inlet pressure 500 KPA– 600 KPA (58–87 psi) oil-free, dry compressed air
Air consumption 35 l/min
Compressed Air Converter:
Vacuum 55 KPA (8 psi)
Compressed Air Connection:
Safety Class:
Compressed air hose of 6 mm (0.24") external diameter
1 (control unit), 3 (soldering tool)
Foot switch connector:
over adapter as accessories
Microprocessor controlled channel.
Multi-digital display shows
the set and read temperature
of DSX 80 or other connected tool.
Holder AK 20 for DSX 80
desoldering iron.
Automatically recognizes the DSX 80
and other connected tools and sets the
appropriate control parameters.
Holder WPH 80 for
soldering pencil WSP 80.
Antistatic coating on
housing meets ESD safety
specifications
Mains switch.
LED showing
heating pulses.
DSX 80 Desoldering iron.
Seven-pin connector for
connecting the DSX and
other soldering tools.
Connector for potential
balance
Finger switch to
control vacuum.
Connector for vacuum
“Longlife” tiplets.
Different interchangeable
types available.
WSP 80 soldering pencil.
7
Weller Multi-Functional,
Digital Desoldering Station WDD 81V
The Weller WDD 81V Desoldering station features digital
process control for exact temperature set. The in-built
microprocessor circuitry automatically recognizes all
Weller soldering irons and provides the optimal settings
of the connected tool. The station comes with the
DSX 80 Desoldering iron. A range of desoldering suction
tiplets enables solder to be removed from a wide variety
of solder joints. The Weller CSF rework heads can also be
interchanged to provide total flexibility in the rework of
most Flat Packs. An internal maintenance-free compressed
air converter provides the vacuum for the desoldering
iron. The WDD 81V requires a compressed air supply.
The Weller WCB 2 Calibration unit can be connected to
the WDD 81V to further enhance programme setting or
for PC interface.
Technical Data
Dimensions:
115 x 166 x 101 mm (W x D x H)
95 W
Power Input:
Temperature Control:
Compressed Air:
Soldering/Desoldering iron continuously 50°C– 450°C
Inlet pressure 500 KPA–600 KPA (58–87 psi) oil-free, dry compressed air
Air consumption 35 l/min
Compressed Air Converter:
Vacuum 55 KPA (8 psi)
Compressed Air Connection:
Safety Class:
Compressed air hose of 6 mm (0.24") external diameter
1 (control unit), 3 (soldering tool)
Foot switch connector:
over adapter as accessories
Multi-digital display shows the set
and read temperature of the DSX 80
or other connected tool.
Microprocessor controlled channel.
Automatically recognizes the DSX 80
and other connected tools and sets the
appropriate control parameters.
Holder AK 20 for
DSX 80 desoldering iron.
Antistatic coating on housing
meets ESD safety specifications
Seven-pin connector for
connecting the DSX and
other soldering tools.
Mains switch.
Pilot light showing
heating pulses.
Connector for potential
balance
Connector for vacuum.
DSX 80 Desoldering iron.
Finger switch
to control vacuum.
“Longlife” tiplets. Different
interchangeable types available.
8
Weller Multi-Functional, Digital
Hot Air Station WAD 101
The Weller WAD 101 Hot air station features digital
process control for accurate temperature set. The in-built
microprocessor circuitry automatically recognizes all
Weller soldering irons and provides the optimal settings
of the connected tools as well as the HAP 1 that comes
as standard with the station. A wide range of nozzles
and tools makes the WAD 101 ideal in many soldering
and desoldering applications of surface mount devices.
The WAD 101 requires a compressed air supply with oil-
free, dry air or nitrogen (N2) where the airflow is manual-
ly controlled.
The Weller WCB 2 Calibration unit can be connected to
the WAD 101 to further enhance programme setting or
PC interface.
Technical Data
Dimensions:
134 x 166 x 101 mm (W x D x H)
Power Input:
105 W
Temperature Control:
Flow Rate:
Hot air pencil 50°C–550°C
Approx. 0–10 l/min
Compressed Air:
Compressed Air Connection:
Safety Class:
Inlet pressure 400 KPA (58 psi) oil-free, dry compressed air or nitrogen (N2)
Compressed air hose of 6 mm (0,24") external diameter
1 (control unit), 3 (soldering tool)
Foot switch connector:
over adapter as accessories
Pilot light showing
heating pulses
Microprocessor controlled channel.
Automatically recognizes the HAP 1
and other connected tools and sets the
appropriate control parameters
Multi-digital display
sets and reads
temperature of the
selected tool
Holder KH 27 for
HAP 1 hot air pencil
Antistatic coating on
housing meets
ESD specifications
Air volume control
Hot air nozzles. Different
interchangeable types
available
Mains switch
Seven-pin connector for
connecting the HAP 1 and
other soldering tools
Connector for
hot air
Connector for potential
balance
Finger switch to
control air manually
HAP 1 Hot air pencil
WSP 80IG Inert Gas Soldering Iron
For use in applications when soldering under an
atmosphere of inert gas is required (prevention
of joint oxidation). Driven from the WAD 101
station, inert gas is fed through the heating
element of the iron to envelop the solder joint.
The station controls the temperature of the
iron and regulates the volume of gas supplied.
The Stop + Go bench holder will automatically
start the gas flow when the iron is removed
from the holder and stop the gas flow when the
iron is replaced.
for lead free soldering
The Set consists of:
• WSP 80 IG soldering iron with inert gas connection
• Stop+Go support WPH 81T
• Soldering tip LT B
• Connection hose: soldering iron – power unit (1.5 m)
Technical data WSP 80IG:
Temperature range:
Power:
Soldering tips model:
Order No.
50°C– 450°C
80 W
LT series
005 33 158 99
9
Weller Flexibility.
Refer to the matrix to make your choice of connecting tools for the WMD 3, WMD 1A + D, WDD 161V,
WDD 81V + VIL and WAD 101 (see matrix page 2).
HAP 1 Hot air pencil
LR 82 Antistatic soldering iron
HAP 1
LR 82
005 33 114 99
005 33 113 99
The HAP 1, 100W/24V, provides a directional hot airflow
that is adjustable and static-free. Electronically tempera-
ture controlled from 50˚C to 550˚C. Different nozzles
available as accessories. Finger switch controls speed
adjustable pump. Hot air pencil set, consisting of HAP 1
with finger switch, KH 27 Support for pencil, nozzle 1,2
and 3,0 mm, key and nutdriver for nozzle changing.
An 80W/24V soldering iron for high mass soldering.
Dual sensor, electronically temperature controlled. LR 82
set, consisting of LR 82 Antistatic soldering iron, KH 27
Support for iron.
WSP 80 Micro soldering pencil
WSP 80
005 29 161 99
DSX 80 Desoldering iron and service kit
DSX 80 (DS 80 UNC*)
005 33 138 99
(005 13 191 99)
A micro soldering pencil, 80W/24V. This soldering pencil
can be universally used in all situations from extremely
delicate soldering to those where there is a greater tem-
perature requirement. WSP 80 set, consisting of WSP 80
Micro soldering pencil with WPH 80 Support.
An 80W/24V desoldering iron for electronics rework.
Electronically temperature controlled. Micro-finger switch
controls quick-start, fast action vacuum pump. Different
interchangeable tiplets, plus several CSF devices are avail-
able as accessories. DSX 80 set, consisting of DSX 80 Desol-
dering iron AK 20 Support, cleaning tool, glass collector,
two desoldering nozzles, gasbet, anti-bloc paste, filter.
WSP 80IG Inert Gas Soldering Iron
WSP 80IG
005 33 158 99
DXV 80 Desoldering iron
For use in applications when soldering under an atmos-
phere of inert gas is required (prevention of joint oxida-
tion). Driven from the WAD 101 station, inert gas is fed
through the heating element of the iron to envelop the
solder joint. The station controls the temperature of the
iron and regulates the volume of gas supplied.
DXV 80
005 13 181 99
Connectable to all 80W desoldering stations. Handle utili-
zes the nonreturnable tin collector to hold the extracted
solder. Use off thred less DX nozzles. DXV 80 set, consist-
ing of DXV 80 Desoldering iron, and Support for iron.
WSP 150 Soldering iron
WSP 150
005 33 135 99
LR 21 Antistatic soldering pencil
LR 21
005 33 112 99
The WSP 150, 150W/24V, soldering iron was specially
developed for soldering tasks with extremely high heat
requirements. The 150 W heater power combined with
optimal transfer of heat to the soldering iron bit guaran-
tee the high performance capability of the soldering
iron. WSP 150 set, consisting of WSP 150 Soldering iron,
KH 27 Support for iron.
Electronically temperature controlled 50W/24V soldering
pencil. LR 21 set, consisting of LR 21 Antistatic soldering
pencil, KH 20 Support for pencil.
10
WST 20 Thermal wire stripper with support
WTA 50 Tweezer
WST 20
WTA 50
005 25 030 99
005 33 133 99
The WST 20, 50W/24V, copes with all known thermoelas-
tic plastics. Adjustable for a stripping length up to 30 mm.
Additional blades available for stripping flat cables and
shrinking.
This tweezer is used to desolder SMD components. The
tweezer has two moveable heating elements. WTA 50 set,
consisting of WTA 50 Tweezer, AK 51 Support for Tweezer.
WSB 80 Solder bath
WSB 80
005 27 040 99
WST 82 Thermal wire stripper with support
The WST 82 is the 80 W equipment of the WST 20.
Adjustable for a stripping length up to 30 mm. Additional
blades available for stripping flat cables and shrinking.
MPR 80 Antistatic Peritronic soldering pencil
The WSB 80 is a very useful rework preparation tool.
The solder bath is temperature controlled continuously
from 50˚C to 450˚C via an existing 80W power source.
The solder bath can be used to tin wire ends and clean
leads of all extraneous solder particles in preparation for
reworking. (Usable for lead free solder.)
MPR 80
005 33 131 99
An 80W Antistatic Peritronic soldering pencil that gives
all-round vision when making intricate connections. Anti-
static cord and handle. Electronically temperature con-
trolled. Consists of MPR 80 Antistatic and KH 25P Support.
WSB 150 Solder bath
WSB 150
005 27 042 99
WMP Micro soldering pencil
WMP
005 33 155 99
The WSB 150 solder bath is optimally suited to tin coating
and preparation of soldering components. It has a tem-
perature range of 50°C–550°C with heat output of 150W,
making the WSB solder bath an ideal accessory to the
Weller WSD 150 soldering station. To guard against drip-
ping solder residue, the solder bath is placed in a V2A tray,
supplied as an optional extra. (Usable for lead free solder.)
The 65W micro pencil is up to the task with superior per-
formance for both heat-up and thermal efficiency. Suitable
to handle all micro components and fine pitch tasks. The
WMP provides an extremely short tip-to-grip distance. The
heater is integrated into the handle. When the tip wear
out the heating element goes on. WMP set consisting of
WMP micro soldering pencil and WPHM holder for WMP.
WCB 2 Calibration unit
WCB 2
005 31 180 99
WHP 80 (80W/24V) Preheating plate
WHP 80
005 27 028 99
The intelligence of the digital Weller units can be further
enhanced by being programmed by the WCB 2 Calibration
unit. The WCB 2 feature temperature lock-out and off-set
capabilities up to +40˚C. The WCB 2 has the added ability
to PC interface (RS 232) and a thermoelement type K and
measuring tip.
With a heating surface of 80 x 50 mm, they preheat IC
boards prior to micro rework.
11
CSF Accessories
for DS 80 (DS 80UNC), DSX 80, DSV 80 (DSV 80UNC), DSXV 80, DXV 80 and DSVT 80
for SMD’s chip desoldering tiplets for flat packs
DS 80 (DS 80UNC),
DSX 80
DSV 80 (DSV 80UNC),
DSXV 80, DXV 80
DXV 80
CSF-Q
x1 (mm) x y1 (mm) CSF-Head
Adaptor Adaptor for
Adaptor for
Adaptor for
Rubber insert
x1 > x + 0,3
y1 > y + 0,3
Order No.
Ø
DSX 80,
DSXV 80
DS 80,
DSV 80
DS 80UNC,
DSV 80UNC
(square)
12,0 x 12,0
12,0 x 14,5
12,7 x 12,7
17,0 x 17,0
17,0 x 23,0
19,6 x 19,6
005 87 417 33
005 87 417 34
005 87 417 35
005 87 417 36
005 87 417 37
005 87 417 38
6
6
6
11
16
11
005 87 418 03
005 87 418 03
005 87 418 03
005 87 418 04
005 87 418 05
005 87 418 04
005 87 417 15
005 87 417 15
005 87 417 15
005 87 417 16
005 87 417 17
005 87 417 16
005 87 417 88
005 87 417 88
005 87 417 88
005 87 417 89
005 87 417 90
005 87 417 89
005 87 137 99
005 87 137 99
005 87 137 99
005 87 137 98
005 87 137 98
005 87 137 98
CSF-Ql
12,7 x 12,7
17,8 x 17,8
20,4 x 20,4
25,4 x 25,4
30,4 x 30,4
005 87 417 39
005 87 417 40
005 87 417 41
005 87 417 42
005 87 417 43
6
005 87 418 03
005 87 418 04
005 87 418 05
005 87 418 05
005 87 418 05
005 87 417 15
005 87 417 16
005 87 417 17
005 87 417 17
005 87 417 17
005 87 417 88
005 87 417 89
005 87 417 90
005 87 417 90
005 87 417 90
005 87 137 99
005 87 137 98
005 87 137 98
005 87 137 98
005 87 137 98
11
16
16
16
CSF-D
5,5 x 10,0
5,8 x 10,5
6,7 x 10,0
9,3 x 13,0
9,4 x 10,0
9,8 x 18,0
10,0 x 16,0
10,5 x 16,0
10,7 x 18,0
11,0 x 26,5
005 87 417 23
005 87 417 24
005 87 417 25
005 87 417 26
005 87 417 27
005 87 417 28
005 87 417 29
005 87 417 30
005 87 417 31
005 87 417 32
6
6
6
6
6
6
6
6
6
005 87 418 03
005 87 418 03
005 87 418 03
005 87 418 03
005 87 418 03
005 87 418 03
005 87 418 03
005 87 418 03
005 87 418 03
005 87 418 04
005 87 417 15
005 87 417 15
005 87 417 15
005 87 417 15
005 87 417 15
005 87 417 15
005 87 417 15
005 87 417 15
005 87 417 15
005 87 417 16
005 87 417 88
005 87 417 88
005 87 417 88
005 87 417 88
005 87 417 88
005 87 417 88
005 87 417 88
005 87 417 88
005 87 417 88
005 87 417 89
005 87 137 99
005 87 137 99
005 87 137 99
005 87 137 99
005 87 137 99
005 87 137 99
005 87 137 99
005 87 137 99
005 87 137 99
005 87 137 98
11
CSF-Dl
SOJ-Case
9,0 x 18,0
005 87 417 44
6
005 87 418 03
005 87 417 15
005 87 417 88
005 87 137 99
12
Accessories
For easier rework and repair, Weller has a large range of desoldering
nozzles and soldering nozzles.
Threadless nozzles for desoldering iron
DSX 80, DSXV 80 and DXV 80
The new X series nozzle feature a threadless fixture system whereby
the nozzle is inserted into the head and locked into place by aplly-
ing a 1/4 turn. This feature allows the nozzles to be quickly and easi-
ly exchanged and also improves the rate of thermal transfer from
the head to the nozzle.
DSX 80
DSXV 80
DXV 80
Nozzles for desoldering iron
DSX 80, DSXV 80 and DXV 80
Model
Description
mm
mm
mm
Order No.
DX110
Nozzle
1,9
0,7
23
005 13 140 00
DX111
DX112
DX113
Nozzle
Nozzle
Nozzle
Nozzle
2,5
2,3
2,5
2,5
0,7
1,0
1,2
1,2
1,8
0,7
1,2
1,5
0.7
0,7
23
23
23
23
23
23
29
23
23
31
005 13 141 00
005 13 142 00
005 13 143 00
005 13 150 00
005 13 144 00
005 13 145 00
005 13 146 00
005 13 147 00
005 13 148 00
005 13 151 00
DX113HM
with improved thermal transfer
DX114
DX115
DX116
DX117
DX118
DX119
DX120
Nozzle
3,3
1,9
2,7
2,9
1.5
1,1
Nozzle
Nozzle
Nozzle
Nozzle
Needle Tiplet
with not wettable stainless steel tube for removal of solder bridges in connection with hot air pencil
Nozzle
2,5
1,1
22
005 13 152 00
005 13 153 99
005 87 067 94
005 13 790 99
without inside tube, for cleaning of SMD pads
Measuring
Nozzle
3,3
0,55
21,5
for temperature measurement with thermocouple 0.5
Conus insert
cleaning tool
Nozzle Set
DX 110-DX115
13
Hot Air Nozzles
for hot air pencil HAP 1
x
y
Description
Dimensions (mm)
Type
Order No.
x
y
Hot air nozzle
four sides heated
with hot plate
18,0 x 18,0
16,0 x 16,0
12,0 x 12,0
Q10
SK 769A
SK 709A
005 87 277 85
005 87 278 16
005 87 278 12
Hot air nozzle
four sides heated
with hot plate
12,5 x 15,0
15,0 x 10,0
6,0 x 9,0
6,0 x 6,5
10,0 x 18,0
15,0 x 10,0
10,0 x 13,0
10,5 x 10,5
–
Q08
Q06
Q04
Q02
D10
D08
D06
D04
R01
005 87 277 83
005 87 277 80
005 87 277 78
005 87 277 77
005 87 277 84
005 87 277 81
005 87 277 82
005 87 277 79
005 87 278 08
Hot air nozzle
four sides heated
with hot plate
Hot air nozzle
four sides heated
with hot plate
Hot air nozzle
four sides heated
with hot plate
Hot air nozzles
two sides heated
with hot plate
Hot air nozzle
two sides heated
with hot plate
Hot air nozzle
two sides heated
with hot plate
Hot air nozzle
two sides heated
with hot plate
Measuring nozzle
for thermo element
Ø 0,5 mm
14
Hot Air Nozzles
for hot air pencil HAP 1
Description
Dimensions
(mm)
Type
Order No.
Flat nozzle
12,0 x 1,5
10,5 x 1,5
8,0 x 1,5
Ø 2,0
F06
005 87 277 72
Flat nozzle
Flat nozzle
F04
F02
R10
R08
R06
R04
R02
FD4
FD2
005 87 277 73
005 87 277 74
005 87 277 87
005 87 277 86
005 87 278 22
005 87 278 21
005 87 278 23
005 87 277 75
005 87 277 76
Round nozzle
long straight
Round nozzle
long bent
Ø 2,0
Round nozzle
Round nozzle
Round nozzle
Dual nozzle
Dual nozzle
Ø 3,0
Ø 1,2
Ø 0,8
Ø 1,5 x 10,0
Ø 1,5 x 8,0
15
Soldering Tips
for soldering iron LR 82
Description
Width A
Thickness B
Type
Order No.
A
Chisel
3,2 mm
1,0 mm
HT 1
005 44 260 99
B
B
A
A
A
A
A
B
Chisel
5,2 mm
7,0 mm
3,2 mm
4,6 mm
5,6 mm
2,4 mm
3,2 mm
5,0 mm
1,2 mm
1,2 mm
1,0 mm
1,0 mm
1,0 mm
8,3 mm
8,3 mm
8,3 mm
HT 2
005 44 261 99
005 44 262 99
005 44 267 99
005 44 268 99
005 44 269 99
005 44 264 99
005 44 265 99
005 44 266 99
Chisel
HT 3
B
Chisel long
Chisel long
Chisel long
Round
HT C
HT D
HT E
B
B
B
HT BS
HT CS
HT DS
A
B
Round
A
B
Round
A
Measuring tip
for thermo element –
Ø 0,5 mm
–
–
005 44 263 99
005 44 270 99
Srew in tip
with M8 outerthread
16
Soldering Tips
for soldering pencil LR 21
Description
Width
Type
Order No. for
regular solder
Chisel
0,8 mm
1,6 mm
2,4 mm
3,2 mm
4,6 mm
5,6 mm
ET H
ET A
ET B
ET C
ET D
ET E
4 ET H
4 ET A
4 ET B
4 ET C
4 ET D
4 ET E
Chisel long
1,2 mm
2,0 mm
3,2 mm
ET K
ET L
ET M
4 ET K
4 ET L
4 ET M
Round tip, blunt
Round fine long
Chisel slim
0,8 mm
2,4 mm
3,2 mm
ET P
ET BS
ET CS
4 ET P
4 ET BS
4 ET CS
0,8 mm
0,4 mm
ET O
ET S
4 ET O
4 ET S
1,6 mm
ET R
4 ET R
Round
stopped 45°
1,2 mm
2,4 mm
3,2 mm
ET F
ET BB
ET CC
4 ET F
4 ET BB
4 ET CC
Chip soldering/
desoldering tip
2,5 x 1,5 mm
3,8 x 1,5 mm
ET SMD
ET SMD
005 41 039 99
005 41 040 99
Gull wing
–
–
ET GW
–
005 41 045 99
005 24 750 99
005 41 703 99
005 87 207 81
ET Measuring tip
for thermo element
Ø 0,5 mm
Srew in tip
with M5 outerthread
ET - LT Adapter
for use LR21 LT series tips
If any other tips are required, use LT tips with ET/LT adapter.
17
Soldering Tips
for soldering pencil MLR 21
Description
Width
Type
Order No.
Micropoint
0,25 mm
MT 1
005 44 101 99
Micropoint
slim
0,25 mm
1,6 mm
1,2 mm
MT 1S
MT 6
MT 4
005 44 105 99
005 44 106 99
005 44 104 99
Chisel slim
Sloped
Chisel
0,8 mm
1,6 mm
2,4 mm
MT H
MT A
MT B
005 44 112 99
005 44 110 99
005 44 111 99
Chisel
bent
0,8 mm
MT HX*
*only with barrel nut
005 44 113 99
005 87 207 01
Gull wing
Ø 2,0 mm
–
MT GW
–
005 44 119 99
005 44 114 99
Measuring tip
for thermo element
Ø 0,5 mm
MT - LT Adapter
for use MLR 21 with LT series tips
005 44 121 99
If any other tips are required, use LT tips with MT/LT adapter.
18
Soldering Tips
for micro soldering pencil WMP
NT-Tip
Description
Width A
Thickness B
Length C
Type/Order No.
Chisel tip
0,8 mm
1,2 mm
1,6 mm
1,6 mm
2,4 mm
3,2 mm
4,0 mm
0,4 mm
0,4 mm
0,4 mm
0,4 mm
0,8 mm
0,8 mm
0,8 mm
8,4 mm
8,4 mm
8,4 mm
9,5 mm
7,4 mm
7,8 mm
7,8 mm
NTH
NTK
NTA
NT6
NTB
NTC
NTD
Chisel tip, bent
Round tip, bent
0,4 mm
1,6 mm
1,6 mm
0,8 mm
8,2 mm
8,6 mm
NTAX
NT1X
Round tip
0,25 mm
0,25 mm
–
7,4 mm
8,5 mm
9,9 mm
13,4 mm
–
NT1
Round tip slim
–
NT1S
NT4
Round tip, sloped 1,2 mm
45°
–
3,0 mm
–
Gull wing
2,0 mm
NTGW
NTMS
NT Measuring tip
–
19
Soldering Tips
for WSP 80, WSP 80IG, WSP 80FE and MPR 80
WSP 80 (FE)
MPR 80
Description
Width A
Thickness B
Length
Type
Order No.
Chisel
Chisel*
Chisel
Chisel*
Chisel**
Chisel
Chisel*
Chisel**
Chisel
Chisel**
Chisel
Chisel**
Chisel*
0,8 mm
0,8 mm
1,6 mm
1,6 mm
1,6 mm
2,4 mm
2,4 mm
2,4 mm
3,2 mm
3,2 mm
4,6 mm
4,6 mm
4,6 mm
0,4 mm
0,4 mm
0,7 mm
0,7 mm
0,7 mm
0,8 mm
0,8 mm
0,8 mm
0,8 mm
0,8 mm
0,8 mm
0,8 mm
0,8 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
11,5 mm
LT H
LT HHPB
LT A
LT AHPB
LT ALF
LT B
LT BHPB
LT BLF
LT C
LT CLF
LT D
LT DLF
LT DHPB
005 44 437 99
005 44 430 99
005 44 440 00
005 44 431 99
005 44 470 00
005 44 405 00
005 44 432 99
005 44 446 00
005 44 407 00
005 44 447 00
005 44 409 99
005 44 448 00
005 44 483 00
Chisel long
Chisel long
Chisel long**
Chisel long
Chisel long**
1,2 mm
2,0 mm
2,0 mm
3,2 mm
3,2 mm
0,4 mm
1,0 mm
1,0 mm
1,2 mm
1,2 mm
19,0 mm
19,0 mm
19,0 mm
19,0 mm
19,0 mm
LT K
LT L
LT LLF
LT M
LT MLF
005 44 438 00
005 44 414 00
005 44 476 00
005 44 415 00
005 44 477 00
Chisel bent
Chisel bent
Chisel bent
Chisel bent**
0,8 mm
1,6 mm
2,4 mm
3,2 mm
0,4 mm
0,7 mm
0,8 mm
0,8 mm
16,5 mm
16,5 mm
16,5 mm
16,5 mm
LT HX
LT ALX
LT BX
005 44 420 99
005 44 443 00
005 44 442 00
005 44 469 00
LT MXLF
Chisel bent
Chisel bent**
1,6 mm
1,6 mm
0,8 mm
0,8 mm
12,5 mm
12,5 mm
LT AX
LT AXLF
005 44 427 00
005 44 480 00
Round slim
Ø 0,2 mm
1,6 mm
13,0 mm
LT 1S
005 44 436 99
Round
Round
Round**
Round
Round**
Ø 0,25 mm
Ø 1,6 mm
Ø 1,6 mm
Ø 3,2 mm
Ø 3,2 mm
12,0 mm
12,0 mm
12,0 mm
12,0 mm
12,0 mm
LT 1
005 44 435 99
005 44 404 00
005 44 471 00
005 44 411 00
005 44 474 00
LT AS
LT ASLF
LT CS
LT CSLF
Round slim bent
Ø 2,0 mm
Ø 0,4 mm
20,5 mm
LT 1SLX
005 44 426 99
Round bent 30°
Round bent 30°
Ø 1,2 mm
Ø 0,4 mm
15,0 mm
11,0 mm
LT 4X
LT 1X
005 44 428 00
005 44 425 99
Round sloped 45° slim
Round sloped 45°
Ø 1,2 mm
Ø 1,2 mm
13,5 mm
11,0 mm
LT 4
LT F
005 44 439 99
005 44 408 00
Round sloped 45° long
Round sloped 45° long
Round sloped 45° long** 2,4 mm
Round sloped 45° long 3,2 mm
Round sloped 45° long** 3,2 mm
Round sloped 45° long** 4,6 mm
1,6 mm
2,4 mm
4,0 mm
4,0 mm
4,0 mm
6,0 mm
6,0 mm
6,0 mm
16,5 mm
16,5 mm
17,0 mm
16,0 mm
16,2 mm
19,0 mm
LT AALF
LT BB
LT BBLF
LT CC
LT CCLF
LT DDLF
005 44 487 00
005 44 444 00
005 44 472 00
005 44 445 00
005 44 473 00
005 44 478 00
20
Soldering Tips
for WSP 80, WSP 80IG, WSP 80FE and MPR 80
WSP 80 (FE)
MPR 80
Description
Width A
Thickness B
Length
Type
Order No.
Conical long
Conical long
Conical long**
Conical long**
Ø 0,2 mm
Ø 0,4 mm
Ø 0,6 mm
Ø 1,0 mm
19,0 mm
19,0 mm
19,0 mm
19,0 mm
LT 1L
LT S
LT TLF
LT OLF
005 44 423 99
005 44 406 99
005 44 482 00
005 44 492 00
Conical long bent
Ø 0,2 mm
24,0 mm
LT 1LX
LT GW
005 44 424 99
005 44 410 00
Gull wing 45°
Gull wing 45°**
Ø 2,3 mm
Ø 2,3 mm
3,2 mm
3,2 mm
17,0 mm
17,0 mm
LT GWLF 005 44 475 00
Knife tip**
6,2 mm
16,0 mm
LT KNLF
005 44 479 00
005 44 416 00
005 44 449 99
LT Measuring tip
for thermo element Ø 0,5 mm
LT Screw in tip with M4 thread
*
HPB solder = solder with high consumption of lead for special applictations
** Lead free solder = the LF soldering tips have thicker layer of iron. This improves the lifetime and makes them ideal for working with lead free solder.
Regular soldering tips can be used with lead free solder but it reduces their lifetime for physical reasons.
SMT soldering tip for reworks on SMT compontents
Description
Width A
Thickness B
Length C
Type
Order No.
B
Blade
Blade
Blade
10,4 mm
16,8 mm
20,8 mm
0,6 mm
0,6 mm
0,6 mm
7,1 mm
7,1 mm
7,1 mm
LT SMT01
LT SMT02
LT SMT03
LTSMT01
LTSMT02
LTSMT03
C
A
Slot
Slot
Slot
Slot
1,8 mm
1,5 mm
2,5 mm
2,3 mm
3,4 mm
2,3 mm
1,7 mm
4,5 mm
1,8 mm
1,8 mm
1,4 mm
1,8 mm
LT SMT04
LT SMT05
LT SMT06
LT SMT07
LTSMT04
LTSMT05
LTSMT06
LTSMT07
B
A
C
Tunnel
Tunnel
Tunnel
Tunnel
Tunnel
Tunnel
Tunnel
4,6 mm
10,4 mm
11,5 mm
13,2 mm
15,8 mm
18,3 mm
18,8 mm
5,1 mm
5,1 mm
6,9 mm
9,5 mm
9,5 mm
9,5 mm
9,0 mm
2,3 mm
2,3 mm
2,3 mm
3,2 mm
3,2 mm
3,2 mm
3,2 mm
LT SMT08
LT SMT09
LT SMT10
LT SMT11
LT SMT12
LT SMT13
LT SMT14
LTSMT08
LTSMT09
LTSMT10
LTSMT11
LTSMT12
LTSMT13
LTSMT14
B
C
A
Quad
Quad
Quad
Quad
Quad
Quad
Quad
Quad
2,7 mm
10,4 mm
12,7 mm
13,7 mm
19,1 mm
23,2 mm
24,5 mm
29,6 mm
7,7 mm
10,4 mm
12,7 mm
8,6 mm
19,1 mm
17,3 mm
24,5 mm
29,6 mm
3,8 mm
3,8 mm
3,8 mm
3,8 mm
3,8 mm
3,8 mm
3,8 mm
3,8 mm
LT SMT15
LT SMT16
LT SMT17
LT SMT18
LT SMT19
LT SMT20
LT SMT21
LT SMT22
LTSMT15
LTSMT16
LTSMT17
LTSMT18
LTSMT19
LTSMT20
LTSMT21
LTSMT22
B
A
C
21
Soldering Tips
WSP 150
WTA 50
For soldering iron WSP 150
Description
Width A
Thickness B
Type
Order No.
Chisel
3,2 mm
4,7 mm
6,7 mm
9,3 mm
1,2 mm
1,8 mm
1,8 mm
1,8 mm
LHT C
LHT D
LHT E
LHT F
005 44 455 99
005 44 452 99
005 44 451 99
005 44 450 99
Chisel bent
5 mm
7 mm
10 mm
2 mm
2 mm
2 mm
LHT DX
LHT EX
LHT FX
005 44 462 99
005 44 461 99
005 44 460 99
Sloped 45°
for solar panel
production
–
–
–
–
LHT D45
005 44 456 00
005 44 453 99
LHT Measuring tip
for thermo element
Ø 0,5 mm
–
For WT 50 and WTA 50 tweezer
Tip set bent 45°
0,5 mm
1,0 mm
3,0 mm
6,0 mm
12,5 mm
18,5 mm
1,0 mm
3,0 mm
0,5 mm
0,5 mm
0,5 mm
0,5 mm
0,5 mm
0,5 mm
0,5 mm
0,5 mm
WTA 1S
WTA 1
WTA 2
WTA 3
WTA 4
WTA 5
WTA 11
WTA 12
005 44 145 99
005 44 141 99
005 44 146 99
005 44 147 99
005 44 143 99
005 44 144 99
005 44 152 99
005 44 153 99
Tip set bent 45°
Tip set bent 45°
Tip set bent 45°
Tip set
Tip set
Tip set vertical use
Tip set vertical use
22
Additional Safety Rests
Safety rests with Stop+Go Function
The safety rests with Stop+Go function have an integrated
micro switch which is activated when the soldering iron is
picked up or put down. The operator can decide between
an immediate or delayed (20 min) temperature reduction
(SETBACK) to 150°C (300°F) and programme the power unit
accordingly. The SETBACK time can be changed with the
optional calibration box WCB 2. The temperature reduction
extends the lifetime of the tips.
When working with the inert gas soldering iron WSP 80IG
together with the hot air station WAD 101 the Stop+Go
safety rest will start and stop the inert gas flow.
All Weller digital soldering stations and the WAD 101 hot
air station automatically recognize the Stop+Go safety rests.
WPHT (WPHT)
Safety rests with Stop+Go Function
for WMP
WPH 81T (005 15 144 99)
Safety rests with Stop+Go Function
for WSP 80, WSP 80IG und MPR 80
Standard Safety rests
complete with sponge
AK 1 (005 15 010 99)
AK 20 (005 15 030 99)
AK 21 (005 15 012 99)
AK 51 (005 15 042 99)
Support for DSX 80 (DS 80UNC)
Desoldering iron, HAP 1 Hot air
pencil, LR 21 and LR 82
Support for DSX 80 (DS 80 UNC)
Desoldering iron and HAP 1
Hot air pencil
Support for MPR 80 Peritronic
soldering pencil
Support for WTA 50 Tweezer
Antistatic soldering pencils
AKV (005 15 038 99)
KH 15 (005 15 019 99)
KH 20 (005 15 020 99)
KH 25P (005 15 033 99)
Support for DSVT80 and DSXV 80
(DSV 80UNC) Desoldering iron
Support for MLR 21 Micro
soldering pencil
Support for LR 21 Antistatic
soldering pencil and HAP 1
Hot air pencil
Support for MPR 80 Peritronic
soldering pencil
KH 27 (005 15 027 99)
WPH 80 (005 15 140 99)
WPHM (WPHM)
Sponge (005 22 419 99) 5 pcs.
Support for LR 82 Soldering
iron, HAP 1 and WSP 150
Support for WSP 80
Micro soldering pencil
support for WMP micro
soldering pencil
70 x 55 x 16 mm
23
WMD 3
WMD 1A
WMD 1D
Consists of:
Power unit
Consists of:
Power unit WMD 1S
Consists of:
Power unit WMD 1S
005 33 286 99
005 33 286 99
(UK: 005 33 283 99)
005 27 115 99
005 15 027 99
005 87 278 21
005 87 278 22
005 13 500 99
(UK: 005 33 283 99)
005 13 190 99
005 15 030 99
005 13 142 99
005 13 143 99
005 13 500 99
005 13 605 00
Order No.:
005 33 026 99
(UK: 005 33 023 99)
Hot air pencil HAP 1
Holder KH 27
Nozzle R 04
Nozzle R 06
Cleaning set
Desoldering iron DSX 80
Holder AK 20
Nozzle DX 112
Nozzle DX 113
Cleaning set
Replacement glass tube
Order No.:
005 33 306 99
(UK: 005 33 303 99) Order No.:
005 33 326 99
(UK: 005 33 323 99)
WDD 161V
WDD 81V
PUDD 81V
Consists of:
Power unit PUDD 161V
Consists of:
Power unit PUDD 81V
Consists of:
Power unit PUDD 81V
005 32 886 99
(UK: 005 32 883 99)
005 13 190 99
005 29 161 99
005 15 030 99
005 15 146 99
005 13 142 99
005 13 143 99
005 13 500 99
005 13 605 00
005 32 586 99
(UK: 005 32 583 99)
Desoldering iron DSX 80
Soldering pencil WSP 80
Holder AK 20
Holder WPH 80
Nozzle DX 112
Nozzle DX 113
Cleaning set
Replacement glass tube
Desoldering iron DSX 80
Holder AK 20
Nozzle DX 112
Nozzle DX 113
Cleaning set
005 13 190 99 Order No.:
005 15 030 99
005 32 586 99
(UK: 005 32 583 99)
005 13 142 99
005 13 143 99
005 13 500 99
005 13 605 00
Replacement glass tube
Order No.:
005 32 566 99
(UK: 005 32 563 99)
Order No.:
005 32 806 99
(UK: 005 32 803 99)
WAD 101
Consists of:
Power unit
Hot air pencil HAP 1
Holder KH 27
Nozzle R 04
Nozzle R 06
Cleaning set
005 27 115 99
005 15 027 99
005 87 278 21
005 87 278 22
005 13 500 99
Order No.:
005 32 666 99
(UK: 005 32 663 99)
E
R
M
N
Y
G
R
E
A
B R I T A I N
CG ooperATools GmbH
CooperTTools Ltd.
Carl-Benz-Str. 2
Suite 15, Coniston House
Towne Centre
74354 Besigheim
Tel: (07143) 580-0
Fax: (07143) 580-108
Washington, Tyne & Wear
NE38 7RN
Tel: (0191) 419 7700
Fax: (0191) 417 9421
F
R
A
E
I
A
L
Y
S
W
I
E
L A N D
CoopeN rCTools S.A.
25 Avenue Maurice Chevalier
77832 Ozoir-la-Ferrière
CTooper Italia S.p.A.
EremTSZ.A. R
Viale Europa 80
Rue de la Roselière 8
1400 Yverdon les Bains
Tel: (024) 426 12 06
Fax: (024) 425 09 77
20090 Cusago (MI)
Tél: (1) 60.18.55.40
Fax: (1) 64.40.33.05
Tel: (02) 9033101
Fax: (02) 90394231
© 2005, Cooper Industries, Inc.
www.cooperhandtools.com/europe
Specifications subject to change without notice.
厂商 型号 描述 页数 下载

GREATECS

 		DX1 SPST标准DIP开关[ SPST Standard DIP Switches ] 1 页

HRS

 		DX10-100P-CP3 DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100P-CR2A DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100P-CR3 DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100P-LNA DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100S-CP3 DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100S-CR2A DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100S-CR3 DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100S-LNA DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100SE DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.255150s
