CYRS1543AV18

型号:

CYRS1543AV18

描述:

72兆位QDR® II SRAM四字突发[ 72-Mbit QDR® II SRAM Four-Word Burst ]

品牌:

CYPRESS[ CYPRESS ]

页数:

32 页

PDF大小:

498 K

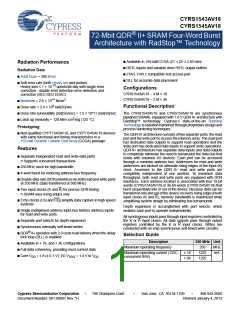

CYRS1543AV18
CYRS1545AV18
72-Mbit QDR® II+ SRAM Four-Word Burst
Architecture with RadStop™ Technology
72-Mbit QDR® II+ SRAM Four-Word Burst Architecture with RadStop™ Technology
Available in 165-ball CCGA (21 ×25 ×2.83 mm)
HSTL inputs and variable drive HSTL output buffers
JTAG 1149.1 compatible test access port
DLL for accurate data placement
Radiation Performance
Radiation Data
Total Dose =300 Krad
Soft error rate (both Heavy Ion and proton)
Heavy ions 1 × 10-10 upsets/bit-day with single error
correction - double error detection error detection and
correction (SEC-DED EDAC)
Configurations
CYRS1543AV18 – 4 M × 18
Neutrons = 2.0 × 1014 N/cm2
CYRS1545AV18 – 2 M × 36
Dose rate = 2.0 × 109 rad(Si)/sec
Functional Description
Dose rate survivability (rad(Si)/sec) = 1.5 × 10^11 (rad(Si)/sec
Latch up immunity = 120 MeV.cm2/mg (125 °C)
The CYRS1543AV18 and CYRS1545AV18 are synchronous
pipelined SRAMs, equipped with 1.8 V QDR II+ architecture with
RadStop™ technology. Cypress’s state-of-the-art RadStop
Technology is radiation hardened through proprietary design and
process hardening techniques.
Prototyping
Non-qualified CYPT1543AV18, and CYPT1545AV18 devices
with same functional and timing characteristics in a
165-ball Ceramic Column Grid Array (CCGA) package
The QDR II+ architecture consists of two separate ports: the read
port and the write port to access the memory array. The read port
has dedicated data outputs to support read operations and the
write port has dedicated data inputs to support write operations.
QDR II+ architecture has separate data inputs and data outputs
to completely eliminate the need to turnaround the data bus that
exists with common I/O devices. Each port can be accessed
through a common address bus. Addresses for read and write
addresses are latched on alternate rising edges of the input (K)
clock. Accesses to the QDR II+ read and write ports are
completely independent of one another. To maximize data
throughput, both read and write ports are equipped with DDR
interfaces. Each address location is associated with four 18-bit
words (CYRS1543AV18) or 36-bit words (CYRS1545AV18) that
burst sequentially into or out of the device. Because data can be
transferred into and out of the device on every rising edge of both
input clocks (K and K), memory bandwidth is maximized while
simplifying system design by eliminating bus turnarounds.
Features
Separate independent read and write data ports
Supports concurrent transactions
250 MHz clock for high bandwidth
4-word burst for reducing address bus frequency
Double data rate (DDR) interfaces on both read and write ports
at 250 MHz (data transferred at 500 MHz)
Two input clocks (K and K) for precise DDR timing
SRAM uses rising edges only
Echo clocks (CQ and CQ) simplify data capture in high speed
systems
Depth expansion is accomplished with port selects, which
enables each port to operate independently.
Single multiplexed address input bus latches address inputs
for read and write ports
All synchronous inputs pass through input registers controlled by
the K or K input clocks. All data outputs pass through output
registers controlled by the K or K input clocks. Writes are
conducted with on-chip synchronous self-timed write circuitry.
Separate port selects for depth expansion
Synchronous internally self-timed writes
QDR® II+ operates with 2.0 cycle read latency when the delay
lock loop (DLL) is enabled
Selection Guide
Description
250 MHz Unit
Available in × 18, and × 36 configurations
Maximum operating frequency
250
1225
1225
MHz
mA
Full data coherency, providing most current data
Core VDD = 1.8 (± 0.1 V); I/O VDDQ = 1.4 V to VDD
Maximum operating current (125C, × 18
concurrent R/W)
× 36
Cypress Semiconductor Corporation
Document Number: 001-60007 Rev. *H
198 Champion Court
San Jose, CA 95134-1709
408-943-2600
Revised January 4, 2013
CYRS1543AV18
CYRS1545AV18
Logic Block Diagram – CYRS1543AV18
18
D
[17:0]
Write Write Write Write
20
Address
Register
A
Reg
Reg
Reg
Reg
(19:0)
20
Address
Register
A
(19:0)
RPS
K
Control
Logic
CLK
Gen.
K
DOFF
Read Data Reg.
CQ
CQ
72
36
V
REF
18
18
18
18
Reg.
Reg.
Reg.
Control
Logic
WPS
BWS
18
36
Q
[17:0]
[1:0]
QVLD
Logic Block Diagram – CYRS1545AV18
36
D
[35:0]
Write Write Write Write
19
Address
Register
A
Reg
Reg
Reg
Reg
(18:0)
19
Address
Register
A
(18:0)
RPS
K
Control
Logic
CLK
Gen.
K
DOFF
Read Data Reg.
CQ
CQ
144
72
V
REF
36
36
36
36
Reg.
Reg.
Reg.
Control
Logic
WPS
BWS
36
72
Q
[35:0]
[3:0]
QVLD
Document Number: 001-60007 Rev. *H
Page 2 of 32
CYRS1543AV18
CYRS1545AV18
Contents
Manufacturing Flow ..........................................................4
Radiation Hardened Design ........................................4
Neutron Soft Error Immunity ...........................................4
Pin Configuration .............................................................5
Pin Definitions ..................................................................6
Functional Overview ........................................................8
Read Operations .........................................................8
Write Operations .........................................................8
Byte Write Operations .................................................8
Concurrent Transactions .............................................8
Depth Expansion .........................................................9
Programmable Impedance ..........................................9
Echo Clocks ................................................................9
Valid Data Indicator (QVLD) ........................................9
DLL ..............................................................................9
Qualification and Screening ........................................9
Application Example ......................................................10
Truth Table ......................................................................11
Write Cycle Descriptions ...............................................11
Write Cycle Descriptions ...............................................12
IEEE 1149.1 Serial Boundary Scan (JTAG) ..................13
Disabling the JTAG Feature ......................................13
Test Access Port .......................................................13
Performing a TAP Reset ...........................................13
TAP Registers ...........................................................13
TAP Instruction Set ...................................................13
TAP Controller State Diagram .......................................15
TAP Controller Block Diagram ......................................16
TAP Electrical Characteristics ......................................16
TAP AC Switching Characteristics ...............................17
TAP Timing and Test Conditions ..................................18
Identification Register Definitions ................................19
Scan Register Sizes .......................................................19
Instruction Codes ...........................................................19
Boundary Scan Order ....................................................20
Power Up Sequence in QDR II+ SRAM .........................21
Power Up Sequence .................................................21
DLL Constraints .........................................................21
Maximum Ratings ...........................................................22
Operating Range .............................................................22
Electrical Characteristics ...............................................22
DC Electrical Characteristics .....................................22
AC Electrical Characteristics .....................................23
Radiation Performance ..................................................23
Capacitance ....................................................................23
Thermal Resistance ........................................................23
AC Test Loads and Waveforms .....................................24
Switching Characteristics ..............................................25
Switching Waveforms ....................................................26
Ordering Information ......................................................27
Ordering Code Definitions .........................................27
Package Diagram ............................................................28
Acronyms ........................................................................29
Document Conventions .................................................29
Units of Measure .......................................................29
Glossary ..........................................................................30
Document History Page .................................................31
Sales, Solutions, and Legal Information ......................32
Worldwide Sales and Design Support .......................32
Products ....................................................................32
PSoC Solutions .........................................................32
Document Number: 001-60007 Rev. *H
Page 3 of 32
CYRS1543AV18
CYRS1545AV18
Manufacturing Flow
Step
Screen
Method
Requirement
1
2
3
4
5
6
7
8
9
Wafer lot acceptance test
Internal visual
TM 5007
2010, Condition A
100%
100%
100%
100%
Serialization
Temperature cycling
Constant acceleration
1010, Condition C, 50 cycles minimum
2001, YI orientation only
Condition TBD (package in design)
2020 Condition A
Particle impact noise detection (PIND)
Radiographic (X-Ray)
100%
2012, one view (Y-1 orientation) only
In accordance with applicable Cypress specification
1015, Condition D
Pre burn in electrical parameters
100%
100%
10 Dynamic burn in
240 hours at 125 °C or 120 hours at 150 °C minimum
11 Interim (Post dynamic burn in) electricals
12 Static burn in
In accordance with applicable Cypress device specifications
100%
100%
1015, Condition C, 72 hours at 150 °C or 144 hours at 125 °C
minimum
13 Interim (post static burn in) electricals
In accordance with applicable Cypress device specifications
5% overall, 3% functional parameters at 25 °C
100%
14 Percentage defective allowable (PDA)
calculation
All lots
15 Final electrical test
a. Static tests
In accordance with applicable Cypress device specifications
100%
(1) 25 °C
5005, Table I, Subgroup 1
5005, Table I, Subgroup 2, 3
(2) –55 °C and +125 °C
b. Functional tests
(1) 25 C
5005, Table I, Subgroup 7
5005, Table I, Subgroup 8a, 8b
5005, Table I, Subgroup 9
1014
(2) –55 °C and +125 °C
c. Switching test at 25 °C
16 Seal (fine and gross leak test)
17 External visual
18 Wafer lot specific life test (Group C)
100%
100%
2009
Mil-PRF 38535, Appendix B, section B.4.2.c
All wafer lots
Radiation Hardened Design
Neutron Soft Error Immunity
The single event latch up (SEL) immunity is improved by a
radiation hardened design technique developed by Cypress
called RadStop. This design mitigation technique allows the SEL
performance to achieve radiation hard performance levels.
Test
Conditions
Parameter Description
Typ Max* Unit
LSBU
LMBU
SEL
Logical
single-bit
upsets
25 °C
25 °C
85 °C
320 368 FIT/
Mb
Logical
multi-bit
upsets
0
0
0.01 FIT/
Mb
Single event
latch up
0.1
FIT/
Dev
* No LMBU or SEL events occurred during testing; this column represents a
2
statistical , 95% confidence limit calculation. For more details refer to
Application Note AN54908 “Accelerated Neutron SER Testing and Calculation
of Terrestrial Failure Rates”
Document Number: 001-60007 Rev. *H
Page 4 of 32
CYRS1543AV18
CYRS1545AV18
Pin Configuration
Pin configurations for CYRS1543AV18 and CYRS1545AV18. [1]
Figure 1. 165-ball CCGA pinout
CYRS1543AV18 (4 M × 18)
1
CQ
NC
NC
NC
NC
NC
NC
DOFF
NC
NC
NC
NC
NC
NC
TDO
2
NC/144M
Q9
3
4
5
BWS1
NC
A
6
K
7
NC/288M
BWS0
A
8
9
A
10
A
11
CQ
Q8
D8
D7
Q6
Q5
D5
ZQ
D4
Q3
Q2
D2
D1
Q0
TDI
A
B
C
D
E
F
A
WPS
A
RPS
A
D9
K
NC
NC
NC
NC
NC
NC
VDDQ
NC
NC
NC
NC
NC
NC
A
NC
Q7
NC
D6
NC
D10
Q10
Q11
D12
Q13
VDDQ
D14
Q14
D15
D16
Q16
Q17
A
VSS
VSS
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSS
VSS
A
NC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
A
VSS
VSS
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSS
VSS
A
D11
NC
VSS
VSS
VDD
VDD
VDD
VDD
VDD
VSS
VSS
A
VSS
VSS
VDD
VDD
VDD
VDD
VDD
VSS
VSS
A
Q12
D13
VREF
NC
NC
NC
VREF
Q4
D3
G
H
J
K
L
NC
Q15
NC
NC
Q1
NC
D0
M
N
P
R
D17
NC
A
QVLD
NC
A
TCK
A
A
A
A
TMS
CYRS1545AV18 (2 M × 36)
1
2
NC/288M
Q18
Q28
D20
3
4
5
BWS2
BWS3
A
6
K
7
BWS1
BWS0
A
8
9
10
NC/144M
Q17
Q7
11
CQ
Q8
D8
D7
Q6
Q5
D5
ZQ
D4
Q3
Q2
D2
D1
Q0
TDI
A
B
C
D
E
F
CQ
A
WPS
A
RPS
A
A
Q27
D27
D28
Q29
Q30
D30
DOFF
D31
Q32
Q33
D33
D34
Q35
TDO
D18
D19
Q19
Q20
D21
Q22
VDDQ
D23
Q23
D24
D25
Q25
Q26
A
K
D17
D16
Q16
Q15
D14
Q13
VDDQ
D12
Q12
D11
D10
Q10
Q9
VSS
VSS
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSS
VSS
A
NC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
A
VSS
VSS
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSS
VSS
A
VSS
VSS
VDD
VDD
VDD
VDD
VDD
VSS
VSS
A
VSS
VSS
VDD
VDD
VDD
VDD
VDD
VSS
VSS
A
D15
D6
D29
Q21
D22
Q14
D13
VREF
Q4
G
H
J
VREF
Q31
D32
K
L
D3
Q24
Q34
D26
Q11
Q1
M
N
P
R
D9
D35
A
QVLD
NC
A
D0
TCK
A
A
A
A
A
TMS
Note
1. NC/144M and NC/288M are not connected to the die and can be tied to any voltage level.
Document Number: 001-60007 Rev. *H
Page 5 of 32
CYRS1543AV18
CYRS1545AV18
Pin Definitions
Pin Name
I/O
Pin Description
Data input signals. Sampled on the rising edge of K and K clocks when valid write operations are active.
D[x:0]
Input-
Synchronous CYRS1543AV18 D[17:0]
CYRS1545AV18 D[35:0]
WPS
Input-
Write port select Active LOW. Sampled on the rising edge of the K clock. When asserted active, a
Synchronous write operation is initiated. Deasserting deselects the write port. Deselecting the write port ignores D[x:0]
.
BWS0,
BWS1,
BWS2,
BWS3
Input-
Byte write select (BWS) 0, 1, 2, and 3 Active LOW. Sampled on the rising edge of the K and K clocks
Synchronous when write operations are active. Used to select which byte is written into the device during the current
portion of the write operations. Bytes not written remain unaltered.
CYRS1543AV18 BWS0 controls D[8:0] and BWS1 controls D[17:9].
CYRS1545AV18 BWS0 controls D[8:0], BWS1 controls D[17:9]
,
BWS2 controls D[26:18] and BWS3 controls D[35:27].
All the BWS are sampled on the same edge as the data. Deselecting a BWS ignores the corresponding
byte of data and it is not written into the device
.
A
Input-
Address inputs. Sampled on the rising edge of the K clock during active read and write operations.
Synchronous These address inputs are multiplexed for both read and write operations. Internally, the device is
organized as 4 M × 18 (4 arrays each of 1 M × 18) for CYRS1543AV18 and 2 M × 36 (4 arrays each of
512 K × 36) for CYRS1545AV18. Therefore, only 20 address inputs for CYRS1543AV18 and 19 address
inputs for CYRS1545AV18. These inputs are ignored when the appropriate port is deselected.
Q[x:0]
Outputs-
Data output signals. These pins drive out the requested data when the read operation is active. Valid
Synchronous data is driven out on the rising edge of the K and K clocks during read operations. On deselecting the
read port, Q[x:0] are automatically tristated.
CYRS1543AV18 Q[17:0]
CYRS1545AV18 Q[35:0]
RPS
Input-
Read port select Active LOW. Sampled on the rising edge of positive input clock (K). When active,
Synchronous a read operation is initiated. Deasserting deselects the read port. When deselected, the pending access
is allowed to complete and the output drivers are automatically tristated following the next rising edge of
the K clock. Each read access consists of a burst of four sequential transfers.
QVLD
K
Valid Output Valid output indicator. The Q Valid indicates valid output data. QVLD is edge aligned with CQ and CQ.
Indicator
Input Clock Positive input clock input. The rising edge of K is used to capture synchronous inputs to the device
and to drive out data through Q[x:0] when in single clock mode. All accesses are initiated on the rising
edge of K.
K
Input Clock Negative input clock input. K is used to capture synchronous inputs being presented to the device and
to drive out data through Q[x:0] when in single clock mode.
CQ
CQ
ZQ
Echo Clock CQ referenced with respect to C. This is a free running clock and is synchronized to the input clock
K. The timings for the echo clocks are shown in the Switching Characteristics on page 25.
Echo Clock CQ referenced with respect to C. This is a free running clock and is synchronized to the input clock
K. The timings for the echo clocks are shown in the Switching Characteristics on page 25.
Input
Input
Output impedance matching input. This input is used to tune the device outputs to the system data
bus impedance. CQ, CQ, and Q[x:0] output impedance are set to 0.2 × RQ, where RQ is a resistor
connected between ZQ and ground. Alternatively, this pin can be connected directly to VDDQ, which
enables the minimum impedance mode. This pin cannot be connected directly to GND or left
unconnected.
DOFF
TDO
DLL turn off Active LOW. Connecting this pin to ground turns off the DLL inside the device. The
timings in the DLL turned off operation differs from those listed in this data sheet. For normal operation,
this pin can be connected to a pull up through a 10 Kor less pull up resistor. The device behaves in
QDR I mode when the DLL is turned off. In this mode, the device can be operated at a frequency of up
to 167 MHz with QDR I timing.
Output
Test data out (TDO) for JTAG.
Document Number: 001-60007 Rev. *H
Page 6 of 32
CYRS1543AV18
CYRS1545AV18
Pin Definitions (continued)
Pin Name
TCK
I/O
Input
Input
Input
N/A
Pin Description
Test clock (TCK) Pin for JTAG.
Test data in (TDI) Pin for JTAG.
Test mode select (TMS) Pin for JTAG.
TDI
TMS
NC
Not connected to the die. Can be tied to any voltage level.
Not connected to the die. Can be tied to any voltage level.
Not connected to the die. Can be tied to any voltage level.
NC/144M
NC/288M
VREF
N/A
N/A
Input-
Reference voltage input. Static input used to set the reference level for HSTL inputs, outputs, and AC
Reference measurement points.
VDD
VSS
Power Supply Power supply inputs to the core of the device.
Ground
Ground for the device.
VDDQ
Power Supply Power supply inputs for the outputs of the device.
Document Number: 001-60007 Rev. *H
Page 7 of 32
CYRS1543AV18
CYRS1545AV18
seamless transition between devices without the insertion of wait
states in a depth expanded memory.
Functional Overview
The CYRS1543AV18, CYRS1545AV18 are synchronous
pipelined burst SRAMs with a read port and a write port. The read
port is dedicated to read operations and the write port is
dedicated to write operations. Data flows into the SRAM through
the write port and flows out through the read port. These devices
multiplex the address inputs to minimize the number of address
pins required. By having separate read and write ports, the
QDR II completely eliminates the need to turnaround the data
bus and avoids any possible data contention, thereby simplifying
system design. Each access consists of four 18-bit data transfers
in the case of CYRS1543AV18, and four 36-bit data transfers in
the case of CYRS1545AV18 in two clock cycles.
Write Operations
Write operations are initiated by asserting WPS active at the
rising edge of the positive input clock (K). On the following K
clock rise the data presented to D[17:0] is latched and stored into
the lower 18-bit write data register, provided BWS[1:0] are both
asserted active. On the subsequent rising edge of the negative
input clock (K) the information presented to D[17:0] is also stored
into the write data register, provided BWS[1:0] are both asserted
active. This process continues for one more cycle until four 18-bit
words (a total of 72 bits) of data are stored in the SRAM. The
72 bits of data are then written into the memory array at the
specified location. Therefore, write accesses to the device can
not be initiated on two consecutive K clock rises. The internal
logic of the device ignores the second write request. Write
accesses can be initiated on every other rising edge of the
positive input clock (K). Doing so pipelines the data flow such
that 18 bits of data can be transferred into the device on every
rising edge of the input clocks (K and K).
This device operates with a read latency of two cycles when
DOFF pin is tied HIGH. When DOFF pin is set LOW or connected
to VSS then device behaves in QDR I mode with a read latency
of one clock cycle.
Accesses for both ports are initiated on the positive input clock
(K). All synchronous input timing is referenced from the rising
edge of the input clocks (K and K) and all output timing is
referenced to the output clocks (K and K).
When deselected, the write port ignores all inputs after the
pending write operations have been completed.
All synchronous data inputs (D[x:0]) pass through input registers
controlled by the input clocks (K and K). All synchronous data
outputs (Q[x:0]) pass through output registers controlled by the
rising edge of the output clocks (K and K).
Byte Write Operations
Byte write operations are supported by the CYRS1543AV18. A
write operation is initiated as described in the Write Operations
section. The bytes that are written are determined by BWS0 and
BWS1, which are sampled with each set of 18-bit data words.
Asserting the appropriate BWS input during the data portion of a
write latches the data being presented and writes it into the
device. Deasserting the BWS input during the data portion of a
write allows the data stored in the device for that byte to remain
unaltered. This feature can be used to simplify read, modify, or
write operations to a byte write operation.
All synchronous control (RPS, WPS, BWS[x:0]) inputs pass
through input registers controlled by the rising edge of the input
clocks (K and K).
CYRS1543AV18 is described below. The same basic
descriptions also apply to CYRS1545AV18.
Read Operations
The CYRS1543AV18 is organized internally as four arrays of
1 M × 18. Accesses are completed in a burst of four sequential
18-bit data words. Read operations are initiated by asserting
RPS active at the rising edge of the positive input clock (K). The
address presented to the address inputs is stored in the read
address register. Following the next two K clock rise, the
corresponding lowest order 18-bit word of data is driven onto the
Concurrent Transactions
The read and write ports on the CYRS1543AV18 operate
independently of one another. As each port latches the address
inputs on different clock edges, you can read or write to any
location, regardless of the transaction on the other port. If the
ports access the same location when a read follows a write in
successive clock cycles, the SRAM delivers the most recent
information associated with the specified address location. This
includes forwarding data from a write cycle that was initiated on
the previous K clock rise.
Q
[17:0] using K as the output timing reference. On the subsequent
rising edge of Kb, the next 18-bit data word is drive onto the
QQ[17:0]. This process continues until all four 18-bit data words
have been driven out onto Q[17:0]. The requested data is valid
0.45 ns from the rising edge of the output clock (K or K). To
maintain the internal logic, each read access must be allowed to
complete. Each read access consists of four 18-bit data words
and takes two clock cycles to complete. Therefore, read
accesses to the device can not be initiated on two consecutive
K clock rises. The internal logic of the device ignores the second
read request. Read accesses can be initiated on every other K
clock rise. Doing so pipelines the data flow such that data is
transferred out of the device on every rising edge of the output
clocks (K and K).
Read access and write access must be scheduled such that one
transaction is initiated on any clock cycle. If both ports are
selected on the same K clock rise, the arbitration depends on the
previous state of the SRAM. If both ports are deselected, the
read port takes priority. If a read was initiated on the previous
cycle, the write port takes priority (as read operations can not be
initiated on consecutive cycles). If a write was initiated on the
previous cycle, the read port takes priority (as write operations
can not be initiated on consecutive cycles). Therefore, asserting
both port selects active from a deselected state results in alter-
nating read or write operations being initiated, with the first
access being a read.
When the read port is deselected, the CYRS1543AV18 first
completes the pending read transactions. Synchronous internal
circuitry automatically tri-states the outputs following the next
rising edge of the positive input clock (K). This allows for a
Document Number: 001-60007 Rev. *H
Page 8 of 32
CYRS1543AV18
CYRS1545AV18
Depth Expansion
DLL
The CYRS1543AV18 has a port select input for each port. This
allows for easy depth expansion. Both port selects are sampled
on the rising edge of the positive input clock only (K). Each port
select input can deselect the specified port. Deselecting a port
does not affect the other port. All pending transactions (read and
write) are completed before the device is deselected.
These chips use a DLL that is designed to function between
120 MHz and the specified maximum clock frequency. During
power up, when the DOFF is tied HIGH, the DLL is locked after
10240 cycles of stable clock. The DLL can also be reset by
slowing or stopping the input clocks K and K for a minimum of
30 ns. The DLL may be disabled by applying ground to the DOFF
pin. When the DLL is turned off, the device behaves in QDR I
mode (with one cycle latency and a longer access time). For
information refer to the application note AN5062, DLL Consider-
ations in QDRII/DDRII.
Programmable Impedance
An external resistor, RQ, must be connected between the ZQ pin
on the SRAM and VSS to allow the SRAM to adjust its output
driver impedance. The value of RQ must be 5 × the value of the
intended line impedance driven by the SRAM, the allowable
range of RQ to guarantee impedance matching with a tolerance
of ±15% is between 175 and 350 , with VDDQ = 1.5 V. The
output impedance is adjusted every 1024 cycles upon power up
to account for drifts in supply voltage and temperature.
Qualification and Screening
The 90 nm RadStop technology was qualified by Cypress after
meeting the criteria of the General Manufacturing Standards.
The test flow includes screening units with the defined flow
(Class V) and the appropriate periodic or lot conformance testing
(Groups B, C, D, and E). Both the 90 nm process and the SRAM
products are subject to period or lot based technology confor-
mance inspection (TCI) and quality conformance inspection
(QCI) tests, respectively. Cypress offers both prototyping models
and flight units of these product configurations.
Echo Clocks
Echo clocks are provided on the QDR II+ to simplify data capture
on high-speed systems. Two echo clocks are generated by the
QDR II+. CQ is referenced with respect to K and CQ is
referenced with respect to K. These are free-running clocks and
are synchronized to the input clock of the QDR II+. The timing
for the echo clocks is shown in the Switching Characteristics on
page 25.
Table 1. Qualification Tests
Group A
Group B
General electrical tests
Mechanical - Dimensions,
bond strength, solvents, die
shear, solderability, lead
Integrity, seal, and
Valid Data Indicator (QVLD)
QVLD is provided on the QDR II+ to simplify data capture on high
speed systems. The QVLD is generated by the QDR II+ device
along with data output. This signal is also edge-aligned with the
echo clock and follows the timing of any data pin. This signal is
asserted half a cycle before valid data arrives.
acceleration
Group C
Group D
Life tests - 1000 hours at
125 °C or equivalent
Package related mechanical
tests - shock, vibration, accel,
salt, seal, lead finish adhesion,
lid torque, thermal shock, and
moisture resistance
Group E
Radiation tests
Document Number: 001-60007 Rev. *H
Page 9 of 32
CYRS1543AV18
CYRS1545AV18
Application Example
Figure 2 shows four QDR II+ used in an application.
Figure 2. Application Example
RQ = 250 ohms
RQ = 250 ohms
ZQ
CQ/CQ
Q
ZQ
SRAM #2
SRAM #1
BWS
Vt
CQ/CQ
Q
D
D
A
R
K
K
A RPS WPS
K
K
BWS
RPS WPS
DATA IN
DATA OUT
Address
R
R
Vt
Vt
RPS
BUS MASTER
WPS
BWS
(CPU or ASIC)
CLKIN1/CLKIN1
CLKIN2/CLKIN2
Source K
Source K
R = 50ohms, Vt = V
/2
R
DDQ
Document Number: 001-60007 Rev. *H
Page 10 of 32
CYRS1543AV18
CYRS1545AV18
Truth Table
CYRS1543AV18 and CYRS1545AV18 [2, 3, 4, 5, 6, 7]
Operation
Write cycle:
K
RPS WPS
DQ
DQ
DQ
DQ
L–H
H [8] L [9] D(A) at K(t + 1)D(A + 1) at K(t + 1)D(A + 2) at K(t + 2)D(A + 3) at K(t + 2)
Load address on the
rising edge of K; input
write data on two
consecutive K and K
rising edges.
Read cycle: (2.0 Cycle
Latency) Load address
on the rising edge of K;
wait two cycles; read
data on two consecutive
K and K rising edges.
L–H
L–H
L [9]
X
Q(A) at K(t + 2)Q(A + 1) at K(t + 2)Q(A + 2) at K(t + 3)Q(A + 3) at K(t + 3)
NOP: No operation
H
X
H
X
D = X
Q = High Z
D = X
Q = High Z
D = X
Q = High Z
D = X
Q = High Z
Standby: Clock stopped Stopped
Previous state
Previous state
Previous state
Previous state
Write Cycle Descriptions
CYRS1543AV18 [2, 10]
BWS0 BWS1
K
Comments
K
L
L
L–H
During the data portion of a write sequence:
CYRS1543AV18 both bytes (D[17:0]) are written into the device.
L
L
L–H
L–H During the data portion of a write sequence
CYRS1543AV18 both bytes (D[17:0]) are written into the device.
L
H
H
L
During the data portion of a write sequence:
CYRS1543AV18 only the lower byte (D[8:0]) is written into the device, D[17:9] remains unaltered.
L
L–H During the data portion of a write sequence
CYRS1543AV18 only the lower byte (D[8:0]) is written into the device, D[17:9] remains unaltered.
H
H
L–H
During the data portion of a write sequence
CYRS1543AV18 only the upper byte (D[17:9]) is written into the device, D[8:0] remains unaltered.
L
L–H During the data portion of a write sequence
CYRS1543AV18 only the upper byte (D[17:9]) is written into the device, D[8:0] remains unaltered.
H
H
H
H
L–H
No data is written into the devices during this portion of a write operation.
L–H No data is written into the devices during this portion of a write operation.
Notes
2. X = “Don't Care,” H = Logic HIGH, L = Logic LOW, represents rising edge.
3. Device powers up deselected with the outputs in a tristate condition.
4. “A” represents address location latched by the devices when transaction was initiated. A + 1, A + 2, and A +3 represents the address sequence in the burst.
5. “t” represents the cycle at which a read/write operation is started. t + 1, t + 2, and t + 3 are the first, second and thirdclock cycles respectively succeeding the “t” clock cycle.
6. Data inputs are registered at K and K rising edges. Data outputs are delivered on K and K rising edges.
7. We recommend that K = K = HIGH when clock is stopped. This is not essential, but permits most rapid restart by overcoming transmission line charging symmetrically.
8. If this signal was LOW to initiate the previous cycle, this signal becomes a “Don’t Care” for this operation.
9. This signal was HIGH on previous K clock rise. Initiating consecutive read or write operations on consecutive K clock rises is not permitted. The device ignores the
second read or write request.
10. Is based on a write cycle that was initiated in accordance with the Write Cycle Descriptions table. BWS , BWS , BWS , and BWS can be altered on different portions
0
1
2
3
of a write cycle, as long as the setup and hold requirements are achieved.
Document Number: 001-60007 Rev. *H
Page 11 of 32
CYRS1543AV18
CYRS1545AV18
Write Cycle Descriptions
The write cycle description table for CYRS1545AV18 follows. [11, 12]
BWS0 BWS1 BWS2 BWS3
K
K
Comments
L
L
L
L
L–H
During the data portion of a write sequence, all four bytes (D[35:0]) are written into
the device.
L
L
L
L
L–H
L–H During the data portion of a write sequence, all four bytes (D[35:0]) are written into
the device.
L
H
H
L
H
H
H
H
L
H
H
H
H
H
H
L
During the data portion of a write sequence, only the lower byte (D[8:0]) is written
into the device. D[35:9] remains unaltered.
L
L–H During the data portion of a write sequence, only the lower byte (D[8:0]) is written
into the device. D[35:9] remains unaltered.
H
H
H
H
H
H
L–H
During the data portion of a write sequence, only the byte (D[17:9]) is written into the
device. D[8:0] and D[35:18] remains unaltered.
L
L–H During the data portion of a write sequence, only the byte (D[17:9]) is written into the
device. D[8:0] and D[35:18] remains unaltered.
H
H
H
H
L–H
During the data portion of a write sequence, only the byte (D[26:18]) is written into
the device. D[17:0] and D[35:27] remains unaltered.
L
L–H During the data portion of a write sequence, only the byte (D[26:18]) is written into
the device. D[17:0] and D[35:27] remains unaltered.
H
H
L–H
During the data portion of a write sequence, only the byte (D[35:27]) is written into
the device. D[26:0] remains unaltered.
L
L–H During the data portion of a write sequence, only the byte (D[35:27]) is written into
the device. D[26:0] remains unaltered.
H
H
H
H
H
H
H
H
L–H
No data is written into the device during this portion of a write operation.
L–H No data is written into the device during this portion of a write operation.
Notes
11. X = “Don't Care,” H = Logic HIGH, L = Logic LOW, represents rising edge.
12. Is based on a write cycle that was initiated in accordance with the Write Cycle Descriptions table. NWS , NWS , BWS , BWS , BWS , and BWS can be altered on
0
1
0
1
2
3
different portions of a write cycle, as long as the setup and hold requirements are achieved.
Document Number: 001-60007 Rev. *H
Page 12 of 32
CYRS1543AV18
CYRS1545AV18
Instruction Register
IEEE 1149.1 Serial Boundary Scan (JTAG)
Three-bit instructions can be serially loaded into the instruction
register. This register is loaded when it is placed between the TDI
and TDO pins, as shown in TAP Controller Block Diagram on
page 16. Upon power up, the instruction register is loaded with
the IDCODE instruction. It is also loaded with the IDCODE
instruction if the controller is placed in a reset state, as described
in the previous section.
These SRAMs incorporate a serial boundary scan Test Access
Port (TAP) in the FBGA package. This part is fully compliant with
IEEE Standard #1149.1-2001. The TAP operates using JEDEC
standard 1.8 V I/O logic levels.
Disabling the JTAG Feature
It is possible to operate the SRAM without using the JTAG
feature. To disable the TAP controller, TCK must be tied LOW
(VSS) to prevent clocking of the device. TDI and TMS are
internally pulled up and may be unconnected. They may
alternatively be connected to VDD through a pull up resistor. TDO
must be left unconnected. Upon power up, the device comes up
in a reset state, which does not interfere with the operation of the
device.
When the TAP controller is in the Capture-IR state, the two least
significant bits are loaded with a binary “01” pattern to allow for
fault isolation of the board level serial test path.
Bypass Register
To save time when serially shifting data through registers, it is
sometimes advantageous to skip certain chips. The bypass
register is a single-bit register that can be placed between TDI
and TDO pins. This enables shifting of data through the SRAM
with minimal delay. The bypass register is set LOW (VSS) when
the BYPASS instruction is executed.
Test Access Port
Test Clock
The test clock is used only with the TAP controller. All inputs are
captured on the rising edge of TCK. All outputs are driven from
the falling edge of TCK.
Boundary Scan Register
The boundary scan register is connected to all of the input and
output pins on the SRAM. Several no connect (NC) pins are also
included in the scan register to reserve pins for higher density
devices.
Test Mode Select (TMS)
The TMS input is used to give commands to the TAP controller
and is sampled on the rising edge of TCK. This pin may be left
unconnected if the TAP is not used. The pin is pulled up
internally, resulting in a logic HIGH level.
The boundary scan register is loaded with the contents of the
RAM input and output ring when the TAP controller is in the
Capture-DR state and is then placed between the TDI and TDO
pins when the controller is moved to the Shift-DR state. The
EXTEST, SAMPLE/PRELOAD, and SAMPLE Z instructions can
be used to capture the contents of the input and output ring.
Test Data In (TDI)
The TDI pin is used to serially input information into the registers
and can be connected to the input of any of the registers. The
register between TDI and TDO is chosen by the instruction that
is loaded into the TAP instruction register. For information on
loading the instruction register, see the TAP Controller State
Diagram on page 15. TDI is internally pulled up and can be
unconnected if the TAP is unused in an application. TDI is
connected to the most significant bit (MSB) on any register.
The Boundary Scan Order on page 20 shows the order in which
the bits are connected. Each bit corresponds to one of the bumps
on the SRAM package. The MSB of the register is connected to
TDI, and the LSB is connected to TDO.
Identification (ID) Register
The ID register is loaded with a vendor-specific, 32-bit code
during the Capture-DR state when the IDCODE command is
loaded in the instruction register. The IDCODE is hardwired into
the SRAM and can be shifted out when the TAP controller is in
the Shift-DR state. The ID register has a vendor code and other
information described in Identification Register Definitions on
page 19.
Test Data Out (TDO)
The TDO output pin is used to serially clock data out from the
registers. The output is active, depending upon the current state
of the TAP state machine (see Instruction Codes on page 19).
The output changes on the falling edge of TCK. TDO is
connected to the least significant bit (LSB) of any register.
TAP Instruction Set
Performing a TAP Reset
Eight different instructions are possible with the three-bit
instruction register. All combinations are listed in Instruction
Codes on page 19. Three of these instructions are listed as
RESERVED and must not be used. The other five instructions
are described in this section in detail.
A reset is performed by forcing TMS HIGH (VDD) for five rising
edges of TCK. This reset does not affect the operation of the
SRAM and can be performed while the SRAM is operating. At
power up, the TAP is reset internally to ensure that TDO comes
up in a high Z state.
Instructions are loaded into the TAP controller during the Shift-IR
state when the instruction register is placed between TDI and
TDO. During this state, instructions are shifted through the
instruction register through the TDI and TDO pins. To execute
the instruction after it is shifted in, the TAP controller must be
moved into the Update-IR state.
TAP Registers
Registers are connected between the TDI and TDO pins to scan
the data in and out of the SRAM test circuitry. Only one register
can be selected at a time through the instruction registers. Data
is serially loaded into the TDI pin on the rising edge of TCK. Data
is output on the TDO pin on the falling edge of TCK.
Document Number: 001-60007 Rev. *H
Page 13 of 32
CYRS1543AV18
CYRS1545AV18
IDCODE
PRELOAD places an initial data pattern at the latched parallel
outputs of the boundary scan register cells before the selection
of another boundary scan test operation.
The IDCODE instruction loads a vendor-specific, 32-bit code into
the instruction register. It also places the instruction register
between the TDI and TDO pins and shifts the IDCODE out of the
device when the TAP controller enters the Shift-DR state. The
IDCODE instruction is loaded into the instruction register at
power up or whenever the TAP controller is supplied a
Test-Logic-Reset state.
The shifting of data for the SAMPLE and PRELOAD phases can
occur concurrently when required, that is, while the data
captured is shifted out, the preloaded data can be shifted in.
BYPASS
When the BYPASS instruction is loaded in the instruction register
and the TAP is placed in a Shift-DR state, the bypass register is
placed between the TDI and TDO pins. The advantage of the
BYPASS instruction is that it shortens the boundary scan path
when multiple devices are connected together on a board.
SAMPLE Z
The SAMPLE Z instruction connects the boundary scan register
between the TDI and TDO pins when the TAP controller is in a
Shift-DR state. The SAMPLE Z command puts the output bus
into a high Z state until the next command is supplied during the
Update IR state.
EXTEST
The EXTEST instruction drives the preloaded data out through
the system output pins. This instruction also connects the
boundary scan register for serial access between the TDI and
TDO in the Shift-DR controller state.
SAMPLE/PRELOAD
SAMPLE/PRELOAD is an 1149.1 mandatory instruction. When
the SAMPLE/PRELOAD instructions are loaded into the
instruction register and the TAP controller is in the Capture-DR
state, a snapshot of data on the input and output pins is captured
in the boundary scan register.
EXTEST OUTPUT BUS TRISTATE
IEEE Standard 1149.1 mandates that the TAP controller be able
to put the output bus into a tristate mode.
You must be aware that the TAP controller clock only operates
at a frequency up to 20 MHz, while the SRAM clock operates
more than an order of magnitude faster. Because there is a large
difference in the clock frequencies, it is possible that during the
Capture-DR state, an input or output undergoes a transition. The
TAP may then try to capture a signal while in transition
(metastable state). This does not harm the device, but there is
no guarantee as to the value that is captured. Repeatable results
may not be possible.
The boundary scan register has a special bit located at bit #108.
When this scan cell, called the “extest output bus tristate,” is
latched into the preload register during the Update-DR state in
the TAP controller, it directly controls the state of the output
(Q-bus) pins, when the EXTEST is entered as the current
instruction. When HIGH, it enables the output buffers to drive the
output bus. When LOW, this bit places the output bus into a
high Z condition.
To guarantee that the boundary scan register captures the
correct value of a signal, the SRAM signal must be stabilized
long enough to meet the TAP controller’s capture setup plus hold
times (tCS and tCH). The SRAM clock input might not be captured
correctly if there is no way in a design to stop (or slow) the clock
during a SAMPLE/PRELOAD instruction. If this is an issue, it is
still possible to capture all other signals and simply ignore the
value of the K and K captured in the boundary scan register.
This bit can be set by entering the SAMPLE/PRELOAD or
EXTEST command, and then shifting the desired bit into that cell,
during the Shift-DR state. During Update-DR, the value loaded
into that shift-register cell latches into the preload register. When
the EXTEST instruction is entered, this bit directly controls the
output Q-bus pins. Note that this bit is preset HIGH to enable the
output when the device is powered up, and also when the TAP
controller is in the Test-Logic-Reset state.
After the data is captured, it is possible to shift out the data by
putting the TAP into the Shift-DR state. This places the boundary
scan register between the TDI and TDO pins.
Reserved
These instructions are not implemented but are reserved for
future use. Do not use these instructions.
Document Number: 001-60007 Rev. *H
Page 14 of 32
CYRS1543AV18
CYRS1545AV18
TAP Controller State Diagram
The state diagram for the TAP controller follows. [13]
TEST-LOGIC
1
RESET
0
1
1
1
SELECT
TEST-LOGIC/
SELECT
0
IR-SCAN
IDLE
DR-SCAN
0
0
1
1
CAPTURE-DR
0
CAPTURE-IR
0
0
0
SHIFT-DR
1
SHIFT-IR
1
1
0
1
EXIT1-DR
0
EXIT1-IR
0
0
PAUSE-DR
1
PAUSE-IR
1
0
0
EXIT2-DR
1
EXIT2-IR
1
UPDATE-IR
0
UPDATE-DR
1
1
0
Note
13. The 0/1 next to each state represents the value at TMS at the rising edge of TCK.
Document Number: 001-60007 Rev. *H
Page 15 of 32
CYRS1543AV18
CYRS1545AV18
TAP Controller Block Diagram
0
Bypass Register
2
1
1
1
0
0
0
Selection
TDI
Selection
TDO
Instruction Register
Circuitry
Circuitry
31 30
29
.
.
2
Identification Register
.
108
.
.
.
2
Boundary Scan Register
TCK
TMS
TAP Controller
TAP Electrical Characteristics
Over the Operating Range
Parameter [14, 15, 16]
Description
Output HIGH voltage
Output HIGH voltage
Output LOW voltage
Output LOW voltage
Input HIGH voltage
Input LOW voltage
Test Conditions
IOH =2.0 mA
Min
1.4
1.6
Max
Unit
V
VOH1
VOH2
VOL1
VOL2
VIH
IOH =100 A
IOL = 2.0 mA
IOL = 100 A
V
0.4
0.2
V
V
0.65 × VDD VDD + 0.3
V
VIL
–0.3
–5
0.35 × VDD
5
V
IX
Input and output load current
GND VI VDD
A
Notes
14. These characteristics pertain to the TAP inputs (TMS, TCK, TDI and TDO). Parallel load levels are specified in Electrical Characteristics on page 22.
15. Overshoot: V < V + 0.85 V (Pulse width less than t /2), Undershoot: V /2).
> 1.5 V (Pulse width less than t
CYC
IH(AC)
DDQ
CYC
IL(AC)
16. All Voltage referenced to Ground.
Document Number: 001-60007 Rev. *H
Page 16 of 32
CYRS1543AV18
CYRS1545AV18
TAP AC Switching Characteristics
Over the Operating Range
Parameter [17, 18]
Description
Min
50
Max
Unit
ns
tTCYC
TCK clock cycle time
TCK clock frequency
TCK clock HIGH
tTF
20
MHz
ns
tTH
20
20
tTL
TCK clock LOW
ns
Setup Times
tTMSS
tTDIS
TMS setup to TCK clock rise
TDI setup to TCK clock rise
Capture setup to TCK rise
5
5
5
ns
ns
ns
tCS
Hold Times
tTMSH
tTDIH
TMS hold after TCK clock rise
TDI hold after clock rise
5
5
5
ns
ns
ns
tCH
Capture hold after clock rise
Output Times
tTDOV
tTDOX
TCK clock LOW to TDO valid
TCK clock LOW to TDO invalid
0
10
ns
ns
Notes
17. t and t refer to the setup and hold time requirements of latching data from the boundary scan register.
CS
CH
18. Test conditions are specified using the load in TAP AC Test Conditions. t /t = 1 ns.
R
F
Document Number: 001-60007 Rev. *H
Page 17 of 32
CYRS1543AV18
CYRS1545AV18
TAP Timing and Test Conditions
Figure 3 shows the TAP timing and test conditions. [19]
Figure 3. TAP Timing and Test Conditions
0.9 V
50
ALL INPUT PULSES
1.8 V
0.9 V
TDO
0 V
Z = 50
0
C = 20 pF
L
t
TL
t
TH
GND
(a)
Test Clock
TCK
t
TCYC
t
TMSH
t
TMSS
Test Mode Select
TMS
t
TDIS
t
TDIH
Test Data In
TDI
Test Data Out
TDO
t
TDOV
t
TDOX
Note
19. Test conditions are specified using the load in TAP AC Test Conditions. t /t = 1 ns.
R
F
Document Number: 001-60007 Rev. *H
Page 18 of 32
CYRS1543AV18
CYRS1545AV18
Identification Register Definitions
Value
Instruction Field
Description
CYRS1543AV18
CYRS1545AV18
000
Revision number (31:29)
Cypress device ID (28:12)
Cypress JEDEC ID (11:1)
000
Version number.
11010010101010100
00000110100
11010010101100100
00000110100
Defines the type of SRAM.
Allows unique identification of
SRAM vendor.
ID register presence (0)
1
1
Indicates the presence of an ID
register.
Scan Register Sizes
Register Name
Bit Size
Instruction
Bypass
3
1
ID
32
109
Boundary scan
Instruction Codes
Instruction
EXTEST
Code
000
Description
Captures the input and output ring contents.
IDCODE
001
Loads the ID register with the vendor ID code and places the register between TDI and TDO.
This operation does not affect SRAM operation.
SAMPLE Z
010
Captures the input and output contents. Places the boundary scan register between TDI and
TDO. Forces all SRAM output drivers to a high Z state.
RESERVED
011
100
Do Not Use: This instruction is reserved for future use.
SAMPLE/PRELOAD
Captures the input and output ring contents. Places the boundary scan register between TDI
and TDO. Does not affect the SRAM operation.
RESERVED
RESERVED
BYPASS
101
110
111
Do Not Use: This instruction is reserved for future use.
Do Not Use: This instruction is reserved for future use.
Places the bypass register between TDI and TDO. This operation does not affect SRAM
operation.
Document Number: 001-60007 Rev. *H
Page 19 of 32
CYRS1543AV18
CYRS1545AV18
Boundary Scan Order
Bit #
0
Bump ID
6R
Bit #
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
Bump ID
10G
9G
Bit #
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
Bump ID
6A
Bit #
84
Bump ID
1J
1
6P
5B
5A
85
2J
2
6N
11F
11G
9F
86
3K
3
7P
4A
87
3J
4
7N
5C
4B
88
2K
5
7R
10F
11E
10E
10D
9E
89
1K
6
8R
3A
90
2L
7
8P
2A
91
3L
8
9R
1A
92
1M
1L
9
11P
10P
10N
9P
2B
93
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
10C
11D
9C
3B
94
3N
1C
1B
95
3M
1N
96
10M
11N
9M
9D
3D
3C
1D
2C
3E
97
2M
3P
11B
11C
9B
98
99
2N
9N
100
101
102
103
104
105
106
107
108
2P
11L
11M
9L
10B
11A
10A
9A
1P
2D
2E
3R
4R
10L
11 K
10K
9J
1E
4P
8B
2F
5P
7C
3F
5N
6C
1G
1F
5R
9K
8A
Internal
10J
11J
11H
7A
3G
2G
1H
7B
6B
Document Number: 001-60007 Rev. *H
Page 20 of 32
CYRS1543AV18
CYRS1545AV18
DLL Constraints
Power Up Sequence in QDR II+ SRAM
DLL uses K clock as its synchronizing input. The input must
have low phase jitter, which is specified as tKC Var
QDR II+ SRAMs must be powered up and initialized in a
predefined manner to prevent undefined operations.
.
The DLL functions at frequencies down to 120 MHz.
Power Up Sequence
If the input clock is unstable and the DLL is enabled, then the
DLL may lock onto an incorrect frequency, causing unstable
SRAM behavior. To avoid this, provide 10240 cycles stable
clock to relock to the desired clock frequency.
Apply power and drive DOFF either HIGH or LOW (All other
inputs can be HIGH or LOW).
Apply VDD before VDDQ
.
Apply VDDQ before VREF or at the same time as VREF
.
Drive DOFF HIGH.
Provide stable DOFF (HIGH), power and clock (K, K) for 10240
cycles to lock the DLL.
Figure 4. Power Up Waveforms
K
K
Start Normal
Operation
Unstable Clock
> 10240 Stable Clock
Clock Start (Clock Starts after V /V
DD DDQ
is Stable)
V
/V
+
V /V Stable (< 0.1V DC per 50 ns)
DD DDQ
DD DDQ
Fix HIGH (tie to V
DDQ
)
DOFF
Document Number: 001-60007 Rev. *H
Page 21 of 32
CYRS1543AV18
CYRS1545AV18
DC input voltage [20] ........................... –0.5 V to VDD + 0.3 V
Current into outputs (LOW) ........................................ 20 mA
Maximum Ratings
Exceeding maximum ratings may impair the useful life of the
device. These user guidelines are not tested.
Static discharge voltage
(MIL-STD-883, M. 3015) ........................................ > 2001 V
Storage temperature ................................ –65 °C to +150 °C
Case temperature under power ............... –55 °C to +125 °C
Junction temperature under power .......... –55 °C to +155 °C
Supply voltage on VDD relative to GND .......–0.5 V to +2.9 V
Supply voltage on VDDQ relative to GND ...... –0.5 V to +VDD
DC applied to outputs in high Z ........0.5 V to VDDQ + 0.3 V
Latch up current .................................................... > 200 mA
Operating Range
Case Temperature
[21]
[21]
Range
(Tc)
VDD
VDDQ
Military
–55 °C to +125 °C 1.8 ± 0.1 V 1.4 V to VDD
Electrical Characteristics
Over the Operating Range
DC Electrical Characteristics
Over the Operating Range
Parameter [22]
VDD
Description
Power supply voltage
I/O supply voltage
Output High voltage
Output Low voltage
Output High voltage
Output Low voltage
Input High voltage
Input Low voltage
Test Conditions
Min
Typ
1.8
1.5
Max
1.9
Unit
V
1.7
VDDQ
VOH
1.4
VDD
V
Note 23
Note 24
VDDQ/2 – 0.12
VDDQ/2 + 0.12
VDDQ/2 + 0.12
VDDQ
0.2
V
VOL
VDDQ/2 – 0.12
V
VOH(LOW)
VOL(LOW)
VIH
IOH =0.1 mA, nominal impedance
VDDQ – 0.2
V
IOL = 0.1 mA, nominal impedance
VSS
V
VREF + 0.1
VDDQ + 0.3
VREF – 0.1
20
V
VIL
–0.3
20
20
0.68
V
IX
Input leakage current
GND VI VDDQ
A
A
V
IOZ
Output leakage current
Input reference voltage [25] Typical Value = 0.75 V
GND VI VDDQ, output disabled
20
VREF
0.75
0.95
[21]
IDD
VDD operating supply
VDD = Max,
OUT = 0 mA,
250 MHz (× 18)
(× 36)
1225
mA
I
1225
TJ = 125 °C
f = fMAX = 1/tCYC
200 MHz (× 18)
(× 36)
1050
mA
mA
mA
1050
ISB1
Automatic power down
current
Max VDD
,
250 MHz (× 18)
(× 36)
510
Both Ports Deselected,
510
VIN VIH or VIN VIL,
f = fMAX = 1/tCYC
TJ = 125 °C
,
200 MHz (× 18)
(× 36)
475
475
Inputs Static
Notes
20. Overshoot: V
21. Power up: Assumes a linear ramp from 0 V to V
< V
+ 0.85 V (Pulse width less than t
/2), Undershoot: V
> 1.5 V (Pulse width less than t
/2).
CYC
IH(AC)
DDQ
CYC
IL(AC)
within 200 ms. During this time V < V and V
< V
.
DD
DD(min)
IH
DD
DDQ
22. All Voltage referenced to Ground.
23. Output are impedance controlled. I = (V
/2)/(RQ/5) for values of 175 < RQ < 350 .
OH
DDQ
24. Output are impedance controlled. I = (V
/2)/(RQ/5) for values of 175 < RQ < 350 .
OL
DDQ
25. V
= 0.68 V or 0.46 V
, whichever is larger, V
= 0.95 V or 0.54 V
, whichever is smaller.
DDQ
REF(min)
DDQ
REF(max)
26. The operation current is calculated with concurrent read and write cycles.
Document Number: 001-60007 Rev. *H
Page 22 of 32
CYRS1543AV18
CYRS1545AV18
AC Electrical Characteristics
Over the Operating Range
Parameter [27, 28]
Description
Test Conditions
Min
VREF + 0.2
Typ
Max
Unit
V
VIH
VIL
Input High voltage
Input Low voltage
VREF – 0.2
V
Radiation Performance
Parameter
Test Conditions
TA = 25 °C, VDD = VDDQ = 1.8 V
Limits
Unit
Total dose
300 Krad
Rads(Si) Co60
Upsets/bit-day
Rads(Si)/s
Soft error rate
TA = 25 °C to 125 °C, VDD = VDDQ = 1.8 V w/ EDAC
1.0 × 10^-10
2.0 × 109
Transient dose
rate upset
Pulse Width (FWHM) = 50 ns, X-Ray, TC = 25 °C, VDD = VDDQ = 1.8 V
Neutron fluence 1 MeV equivalent energy, Unbiased TA = 25 C
2e14
110
N/cm2
MeVcm2/mg
Latch up
immunity
TA = 125 °C, VDD = VDDQ = 1.9 V
Capacitance
Parameter [29]
Description
Test Conditions
Max
10
Unit
CIN
Input capacitance
TA = 25 C, f = 1 MHz, VDD = 1.8 V, VDDQ = 1.5 V
pF
pF
pF
CCLK
CO
Clock input capacitance
Output capacitance
10
10
Thermal Resistance
165-ballCCGA
Package
Parameter [29]
Description
Test Conditions
Unit
JC
Thermal resistance
(Junction to case)
Test conditions follow standard test methods and procedures
for measuring thermal impedance, in accordance with
EIA/JESD51.
8.9
°C/W
Notes
27. Overshoot: V
28. Power up: Assumes a linear ramp from 0 V to V
< V
+ 0.85 V (Pulse width less than t
/2), Undershoot: V
> 1.5 V (Pulse width less than t
/2).
CYC
IH(AC)
DDQ
CYC
IL(AC)
within 200 ms. During this time V < V and V
< V
.
DD
DD(min)
IH
DD
DDQ
29. Tested initially and after any design or process change that may affect these parameters.
Document Number: 001-60007 Rev. *H
Page 23 of 32
CYRS1543AV18
CYRS1545AV18
AC Test Loads and Waveforms
Figure 5. AC Test Loads and Waveforms
VREF = 0.75 V
0.75 V
VREF
VREF
0.75 V
R = 50 
OUTPUT
[30]
ALL INPUT PULSES
1.25 V
Z = 50 
0
OUTPUT
Device
R = 50 
L
0.75 V
Under
Device
Under
0.25 V
Test
5 pF
VREF = 0.75 V
Slew Rate = 2 V/ns
ZQ
Test
ZQ
RQ =
RQ =
250
(b)
250
INCLUDING
JIG AND
SCOPE
(a)
Note
30. Unless otherwise noted, test conditions are based on signal transition time of 2 V/ns, timing reference levels of 0.75 V, Vref = 0.75 V, RQ = 250 , V
= 1.5 V, input
DDQ
pulse levels of 0.25 V to 1.25 V, and output loading of the specified I /I and load capacitance shown in (a) of Figure 5.
OL OH
Document Number: 001-60007 Rev. *H
Page 24 of 32
CYRS1543AV18
CYRS1545AV18
Switching Characteristics
Over the Operating Range
Parameters [31, 32]
250 MHz
200 MHz
Min Max
Description
VDD(typical) to the first access [33]
Unit
Cypress Consortium
Parameter Parameter
Min
Max
tPOWER
tCYC
tKH
1
8.4
1
ms
ns
ns
ns
ns
tKHKH
tKHKL
tKLKH
tKHKH
K clock cycle time
4.0
1.6
1.6
1.8
5.0
2.0
2.0
2.2
8.4
Input clock (K/K) HIGH
Input clock (K/K) LOW
tKL
tKHKH
K clock rise to K clock rise (rising edge to rising edge)
Setup Times
tSA
tAVKH
Address setup to K clock rise
0.5
0.5
0.6
0.6
0.6
0.6
ns
ns
ns
ns
tSC
tIVKH
tIVKH
tDVKH
Control setup to K clock rise
(RPS, WPS)
tSCDDR
DDR control setup to clock (K/K) rise (BWS0, BWS1, BWS2, BWS3) 0.5
[34]
tSD
D[X:0] setup to clock (K/K) rise
0.5
Hold Times
tHA
tKHAX
tKHIX
tKHIX
tKHDX
Address hold after K clock rise
Control hold after K clock rise
0.5
0.5
0.6
0.6
0.6
0.6
ns
ns
ns
ns
tHC
(RPS, WPS)
tHCDDR
tHD
DDR control hold after clock (K/K) rise (BWS0, BWS1, BWS2, BWS3) 0.5
D[X:0] hold after clock (K/K) rise
0.5
Output Times
tCO
tCHQV
–0.7
0.7
–0.7
0.7
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
K/K clock rise to data valid
tDOH
tCHQX
Data output hold after output K/K clock rise (Active to active)
K/K clock rise to echo clock valid
Echo clock hold after C/C clock rise
Echo clock high to data valid
tCCQO
tCQOH
tCQD
tCHCQV
tCHCQX
tCQHQV
tCQHQX
tCQHCQL
tCQHCQH
tCHQZ
0.7
0.7
–0.7
–0.7
0.5
0.5
tCQDOH
tCQH
tCQHCQH
tCHZ
Echo clock high to data invalid
Output clock (CQ/CQ) HIGH [34]
–0.30
1.55
1.55
–0.35
1.95
1.95
[34]
CQ clock rise to CQ clock rise
(rising edge to rising edge)
Clock (K/K) rise to high Z (Active to high Z) [35, 36]
Clock (K/K) rise to low Z [35, 36]
Echo Clock High to QVLD Valid [37]
0.45
0.45
tCLZ
tCHQX1
tCQHQVLD
–0.45
–0.5
–0.45
–0.5
tQVLD
0.5
0.5
DLL Timing
tKC Var
tKC lock
tKC Reset
tKC Var
Clock phase jitter
DLL lock time (K)
K static to DLL reset
0.2
0.2
ns
Cycles
ns
tKC lock
tKC Reset
10240
30
10240
30
Notes
31. Unless otherwise noted, test conditions are based on signal transition time of 2 V/ns, timing reference levels of 0.75 V, Vref = 0.75 V, RQ = 250 , V
= 1.5 V, input
DDQ
pulse levels of 0.25 V to 1.25 V, and output loading of the specified I /I and load capacitance shown in (a) of Figure 5 on page 24.
OL OH
32. When a part with a maximum frequency above 167 MHz is operating at a lower clock frequency, it requires the input timings of the frequency range in which it is being
operated and outputs data with the output timings of that frequency range.
33. This part has a voltage regulator internally; t
is the time that the power must be supplied above V
initially before a read or write operation can be initiated.
DD(minimum)
POWER
34. These parameters are extrapolated from the input timing parameters (t
– 250 ps, where 250 ps is the internal jitter. An input jitter of 200 ps (t
) is already
KHKH
KC Var
included in the t
). These parameters are only guaranteed by design and are not tested in production
KHKH
35. t
, t
, are specified with a load capacitance of 5 pF as in (b) of Figure 5 on page 24. Transition is measured ± 100 mV from steady-state voltage.
CHZ CLZ
36. At any voltage and temperature t
is less than t
and t
less than t
.
CHZ
CLZ
CHZ
CO
37. t
Spec is applicable for both rising and falling edges of QVLD signal.
QVLD
Document Number: 001-60007 Rev. *H
Page 25 of 32
CYRS1543AV18
CYRS1545AV18
Switching Waveforms
Figure 6. Read/Write/Deselect Sequence [38, 39, 40]
NOP
1
READ
2
WRITE
3
READ
4
WRITE
5
NOP
6
7
8
K
t
t
CYC
t
t
KH
KL
KHKH
K
RPS
t
t
SC HC
t
t
SC
HC
WPS
A
A0
A1
A2
A3
t
t
HD
t
t
HD
SA HA
t
SD
t
SD
D10
D11
D12
D13
D30
D31
D32
D33
D
t
QVLD
t
QVLD
QVLD
t
DOH
t
t
CQDOH
CO
t
t
CHZ
t
CLZ
CQD
Q
Q22
Q01
Q02
Q23
Q00
t
Q03 Q20 Q21
(Read Latency = 2.0 Cycles)
CCQO
CQOH
CQ
CQ
CCQO
t
t
t
CQHCQH
CQH
CQOH
DON’T CARE
UNDEFINED
Notes
38. Q00 refers to output from address A0. Q01 refers to output from the next internal burst address following A0, that is, A0 + 1.
39. Outputs are disabled (high Z) one clock cycle after a NOP.
40. In this example, if address A2 = A1, then data Q20 = D10, Q21 = D11, Q22 = D12, and Q23 = D13. Write data is forwarded immediately as read results. This note
applies to Figure 6.
Document Number: 001-60007 Rev. *H
Page 26 of 32
CYRS1543AV18
CYRS1545AV18
Ordering Information
The following table contains only the parts that are currently available. If you do not see what you are looking for (× 18 option), contact
your local sales representative. For more information, visit the Cypress website at www.cypress.com and refer to the product
summary page at http://www.cypress.com/products.
Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives and distributors. To find the office
closest to you, visit us at http://www.cypress.com/go/datasheet/offices.
Speed
(MHz)
Package
Diagram
Operating
Range
Ordering Code
Description
Package Type
250 CYRS1543AV18-250GCMB 72M QDR II+, × 18,
Burst of 4
001-58969 165-ball CCGA (21 × 25 × 2.83 mm)
001-58969 165-ball CCGA (21 × 25 × 2.83 mm)
001-58969 165-ball CCGA (21 × 25 × 2.83 mm)
001-58969 165-ball CCGA (21 × 25 × 2.83 mm)
001-58969 165-ball CCGA (21 × 25 × 2.83 mm)
001-58969 165-ball CCGA (21 × 25 × 2.83 mm)
N/A
Military
Military
Military
Military
Military
Military
Military
250 CYRS1545AV18-250GCMB 72M QDR II+, × 36,
Burst of 4
250 CYPT1543AV18-250GCMB 72M QDR II+, × 18,
Burst of 4, Prototype
250 CYPT1545AV18-250GCMB 72M QDR II+, × 36,
Burst of 4, Prototype
250 5962F1120102QXA
72M QDR II+, × 18,
Burst of 4, DLAM Part
250 5962F1120202QXA
72M QDR II+, × 36,
Burst of 4, DLAM Part
250 CYRS1543AV18-1XWI
72M QDR II+ die
Ordering Code Definitions
-
250
GC M B
CY
154X A V18
XX
Burn-in
Thermal Rating: M = Military
Package Type: 165-ball CCGA
Speed Grade: 250 MHz
Core Voltage: 1.8 V
Die Revision
Part Number Identifier: Density, Organization, Burst
154X = 1543 or 1545
Marketing Code: XX = RS or PT
RS = RadStop, PT = Prototype
Company ID: CY = Cypress
Document Number: 001-60007 Rev. *H
Page 27 of 32
CYRS1543AV18
CYRS1545AV18
Package Diagram
Figure 7. 165-ball Ceramic Column Grid Array (CCGA) (21 × 25 mm) Package Outline, 001-58969
001-58969 *C
Document Number: 001-60007 Rev. *H
Page 28 of 32
CYRS1543AV18
CYRS1545AV18
Acronyms
Document Conventions
Units of Measure
Acronym
Description
BWS
CCGA
DED
DLL
byte write select
ceramic column grid array
Symbol
°C
Unit of Measure
degree Celsius
kiloradian
double error detection
delay lock loop
Krad
MHz
µA
DDR
DSCC
EDAC
HSTL
I/O
double data rate
megahertz
microampere
microfarad
microsecond
milliampere
millimeter
defense supply center columbus
error detection and correction
high speed transceiver logic
input/output
µF
µs
mA
mm
ms
JTAG
LSB
Joint Test Action Group
least significant bit
logical single-bit upsets
logical multi-bit upsets
most significant bit
percent defect allowable
particle impact noise detection
percent defective allowable
quad data rate
LSBU
LMBU
MSB
PDA
PIND
PDA
QDR
RPS
SEC
SEL
millisecond
mV
N/cm2
ns
millivolt
Neutron particles fluence per cm2 area
nanosecond
nanometer
ohm
nm
read port select
%
percent
single error correction
single event latch up
static random access memory
test access port
pF
picofarad
picosecond
ps
SRAM
TAP
Rads(Si)
unit of absorbed radiation energy from ionizing
radiation per kg of material.
(1 rad(Si)) = 10 mGy = 10 – 2 J/kg
TCK
test clock
TDI
test data in
V
volt
TDO
TMS
WPS
test data out
W
watt
test mode select
write port select
Document Number: 001-60007 Rev. *H
Page 29 of 32
CYRS1543AV18
CYRS1545AV18
Glossary
Total Dose
Heavy Ion
LET
Permanent device damage due to ions over device life
Instantaneous device latch up due to single ion
Linear energy transfer (measured in MeVcm2)
Krad
Unit of measurement to determine device life in radiation environments.
Permanent device damage due to energetic neutrons or protons
Neutron
Prompt Dose
Data loss of permanent device damage due to X-rays and gamma rays < 20 ns
Hermetic ceramic 165-column package. Columns attached by Six Sigma
165-ball Ceramic Column Grid
Array
RadStop Technology
DLAM
Cypress's patented Rad Hard design methodology
Defense Logistics Agency Land and Maritime
LSBU
Logical Single Bit Upset. Single bits in a single correction word are in error.
Logical Multi Bit Upset. Multiple bits in a single correction word are in error.
General electrical testing
LMBU
Group A
Group B
Mechanical - Dimensions, bond strength, solvents, die shear, solderability, lead integrity,
seal, acceleration
Group C
Group D
Life test - 1000 hours at 125 C
Package related mechanical tests - shock, vibration, Accel, salt, seal, lead finish
adhesion, lid torque, thermal shock, moisture resistance
Group E
Radiation testing
Document Number: 001-60007 Rev. *H
Page 30 of 32
CYRS1543AV18
CYRS1545AV18
Document History Page
Document Title: CYRS1543AV18/CYRS1545AV18, 72-Mbit QDR® II+ SRAM Four-Word Burst Architecture with RadStop™
Technology
Document Number: 001-60007
Submission
Date
Orig. of
Change
Rev.
ECN No.
Description of Change
**
2940931
3016545
05/31/2010
08/26/2010
HRP
HRP
New data sheet.
*A
Changed part numbers from CYRS1513AV18, CYRS1515AV18 to reflect
change to QDR II+ die.
Updated Switching Characteristics (Updated minimum and maximum values
for Setup Time, Hold Time parameters, and updated minimum and maximum
values for tCO parameter under Output Time parameter).
Updated Package Diagram.
Added Units of Measure.
*B
3281455
06/13/2011
HRP
Changed status from Advanced to Final.
Updated Configurations (corrected typo).
Updated Selection Guide.
Updated DC Electrical Characteristics (maximum current limit values for the
parameters IDD and ISB1 based on device characterization).
Updated Radiation Performance (Limits of Radiation Data based on RHA
qualification).
Updated Thermal Resistance.
Updated Switching Characteristics (Minimum and Maximum timing values for
the parameters tCO, tDOH, tCCQO, tCQOH based on device characterization.
Updated Ordering Information (Removed × 18 option from ordering table).
Updated Package Diagram.
Changed DLL lockup cycles from 2048 to 10240 throughout document.
Updated in new template.
*C
*D
3471321
3524961
12/21/2011
02/14/2012
HRP
HRP
Updated Identification Register Definitions (Replaced the value of Cypress
device ID (28:12) from 11010011011010100 to 11010010101010100 for
CYRS1543AV18 and replaced the value of Cypress device ID (28:12) from
11010011011100100 to 11010010101100100 for CYRS1545AV18).
Updated Prototyping under Radiation Performance (Added two devices).
Updated Selection Guide (Removed 200 MHz option).
Updated Application Example.
Updated Truth Table.
Updated Maximum Ratings.
Updated Operating Range.
Updated Radiation Performance.
Updated Capacitance.
Updated Thermal Resistance.
Updated Switching Characteristics.
*E
3537277
02/29/2012
HRP
Updated Radiation Data under Radiation Performance.
Updated
Ordering
Information
(Added
the
part
numbers
CYRS1543AV18-250GCMB,
CYPT1545AV18-250GCMB,
CYRS1543AV18-1XWI).
CYPT1543AV18-250GCMB,
5962F1120203VXA
and
*F
3617759
3640834
05/15/2012
06/08/2012
HRP
HRP
Updated Ordering Information (Added part 5962F1120103VXA).
Updated Glossary.
*G
Updated Radiation Performance (Updated Prototyping).
Renamed the section Class V Flow as Manufacturing Flow.
Updated Glossary.
*H
3857750
01/04/2013
HRP
Updated Ordering Information (Updated part numbers).
Document Number: 001-60007 Rev. *H
Page 31 of 32
CYRS1543AV18
CYRS1545AV18
Sales, Solutions, and Legal Information
Worldwide Sales and Design Support
Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office
closest to you, visit us at Cypress Locations.
Products
PSoC Solutions
Automotive
cypress.com/go/automotive
cypress.com/go/clocks
cypress.com/go/interface
cypress.com/go/powerpsoc
cypress.com/go/plc
psoc.cypress.com/solutions
PSoC 1 | PSoC 3 | PSoC 5
Clocks & Buffers
Interface
Lighting & Power Control
Memory
cypress.com/go/memory
cypress.com/go/image
cypress.com/go/psoc
Optical & Image Sensing
PSoC
Touch Sensing
USB Controllers
Wireless/RF
cypress.com/go/touch
cypress.com/go/USB
cypress.com/go/wireless
© Cypress Semiconductor Corporation, 2010-2013. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of
any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for
medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as
critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems
application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.
Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign),
United States copyright laws and international treaty provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create derivative works of,
and compile the Cypress Source Code and derivative works for the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction with a Cypress
integrated circuit as specified in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source Code except as specified above is prohibited without
the express written permission of Cypress.
Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not
assume any liability arising out of the application or use of any product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where
a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer
assumes all risk of such use and in doing so indemnifies Cypress against all charges.
Use may be limited by and subject to the applicable Cypress software license agreement.
Document Number: 001-60007 Rev. *H
Revised January 4, 2013
Page 32 of 32
QDR RAMs and Quad Data Rate RAMs comprise a new family of products developed by Cypress, IDT, NEC, Renesas, and Samsung. All products and company names mentioned in this document
may be the trademarks of their respective holders.
厂商 型号 描述 页数 下载

KYOCERA AVX

CYR10 玻璃电容器CYR10 , 15 (可靠性指标) M23269 / 01 , 02 ( QPL至MIL-PRF- 23269 )[ Glass Capacitors CYR10, 15 (Established Reliability) M23269/01, 02 (QPL to MIL-PRF-23269) ] 2 页

FOXCONN

CYR2-AP03MJ04 [ Interconnection Device ] 1 页

KYOCERA AVX

CYR51 玻璃电容器CYR51 , 52 , 53 (可靠性指标) M23269 / 10 ( QPL至MIL-PRF- 23269 )[ Glass Capacitors CYR51, 52, 53 (Established Reliability) M23269/10 (QPL to MIL-PRF-23269) ] 2 页

KYOCERA AVX

CYR52 玻璃电容器CYR51 , 52 , 53 (可靠性指标) M23269 / 10 ( QPL至MIL-PRF- 23269 )[ Glass Capacitors CYR51, 52, 53 (Established Reliability) M23269/10 (QPL to MIL-PRF-23269) ] 2 页

KYOCERA AVX

CYR53 玻璃电容器CYR51 , 52 , 53 (可靠性指标) M23269 / 10 ( QPL至MIL-PRF- 23269 )[ Glass Capacitors CYR51, 52, 53 (Established Reliability) M23269/10 (QPL to MIL-PRF-23269) ] 2 页

CYPRESS

CYRF69103 无线可编程片上低功耗[ Programmable Radio on Chip Low Power ] 73 页

CYPRESS

CYRF69103-40LFXC 无线可编程片上低功耗的16位自由运行定时器[ Programmable Radio on Chip Low Power 16-bit free running timer ] 68 页

CYPRESS

CYRF69103-40LTXC 无线可编程片上低功耗[ Programmable Radio on Chip Low Power ] 72 页

CYPRESS

CYRF69103A-40LFXC 无线可编程片上低功耗[ Programmable Radio on Chip Low Power ] 68 页

CYPRESS

CYRF69103_08 无线可编程片上低功耗[ Programmable Radio on Chip Low Power ] 65 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.280935s
