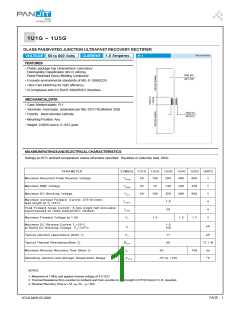

1U1G ~ 1U5G
GLASS PASSIVATED JUNCTION ULTRAFAST RECOVERY RECTIFIER
Unit: inch(mm)
R-1
1.0 Amperes
50 to 600 Volts
CURRENT
VOLTAGE
FEATURES
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-O utilizing
Flame Retardant Epoxy Molding Compound
.025(.64)
.021(.53)
• Exceeds environmental standards of MIL-S-19500/228.
• Ultra Fast switching for high efficiency.
• In compliance with EU RoHS 2002/95/EC directives
MECHANICALDATA
• Case: Molded plastic, R-1
• Terminals: Axial leads, solderable per MIL-STD-750,Method 2026
• Polarity: Band denotes cathode
.102(2.6)
.087(2.2)
• Mounting Position: Any
• Weight: 0.0068 ounce, 0.1937 gram
MAXIMUMRATINGSANDELECTRICALCHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load, 60Hz.
PARAMETER
SYMBOL 1U1G
1U2G
100
1U3G
200
1U4G
1U5G
UNITS
Maximum Recurrent Peak Reverse Voltage
VR R M
VR M S
VD C
50
35
50
400
280
400
600
420
600
V
V
V
A
Maximum RMS Voltage
70
140
200
1.0
Maximum DC Blocking Voltage
100
Maximum Average Forward Current .375"(9.5mm)
IF ( A V )
lead length at TA =55O
C
Peak Forward Surge Current : 8.3ms single half sine-wave
superimposed on rated load(JEDEC method)
IF S M
30
A
V
Maximum Forward Voltage at 1.0A
VF
1.0
1.3
1.7
Maximum DC Reverse Current TJ =25O
C
1.0
150
µA
IR
at Rated DC Blocking Voltage TJ =125O
C
Typical Junction capacitance (Note 1)
CJ
Rθ J A
17
60
pF
O C / W
ns
Typical Thermal Resistance(Note 2)
Maximum Reverse Recovery Time (Note 3)
tr r
50
-55 to +150
100
Operating Junction and Storage Temperature Range
TJ ,TS T G
O C
NOTES:
1. Measured at 1 MHz and applied reverse voltage of 4.0 VDC.
2. Thermal Resistance from Junction to Ambient and from Junction to lead length 0.375”(9.5mm) P.C.B. mounted.
3. Reverse Recovery Time IF=.5A ,IR=1A , Irr=.25A
PAGE . 1
STAD-MAR.05.2009
