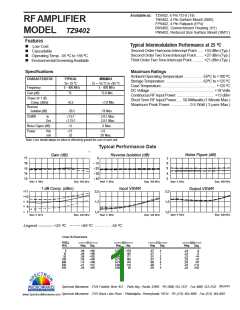

Available as: TZ9402, 4 Pin TO-8 (T4)
TN9402, 4 Pin Surface Mount (SM3)
RFAMPLIFIER
FP9402, 4 Pin Flatpack (FP4)
BX9402, Connectorized Housing (H1)
PN9402, Reduced Size Surface Mount (SM11)
MODEL TZ9402
Features
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point ...... +33 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +27 dBm (Typ.)
Third Order Two Tone Intercept Point .......... +21 dBm (Typ.)
ꢀ
Low Cost
ꢀ Cascadable
ꢀ Operating Temp. -55 ºC to +85 ºC
ꢀ Environmental ScreeningAvailable
Maximum Ratings
Specifications
Ambient OperatingTemperature ................-55ºC to +100 ºC
StorageTemperature .................................-62ºC to +125 ºC
CaseTemperature ..................................................+125 ºC
DCVoltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................. 0.5 Watt ( 3 µsec Max.)
CHARACTERISTIC
TYPICAL
Ta= 25 ºC
5 - 400 MHz
MIN/MAX
Ta = -55 ºC to +85 ºC
5 - 400 MHz
Frequency
Gain (dB)
15
13.0 Min.
Power @ 1 dB
Comp. (dBm)
Reverse
+8.5
+7.0 Min.
-19 Max.
Isolation (dB)
-20.5
VSWR
In
Out
<1.5:1
<1.75:1
2.0:1 Max.
2.0:1 Max.
Noise Figure (dB)
<5
6 Max.
Power
Vdc
mA
+15
25
+15
28 Max.
Note: Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
Legend
+25 ºC
+85 ºC - - - - - - -55 ºC
09/24/91
