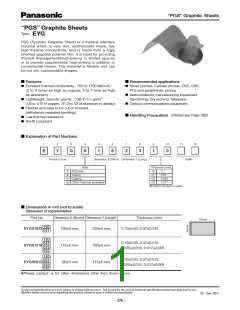

“PGS” Graphite Sheets
“PGS” Graphite Sheets
Type:
EYG
PGS (Pyrolytic Graphite Sheet) is a thermal interface
material which is very thin, synthetically made, has
high thermal conductivity, and is made from a higly
oriented graphite polymer film. It is ideal for providing
thermal management/heat-sinking in limited spaces
or to provide supplemental heat-sinking in addition to
conventional means. This material is flexible and can
be cut into customizable shapes.
■ Features
■ Recommended applications
● Smart phones, Cellular phones, DVC, DSC,
PCs and peripherals, pickup
● Semiconductor manufacturing equipment
(Sputtering, Dry etching, Steppers)
● Excellent thermal conductivity : 700 to 1750 W/(m·K)
(2 to 4 times as high as copper, 3 to 7 time as high
as aluminum)
● Lightweight: Specific gravity : 0.85 to 2.1 g/cm3
(1/4 to 1/10 of copper, 1/1.3 to 1/3 of aluminum in density)
● Flexible and easy to be cut or trimmed.
(withstands repeated bending)
● Optical communications equipment
(Please see Page 380)
■ Handling Precautions
● Low thermal resistance
● RoHS compliant
■ Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
Y
G
S
1
8
2
3
1
0
Product Code
Dimension X (Short) Dimension Y (Long)
Suffix
Style
Thickness (mm)
PGS only
S
A
C
M
10
07
03
02
0.1
Taping
Coating
Other materials laminated
0.07
0.025
0.017
✽Custom product is suffix.
■ Dimensions in mm (not to scale)
Dimension of representative
✽
✽
Part No.
Dimension X (Short) Dimension Y (Long)
Thickness (mm)
Y(mm)
1 0
0 7
EYGS1823
EYGS1218
EYGS0912
180 5 mm
115 5 mm
90 5 mm
230 5 mm
180 5 mm
115 5 mm
0.10 0.03, 0.07 0.015
1 0
0 7
0 3
0 2
0.10 0.03, 0.07 0.015,
0.025 0.010, 0.017 0.005
1 0
0 7
0 3
0 2
0.10 0.03, 0.07 0.015,
0.025 0.010, 0.017 0.005
Please contact us for other dimensions other than those above.
✽
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Dec. 2011
