KXR94-2353

型号：

KXR94-2353

描述：

为± 2克三轴数字加速度计技术指标[ ± 2g Tri-axis Digital Accelerometer Specifications ]

品牌：

ETC[ ETC ]

页数：

15 页

PDF大小：

442 K

下载PDF手册

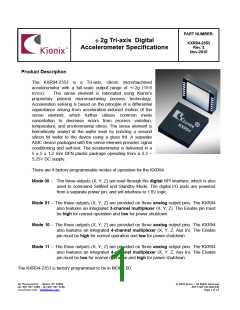

PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Product Description
The KXR94-2353 is a Tri-axis, silicon micromachined
accelerometer with a full-scale output range of +/-2g (19.6
m/s/s).
The sense element is fabricated using Kionix’s
proprietary plasma micromachining process technology.
Acceleration sensing is based on the principle of a differential
capacitance arising from acceleration-induced motion of the
sense element, which further utilizes common mode
cancellation to decrease errors from process variation,
temperature, and environmental stress. The sense element is
hermetically sealed at the wafer level by bonding a second
silicon lid wafer to the device using a glass frit. A separate
ASIC device packaged with the sense element provides signal
conditioning and self-test. The accelerometer is delivered in a
5 x 5 x 1.2 mm DFN plastic package operating from a 2.5 –
5.25V DC supply.
There are 4 factory programmable modes of operation for the KXR94:
Mode 00 – The three outputs (X, Y, Z) are read through the digital SPI interface, which is also
used to command Selftest and Standby Mode. The digital I/O pads are powered
from a separate power pin, and will interface to 1.8V logic.
Mode 01 – The three outputs (X, Y, Z) are provided on three analog output pins. The KXR94
also features an integrated 3-channel multiplexer (X, Y, Z). The Enable pin must
be high for normal operation and low for power shutdown.
Mode 10 – The three outputs (X, Y, Z) are provided on three analog output pins. The KXR94
also features an integrated 4-channel multiplexer (X, Y, Z, Aux In). The Enable
pin must be high for normal operation and low for power shutdown.
Mode 11 – The three outputs (X, Y, Z) are provided on three analog output pins. The KXR94
also features an integrated 4-channel multiplexer (X, Y, Z, Aux In). The Enable
pin must be low for normal operation and high for power shutdown.
The KXR94-2353 is factory programmed to be in MODE 00.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 1 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Functional Diagram
Charge
Amplifier
X
Sensor
Output X
C2
32K
2
Temp
Sensor
Y
Output Y
13
32K
32K
Charge
Amplifier
1kHz
LPF
Sensor
C3
Z
Output Z
Charge
Amplifier
14
Sensor
C4
Oscillator
8
12
3
A/D
Vdd
GND
GND
4 Aux In
SPI
5
6
7
9
10
IO Vdd
SDO
Enable
SDI
SCLK
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 2 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Product Specifications
Table 1. Mechanical
(specifications are for operation at 3.3V and T = 25C unless stated otherwise)
Parameters
Operating Temperature Range
Zero-g Offset
Units
ºC
Min
Typical
Max
-
-40
85
!
!
counts
mg/ºC
counts/g
1918
2048
0.2
2178
Zero-g Offset Variation from RT over Temp.
Sensitivity
803
819
835
0.01 (xy)
0.02 (z)
4
Sensitivity Variation from RT over Temp.
Offset Ratiometric Error (Vdd = 3.3V ± 5%)
Sensitivity Ratiometric Error (Vdd = 3.3V ± 5%)
%/ºC
mg
%
1.25 (xy)
0.2 (z)
0.1
Non-Linearity
Cross Axis Sensitivity1
% of FS
%
2
1.9 (xy)
0.5 (z)
800
Self Test Output change on Activation
g
Bandwidth (-3dB)2
Hz
Noise Density (on filter pins)
g / √Hz
45
! Denotes Special Characteristics: These characteristics have been identified as important to the
customer.
Notes:
1. Cross axis sensitivity is dominated by the placement accuracy of the component during PCB
assembly and in the application.
2. Bandwidth for internal low pass filter only. Lower frequencies are user definable with external
capacitors. (See Application Design Equations)
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 3 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Table 2. Electrical
(specifications are for operation at 3.3V and T = 25C unless stated otherwise)
Parameters
Operating
Units
V
V
Min
Typical
Max
Supply Voltage (Vdd)
2.5
1.7
3.3
-
5.25
Vdd
I/O Pads Supply Voltage (VIO)
Operating
Current Consumption
Standby
!
A
500
950
1400
A
-
-
5
Input Low Voltage
V
-
0.2 * VIO
-
Input High Voltage
V
0.8 * VIO
-
Input Pull-down Current
A/D Conversion time
SPI Communication Rate
60
40
A
s
MHz
5
Analog Output Resistance(Rout
)
24
32
40
k
! Denotes Special Characteristics: These characteristics have been identified as important to the
customer.
Table 3. Environmental
Parameters
Units
Min
-0.3
-40
-55
-
Target
Max
7.0
Supply Voltage (Vdd) Absolute Limits
Maximum Operating Temperature Range
Storage Temperature Range
V
ºC
ºC
g
-
-
-
-
-
125
150
Mech. Shock (powered and unpowered)
5000 for 0.5ms
3000
ESD
HBM
V
-
Caution: ESD Sensitive and Mechanical Shock Sensitive Component, improper handling can
cause permanent damage to the device.
This product conforms to Directive 2002/95/EC of the European Parliament and of the Council of the
European Union (RoHS). Specifically, this product does not contain lead, mercury, cadmium,
hexavalent chromium, polybrominated biphenyls (PBB), or polybrominated diphenyl ethers (PBDE)
above the maximum concentration values (MCV) by weight in any of its homogenous materials.
Homogenous materials are "of uniform composition throughout."
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 4 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
This product is halogen-free per IEC 61249-2-21. Specifically, the materials used in this product
contain a maximum total halogen content of 1500 ppm with less than 900-ppm bromine and less than
900-ppm chlorine.
HF
Soldering
Soldering recommendations available upon request or from www.kionix.com.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 5 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Application Schematic
1
2
3
4
5
6
7
14
13
12
Z
Y
X
C2
C3
C4
11
10
9
KXR94
Aux In
IO Vdd
SDO
SDI
nCS
Vdd
8
SCLK
C1
Table 4. KXR94 Pad Descriptions
Pad Name
Description
Not Connected Internally (can be connected to Vdd or Gnd)
1
NC
Analog output of the x-channel. Optionally, a capacitor (C2) placed between this pin and ground will form a
low pass filter.
2
X output
3
4
5
6
7
GND
Aux In
IO Vdd
SDO
SCLK
Vdd
Ground
Auxiliary input for analog-digital converter
Power Supply for I/O pads
SPI Serial Data Output
SPI Communication Clock
8
The power supply input. Decouple this pin to ground with a 0.1uF ceramic capacitor (C1).
9
nCS
SPI Chip Select
10
11
12
SDI
NC
GND
SPI Serial Data Input
Not Connected Internally (can be connected to Vdd or Gnd)
Ground
Analog output of y-channel. Optionally, a capacitor (C3)placed between this pin and ground will form a low
pass filter.
Analog output of z-channel. Optionally, a capacitor (C4) placed between this pin and ground will form a low
pass filter.
13
14
Y Output
Z Output
Center
pad
Ground
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 6 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Application Design Equations
The bandwidth is determined by the internal 1kHz low pass filter. The user can lower the bandwidth by placing
filter capacitors connected from pins 2, 13 and 14 to ground. The response is single pole. Given a desired
bandwidth, fBW, the filter capacitors are determined by:
4.97x10
C2 C3 C4
fBW
KXR94 Digital Interface
The Kionix KXR94 digital accelerometer has the ability to communicate on a SPI digital serial interface bus.
This flexibility allows for easy system integration by eliminating analog-to-digital converter requirements and by
providing direct communication with system micro-controllers.
The serial interface terms and descriptions as indicated in Table 6 below will be observed throughout this
document.
Table 5. Serial Interface Terminologies
Term
Transmitter
Receiver
Master
Description
The device that transmits data to the bus.
The device that receives data from the bus.
The device that initiates a transfer, generates clock signals and terminates a transfer.
The device addressed by the Master.
Slave
SPI Interface
The KXR94 utilizes an integrated Serial Peripheral Interface (SPI) for digital communication. The SPI interface
is primarily used for synchronous serial communication between one Master device and one or more Slave
devices. The Master, typically a micro controller, provides the SPI clock signal (SCLK) and determines the
state of Chip Select (nCS). The KXR94 always operates as a Slave device during standard Master-Slave SPI
operation.
SPI is a 4-wire synchronous serial interface that uses two control and two data lines. With respect to the
Master, the Serial Clock output (SCLK), the Data Output (MOSI) and the Data Input (MISO) are shared among
the Slave devices. The Master generates an independent Chip Select (nCS) for each Slave device that goes
low at the start of transmission and goes back high at the end. The Slave Data Output (SDO) line, remains in
a high-impedance (hi-z) state when the device is not selected, so it does not interfere with any active devices.
This allows multiple Slave devices to share a master SPI port as shown in Figure 1 below.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 7 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Master
Slave
Serial Clock
SCLK
CS0
CS1
CS
KXR94
MCU
SDI
SDO
MOSI (Data Out)
MISO (Data In)
Slave
SCLK
CS
KXR94
SDO
SDI
Figure 1 KXR94 SPI Connections
Control Register Write and Read
The control register embedded in the KXR94 has an 8-bit address. Upon power up, the Master must write to
the accelerometer’s control register to set its operational mode. On the falling edge of nCS, a 2-byte
command is written to the control register. The first byte, 0x04, initiates the write to the appropriate register,
and is followed by the user-defined, operational-mode byte. All commands are sent MSB (most significant bit)
first, and the host must return nCS high for at least 200nS before the next data request. Figure 2 below shows
the timing diagram for carrying out the 8-bit control register write operation.
CLK
0
0
0
0
0
1
0
0
D7 D6 D5 D4 D3 D2 D1 D0
(MSB)
SDI
(MSB)
HI-Z
HI-Z
SDO
CS
Figure 2 Timing Diagram for 8-Bit Control Register Write Operation
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 8 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
In order to read the 8-bit control register, an 8-bit read command, 0x03, must be written to the accelerometer
to initiate the read. Upon receiving the command, the accelerometer returns the 8-bit operational-mode data
stored in the control register. This operation also occurs over 16 clock cycles. All returned data is sent MSB
first, and the host must return nCS high for at least 200nS before the next data request. Figure 3 shows the
timing diagram for an 8-bit control register read operation.
CLK
0
0
0
0
0
0
1
1
SDI
(MSB)
HI-Z
HI-Z
D7 D6 D5 D4 D3 D2 D1 D0
(MSB)
SDO
CS
Figure 3 Timing Diagram for 8-Bit Control Register Read Operation
Accelerometer Read Back Operation
The KXR94 has an onboard 12-bit ADC that can sample, convert and read back sensor data at any time.
Transmission of an 8-bit axis-conversion command (see Table 8) begins on the falling edge of nCS. After the
eight clock cycles used to send the command, the host must wait for at least 40µs during the A/D conversion
time. Note that all returned data is sent MSB first. Once the data is received, nCS must be returned high for
200nS before the next data request. Figure 4 and 5 this and on the following page show the timing and
register diagrams for the accelerometer 12-bit ADC read operation.
The Read Back Operation is a 3-byte SPI command. The first byte of SDI contains the command to convert
one of the axes. The second and third bytes of SDO contain the 12 bits of the A/D result plus four bits of
padding in the LSB to make a total of 16 bits. See Figure 5 on next page.
Conversion
CLK
A7 A6 A5 A4 A3 A2 A1 A0
(MSB)
SDI
HI Z
HI Z
D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
(MSB)
SDO
CS
Figure 4 Timing Diagram for an A/D conversion and 12-Bit data read operation.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 9 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Axis Conversion Command
SDI
A7 A6 A5 A4 A3 A2 A1 A0
MSB
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
MSB
SDO
X
X
X
X
X
X
X
X
D11D10 D9 D8 D7 D6 D5 D4
D3 D2 D1 D0 X
Conversion Read Back Data
X = Don’t Care Bits
Figure 5 Register Diagram for 12-Bit ADC Read Operation
SPI Commands
The accelerometer SPI interface uses an 8-bit command register to carry out all of its functions. The
commands are given in Table 7.
1st byte (SDI)
Description
Convert X axis
(Command)
0x00
Convert Y axis
0x01
Convert Z axis
0x02
Read Control Register
Write Control Register
Convert Aux In
0x03
0x04
0x07
Table 6 Command Register Bit Utilization
Convert X axis (0x00 or 0000 0000) samples the X-axis sensor data held on the filter cap,
digitizes it and returns it as 12-bits through SDO.
Convert Y axis (0x01 or 0000 0001) samples the Y-axis sensor data held on the filter cap,
digitizes it and returns it as 12-bits through SDO.
Convert Z axis (0x02 or 0000 0010) samples the Z-axis sensor data held on the filter cap,
digitizes it and returns it as 12-bits through SDO.
Read Control Register (0x03 or 0000 0011) reads back the current contents of the control
register and returns it as 8-bits through SDO.
Write Control Register (0x04 or 0000 0100) is used to initiate a write to the control register
and set the operational mode of the accelerometer. The first byte initiates the write to the
register, and the second byte specifies the operational mode.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 10 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Convert Aux In (0x07 or 0000 0111) samples the auxiliary input data, digitizes it and returns it
as 12-bits through SDO.
Accelerometer Operational Modes
The 8-bit read/write control register selects the various operational modes of the accelerometer. Table 8
shows the bit assignments for the available modes.
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
Enable
Self test
Parity
Table 7 Read/Write Control Register
Parity reports on even (0) or odd (1) EEPROM parity. A properly functioning part will return
even (0) EEPROM parity. This bit is read-only and operates independently of the other modes.
Enable powers up the accelerometer for operation.
Enable = 1 – normal operation
Enable = 0 – low-power standby
Self test activates the self-test function for the sensor elements on all three axes. A correctly
functioning part will increase all channel outputs by approximately 1g when Self test = 1 and
Enable = 1. This bit can be read or written.
Digital Accelerometer SPI Sequence
An example of a SPI sequence for reading sensor data is as follows:
1. Power up KXR94
2. nCS low to select
3. Write operational mode command to 8-bit control register – for example: 0x0404. The first 0x04 is the
command to write to the control register, the second 0x04 sets the enable bit in the internal register.
4. nCS high for at least 200nS (SCLK = 5MHz)
5. nCS low to select
6. Send convert axis command – for example: 0x000000. The first 0x00 is the command to convert the
X-channel. The second and third 0x00 are placeholders. There should be a minimum of 40μs
between the first and second bytes in order to give the A/D conversion adequate time to complete.
7. The 12-bit A/D data is read in on the second and third SDO bytes.
8. nCS high for at least 200nS (SCLK = 5MHz)
9. Repeat data read cycle. Recommend reading X-axis, Y-axis, Z-axis, and the Control Register for each
read cycle to verify the Control Register mode selection.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 11 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Test Specifications
!
Special Characteristics:
These characteristics have been identified as being critical to the customer. Every part is tested to verify its
conformance to specification prior to shipment.
Table 8. Test Specifications
Parameter
Specification
Test Conditions
2048 +/- 130 counts
25C, Vdd = 3.3 V
Zero-g Offset @ RT
Sensitivity @ RT
Current Consumption -- Operating
819 +/- 16 counts/g
25C, Vdd = 3.3 V
500 <= Idd <= 1400 uA 25C, Vdd = 3.3 V
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 12 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Package Dimensions and Orientation
5 x 5 x 1.2 mm DFN
+Y
+X
+Z
+Z
+X
mm
Nom
5.00
5.00
1.20
0.23
0.50
0.40
3.60
4.30
inch
Dimension
Min
Max
Min
Nom
0.197
0.197
Max
A
B
C
D
E
F
1.10
0.18
1.30
0.28
0.043 0.047 0.051
0.007 0.009 0.011
0.020
0.014 0.016 0.018
0.138 0.142 0.146
0.165 0.169 0.173
0.35
3.50
4.20
0.45
3.70
4.40
G
H
All dimensions and tolerances conform to ASME Y14.5M-1994
When device is accelerated in +X, +Y or +Z direction, the corresponding output will increase.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 13 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Static X/Y/Z Output Response versus Orientation to Earth’s surface (1g):
Position
1
2
3
4
5
6
Diagram
Top
Bottom
Bottom
Top
X
Y
Z
2048
counts
2867
counts
2048
counts
1229
counts
2048
counts
2048
counts
2867
counts
2048
counts
1229
counts
2048
counts
2048
counts
2048
counts
2048
2048
2048
2048
2867
1229
counts
counts
counts
counts
counts
counts
X-Polarity
Y-Polarity
Z-Polarity
0
+
0
+
0
0
0
-
0
-
0
0
0
0
+
0
0
-
(1g)
Earth’s Surface
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 14 of 15
PART NUMBER:
± 2g Tri-axis Digital
Accelerometer Specifications
KXR94-2353
Rev. 3
Nov-2010
Revision History
REVISION DESCRIPTION
DATE
Initial Release
06-Aug-
2007
1
Added Special Characteristics designation to property tables. Adjusted current specification to six sigma
tolerances.
Changed to new format, widened Zero-g Offset tolerance to 130 counts, updated SPI rate to 5MHz max,
corrected Bandwidth footnote.
15-Nov-
2009
03-Nov-
2010
2
3
"Kionix" is a registered trademark of Kionix, Inc. Products described herein are protected by patents issued or pending. No license is granted by implication or otherwise
under any patent or other rights of Kionix. The information contained herein is believed to be accurate and reliable but is not guaranteed. Kionix does not assume
responsibility for its use or distribution. Kionix also reserves the right to change product specifications or discontinue this product at any time without prior notice. This
publication supersedes and replaces all information previously supplied.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
352-1783-1011041430
Page 15 of 15
厂商 型号 描述 页数 下载

ETC

 		KXR94 [ Accelerometers and Inclinometers ] 2 页

ETC

 		KXR94-1050 2克三轴加速度计产品规格[ 2g Tri-axis Accelerometer Specifications ] 13 页

ETC

 		KXR94-2050 2克三轴加速度计产品规格[ 2g Tri-Axis Accelerometer Specifications ] 11 页

ETC

 		KXR94-2283 2克三轴加速度计产品规格[ 2g Tri-Axis Accelerometer Specifications ] 10 页

ETC

 		KXR94-7050 [ Accelerometers and Inclinometers ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.175947s
