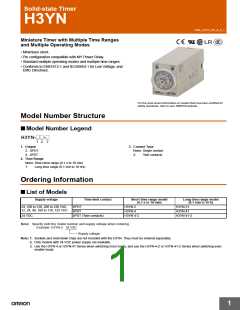

HSoli3d-sYtateNTimer
CSM_H3YN_DS_E_5_1
Miniature Timer with Multiple Time Ranges
and Multiple Operating Modes
LR
• Minimizes stock.
• Pin configuration compatible with MY Power Relay.
• Standard multiple operating modes and multiple time ranges.
• Conforms to EN61812-1 and IEC60664-1 for Low Voltage, and
EMC Directives.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Model Number Structure
■ Model Number Legend
H3YN-@@-@
1
2
3
1. Output
3. Contact Type
None: Single contact
Z: Twin contacts
2: DPDT
4: 4PDT
2. Time Range
None: Short-time range (0.1 s to 10 min)
1: Long-time range (0.1 min to 10 hrs)
Ordering Information
■ List of Models
Supply voltage
Time-limit contact
Short-time range model
(0.1 s to 10 min)
Long-time range model
(0.1 min to 10 h)
24, 100 to 120, 200 to 230 VAC;
12, 24, 48, 100 to 110, 125 VDC
DPDT
H3YN-2
H3YN-21
4PDT
H3YN-4
H3YN-41
24 VDC
4PDT (Twin contacts)
H3YN-4-Z
H3YN-41-Z
Note: Specify both the model number and supply voltage when ordering.
Example: H3YN-2 24 VAC
Supply voltage
Note: 1. Sockets and Hold-down Clips are not included with the H3YN. They must be ordered separately.
2. Only models with 24-VDC power supply are available.
3. Use the H3YN-4 or H3YN-41 Series when switching micro loads, and use the H3YN-4-Z or H3YN-41-Z Series when switching even
smaller loads.
1
H3YN
■ Accessories (Order Separately)
Adapter, Mounting Plate, Clip
Name/specification
Model
Y92F-78
PYP-1
Flush mounting adapter
Mounting Plate for Socket
For 1 Socket
For 18 Sockets
For PYF@A
For PY@ and PYF@M
PYP-18
Y92H-3
Y92H-4
Clip
Note: For details, refer to NTLP×REFERENCE Socket and DIN Track Products.
Socket
Timer
Square Sockets
Terminal
Contact
Model
Pin
Connection
Model
PYF08A
DIN track mounting
DIN track mounting
(Finger-safe tyape)
Front Connecting
PYF08A-E
H3Y-2
DPDT
4PDT
8-pin
H3YN-2@
Screw mounting
PYF08F
PY08
Back Connecting Solder terminal
DIN track mounting
PYF14A
Front Connecting
DIN track mounting
(Finger-safe tyape)
H3Y-4
H3YN-4@
14-pin
PYF14A-E
PY14
Back Connecting Solder terminal
Note: 1. Cannot be used with the H3Y-@-0 (PCB terminals).
2. The PYF@@A-E has a finger-protection structure. Round crimp terminals cannot be used. Use forked crimp terminals.
3. For details, refer to Socket and DIN Track Products.
2
H3YN
Specifications
■ Ratings
Item
H3YN-2/-4/-4-Z
0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min max. 0.1 min to 10 h (1 min, 10 min, 1 h, or 10 h max.
selectable) selectable)
H3YN-21/-41/-41-Z
Time ranges
Rated supply voltage (See note 5, 6.)
24, 100 to 120, 200 to 230 VAC (50/60 Hz) (See note 1.)
12, 24, 48, 100 to 110, 125 VDC (See note 2.)
Pin type
Plug-in
Operating mode
Operating voltage range
ON-delay, interval, flicker OFF start, or flicker ON start (selectable with DIP switch)
85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage)
(See note 3.)
Reset voltage
10% min. of rated supply voltage (See note 4.)
Power consumption
100 to 120 VAC: Relay ON: Approx. 1.8 VA (1.6 W) at 120 VAC, 60 Hz
Relay OFF: Approx. 1 VA (0.6 W) at 120 VAC, 60 Hz
200 to 230 VAC: Relay ON: Approx. 2.2 VA (1.8 W) at 230 VAC, 60 Hz
Relay OFF: Approx. 1.5 VA (1.1 W) at 230 VAC, 60 Hz
24 VAC:
12 VDC:
24 VDC:
48 VDC:
Relay ON: Approx. 1.8 VA (1.4 W) at 24 VAC, 60 Hz
Relay OFF: Approx. 0.3 VA (0.2 W) at 24 VAC, 60 Hz
Relay ON: Approx. 1.1 W at 12 VDC
Relay OFF: Approx. 0.1 W at 12 VDC
Relay ON: Approx. 1.1 W at 24 VDC
Relay OFF: Approx. 0.1 W at 24 VDC
Relay ON: Approx. 1.2 W at 48 VDC
Relay OFF: Approx. 0.3 W at 48 VDC
100 to 110 VDC: Relay ON: Approx. 1.6 W at 110 VDC
Relay OFF: Approx. 0.4 W at 110 VDC
125 VDC:
Relay ON: Approx. 1.6 W at 125 VDC
Relay OFF: Approx. 0.4 W at 125 VDC
Control outputs
DPDT: 5 A at 250 VAC, resistive load (cosφ = 1)
4PDT: 3 A at 250 VAC, resistive load (cosφ = 1)
Note: 1. Do not use the output from an inverter as the power supply. Refer to Safety Precautions for All Times for details.
2. Single-phase, full-wave-rectified power supplies can be used.
3. When using the H3YN continuously in any place where the ambient temperature is in a range of 45°C to 50°C, supply 90% to 110% of
the rated supply voltages (supply 95% to 110% with 12 VDC type).
4. Set the reset voltage as follows to ensure proper resetting.
100 to 120 VAC: 10 VAC max.
200 to 230 VAC: 20 VAC max.
100 to 110 VDC: 10 VDC max.
5. Refer to Safety Precautions for All Timers when combining the Timer with an AC 2-wire proximity sensor.
6. A diode to prevent reverse voltages is provided only on models with a DC power supply.
3
H3YN
■ Characteristics
Item
Accuracy of operating time
Setting error
H3YN-2/-21/-4/-41
1% FS max. (1 s range: 1% 10 ms max.)
10% 50 ms FS max.
Reset time
Min. power-opening time: 0.1 s max. (including halfway reset)
Influence of voltage
Influence of temperature
Insulation resistance
Dielectric strength
2% FS max.
2% FS max.
100 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminals and exposed non-current-carrying
metal parts) (see note 1)
2,000 VAC, 50/60 Hz for 1 min (between operating power circuit and control output)
2,000 VAC, 50/60 Hz for 1 min (between different pole contacts; 2-pole model)
1,500 VAC, 50/60 Hz for 1 min (between different pole contacts; 4-pole model)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Vibration resistance
Shock resistance
Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 1 h each in 3 directions
Malfunction: 10 to 55 Hz, 0.5-mm single amplitude for 10 min each in 3 directions
Destruction: 1,000 m/s2
Malfunction: 100 m/s2
Ambient temperature
Operating: −10°C to 50°C (with no icing)
Storage:
−25°C to 65°C (with no icing)
Ambient humidity
Life expectancy
Operating: 35% to 85%
Mechanical: 10,000,000 operations min. (under no load at 1,800 operations/h)
Electrical:
DPDT:
500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h)
4PDT:
200,000 operations min. (H3YN-4-Z/-41-Z: 100,000 operations min.)
(3 A at 250 VAC, resistive load at 1,800 operations/h) (see note 2)
Impulse withstand voltage
Between power terminals:
3 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC
1 kV for 12 VDC, 24 VDC, 48 VDC, 24 VAC
Between exposed non-current-carrying metal parts:
4.5 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC
1.5 kV for 12 VDC, 24 VDC, 48 VDC, 24 VAC
Noise immunity
Static immunity
1.5 kV, square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
Destruction: 8 kV
Malfunction: 4 kV
Degree of protection
IP40
Weight
EMC
Approx. 50 g
(EMI)
EN61812-1
Emission Enclosure:
Emission AC Mains:
(EMS)
EN55011 Group 1 class A
EN55011 Group 1 class A
EN61812-1
Immunity ESD:
EN61000-4-2:8 kV air discharge (level 3)
Immunity RF-interference from AM Radio Waves:
EN61000-4-3:10 V/m (80 MHz to 1 GHz) (level 3)
Immunity Burst:
EN61000-4-4:2 kV power-line (level 3)
2 kV I/O signal-line (level 4)
Immunity Surge:
EN61000-4-5:2 kV line to ground (level 3)
1 kV line to line (level 3)
Approved standards
UL508, CSA C22.2 No. 14, Lloyds
Conforms to EN61812-1 and IEC60664-1. (2.5 kV/2 for H3YN-2/-21, 2.5 kV/1 for H3YN-4/-41, H3YN-
4-Z/-41-Z)
Output category according to EN60947-5-1.
Note: 1. Terminal screw sections are excluded.
2. Refer to the Life-test Curve.
4
H3YN
■ Life-test Curve (Reference Value)
H3YN-2/-21
5,000
250 VAC, cosφ = 1
24 VDC, cosφ = 1
250 VAC, cosφ = 0.4
24 VDC, L/R = 7 ms
5,000
1,000
500
1,000
500
200
200
Load current (A)
Load current (A)
Reference: A maximum current of 0.6 A can be switched at 125 VDC (cosφ = 1).
Maximum current of 0.2 A can be switched if L/R is 7 ms. In both cases,
a life of 100,000 operations can be expected.
The minimum applicable load is 1 mA at 5 VDC (P reference value).
H3YN-4/-41
250 VAC, cosφ = 1
24 VDC, cosφ = 1
250 VAC, cosφ = 0.4
24 VDC, L/R = 7 ms
5,000
5,000
1,000
500
1,000
500
200
200
Load current (A)
Load current (A)
Reference: A maximum current of 0.5 A can be switched at 125 VDC (cosφ = 1).
Maximum current of 0.2 A can be switched if L/R is 7 ms. In both cases,
a life of 100,000 operations can be expected.
The minimum applicable load is 1 mA at 1 VDC (P reference value).
H3YN-4-Z/-41-Z
5,000
1,000
500
250 VAC, resistive load
100 24 VDC,
resistive load
60
Load current (A)
Reference: A maximum current of 0.5 A can be switched at 125 VDC (cosφ = 1).
Maximum current of 0.2 A can be switched if L/R is 7 ms. In both cases,
a life of 100,000 operations can be expected.
The minimum applicable load is 0.1 mA at 1 VDC (P reference value).
5
H3YN
Connections
■ Connection
H3YN-2/-21
H3YN-4/-41
H3YN-4-Z/-41-Z
DIN Indication
DIN Indication
Timer
circuit
Timer
circuit
UP PW
UP PW
(Bottom View)
(Bottom View)
Pulse Operation
A pulse output for a certain period can be obtained with a random external input signal.
Use the H3YN in interval mode as shown in the following timing charts.
H3YN-2/-21
Power (9-14)
External short circuit
(5-13)
50 ms
min.
External input
(9-13)
Time limit contact
NO (12-8)
Timer
circuit
Time limit contact
NC (12-4)
Run/Power indicator
(PW)
Output indicator (UP)
External input
Note: t: Set time
Rt: Reset time
H3YN-4/-41
H3YN-4-Z/-41-Z
Power (9-14)
External short circuit
(5-13)
50 ms
min.
External input
(9-13)
Time limit contact NO
(10-6, 11-7, 12-8)
Timer
circuit
Time limit contact NC
(10-2, 11-3, 12-4)
Run/Power indicator
(PW)
Output indicator (UP)
External input
Note: t: Set time
Rt: Reset time
!Caution
Be careful when connecting wires.
Mode
Terminals
Pulse operation
Power supply between 9 and 14
Short-circuit between 5 and 13
Input signal between 9 and 13
Operating mode; interval and all other modes
Power supply between 13 and 14
6
H3YN
Operation
■ Timing Chart
Operating mode
Timing chart
H3YN-2/-21
H3YN-4/-41
ON-delay
Power (13-14)
Power (13-14)
Power
Output
Time limit contact
NC (9-1, 10-2, 11-3,
12-4)
Time limit contact
NO (9-5, 10-6, 11-7,
12-8)
Time limit contact
NC (9-1, 12-4)
Time limit contact
NO (9-5, 12-8)
Run/Power indicator
(PW)
Run/Power indicator
(PW)
Output indicator
Power (13-14)
Output indicator
(UP)
Interval
Power (13-14)
Power
Time limit contact
NC (9-1, 10-2, 11-3,
12-4)
Time limit contact
NO (9-5, 10-6, 11-7,
12-8)
Time limit contact
NC (9-1, 12-4)
Output
Time limit contact
NO (9-5, 12-8)
Run/Power
indicator (PW)
Run/Power
indicator (PW)
Output indicator
(UP)
Output indicator
(UP)
Flicker OFF-start
Power (13-14)
Power (13-14)
Power
Time limit contact
NC (9-1, 10-2, 11-3,
12-4)
Time limit contact
NO (9-5, 10-6, 11-7,
12-8)
Time limit contact
NC (9-1, 12-4)
Output
Time limit contact
NO (9-5, 12-8)
Run/Power indicator
(PW)
Run/Power indicator
(PW)
Output indicator
(UP)
Output indicator
(UP)
Flicker ON-start
Power
Power (13-14)
Power (13-14)
Time limit contact
NC (9-1, 10-2, 11-3,
12-4)
Time limit contact
NC (9-1, 12-4)
Output
Time limit contact
Time limit contact
NO (9-5, 10-6, 11-7,
12-8)
Run/Power
indicator (PW)
NO (9-5, 12-8)
Run/Power
indicator (PW)
Output indicator
(UP)
Output indicator
(UP)
Note: t: Set time
Rt:Reset time
7
H3YN
■ DIP Switch Settings
The 1-s range and ON-delay mode for H3YN-2/-4/-4-Z, the 1-min range and ON-delay mode for H3YN-21/-41/-41-Z are factory-set before shipping.
Time Ranges
Model
Time range
Time setting
range
Setting
Factory-set
Yes
H3YN-2,
1 s
0.1 to 1 s
H3YN-4
H3YN-4-Z
10 s
1 to 10 s
No
No
No
Yes
No
No
No
1 min
10 min
1 min
10 min
1 h
0.1 to 1 min
1 to 10 min
0.1 to 1 min
1 to 10 min
0.1 to 1 h
1 to 10 h
1 s
10 s 1 min 10 min
H3YN-21,
H3YN-41
H3YN-41-Z
10 h
Note: The top two DIP switch pins are used to select the time ranges.
Operating Modes
Operating mode
Setting
Factory-set
ON-delay
Yes
No
No
No
Interval
Flicker OFF-start
Flicker ON-start
Note: The bottom two DIP switch pins are used to select the operating mode.
Nomenclature
Output Indicator (Orange)
(Lit: Output ON)
Run/Power Indicator (Green)
(Lit: Power ON)
Main Dial
Set the desired time according
to time range selectable by
DIP switch.
8
H3YN
Dimensions
Note: All units are in millimeters unless otherwise indicated.
■ Timers
H3YN-2/-21 Front Mounting
Mounting Holes
Pin 1
Eight, 3 × 1.2 elliptic holes
28 max.
Eight,
1.3-dia. holes
6.4
21.5 max.
(63.0)
H3YN-4/-41 Front Mounting
H3YN-4-Z/-41-Z
Mounting Holes
Pin 1
Fourteen, 3 × 1.2 elliptic holes
28 max.
Fourteen,
1.3-dia. holes
21.5 max.
Mounting Height
PY08 (PY14 (see note))
PY08QN (PY14QN (see note))
PYF08A/PYF08A-N/PYF08A-E
(PYF14A/PYF14A-N/PYF14A-E
(see note))
H3YN
Series
H3YN
Series
H3YN
Series
PY08QN
(PY14QN)
PY08 (PY14)
PYF08A (PYF14A)
Note: Models in parentheses are Connecting Sockets to the H3YN-4/-41 or H3YN-4-Z/-41-Z.
9
H3YN
■ Accessories (Order Separately)
Connecting Sockets
Use the PYF@A, PY@, PY@-02, or PY@QN(2) to mount the H3YN. When ordering any one of these Sockets, replace “@” with “08” or “14.”
Track Mounting/Front Connecting Sockets
PYF08A
3.4
6
Mounting Holes
Two, 4.2 × 5
Terminal Arrangement
(Top View)
mounting holes
Eight, M3 ×
8 sems
Two, 4.5 dia.
M4 or M3
H3YN
Series
35.4
90.5
72 max.
86.6
59 0.3
4
6
PYF@A
15 0.2
23 max.
16.5
30 max.
PYF-14A
Two, 4.2 × 5
3.4
Mounting Holes
6
Terminal Arrangement
(Top View)
mounting holes
Fourteen, M3 ×
8 sems
Two, 4.5 dia.
M4 or M3
35.4
72 max.
59 0.3
4
6
29.5 max.
22 0.2
16.5
30 max.
PYF-08A-N
Terminal Arrangement
Mounting Holes
(for Surface Mounting)
42
4
12
1
4
1
12
42
8
44
8
14
5
5
14
44
3.2 dia.
66.5 max.
3.6 dia.
19.8
PYF-08A-N
41
12
11
9
12
41
9
A2
A2
14
A1
13
11
14
13
14 14
A2 A2 A1
30 max.
22 max.
PYF-14A-N
Terminal Arrangement
Mounting Holes
(for Surface Mounting)
42 32 22 12
4
3
2
1
4
3
2
1
44 34 24 14
42
32
22
6
12
5
8
7
6
5
8
7
Two, 3.5 dia.
24
14
44
34
66.5 max.
PYF-14A-N
21
11
9
41
12
31
10
11
20.8
12 11 10
41 31 21 11
9
A2
14
A2
14
A1
13
13
30 max.
14 14
A2 A2
A1
29.5 max.
10
H3YN
PYF08A-E
(Top View)
Two, 4.2 × 5
Two, 4.5 dia.
M4 or M3
Eight, M3 ×
8 sems
mounting holes
72 max.
23 max.
31 max.
PYF14A-E
(Top View)
Two, 4.2 × 5
Two, 4.5 dia.
M4 or M3
mounting holes
Fourteen,
M3 × 8
sems
72 max.
29.5 max.
31 max.
Back Connecting Sockets
PY08, PY14
Panel Cutout
Terminal Arrangement
(Bottom View)
Eight, 3 × 1.2 dia. holes
only for PY08 (Fourteen, 3
× 1.2 dia. holes)
21.4+0.2
0
24 max.
0.3
H3YN
Series
59.3
29.5
max.
25.5
max.
25.8+0.2
0
2.6
2.7
7.7
20 max.
PY08
PY14
PY@, PY@-02,
PY@QN(2)
PY08QN, PY14QN
PY08QN(2), PY14QN(2)
Terminal Arrangement
24 max.
22 max.
(Bottom View)
2.7
25 max. *
(See
note)
29.5 max.
1 x 1
**
41.5 max.
(see note)
PY08QN
PY08QN(2)
PY14QN
PY14QN(2)
Note: With PY@QN(2)(-3), dimension * should
read 20 max. and dimension ** 36.5 max.
PY08-02, PY14-02
Terminal Arrangement
(Bottom View)
22 max.
0.3
29.5
max.
25.5
max.
4.3
2.7
16.5 max.
2
PY08@-02
PY14@-02
11
H3YN
Flush Mounting Adapter
Y92F-78
Panel Cutout
+0.2
25.2
5
R0.5 max.
−0
+0.2
31.6
−0
27.1
3
48.5
25.1
3
33.5
31.5
Panel thickness
1 to 3 mm
Note: 1. Push the H3Y in until the Adaptor (Y92F-78)
hooks engage with its rear panel.
2. Do not round the corners of the cutout on
the rear panel surface, otherwise the
Adaptor (Y92F-78) tabs may not engage
properly.
Socket Mounting Plates
The PYP-1 is a Socket Mounting Plate for a single Socket and the PYP-18 is a Socket Mounting Plate for 18 Sockets. The PYP-18 can be cut
appropriately according to the number of Sockets to be used.
PYP-1
PYP-18
492
Two, 3.4-dia. holes
17 x 27.4 = 465.8 0.6
27.4 0.15
13.1
21.6
4.5
3.4
49
28
42 0.1
t = 1.6
t = 1.6
Square hole
49
72, elliptic holes
Hold-down Clips
The Hold-down Clip makes it possible to mount the H3YN securely and prevent the H3YN from falling out due to vibration or shock.
Y92H-3 for
Y92H-4 for
PY@ Socket
Y92H-3
Y92H-4
PYF@A Socket
(Set of Two Clips)
5 max.
9R
30.5
24.5
2.5
53
20
(84°)
4.5
1.2
4.5
33.7
12
H3YN
Safety Precautions
Refer to Safety Precautions for All Timers.
Be careful not to apply any voltage to the terminal screws on the
back of the Timer. Mount the product so that the screws will not come
in contact with the panel or metal parts.
■ Correct Use
The operating voltage will increase when using the H3YN continu-
ously in any place where the ambient temperature is in a range of
45°C to 50°C. Supply 90% to 110% of the rated voltages (at 12 VDC:
95% to 110%).
Do not use the H3YN in places where there is excessive dust, corro-
sive gas, or direct sunlight.
Do not mount more than one H3YN closely together, otherwise the
internal parts may become damaged. Make sure that there is a
space of 5 mm or more between any H3YN models next to each
other to allow heat radiation.
Do not leave the H3YN in time-up condition for a long period of time
(for example, more than one month in any place where the ambient
temperature is high), otherwise the internal parts (aluminum electro-
lytic capacitor) may become damaged. Therefore, the use of the
H3YN with a relay as shown in the following circuit diagram is recom-
mended to extend the service life of the H3YN.
The internal parts may become damaged if a supply voltage other
than the rated ones is imposed on the H3YN.
In order to conform to UL and CSA requirements when using the
H3YN-4/-41 or H3YN-4-Z/-41-Z, connect the Unit so that output con-
tacts (contacts of different poles) have the same electric potential.
X2/b
T/a
X1/a
X1/a
In cases such as PLC input where the load is extremely small for the
control output of a timer containing a power relay (using other than
gold-plated contacts), reliability can be increased by using contacts
of the same poles (e.g., the H3Y-2) in parallel.
T
X1
X2
X :Auxiliary relay such as MY Relay
■ Precautions for EN61812-1
Conformance
The H3YN as a built-in timer conforms to EN61812-1 provided that
the following conditions are satisfied.
The H3YN must be disconnected from the Socket when setting the
DIP switch, otherwise the user may touch a terminal imposed with a
high voltage and get an electric shock.
Do not connect the H3YN as shown in the following circuit diagram
on the right hand side, otherwise the H3YN’s internal contacts differ-
ent from each other in polarity may become short-circuited.
Handling
Correct
Incorrect
Do not touch the DIP switch while power is supplied to the H3YN.
L2
Before dismounting the H3YN from the Socket, make sure that no
voltage is imposed on any terminal of the H3YN.
L1
L2
L1
The applicable Socket is the PYF@A.
Only basic insulation is ensured between the Y92H-3 Hold-down
Clips and H3YN internal circuits.
Use the following safety circuit when building a self-holding or self-
resetting circuit with the H3YN and an auxiliary relay, such as an MY
Relay, in combination.
Do not allow the Y92H-3 Hold-down Clips to contact other parts.
The insulation test voltage between different pole contacts for the 4-
pole model is the impulse voltage of 2.95 kV.
Wiring
The power supply for the H3YN must be protected with equipment
such as a breaker approved by VDE.
: Auxiliary relay such as MY Relay
Basic insulation is ensured between the H3YN’s operating circuit and
control output.
In the case of the above circuit, the H3YN will be in pulse operation.
Therefore, if the circuit shown on page 6 is used, no auxiliary relay
will be required.
Basic insulation:
Overvoltage category II,
pollution degree 1 (H3YN-4/-41, H3YN-4-Z/-
41-Z), pollution degree 2 (H3YN-2/-21)
(with a clearance of 1.5 mm and a creepage
distance of 2.5 mm at 240 VAC)
Do not set to the minimum setting in the flicker modes, otherwise the
contact may become damaged.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
In the interest of product improvement, specifications are subject to change without notice.
13
Read and Understand This Catalog
Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or
comments.
Warranty and Limitations of Liability
WARRANTY
OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified)
from date of sale by OMRON.
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR
FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS
IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY.
In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS
OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT
SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
Application Considerations
SUITABILITY FOR USE
OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's
application or use of the products.
At the customer's request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the
products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product,
machine, system, or other application or use.
The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible
uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:
Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this catalog.
Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles,
safety equipment, and installations subject to separate industry or government regulations.
Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE
SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RATED AND
INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
PROGRAMMABLE PRODUCTS
OMRON shall not be responsible for the user's programming of a programmable product, or any consequence thereof.
Disclaimers
CHANGE IN SPECIFICATIONS
Product specifications and accessories may be changed at any time based on improvements and other reasons.
It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made.
However, some specifications of the products may be changed without any notice. When in doubt, special model numbers may be assigned to fix or
establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual
specifications of purchased products.
DIMENSIONS AND WEIGHTS
Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.
PERFORMANCE DATA
Performance data given in this catalog is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the
result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON
Warranty and Limitations of Liability.
ERRORS AND OMISSIONS
The information in this document has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical,
typographical, or proofreading errors, or omissions.
2013.1
In the interest of product improvement, specifications are subject to change without notice.
OMRON Corporation
Industrial Automation Company
http://www.ia.omron.com/
(c)Copyright OMRON Corporation 2013 All Right Reserved.
厂商 型号 描述 页数 下载

OMRON

 		PYF-08A 通用继电器我的新模型[ General-purpose Relay MY New model ] 17 页

OMRON

 		PYF08A-E 专用光电传感器[ Special-Purpose Photoelectric Sensors ] 18 页

ETC

 		PYF08A-E529734 SOCKET FOR MY2继电器\n[ SOCKET FOR MY2 RELAY ] 1 页

OMRON

 		PYF08A-TU [ SOCKET 2POL ] 35 页

OMRON

 		PYF08F 微型定时器与多时间范围和多种工作模式[ Miniature Timer with Multiple Time Ranges and Multiple Operating Modes ] 14 页

OMRON

 		PYF08M 专用光电传感器[ Special-Purpose Photoelectric Sensors ] 18 页

OMRON

 		PYF08S 无螺钉夹紧端子插座[ Screwless Clamp Terminal Socket ] 6 页

OMRON

 		PYF11A 通用继电器和功率继电器插座[ General-purpose Relays and Power Relays Sockets ] 28 页

OMRON

 		PYF14A 通用继电器和功率继电器插座[ General-purpose Relays and Power Relays Sockets ] 28 页

OMRON

 		PYF14A-C [ SOCKET 4POL ] 35 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.253084s
