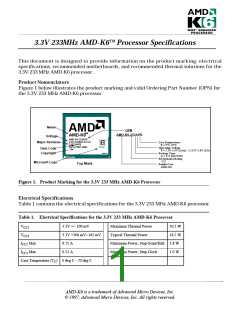

3.3V 233MHz AMD-K6TM Processor Specifications
Recommended Motherboards
Table 2 contains a list of motherboards verified to support the 3.3V 233 MHz AMD-K6
Processor.
Table 2. List of Recommended Motherboards for the 3.3V 233 MHz AMD-K6 Processor
Motherboard Model
Required Jumper Settings for 3.3V
Atrend ATC-1040 - Triton VX
JP10 = open, JP11 = closed, JP12 = open, JP13 = open, JP14 = open
Atrend ATC -5020+ (ATX) Rev 1.02 - Triton TX
BCM FR550 (ATX) Rev C01 - Triton TX
BCM SQ575 (AT) Rev X02 - Triton TX
Biostar MB-8500TUD-A (AT) Rev 1.4 - Triton TX
JP2 = 3-4
JP4 = 1-3, 2-4, JP5 = 5-6, JP7 = 3-4
JP14 = closed
JP16 = 1-2, 3-4
FIC PA-2010+ (ATX) Rev 4.0 - VIA VT82C585VP1 VR Jumper = 3-4
FIC PA-2011 (ATX) Rev 2.2 - VIA VT82C595VP2
Gigabyte GA-586TX3 (AT) Rev 1.05 - Triton TX
Microstar MS5164 (BAT) Rev 0B - ALi 1531/1543
VR Jumper = 3-4
SW4 = ON, SW5 = OFF, SW6 = ON, SW7 = ON
SW2: 1 = OFF, 2 = ON, 3 = ON, 4 = OFF, 5 = ON
Recommended Heat Sinks
Based on the specifications of Table 1, AMD has evaluated and verified a list of heat sinks
to provide sufficient cooling for satisfying the power dissipation and thermal specifications
of t h e 3.3V 233 MH z AMD-K6 P r oce ssor . Ta b le 3 con t a in s t h is r e com m e n d e d list of
heatsinks.
Table 3. List of Recommended Heat Sinks for the 3.3V 233 MHz AMD-K6 Processor
Manufacturer
IERC
Model Number
61475CB
Comments
Requires an external 24 CFM fan
Global Win Technology
Cooler Master
CPM25602-16
TI5-602525SBC1/C3
AMD-K6 is a trademark of Advanced Micro Devices, Inc.
© 1997, Advanced Micro Devices, Inc. All rights reserved.
