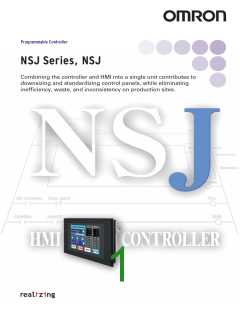

Programmable Controller

NSJ Series, NSJ

Combining the controller and HMI into a single unit contributes to

downsizing and standardizing control panels, while eliminating

inefficiency, waste, and inconsistency on production sites.

As demands continue to grow for smaller control

panels to save space in today's production facilities,

OMRON has shown the way with a unique solution

-- the SYSMAC One NSJ-series One-package

Controller. Its compact size is an ideal fit for the

400- to 500-mm control panel widths that are

becoming increasingly common, and it completely

eliminates the space that was previously necessary

for the PLC. While helping to standardize control

panels, the NSJ Series also solves a variety of

manufacturing industry problems by raising the

levels of efficiency in design and maintenance.

Concept

Product Line and Expandability

Promoting Standardized Control Panels

Less Effort in Designing and Debugging 10

Less Effort in Maintenance

Applications

System Configuration

Ordering Information and Specifications 19

Greater Control Panel Downsizing

and Standardizing

As production becomes increasingly globalized, the needs for standardized

control panels are growing. With its new, one-package concept, the SYSMAC One

NSJ Series contributes to reducing both hardware and software requirements for

control panels. While offering the same convenient operation for control panels

in any factory, any process, and any device worldwide, the NSJ Series eliminates

various forms of inefficiency, waste, and inconsistency that extend all the way

from device design and installation, to maintenance.

No More PLC Space Required.

The PLC comes as

standard equipment

along with the HMI.

The Display Section and

Controller Section each have a

CPU. Control is highly reliable

because it is not affected by the

designing and communications

of the Display Section.

A DeviceNet Master

comes as standard

equipment for I/O.

There is no need for initial

settings, and wiring is greatly

reduced. Also standardization and

streamlining design can be

realized.

Especially slim at 73.3 mm.

Efficient use of the space inside the control panel.

Both the Display Section and Controller Section

combined have a width of only 73.3 mm*. There

is also no need for a PLC Power Supply Unit.

(*For the NSJ8/10/12 Series. The NSJ5 Series is

79.0 mm.)

Since there is no PLC space required, the space

inside the control panel can be more efficiently

used. For example, it can be used to mount the

power supply, breakers, or terminal blocks directly

behind the Display Section.

Many control panels have

a width of 400 to 500 mm.

Today's manufacturing

facilities are becoming

increasingly space-efficient

and standardized. The 400-

to 500-mm panel width will

likely become mainstream.

NSJ Series Appearance and Parts Names

Expansion Unit (optional)

Controller Section

Only 73.3 mm

(For NSJ8/10/12 Series. The

NSJ5 Series is 79.0 mm.)

Display Section

Expansion Unit

Controller Link Unit

[NSJ Main Unit]

One Expansion

Unit

Expansion Unit interface

As an example, the SYSMAC One NSJ5 Series makes it possible to

design a control panel this compact.

For example,

250 mm wide

For example,

220 mm deep

Controller

Section

I/O Control Unit

Display Section

(The photo shows

the NSJ8 Controller.)

Ethernet Unit

USB port

For more details, refer to page 7.

A Wide Selection of Scalable Display

Controllers

Select the optimal control and display combination.

Support a wider range of applications.

Product Line-up

Expansion Units

Four screen sizes are available, from 5.7 to 12.1 inches. The 5.7- and 8.4-inch models can

be selected with different memory capacities and other functions to meet the needs of

various scales of control.

Controller Link Unit (NSJW-CLK21-V1)

High-speed, large-capacity data link

The PLC data link function can be used to provide a high-speed, large-capacity data link between

Controllers.

Controller Link Unit

NSJW-CLK21-V1

Controller Link Unit

NSJW-CLK21-V1

CS/CJ-series PLC

5.7 Inches

8.4 Inches

10.4 Inches

12.1 Inches

Display Section

Wired Controller Link

5.7 Inches

8.4

10.4

12.1

Main Differences in Specifications

Color High-

Inches Inches Inches

Color TFT

luminance TFT

•I/O capacity: 640 •User memory: 20 Ksteps

•Expanded data memory: None

Controller Section

(Designated by

model number

suffix)

M3D

G5D

I/O Control Unit (NSJW-IC101)

•I/O capacity: 1,280 •User memory: 60 Ksteps

•Expanded data memory: 32 Kwords x 3 banks

Easy addition of Special I/O Units and CPU Bus Units

Note: For more detailed specifications, refer to page 20.

Used to mount Motion Control Units and other Special I/O Units or CPU Bus Units to the NSJ-series

Controller, for excellent expandability.

Easy access to both Display Section and Controller Section

NSJ Built-in Ethernet Port

Power Supply I/O Interface Unit

Unit CJ1W-II101

CJ-series Basic I/O Unit

CJ-series Special I/O Unit

CJ-series CPU Bus Unit

Compact Ethernet

port

Models are also available with Ethernet as a

standard feature. This allows PLC data to be

read or written without adding an Ethernet Unit.

PLC data can also be read or written, and alarms

and recipes can be transferred, from a host

computer.

I/O Control Unit

NSJW-IC101

10 Units max.

I/O Connection Cable (CS1W-CN1

)

3 Racks max. (3 x 10 Units max.)

Easy Access from a Host Computer

Note: Maximum of 3 Racks for models with model numbers with a suffix of -G5D, and 1 Rack for models with model numbers with a suffix of -M3D.

Screen data and ladder programs can

be easily transferred via Ethernet.

•

PLC data can also be read by a host

application (using FINS

•

Ethernet

communications).

Ethernet Unit (NSJW-ETN21)

Full use of versatile Ethernet functions

The NSJ built-in Ethernet port increases expandability with host computers by enabling functions

such as communications implemented with CMND instructions and e-mail.

Controller Section

Display Section

CS/CJ-series PLC

Ethernet Unit

NSJW-ETN21

•FINS communications

•FTP server

Ethernet

Easy Access to Other PLCs

PLC2 data can be easily displayed and

•

PLC1

PLC2

set from the NSJ (PLC1) display.

•E-mail

•SMTP clients, etc.

Ethernet 100BASE-TX

Note: It is also easy to allocate data from

another host device for reference.

Note: For detailed information on functions related to the NSJ built-in Ethernet port and Ethernet Unit, refer to page 28.

Meeting the Growing Needs for

Control Panel Standardization

By standardizing control panels based on SYSMAC One, design

steps can be reduced and software assets can be reused to

eliminate waste and inconsistency all the way from the design stage

to system startup.

The Market Is Moving Toward Standardized Control Panels.

With production bases becoming increasingly globalized, do you have the following

concerns about shipping domestically manufactured devices?

Host computer

1 ^{Reduce downtime due to operator error}

Example of

Standardized System

2 ^{Providing on-site operator training}

Ethernet

3 ^{Smoothly procuring maintenance parts when a malfunction occurs}

4 ^{The need to raise development efficiency for devices and facilities}

Basic Module

Standardization

NSJ Controller

I/O Control Unit

Select module

for each machine.

Application Modules

Application Module A

CJ-series Unit

Screen and

ladder program

modules can

also be used.

Sensor

Unit

RFID

Effects of Standardizing Control Panels

Waste and inconsistency in design, installation and maintenance can be eliminated by

supplying control panels that have the same basic operation regardless of the factory, the

process, and the devices used in any country of the world.

Software Modules

Display Section

Smart Active Parts

(SAP Library)

ID tag

Application Module B

I/O can also be

flexibly handled.

Operating errors can be prevented by providing the same operability.

Reduce temporary lower operating efficiency caused by changing operators.

CJ-series Unit

There is no need to produce an operating manual for each device.

Initial training cost can also be reduced.

Position

Control

Unit

Controller Section

Smart FB Library

Standardization greatly reduces the number of maintenance parts.

Even if a malfunction occurs, the entire control panel can be replaced as a module

for quick and easy system restoration.

Standardization makes it possible to create templates for design documents,

screens, and ladder programs. This increases the ability to reuse the templates,

which greatly raises design efficiency.

Less Effort in Designing and Debugging

Advantages of One Package

The CX-One Integrated FA Tool Package Is Available

Use of a single USB cable simplifies both design and debugging.

This software can be used to debug ladder programs and

screens without even having to connect to an actual system.

The test functions of the CX-Designer Screen Designer for NS Series have been further strengthened. By

selecting CX-Simulator as the connection destination, screen data and ladder programs can be

simultaneously tested without even having to connect to an actual system.

Use of a commercially available USB

cable allows easy, high-speed

transferring of screen data and ladder

programs. There is also no need to

change cables for transfers such as

these.

Commercially available

USB cable

Integrated Simulation

Ladder Program Window

Touch Screen

(1) Power ON

(2) Simply connect the USB cable and you are ready

to transfer screen data and ladder programs.

CX-One version 2.0 or

higher on computer

Touch Panel

Ladder Program

Interactive

Continue using your software assets.

Continue to use all the screen data for

NS-series PTs and ladder programs

for CS/CJ-series PLCs.

CX-Designer

Designer for NS series

Interactive

The SAP Library, which dramatically reduces effort in design,

has also been greatly expanded.

CX-Programmer Ladder Programming Software

More than 2,000 Smart Active Parts (SAP) are available for directly accessing OMRON PLCs and

components. Simply copy them from the library and paste them onto the screen. There is absolutely no

need to design screens or ladder programs for these objects.

Simply turn ON the power and start using it. No need for initial settings.

There is no need to connect the

Controller Section and Display

Section, and no need to make initial

communications settings or other

A setting and monitoring screen is instantly completed for

Temperature Controllers

settings.

Communications

error: Cannot

connect to PLC.

The system starts up as soon as the

power is turned ON. Even the

standard-equipped DeviceNet Master

is completely set in the default

settings.

Set the RS-232C

port for the PLC.

CX-Designer

Screen Designer for

NS Series

SAP Library

(Temperature Controller objects)

Less Effort in Maintenance

Two Troubleshooters Come as a Standard Feature

Enables a quick, on-site action without any software.

The necessary countermeasure is displayed.

The error details are displayed.

The standard-equipped PLC Troubleshooter and DeviceNet Troubleshooter contribute to solving problems

during device startup and operation. When an error occurs, simply follow the on-screen instructions to

confirm the error details and quickly implement countermeasures, without referring to the manual.

Customer Screen-creating Window

Troubleshooter Menu

Launch

Controller

Troubleshooter

Launch

DeviceNet

Troubleshooter

This button takes you directly back to

the customer screen-creating window.

A Ladder Program Monitor Is Also Standard

Switching from the operation screen to the screen for

monitoring PLC ladder programs only takes about 5 seconds.

This software lets you monitor PLC program status, search for addresses or

A Data Backup Function Is Also Standard

Easy backup without a computer.

Simply follow the on-screen instructions to back up both screen data and ladder programs for the

Controller Section.

instructions, monitor multiple I/O points, and much more. It only takes about 5

The PLC ladder

seconds to switch from a user screen to the ladder program monitoring screen.

program is displayed

From a selected input bit, you can also

in about 5 s.

search for the next sequence output

Double-click the input bit you want

instruction that uses the same address.

to search for.

Customer screen-creating

window

There it is!

Double-click

Select the item

to be executed.

A message is

displayed to tell

you that the

backup has

been complet-

Simply select Menu - Exit from the menus to go directly back to

the user screen.

Easy-to-understand instructions are displayed

for the backup procedure.

ed.

Application Examples

Production control system

Simple positioning control

Production control information is given by the host computer concerning production progress,

retooling instructions, alarms, etc.

Simple positioning control can be achieved by connecting the NSJ to a robot controller.

Control Section

(above device)

2006/4/25 11:45

No workpieces on the line

2006/4/25 13:57

Target production number: 5000

Daily production number: 4340

NSJ

(with DeviceNet as

standard feature)

Emergency stop

Ethernet

Controller Section

Display Section

Operating section

XY axis robot

(positioning stage)

Control section

(concentrated in lower

part of device)

DeviceNet

Built-in Ethernet port

DeviceNet

I/O

Robot controller

with positioner

DeviceNet

[NSJ Series Advantages]

oth the Display Section and Controller Section can be accessed through a single Ethernet port.

[NSJ Series Advantages]

•

Information for the Controller Section and Display Section (such as alarms) can be received at a

host computer.

Simple positioning control can be achieved with minimal wiring by directly connecting the NSJ

to a robot controller.

I/O can also be directly connected to reduce wiring.

•

There is no need to make initial settings for the Display Section or Controller Section.

•

Using the built-in Ethernet port eliminates the need for an Expansion Unit.

There is no more need for PLC space in the bottom of the control panel.

•

DeviceNet monitoring

POP system

The smart functions of various slaves connected to DeviceNet can be monitored.

Example: By using a Slave Unit to count the number of ON/OFF operations for a device, or to count the total operating hours,

the NSJ can inform the operator when it is time to conduct maintenance.

Products are controlled by a bar code reader. Information is uploaded to a host computer for

product information management.

Ethernet

Process B

Process A

POP terminal

OMRON

CJ-series PLC

Smart Slaves

Bar code reader

DeviceNet

[NSJ Series Advantages]

Monitoring and diagnostic functions can be added to the control panel.

Wiring and space requirements are reduced, and the NSJ can be added on later.

The number of design steps can be reduced for screen design and ladder programming by

•

The terminal can be installed anywhere since it saves space.

•

Connection with the host can be made using the built-in Ethernet port.

•

using the Smart Active Parts (SAP) Library and troubleshooter functions.

Suitable to a Wide Range of Applications

System Configuration

A variety of networks can be easily constructed using the standard-

equipped DeviceNet, USB, Ethernet, and RS-232C interfaces.

This increases the types of equipment that can be connected to the

NSJ Series in addition to the wide line-up of highly compatible

OMRON control components, and provides a level of

expandability that meets virtually all application needs.

The photo shows the rear panel of the NSJ8.

Memory Card

For saving alarm history,

data log, etc.

OMRON

Memory Card

interface

(Display Section)

Memory Card

For saving ladder program backup,

PLC log data, etc.

OMRON

Combined use (the Display Section and Controller

Section can be accessed from a single port)

interface

Memory Card

(Controller Section)

Controller Section (for use with ladder programs, etc.)

DeviceNet

port

Port C

Display Section (for directly uploading graphs or

making settings)

Computer

Note: The CX-Designer

not supported.

USB

USB Ethernet

RS-422A Conversion Unit

CJ1W-CIF11 (for distances of 50 m max.)

NS-AL002 (for distances of 500 m max.)

Port A Port B

Master Slave

port

USB

Commercially available

USB cable

Printer

Screen image printing

RS-232C

Screen Transfer Cable

XW2Z-S002 (Length: 2 m)

PictBridge (See note.)

Commercially available

USB cable

Note: Available soon.

USB

USB Serial Conversion Cable

CS1W-CIF31

Screen Transfer Cable

XW2Z-S002 (Length: 2 m)

USB

Commercially available

USB cable

PictBridge-compatible

printer

Computer

Bar Code Reader

Printer

Serial

PLC

Ethernet

Wireless

communi-

cations

WE70

Ethernet

RS-422A Conversion Unit

CJ1W-CIF11

NS-AL002

Temperature Controller

(E5 N, EJ1, etc.)

Ethernet

RS-232C

Computer

PLC

PT-to-PLC Connecting Cable

XW2Z-200T (Length: 2 m)

XW2Z-500T (Length: 5 m)

Bar Code Reader

Recommended: OMRON V520-RH21-6

Computer

RS-232C

Screen Transfer Cable

XW2Z-S002 (Length: 2 m)

I/O terminal or

other general-purpose slave

USB

USB Serial Conversion Cable

CS1W-CIF31

Screen Transfer Cable

XW2Z-S002 (Length: 2 m)

Screen ladder transfers

Microcomputer boards

Computers, etc.

Memory Link

GRT1 Series

Temperature Controller

(E5 N, EJ1, etc.)

CompoWay/F (direct display, ladderless communications)

RS-422A

PLC

Non-OMRON equipment

MEMO

Ordering Information and Specifications

Standard Models .................................................................................................................. 20

■ Controllers............................................................................................................................................ 20

■ Options and Expansion Units............................................................................................................... 21

● Differences between the NSJ@-@@@@-G5D and NSJ@-@@@@-M3D.................................................................. 21

General Specifications.......................................................................................................... 22

■ NSJ Controllers.................................................................................................................................... 22

■ NSJ Expansion Units ........................................................................................................................... 22

Controller Section Specifications.......................................................................................... 23

Display Section Specifications.............................................................................................. 26

Communications Section Specifications............................................................................... 27

■ DeviceNet Section ............................................................................................................................... 27

■ Controller Link (Wired)......................................................................................................................... 27

■ Ethernet Unit........................................................................................................................................ 28

■ Differences between the Built-in Ethernet and Ethernet Unit Ports ..................................................... 28

Support Software.................................................................................................................. 29

■ Ordering Information............................................................................................................................ 29

Dimensions........................................................................................................................... 30

●International Standards

• The standards are abbreviated as follows: U: UL, U1: UL (Class I

Division 2 Products for Hazardous Locations), C: CSA, UC: cULus,

UC1: cULus (Class I Division 2 Products for Hazardous Locations),

CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.

• Contact your OMRON representative for further details and

applicable conditions for these standards.

●EC Directives

The EC Directives applicable to PLCs include the EMC Directives.

OMRON complies with these directives as described below.

● EMC Directives

Applicable Standards EMI: EN61131-2

EN61000-6-4

EMS: EN61131-2

EN61000-6-2

PLCs are electrical devices that are incorporated in machines and

manufacturing installations. OMRON PLCs conform to the related

EMC standards so that the devices and machines into which they are

built can more easily conform to EMC standards. The actual PLCs

have been checked to ensure conformity to EMC standards. Whether

these standards are satisfied for the actual system, however, must be

checked by the customer.

EMS-related performance will vary depending on the configuration,

wiring, and other conditions of the equipment or control panel in

which the PLC is installed. The customer must, therefore, perform

final checks to confirm that the overall machine or device conforms to

EMC standards.

Note: The applicable EMS standards depend on the product.

Standard Models

■Controllers

NSJ@-@@@@-M3D

Controller Section

Display Section

Built-in

Ethernet

port

User

I/O program

memory

Extended

data

memory

Number of

Expansion

Racks

Name

Model number

Standards

Data

memory

instruction

execution

time

program

memory

(bytes)

Display

device

Case Effective

color display area

Resolution

Ivory

NSJ5-SQ10-M3D

NSJ5-SQ10B-M3D

NSJ5-SQ11-M3D

NSJ5-SQ11B-M3D

NSJ5-TQ10-M3D

NSJ5-TQ10B-M3D

NSJ5-TQ11-M3D

NSJ5-TQ11B-M3D

NSJ8-TV00-M3D

NSJ8-TV00B-M3D

NSJ8-TV01-M3D

NSJ8-TV01B-M3D

Yes

5.7-inch

color TFT

LCD

Black

Ivory

117.2 ×

320 ×

240

(QVGA)

Black

Ivory

Black

Ivory

Black

Ivory

Black

Ivory

Black

88.4 mm

(W × H)

UC1, CE

UL Type4

SYSMAC

One NSJ-

series

NSJ

Controller

5.7-inch

color High-

256 KB luminance

TFT LCD

Kwords

(5.7 inches)

640

EM:

0.04 µs

points Ksteps (DM: 32 None

Kwords)

Yes

(See note 2.)

170.9 ×

128.2 mm

(W × H)

8.4-inch

color TFT

LCD

640 ×

480

(VGA)

UC1, CE

Yes

(8.4 inches)

Note 1. From February 2010, the image memory has been increased to 60 MB.

Now, even the 5.7-inch class models have 60 MB of screen data capacity as a standard feature and also enhanced main memory.

Existing screen data for the NSJ5-@Q0@(B)-M3D/-G5D can be reused without any conversion.

Note 2. NSJ5-TQ series (high luminance TFT) luminance is better than that of NSJ5-SQ series by about 110cd/m².

NSJ@-@@@@-G5D

Controller Section

Display Section

Case Effective

Built-in

Ethernet

port

instruction

execution

time

User

I/O program

memory

Extended

data

memory

Number of

Expansion

Racks

Name

Model number

Standards

Data

program

memory

(bytes)

Display

device

Resolution

memory

color display area

Ivory

NSJ5-SQ10-G5D

NSJ5-SQ10B-G5D

NSJ5-SQ11-G5D

NSJ5-SQ11B-G5D

NSJ5-TQ10-G5D

NSJ5-TQ10B-G5D

NSJ5-TQ11-G5D

NSJ5-TQ11B-G5D

NSJ8-TV00-G5D

NSJ8-TV00B-G5D

NSJ8-TV01-G5D

NSJ8-TV01B-G5D

NSJ10-TV00-G5D

NSJ10-TV00B-G5D

NSJ10-TV01-G5D

NSJ10-TV01B-G5D

NSJ12-TS00-G5D

NSJ12-TS00B-G5D

NSJ12-TS01-G5D

NSJ12-TS01B-G5D

Yes

5.7-inch

color TFT

LCD

Black

Ivory

117.2 ×

320 ×

240

(QVGA)

Black

88.4 mm

UC1, CE

UL Type4

(W × H)

Ivory

5.7-inch

color High-

luminance

TFT LCD

(5.7 inches)

Black

Ivory

Yes

(See note 2.)

Black

SYSMAC

One

NSJ-

series

NSJ

Ivory

EM:

170.9 ×

128

Kwords

points Ksteps (DM: 32

8.4-inch

color TFT

LCD

Black

Ivory

Black

Ivory

Black

Ivory

Black

Ivory

Black

Ivory

Black

128.2 mm

(W × H)

1280

1024

Kwords 0.04 µs

× 3

banks

UC1, CE

Kwords)

Yes

(8.4 inches)

640 ×

480

(VGA)

Controller

215.2 ×

162.4 mm

(W × H)

(10.4

10.4-inch

color TFT

LCD

Yes

inches)

UC1, CE

UL Type4

246.0 ×

184.5 mm

(W × H)

(12.1

12.1-inch

color TFT

LCD

800 ×

600

(SVGA)

Yes

inches)

Note 1. From February 2010, the image memory has been increased to 60 MB.

Now, even the 5.7-inch class models have 60 MB of screen data capacity as a standard feature and also enhanced main memory.

Existing screen data for the NSJ5-@Q0@(B)-M3D/-G5D can be reused without any conversion.

Note 2. NSJ5-TQ series (high luminance TFT) luminance is better than that of NSJ5-SQ series by about 110cd/m².

Standard Models

■Options and Expansion Units

Name

Specifications

Model

Standards

For increasing the number of Controller Link ports

Same as the CJ1W-CLK21-V1 Controller Link Unit for the CJ Series.

NSJ Controller Link Unit

NSJW-CLK21-V1

For increasing the number of Ethernet ports

Same as the CJ1W-ETN21 Ethernet Unit for the CJ Series.

Expansion NSJ Ethernet Unit

Units

NSJW-ETN21

NSJW-IC101

UC1, CE

For adding CJ-series Expansion Racks.

Same as the CJ1W-IC101 I/O Control Unit for the CJ Series.

Use the following I/O Connecting Cables.

NSJ I/O Control Unit

0.3 m

0.7 m

2 m

CS1W-CN313

CS1W-CN713

CS1W-CN223

CS1W-CN323

CS1W-CN523

CS1W-CN133

CS1W-CN133-B2

HMC-EF183

For connecting CJ-series Expansion Racks.

3 m

N, L, CE

I/O Connecting Cables

5 m

10 m

12 m

Flash memory: 128 MB

Memory Cards

(for both Controller Section and

Display Section)

Flash memory: 256 MB

HMC-EF283

N, L, CE

Flash memory: 512 MB

HMC-EF583

Memory Card Adapter (for computer PCMIA slot)

HMC-AP001

Used for peripheral bus or

Host Link.

Anti-static connectors

Connects computer, D-Sub 9-pin, Length: 2.0 m

Connects computer, D-Sub 9-pin, Length: 5.0 m

XW2Z-200S-CV

XW2Z-500S-CV

XW2Z-200S-V

Peripheral Device Connecting Cables

for the RS-232C port

---

Connects computer, D-Sub 9-pin, Length: 2.0 m

Connects computer, D-Sub 9-pin, Length: 5.0 m

Used for Host Link only.

Peripheral bus not

supported.

XW2Z-500S-V

NS-AL002

Communications distance:

500 m max.

Adapter for converting a RS-232C port to a RS-

422A/485 port.

RS-422A Conversion Adapter

Battery life

Communications distance:

50 m max.

UC1,

CE, N, L

CJ1W-CIF11

CJ1W-BAT01

5 years at 25°C

●Differences between the NSJ@-@@@@-G5D and NSJ@-@@@@-M3D

Function

Model

NSJ@-@@@@-G5D

60 Ksteps

NSJ@-@@@@-M3D

20 Ksteps

UM capacity

I/O

1,280 points

640 points

None

Extended data memory

EM file memory

32 Kwords × 3 banks

Yes

Maximum number of Expansion Racks

FB program memory capacity

Maximum number of FB definitions

Maximum number of FB instances

Variable table size

1024 KB

1,024

2,048

128 KB

256 KB

128

256

64 KB

General Specifications

Parts Names

Expansion Unit

Display Section

Controller Section

■NSJ Controllers

Specifications

Model

NSJ5-TQ1@-G5D

NSJ5-SQ1@-G5D

NSJ5-TQ1@-M3D

NSJ5-SQ1@-M3D

NSJ8-TV0@-G5D

NSJ8-TV0@-M3D

NSJ12-TS0@-G5D

NSJ10-TV0@-G5D

Items

Supply voltage

24 VDC

Allowable supply voltage range

20.4 to 27.6 VDC (24 VDC 15%)

SQ1@: 21 W max.

TQ1@: 22 W max.

Power consumption

30 W max.

Controller Section Internal 5 V: 500 mA max.

Current consumption

DeviceNet Section Internal 5 V: 200 mA max., External 24 V: 18 mA max.

At 24 VAC: 10 A/20 ms max. for cold start at room temperature

90° to 60°: 0 to 50°C

Inrush current (See note 1.)

Ambient operating temperature

90° to 30°: 0 to 50°C

30° to 0°: 0 to 40°C

(depending on angle of display sur- 60° to 30°: 0 to 45°C

face off horizontal) (See note 2.)

30° to 0°: Use prohibited.

−20 to 60°C

Ambient storage temperature

0 to 40°C: 35% to 85% (with no condensation)

40 to 50°C: 35% to 60% (with no condensation)

Ambient operating humidity

Ambient operating environment

Insulation resistance

Dielectric strength

No corrosive gases

20 MΩ min. (at 100 VDC) between DC external and GR terminals

800 VDC for 1 min between DC external and GR terminals, leakage current: 10 mA max.

2 kV on power supply line (conforming to IEC 61000-4-4)

Noise immunity

Vibration resistance

(during operation)

10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s²in X, Y, and Z directions for 80 minutes

147 m/s², 3 times each in X, Y, and Z directions

Shock resistance

(during operation)

Without Expansion

External

dimensions

(See note 3.)

315 × 241 × 73.3 mm (W × H × D)

With Expansion Unit 315 × 241 × 89.3 mm (W × H × D)

302⁺¹× 228⁺¹mm (W × H)

232 × 177 × 73.3 mm (W × H × D)

232 × 177 × 89.3 mm (W × H × D)

195 × 142 × 79 mm (W × H × D)

195 × 142 × 95 mm (W × H × D)

Unit

220.5^+0.50× 165.5^+0.50mm (W × H) 184^+0.50× 131^+0.5mm (W × H)

Panel cutout dimensions

Panel thickness: 1.6 to 4.8 mm

Grounding

Weight

100 Ω or less

2.7 kg max.

2.5 kg max.

2.0 kg max.

1.1 kg max.

Front operating panel: Equivalent

to IP65 Oil-proof type, NEMA4 and

UL Type 4 (See note 4.)

Degree of protection

Front operating panel: Equivalent to IP65 Oil-proof type and NEMA4 (See note 4.)

5 years (at 25°C)

The SRAM and RTC will be backed up for 5 days after the battery runs low (i.e., after the indicator lights orange). The SRAM

and RTC will be backed up by a super capacitor for 5 minutes after removing the old battery (i.e., after turning ON power after 5

minutes).

Battery life

International standards

Conforms to cULus and EC Directives.

Note 1. A delay circuit that charges a capacitor is used to limit the inrush current. If a hot start is performed when the power supply has been OFF only a short period

of time, the capacitor will still be charged and the inrush current specified above will be exceeded by up to approximately five times the specified value.

When selecting fuses or breakers for external circuits, allow sufficient margin in the melting temperatures, detection characteristics, and inrush current

Note 2. Display angles off horizontal are as follows:

90°

30°

Horizontal 0°

Note 3. For detailed information, refer to “Dimensions” on page 30.

Note 4. May not be applicable in locations with long-term exposure to oil.

■NSJ Expansion Units

Controller Link Unit

Note: Other general specifications are the same as the NSJ Controller.

Ethernet Unit

Item

Specifications

NSJW-CLK21-V1

Item

Specifications

Model

NSJW-ETN21

370 mA

Current consumption

Weight

300 mA

Current consumption

Weight

100 g max.

Note: Other general specifications are the same as the NSJ Controller.

I/O Control Unit

Item

Specifications

Model

NSJW-IC101

20 mA

Current consumption

Weight

100g max.

Controller Section Specifications

Item

Specifications

Control method

Stored program

I/O control method

Programming

Cyclic scan and immediate processing are both possible.

Ladder diagram

Normal Mode, Parallel Processing Mode with Asynchronous Memory Access, Parallel Processing Mode with Synchronous

Memory Access, and Peripheral Servicing Priority Mode

CPU processing modes

Instruction length

1 to 7 steps per instruction

Approx. 400 (3-digit function codes)

0.04 µs min.

Ladder instructions

Basic instructions

Execution time

Special instructions 0.06 µs min.

Normal mode: 0.3 ms

Parallel processing: 0.3 ms

Overhead time

Installation

Installed using Panel Mounting Bracket.

One of the following can be mounted as an Expansion Unit:

• NSJ I/O Control Unit (NSJW-IC101)

• NSJ Controller Link Unit (NSJW-CLK21-V1)

• NSJ Ethernet Unit (NSJW-ETN21)

Mountable Expansion Units

• With the NSJW-IC101 I/O Control Unit mounted, a maximum of three CJ-series Expansion Racks can be used with the

NSJ@-@@@@(B)-G5D, and a maximum of one CJ-series Expansion Rack can be used with the NSJ@-@@@@(B)-M3D.

• A CJ-series CJ1W-II101 Interface Unit and Power Supply Unit are required for each Expansion Rack.

Maximum number of Expansion

Racks

• Per Expansion Rack: 10 Units max. (Basic I/O Units, Special I/O Units, or CPU Bus Units)

• A maximum of 30 Units (10 Units on CJ-series Expansion Rack × 3) can be mounted to the entire NSJ@-@@@@(B)-G5D

system. A maximum of 10 Units (10 Units on CJ-series Expansion Rack × 1) can be mounted to the entire NSJ@-

@@@@(B)-M3D system.

Maximum number of connectable

Units

288 (cyclic tasks: 32, interrupt tasks: 256)

Interrupt tasks can be defined as cyclic tasks called “extra cyclic tasks.” Including these, up to 288 cyclic tasks can be used.

Note 1. Cyclic tasks are executed each cycle and are controlled with TKON(820) and TKOF(821) instructions.

Note 2. The following 3 types of interrupt tasks are supported: Power OFF interrupt task: 1 max., Scheduled interrupt tasks:

2 max., External interrupt tasks: 256 max.

Number of tasks

Interrupt types

Scheduled Interrupts: Interrupts generated at a time scheduled by the Controller Section’s built-in timer. (See note. 1)

Power OFF Interrupt (See note 2.): Interrupt executed when the Controller Section’s power is turned OFF.

External I/O Interrupts: Interrupts from the Special I/O Units or CPU Bus Units.

Note 1. Scheduled interrupt time interval is either 1 ms to 9,999 ms or 10 ms to 99,990 ms, in units of 1 ms or 10 ms.

Note 2. Not supported when the CJ1W-PD022 Power Supply Unit is mounted.

Calling subroutines from more than

one task

Supported using global subroutines.

Function blocks

Languages supported in function block definitions: Ladder programming language and structured text

2,560 (160 words): CIO 000000 to CIO 015915 (words CIO 0000 to CIO 0159)

The setting of the first rack word can be changed from the default (CIO 0000) so that CIO 0000 to CIO 0999

can be used.

I/O Area

I/O bits are allocated to Basic I/O Units.

Link Area

3,200 (200 words): CIO 10000 to CIO 119915 (words CIO 1000 to CIO 1199)

CPU Bus Unit

Area

6,400 (400 words): CIO 150000 to CIO 189915 (words CIO 1500 to CIO 1899)

CPU Bus Unit bits store operating status of CPU Bus Units. (25 words per Unit, 16 Units max.)

1,600 (100 words): CIO 190000 to CIO 199915 (words CIO 1900 to CIO 1999)

Bits in the Inner Board Area are allocated to the display status area.

Inner Board Area

C200H Special I/O 15,360 (960 words): CIO 200000 to CIO 295915 (words CIO 2000 to CIO 2959)

CIO (Core I/O)

Area

Unit Area

Bits in the Special I/O Area can be allocated to Special I/O Units (10 words per Unit, 96 Units max.)

9,600 (600 words): CIO 320000 to CIO 379915 (words CIO 3200 to CIO 3799)

DeviceNet bits are allocated to Slaves for DeviceNet Section remote I/O communications when the master

function is used with fixed allocations.

Fixed allocation setting 1 Outputs: CIO 3200 to CIO 3263 Inputs: CIO 3300 to CIO 3363

Fixed allocation setting 2 Outputs: CIO 3400 to CIO 3463 Inputs: CIO 3500 to CIO 3563

Fixed allocation setting 3 Outputs: CIO 3600 to CIO 3663 Inputs: CIO 3700 to CIO 3763

Note: The following words are allocated to the master function even when the DeviceNet Unit is used as a

slave.

Fixed allocation setting 1 Outputs: CIO 3370 (master to slave) Inputs: CIO 3270 (slave to master)

Fixed allocation setting 2 Outputs: CIO 3570 (master to slave) Inputs: CIO 3470 (slave to master)

Fixed allocation setting 3 Outputs: CIO 3770 (master to slave) Inputs: CIO 3670 (slave to master)

The CIO Area

can be used as

work bits if the

bits are not

used as shown

here.

DeviceNet

Area

4,800 (300 words): CIO 120000 to CIO 149915 (words CIO 1200 to CIO 1499)

37,504 (2,344 words): CIO 380000 to CIO 614315 (words CIO 3800 to CIO 6143)

These bits in CIO Area are used as work bits in programming to control program execution. They cannot be

used for external I/O.

CIO (Core I/O)

Area

Work bits

8,192 bits (512 words): W00000 to W51115 (words W000 to W511)

Work Area

Control programs only. (I/O from external I/O terminals is not possible.)

Note: When using work bits in programming, use bits in Work Area first before using bits from other areas.

8,192 bits (512 words): H00000 to H51115 (words H000 to H511)

Holding bits are used to control execution of program, and maintain their ON/OFF status when the PLC is

turned OFF or operating mode is changed.

Note: Words H512 to H1535 are allocated to the Function Block Holding Area and are used only for the func-

tion block instance area (internally allocated variable area).

Holding Area

Auxiliary Area

Read only: 7,168 bits (448 words): A00000 to A44715 (words A000 to A447)

Read/write: 8,192 bits (512 words): A44800 to A95915 (words A448 to A959)

Auxiliary bits are allocated specific functions.

Controller Section Specifications

Item

Specifications

16 bits (TR00 to TR15) Temporary bits are used to store ON/OFF execution conditions at

program branches.

The bits on the left can be used

as work bits when they are not

used for their normal

Temporary Area

Timer Area

4,096: T0000 to T4095 (used for timers only)

4,096: C0000 to C4095 (used for counters only)

32 Kwords: D00000 to D32767

application

Counter Area

Used as a general-purpose

data area for reading and

Special I/O Unit DM Area: D20000 to

Used to set parameters for Special I/O Units.

D29599 (100 words × 96 Units).

writing data in word units (16

bits). Words in the DM Area

maintain their status when the

NSJ Controller is turned OFF or

the operating mode is changed.

DM Area

CPU Bus Unit DM Area: D30000 to

Used to set parameters for CPU Bus Units.

D31599 (100 words × 16 Units).

NSJ@-@@@@(B)-G5D:

32 Kwords per bank, 3 banks max.: E0_00000 to E2_32767 max.

Used as a general-purpose data area for reading and writing data in word units (16 bits). Words in EM Area maintain their

status when the NSJ Controller is turned OFF or operating mode is changed.

The EM Area is divided into banks, and addresses can be set by either of following methods.

Changing current bank using the EMBC (281) instruction and setting addresses for the current bank.

Setting bank numbers and addresses directly.

EM Area

EM data can be stored in files by specifying number of first bank. (EM file memory)

NSJ@-@@@@(B)-M3D: None

IR0 to IR15. Store actual memory addresses for indirect addressing. Index registers can be used independently in each task.

One register is 32 bits (2 words). Index registers can be specified as shared or independent for each task.

Index Registers

32 (TK0000 to TK0031). Task Flags are read-only flags that are ON when corresponding cyclic task is executable and OFF

when corresponding task is not executable or in standby status.

Task Flag Area

Trace Memory

4,000 words (traceable data: 31 bits and 6 words)

Memory Cards: Compact flash memory cards can be used (MS-DOS format).

EM file memory: Part of EM Area can be converted to file memory (MS-DOS format).

The NSJ@-@@@@(B)-M3D does not support EM file memory.

File Memory

1 to 32,000 ms (Unit: 1 ms)

Note: Using the Parallel Processing Mode will create a constant cycle time for program execution.

Constant cycle time

Possible (Unit stops operating if cycle is too long): 10 to 40,000 ms (Unit: 10 ms)

Cycle time monitoring Note: When the Parallel Processing Mode is used, the program execution cycle is monitored. Controller Section operation will

stop if the peripheral servicing time exceeds 2 s.

Cyclic refreshing, immediate refreshing, refreshing by IORF(097).

Note: IORF(097) refreshes I/O bits allocated to Basic I/O Units and Special I/O Units.

I/O refreshing

The CPU BUS UNIT I/O REFRESH (DLNK(226)) instruction can be used to refresh bits allocated to CPU Bus Units in

the CIO and DM Areas.

Data links for Control Link Units, remote I/O communications for DeviceNet Units, and other special data for CPU Bus Units is

refreshed at the following times. During I/O refresh period or when CPU BUS UNIT I/O REFRESH (DLNK(226)) instruction is

executed.

Timing of refreshing

for CPU Bus Units

I/O memory holding

when changing

Depends on ON/OFF status of IOM Hold Bit in Auxiliary Area.

operating modes

All outputs on Output Units can be turned OFF when the Controller Section is operating in RUN, MONITOR, or PROGRAM

mode.

Load OFF

Timer/counter PV

refresh method

BCD or binary (CX-Programmer version 3.0 or higher)

Input time constant

setting

Time constants can be set for inputs from CJ-series Basic I/O Units. The time constant can be increased to reduce influence of

noise and chattering or it can be decreased to detect shorter pulses on inputs.

Mode setting at

power-up

Functions

The operating mode can be specified.

• The user program and parameter area data (e.g., PLC Setup) are always backed up automatically in flash memory.

(automatic backup and restore.)

• When downloading projects from CX-Programmer Ver. 5.0 or higher, symbol table files (including CX-Programmer symbol

names, I/O comments), comment files (CX-Programmer rung comments, other comments), and program index files (CX-

Programmer section names, section comments, or program comments) are stored in comment memory within the flash

memory.

Flash memory

Automatically reading programs

(autoboot) from the Memory Card when Possible

the power is turned ON.

Program replacement during Controller

Possible

Section operation

Memory Card

functions

(Controller Section)

User program: Program file format

Memory Card storage data

PLC Setup and other parameters: Data file format

I/O memory: Data file format (binary), text format, CSV format

User program instructions, Programming Devices (including CX-Programmer

and Programming Console), Host Link computers, Auxiliary Area control bits, easy

backup operation

Memory Card read/write method

Filing

(Controller Section)

Memory Card data and EM (Extended Data Memory) Area can be handled as files.

Force-set/reset, differential monitoring, data tracing (scheduled, each cycle, or when instruction is executed), storing location

generating error.

Debugging

Controller Section Specifications

Item

Specifications

User programs can be overwritten in program block units when the Controller Section is in MONITOR or PROGRAM mode.

This function is not supported for block programming areas. With the CX-Programmer, more than one program block can be

edited at the same time.

Online editing

Overwrite protection: Set using DIP switch or via the password from CX-Programmer peripheral device.

Copy protection: Password set using CX-Programmer.

Program protection

Error check

User-defined errors (i.e., user can define fatal errors and non-fatal errors)

The FPD(269) instruction can be used to check execution time and logic of each programming block.

Note: FAL and FALS instructions can be used to simulate errors.

Up to 20 errors are stored in error log. Information includes error code, error details, and time error occurred.

Note: The Controller Section can be set so that user-defined FAL errors are not stored in the error log.

Error log

Provided on all models.

Accuracy:

Ambient temperature

Monthly variation

Clock

25°C

−1.5 to +1.5 min

Note 1. Accuracy varies with the temperature.

Note 2. Used to store time when power is turned ON and when errors occur.

Power OFF

detection time

2 ms

Power OFF

detection delay time

0 ms fixed

Functions

Held Areas: Holding bits, Data Memory, Extended Data Memory, and status of counter Completion Flags and present values.

Note: If IOM Hold Bit in Auxiliary Area is turned ON, and PLC Setup is set to maintain IOM Hold Bit status when power to the

NSJ Controller is turned ON, contents of CIO Area, Work Area, part of Auxiliary Area, timer Completion Flag and present

values, Index Registers, and Data Registers will be saved.

Memory protection

Sending commands

to a Host Link comput-

FINS commands can be sent to a computer connected via Host Link System by executing Network Communications

Instructions from the Controller Section.

Remote programming Host Link communications can be used for remote programming and remote monitoring through a Controller Link System or

and monitoring

Ethernet network.

Eight-level

communications

Host Link communications can be used for remote programming and remote monitoring from devices on networks up to eight

levels away (Controller Link Network, Ethernet Network, or other network).

I/O comments can be stored as symbol table files in Memory Cards in the Controller Section, EM file memory, or Comment

Memory (see note).

Note: Supported for CX-Programmer Ver. 5.0 or later only.

Storing comments in

CPU Unit

Program checks are performed at the beginning of operation for items such as no END(001) instruction and instruction errors.

CX-Programmer can also be used to check programs.

Program check

Battery life

5 years at 25°C (The battery life depends on the ambient operating temperature; 1.1 years min.)

(Battery set: CJ1W-BAT01; Use a Replacement Battery that is within two years of its date of manufacture.)

Self-diagnostics

Other functions

Controller Section errors (watchdog timer), I/O bus errors, memory errors, and battery errors

Storage of number of times power has been interrupted. (Stored in A514.)

Display Section Specifications

Built-in ports

Display Section

USB port

Model

USB port

(Host: For

printer)

Standard

Language screen data

capacity

(Slave: For

Support

DeviceNet

port

RS-232C port

Ethernet port

None

Display color

Field of view

Software)

NSJ5-SQ10-M3D/-G5D

NSJ5-SQ10B-M3D/-G5D

NSJ5-SQ11-M3D/-G5D

NSJ5-SQ11B-M3D/-G5D

NSJ5-TQ10-M3D/-G5D

NSJ5-TQ10B-M3D/-G5D

NSJ5-TQ11-M3D/-G5D

NSJ5-TQ11B-M3D/-G5D

NSJ8-TV00-M3D/-G5D

NSJ8-TV00B-M3D/-G5D

NSJ8-TV01-M3D/-G5D

NSJ8-TV01B-M3D/-G5D

NSJ10-TV00-G5D

10/

100Base-T

Right/left: 80°,

Top: 80°,

Bottom: 60°

(See note 1 and 2.)

None

10/

100Base-T

3 ports

•Display

Section:

Serial ports

A, B

•Controller

Section:

Serial port

256 colors

Right/left: 80°,

None

Eight

(BMP/JPEG, Top: 80°, Bottom:

32,768colors 60°

for images) (See note 2.)

1 port

anguages

60 MB

10/

100Base-T

(See note 3.)

Right/left: 70°,

Top: 65°, Bottom:

65°

None

NSJ10-TV00B-G5D

1 port

NSJ10-TV01-G5D

10/

100Base-T

(See note 2.)

NSJ10-TV01B-G5D

NSJ12-TS00-G5D

None

Right/left: 80°,

Top: 80°, Bottom:

80°

NSJ12-TS00B-G5D

NSJ12-TS01-G5D

10/

100Base-T

NSJ12-TS01B-G5D

Note 1. NSJ5-TQ series (high luminance TFT) luminance is better than that of NSJ5-SQ series by about 110cd/m².

Note 2. LotNo.15Z10 or later of NS5 models, LotNo. 28X11 or later of NS8 models, LotNo. 11Y11 or later of NS10 models, LotNo. 14Y11 or later of NS12 models.

Note 3. Japanese, English, Chinese (traditional and simplified), Spanish, Italian, German, and French.

Communications Section Specifications

■DeviceNet Section

Item

Specifications

Communications protocol

DeviceNet master/slave

DeviceNet

Can function as master or slave.

Connection forms

(See note 1.)

Combination of multi-drop and T-branch connections (for trunk or branch lines)

Terminating resistance.

Baud rate

SW4 (TER) is used to connect/disconnect terminating resistance. The TER indicator lights when terminating resistance is connected.

500 kbps, 250 kbps, or 125 kbps (Set via DIP switch.)

Baud rate

500 kbps

250 kbps

125 kbps

Network length

100 m max.

Branch line length

6 m max.

Total branch line length

39 m max.

Communications distances

250 m max. (See note 2.)

500 m max. (See note 2.)

6 m max.

78 m max.

6 m max.

156 m max.

Max. number of Slaves

Error control

63 Slaves

CRC error check, node address redundancy check, scan list verification

Special 5-wire cable (2 signal lines, 2 power lines, 1 shield line)

Cable

Note 1. Terminating resistance is required at both ends of the trunk line.

Note 2. Communications distances are for Thick Cables. Keep the maximum network length to 100 m or less when using Thin Cables.

■Controller Link (Wired)

Item

Communications method

Code

Specifications

N: N token bus

Manchester code

Modulation

Baseband code

Synchronization

Error control

Flag synchronization (conforms to HDLC frames)

Manchester code checks and CRC checks (CCITT X¹⁶+X¹²+X⁵+1)

Multi-drop bus

Transmission path form

The maximum transmission distance varies with the baud rate as follows:

Baud rate and maximum

transmission distance

2 Mbps: 500 m

1 Mbps: 800 m

500 Kbps: 1 km

Specified shielded twisted-pair cable

Number of signal lines: 2, shield line: 1

Media

NSJ Controller Link Unit: Connected via a special connector (included)

PLC: Connected to a terminal block

Node connection method

IBM PC/AT or compatible: Connected via a special connector (included)

Maximum number of nodes 32 or 62 nodes (See note 1.)

Communications functions

Data links and message service

• Transmission area per node: 1,000 words max.

• Data link area (send/receive words) per node

NSJ Controller: 20,000 words

Number of data link words

CS/CJ Series: 20,000 words max. (unit Ver. 1.2 or later)

12,000 words max. (pre-Ver. 1.2)

C200HX/HG/HE, CVM1/CV, CQM1H: 8,000 words max.

Personal computer: 32,000 or 62,000 words max. (See note 2.)

Data link areas

Message length

Bit-access areas (IR, AR, LR, CIO), DM Area (DM), and extended DM Area (EM)

2,012 bytes max. (including the header)

• Polling node backup function

• Self-diagnosis function (hardware checking at startup)

• Echoback test and broadcast test (using the FINS command)

• Watchdog timer

RAS functions

• Error log function

Note 1. At least one Repeater Unit (CS1W-RPT01) is required to construct networks that uses a node address higher than 32. The following Controller Link Units/Sup-

port Boards must also be used, and the Wired Network 62 Node Enable Bit of the DM Parameter Area software switch of all nodes must be turned ON (62

nodes max.).

CS1W-CLK21-V1, CJ1W-CLK21-V1, 3G8F7-CLK21-V1, and NSJW-CLK21-V1

Note 2. For a maximum configuration of 62 nodes

For other specifications, refer to the Controller Link Unit Operation Manual (Cat. No. W309).

Communications Section Specifications

■Ethernet Unit

Item

Specifications

Type

100Base-TX (can be used as 10Base-T)

CSMA/CD

Media access method

Modulation method

Transmission paths

Baud rate

Baseband

Star form

100 Mbps (100Base-TX)

100 Mbps (10Base-T)

Unshielded twisted-pair (UTP) cable

Categories: 5, 5e

Shielded twisted-pair (STP) cable

Categories: 100 Ω at 5, 5e

Unshielded twisted-pair (UTP) cable

Categories: 3, 4, 5, 5e

Shielded twisted-pair (STP) cable

Categories: 100 Ω at 3, 4, 5, 5e

Transmission media

Transmission distance

100 m (distance between hub and node)

Number of cascade connec-

tions

• FINS communications service

• Socket services (UDP/TCP)

• FTP server

Functions

• Email send/receive

• Automatic clock adjustment

Note: Refer to the Ethernet Units Construction of Networks Operation Manual (Cat. No. W420) and the Ethernet Units Construction of Applications Operation Manual

(Cat. No. W421) for other specifications.

■Differences between the Built-in Ethernet and Ethernet Unit Ports

Built-in Ethernet port

Ethernet Unit port

Communications with another

host (PLC)

Ethernet

Communications is possible with another host via Ethernet.

For example, from one NSJ Controller, data can be displayed or Same functions as at left.

settings can be made to another NSJ Controller or PLC.

NSJ

PLC

■Support Software Connections

CX-One (CX-Programmer, CX-Designer, etc.) can be used via

Ethernet.

Connection with a host computer

Host computer

Screen data and ladder programs can be transferred from a

host computer.

Same functions as at left, plus the following:

• A Memory Card in the Controller Section can be accessed.

• The clock can be set using SNTP

• TCP/IP support (See note.)

(The Memory Card in the Display Section cannot be

accessed.)

■Access to a Memory Card in the Display Section

A memory card in the Display Section can be accessed using

Support Software or FTP and Ethernet. For example, Display

Section recipe data and alarm or data log files can be

downloaded from a host computer.

Ethernet

NSJ

■Access to the Host from a Host Application

A host computer can access the Controller Section using FINS

communications. For example, an application on a host

computer can read or data can be written to the NSJ data

memory (DM) (UDP only).

Note: Ethernet (FINS/TCP) not supported by CX-Programmer.

E-mail

---

E-mail can be sent and received.

• Socket communications are possible using the CMND

instruction.

• SEND/RCV instructions

Communications using ladder

programming

---

Support Software

■Ordering Information

Specifications

Product name

Model

Standards

Number of licenses

Media

The CX-One is a comprehensive software package that

integrates Support Software for OMRON PLCs and

components.

CX-One runs on the following OS.

OS: Windows XP (Service Pack 3 or higher), Vista, or 7

Note: Except for Windows XP 64-bit version

FA Integrated Tool

Package CX-One

Ver.4.@

1 licence

(See note.1)

DVD

(See note.2)

CXONE-AL01D-V4

---

CX-One Ver.4.@ includes CX-Designer Ver.3.@.

For details, refer to the CX-One catalog (Cat. No. R134).

The CX-Designer can still be ordered individually in the following model numbers.

Screen Designer for NS Series

OS: Windows XP (Service Pack 3 or higher), Vista, or 7

Note: Except for Windows XP 64-bit version

The Ladder Monitor Software is included with CX-Designer

Ver.3.@.

CX-Designer Ver.3.@

1 license

NS-CXDC1-V3

---

Note: The Ladder Monitor Software is used to monitor CS/CJ/CP1H/

CP1L-series PLC ladder programs from an NS-series PT. A

Memory Card and Memory Card Adapter (both sold separately)

are required to use the Ladder Monitor Software with the NS8-

V1, NS10-V1, or NS12-V1, or with the NS8-V2, NS10-V2, or

NS12-V2 with system program version 6.6 or lower.

Note 1. Multi licenses are available for the CX-One (3, 10, 30, or 50 licenses).

Note 2. The CX-One is also available on CD (CXONE-AL@@C-V4).

Dimensions

(Unit: mm)

NSJ12-TS0@(B)-G5D

NSJ10-TV0@(B)-G5D

With NSJW-CLK21-V1 Mounted

No Expansion Unit

32.2

140 241

227

249

RESET

Precaution for Correct Use

69.1

PORT

43.6

39 (min.)

42 (max.)

15.5

7.5

264

315

323

73.3

(NSJ10, 12 max. dimension)

89.3

(With Expansion Unit mounted)

1.1

(90.4)

NSJ8-TV0@(B)-M3D

NSJ8-TV0@(B)-G5D

With NSJW-CLK21-V1 Mounted

No Expansion Unit

8.4

45.7

177

165

188

RESET

55.6

64.5

PORT

39 (min.)

42 (max.)

15.5

180

232

7.5

73.3

(NSJ8 max. dimension)

89.3

(With Expansion Unit mounted)

(90.4)

1.1

NSJ5-TQ1@(B)-M3D

NSJ5-SQ1@(B)-M3D

NSJ5-TQ1@(B)-G5D

NSJ5-SQ1@(B)-G5D

With NSJW-CLK21-V1 Mounted

No Expansion Unit

6.5

142

130.5

153.3

23.7

25.4

44.55

34 (min.)

38 (max.)

81.5

15.5

145

195

53.8

206.3

(NSJ5 max. dimension)

1.1

(With Expansion Unit mounted)

(96.1)

Read and Understand this Catalog

Please read and understand this catalog before purchasing the product. Please consult your OMRON representative if you have

any questions or comments.

Warranty and Limitations of Liability

WARRANTY

OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year

(or other period if specified) from date of sale by OMRON.

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT,

MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER

ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET

THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR

IMPLIED.

LIMITATIONS OF LIABILITY

OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS,

OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON

CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.

In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.

IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE

PRODUCTS UNLESS OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED,

INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE

MODIFICATION OR REPAIR.

Application Considerations

SUITABILITY FOR USE

OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of

products in the customer's application or use of the products.

Take all necessary steps to determine the suitability of the product for the systems, machines, and equipment with which it will

be used.

Know and observe all prohibitions of use applicable to this product.

NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT

ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON

PRODUCTS ARE PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR

SYSTEM.

PROGRAMMABLE PRODUCTS

OMRON shall not be responsible for the user’s programming of a programmable product, or any consequence thereof.

Disclaimers

CHANGE IN SPECIFICATIONS

Product specifications and accessories may be changed at any time based on improvements and other reasons.

It is our practice to change model numbers when published ratings or features are changed, or when significant construction

changes are made. However, some specifications of the products may be changed without any notice. When in doubt, special

model numbers may be assigned to fix or establish key specifications for your application on your request. Please consult with

your OMRON representative at any time to confirm actual specifications of purchased products.

DIMENSIONS AND WEIGHTS

Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.

PERFORMANCE DATA

Performance data given in this catalog is provided as a guide for the user in determining suitability and does not constitute a

warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application

requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.

Note: Do not use this document to operate the Unit.

OMRON Corporation

Tokyo, JAPAN

Industrial Automation Company

Authorized Distributor:

Contact: www.ia.omron.com

Regional Headquarters

OMRON EUROPE B.V.

Wegalaan 67-69-2132 JD Hoofddorp

The Netherlands

OMRON ELECTRONICS LLC

One Commerce Drive Schaumburg,

IL 60173-5302 U.S.A.

Tel: (31)2356-81-300/Fax: (31)2356-81-388

Tel: (1) 847-843-7900/Fax: (1) 847-843-7787

In the interest of product improvement,

specifications are subject to change without notice.

OMRON (CHINA) CO., LTD.

Room 2211, Bank of China Tower,

200 Yin Cheng Zhong Road,

PuDong New Area, Shanghai, 200120, China

Tel: (86) 21-5037-2222/Fax: (86) 21-5037-2200

OMRON ASIA PACIFIC PTE. LTD.

No. 438A Alexandra Road # 05-05/08 (Lobby 2),

Alexandra Technopark,

Singapore 119967

Tel: (65) 6835-3011/Fax: (65) 6835-2711

CSM_4_1_1011

Cat. No. V406-E1-05

0110 (1206)

厂商	型号	描述	页数
OMRON	XW2B	简化了连接器和接线盒的更换，并且需要更少的面板布线。[ Simplifies Connector and terminal block replacement, and requires less in-panel wiring. ]	10 页
OMRON	XW2B-1	[ ACCY EXPANSION UNIT FOR XW2B ]	11 页
OMRON	XW2B-20G4	螺丝接线端子电缆[ Screw Terminal Block Cables ]	13 页
OMRON	XW2B-20G5	螺丝接线端子电缆[ Screw Terminal Block Cables ]	13 页
OMRON	XW2B-20G5-D	螺丝接线端子电缆[ Screw Terminal Block Cables ]	13 页
OMRON	XW2B-20J6-1B	多应用控制器：从高性能计算机C ONTROL高度可靠的过程控制[ Multi-application Controllers: From High-performance Machine C ontrol to Highly Reliable Process Control ]	70 页
OMRON	XW2B-20J6-3B	简化电机控制和欧姆龙位置控制PLC模块之间的接线[ Simplify Wiring between Motor Controls and Omrons Position Control PLC Modules ]	12 页
OMRON	XW2B-20J6-6	[ Multi-application Controllers: From High-performance Machine C ontrol to Highly Reliable Process Control ]	70 页
OMRON	XW2B-20J6-8A	自2001年以来， CJ1M系列PLC是在全球范围内广泛应用的控制。[ Since 2001, CJ1M-series PLCs are in control of a wide variety of applications worldwide. ]	29 页
OMRON	XW2B-20X5	[ INTERFACE MOD RCPT 34POS ]	11 页
