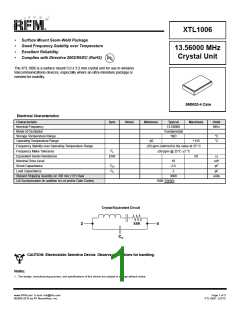

XTL1006
•
•
•
•
Surface Mount Seam-Weld Package
Good Frequency Stability over Temperature
Excellent Reliability
13.56000 MHz
Crystal Unit
Complies with Directive 2002/95/EC (RoHS)
P
b
The XTL1006 is a surface mount 5.0 x 3.2 mm crystal unit for use in wireless
telecommunications devices, especially where an ultra-miniature package is
needed for mobility.
SM5032-4 Case
Electrical Characteristics
Characteristic
Sym
Notes
Minimum
Typical
13.56000
Fundamental
TBD
Maximum
Units
Nominal Frequency
MHz
Mode of Oscillation
Storage Temperature Range
Operating Temperature Range
Frequency Stability over Operating Temperature Range
°C
°C
-40
+125
±50 ppm (referred to the value at 25 °C
F
Frequency Make Tolerance
Equivalent Series Resistance
Nominal Drive Level
±50 ppm @ 25°C ±3 °C
L
ESR
50
Ω
10
uW
C
Shunt Capacitance
2.0
pF
O
C
Load Capacitance
3
3000
pF
L
Stanard Shipping Quantity on 330 mm (13”) Reel
Lid Symbolization (in addition to Lot and/or Date Codes)
units
1006 YWWS
C
r
y
s
t
a
l
E
q
u
i
v
a
l
e
n
t
C
i
r
c
u
i
t
E
S
R
2
4
C
O
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling.
Notes:
1. The design, manufacturing process, and specifications of this device are subject to change without notice.
www.RFM.com E-mail: info@rfm.com
©2009-2010 by RF Monolithics, Inc.
Page 1 of 3
XTL1006 - 2/3/10
