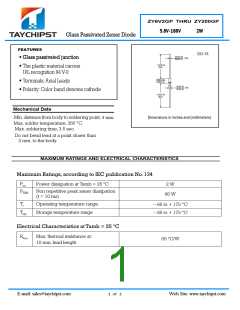

ZY6V2GP THRU ZY200GP
5.8V-188V
2W
Glass Passivated Zener Diode
FEATURES
• Glass passivated junction
• The plastic material carries
U/L recognition 94 V-0
• Terminals: Axial Leads
• Polarity: Color band denotes cathode
Mechanical Data
.Min. distance from body to soldering point,
Max. solder temperature, 350 °C.
Max. soldering time, 3.5 sec.
4 mm.
Do not bend lead at a point closer than
2 mm. to the body.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Maximum Ratings, according to IEC publication No. 134
Ptot
Power dissipation at Tamb = 25 ºC
2 W
PZSM
Non repetitive peak zener dissipation
(t = 10 ms)
60 W
Tj
Operating temperature range
Storage temperature range
– 65 to + 175 °C
– 65 to + 175 °C
Tstg
Electrical Characteristics at Tamb = 25 °C
Max. thermal resistance at:
10 mm. lead length
Rthj-a
60 °C/W
