OX-501_12

型号：

OX-501_12

描述：

恒温晶体振荡器[ Oven Controlled Crystal Oscillator ]

品牌：

VECTRON[ Vectron International, Inc ]

页数：

4 页

PDF大小：

633 K

下载PDF手册

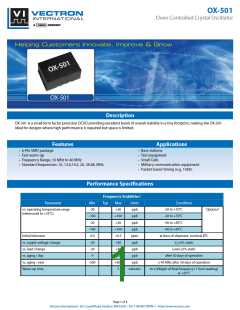

OX-501
Oven Controlled Crystal Oscillator
OX-501
Description
Features
Applications
OX-501 is a small form factor precision OCXO providing excellent levels of overall stability in a tiny footprint, making the OX-501
ideal for designs where high performance is required but space is limited.
Features
• 6-Pin SMD package
Applications
• Base stations
• Fast warm-up
• Frequency Range, 10 MHz to 40 MHz
• Standard frequencies: 10, 12.8,19.2, 20, 38.88, MHz
• Test equipment
• Small Cells
• Military communication equipment
• Packet based timing (e.g. 1588).
Performance Specifications
Frequency Stabilities1
Parameter
Min
-20
Typ
Max
+20
+100
+20
+100
+0.5
+20
+30
+5
Units
ppb
Condition
vs. operating temperature range
(referenced to +25°C)
-20 to +70°C
Options5
-100
-20
ppb
-20 to +70°C
-40 to +85°C
-40 to +85°C
ppb
-100
-0.5
-20
ppb
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / day
ppm
ppb
at time of shipment, nominal EFC
VS ±5% static
-30
ppb
Load ±5% static
-5
ppb
after 30 days of operation
≤ 40 MHz after 30 days of operation
vs. aging / year
-500
+500
3
ppb
Warm-up time
minutes
to ±200ppb of final frequency (1 hour reading)
@ +25°C
Page 1 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Supply Voltage (Vs)
Parameter
Min
Typical
3.3
Max
3.465
2.0
Units
VDC
Condition
Supply voltage (standard)
3.135
1.4
Watts
Watts
during warm-up
Power consumption
0.5
0.66
steady state @ +25°C
RF Output
Signal [standard]
Load
HCMOS
15
pF
VDC
VDC
%
Signal Level (Vol)
Signal Level (Voh)
Duty Cycle
0.4
55
with Vs=3.3V and 15pF Load
with Vs=3.3V and 15pF Load
@ (Voh-Vol)/2
2.4
45
Frequency Tuning (EFC)
Fixed OCXO; No adjust
10%
Tuning Range
Linearity
Tuning Slope
Positive
Control Voltage Range
0.0
1.4
2.8
VDC
with Vs=3.3V
Additional Parameters
-60
-45
-95
-120
-135
-145
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
1 Hz
10 Hz
100 Hz
1 kHz
-100
-128
-140
-148
Phase Noise3
10 kHz
Weight
8.0
g
Processing & Packing
Handling & Processing Note
Absolute Maximum Ratings
Supply voltage (Vs)
4.0
50
V
with Vs=3.3 VDC
Output Load
pF
°C
°C
Operable Temperature Range
Storage Temperature Range
-40
-55
+85
+85
Outline Drawing / Enclosure
Dimensions in mm
OX-501
Height “H”
6.2
cover material
plastic
Pin Connections
I.C (Do not connect)
N.C
1
2
3
4
5
6
Ground (Case)
RF Output
N.C
Supply Voltage Input
Page 2 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Standard Shipping Method (OX-501)
Enclosure Type
Tape Width W (mm)
24
Quantity per meter
83.5
Quantity per reel
850
Dimension P
12
OX-5011 (6.2 mm)
Recommended Reflow Profile
Profile Feature
Pb-Free Assembly/
Sn-Pb Assembly
Profile Feature
Pb-Free Assembly/
Sn-Pb Assembly
Average ramp-up rate (TL to TP)
3°C/second max.
Time 25°C to Peak Temperature
8 minutes max.
Preheat -Temperature Min TSmin
-Temperature Min TSmax
150°C
200°C
60-180 seconds
Time maintained above
-Temperature (TL)
-Time (tL)
217°C
60-150 seconds
-Time (min to max) tS
TSmax to TL -Ramp-up Rate
3°C/second max
Time maintained above
-Temperature (TL)
-Time (tL)
217°C
60-150 seconds
Time within 5°C of actual Peak
Temperature (tP)
20-40 seconds
Peak Temperature (TP)
max 260°C
Ramp-down Rate
6°C/ second max
Note: All temperatures refer to topside of the package, measured on the package body surface.
Page 3 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Data
GR-1244 Wander Generation: MTIE and TDEV with 3mHz high pass filter applied to free-running data
Ordering Information
OX - 501 1 - E A E - 208 0 - 20M0000000
Frequency
Product Family
OX: OCXO
Frequency Control
0: No Tuning
Package
SMD version
Height
1: 6.2mm
Stability Code
208: ±20ppb
107: ±100ppb
Supply Voltage
E: 3.3V
Temperature Range
E: -40°C to +85°C
J: -20°C to +70°C
RF Output Code
A: HCMOS
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Subject to technical modification.
5. Contact factory for availability.
For Additional Information, Please Contact
USA:
Europe:
Asia:
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Vectron International
Vectron International
1589 Century Avenue, the 19th Floor
Chamtime International Financial Center
Shanghai, China
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 7268.801.100
Tel: 86.21.6081.2888
Fax: 86.21.6163.3598
Fax: 1.888.329.8328
Fax: +49 (0) 7268.801.282
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Page 4 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Rev: 09 Apr 2012
