AZD27C21

型号:

AZD27C21

描述:

稳压齐纳二极管[ VOLTAGE REGULATOR ZENER DIODES ]

品牌:

TAYCHIPST[ SHENZHEN TAYCHIPST ELECTRONIC CO., LTD ]

页数:

2 页

PDF大小:

4437 K

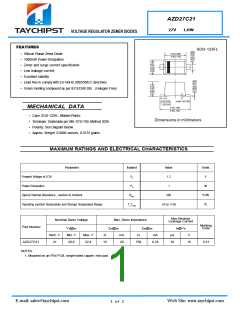

AZD27C21
27V
1.0W
VOLTAGE REGULATOR ZENER DIODES
FEATURES
SOD-123FL
• Sillicon Planar Zener Diode
• 1000mW Power Dissipation
• Zener and surge current specification
• Low leakage current
• Excellent stability
• Lead free in comply with EU RoHS 2002/95/EC directives.
• Green molding compound as per IEC61249 Std. . (Halogen Free)
MECHANICAL DATA
• Case: SOD-123FL, Molded Plastic
Terminals: Solderable per MIL-STD-750, Method 2026
• Polarity: See Diagram Below
• Approx. Weight: 0.0006 ounces, 0.0173 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Parameter
Symbol
VF
Value
Units
V
Forward Voltage at 0.2A
Power Dissipation
1.2
1
PD
W
Typical Thermal Resistance , Junction to Ambient
RJA
200
OC/W
OC
Operating Junction Temperature and Storage Temperature Range
TJ,TSTG
-55 to +150
Max Reverse
Leakage Current
Nominal Zener Voltage
Max. Zener Impedance
Marking
Code
Part Number
VZ@IZT
ZZT@IZT
ZZK@IZK
IR@VR
Nom. V
21
Min. V
20.0
Max. V
22.4
mA
20
mA
A
V
AZD27C21
NOTES:
15
750
0.25
10
15
C21
1. Mounted on an FR4 PCB, single-sided copper, mini pad.
E-mail: sales@taychipst.com
Web Site: www.taychipst.com
1 of 2
AZD27C21
27V
1.0W
VOLTAGE REGULATOR ZENER DIODES
1000
1200
1000
800
600
400
200
0
100
10
1
0.1
1
10
100
0
25
50
75
100
125
150
TA , Ambient Temperature (°C)
Fig.1 Power Derating Curve
VR, Reverse Bias Voltage (V)
Fig.2 Typical Junction Capacitance
200
1
180
160
140
120
100
80
TJ = 25°C
TJ = 150°C
0.1
TJ = 125°C
TJ = 75°C
60
40
TJ = 25°C
20
0.01
0
0.4
0.5
0.6
0.7
0.8
0.9
1
0
5
10
15
20
25
VR, Reverse Voltage (V)
VF, Forward Voltage (V)
a
Fig.3 Typical Leakage Characteristics
Fig.4 Typical Forward Characteristics
100
50
45
TJ = 25 to 150 °C
TJ = 25°C
40
35
30
25
20
15
10
5
10
0
1
0
5
10
15
20
25
0.1
1
10
100
VZ, Zener Voltage (V)
IZ, Zener Current (mA)
Fig.6 Temperature coefficient as a function of
Fig.5 Typical Zener Characteristics
working current; typical values.
E-mail: sales@taychipst.com
Web Site: www.taychipst.com
2 of 2
