IXFT42N50P2

型号:

IXFT42N50P2

描述:

PolarP2 HiPerFET功率MOSFET[ PolarP2 HiperFET Power MOSFET ]

品牌:

IXYS[ IXYS CORPORATION ]

页数:

4 页

PDF大小:

132 K

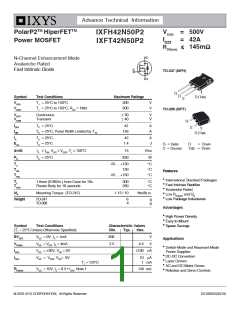

Advance Technical Information
PolarP2TM HiperFETTM
Power MOSFET
VDSS = 500V
ID25 = 42A
RDS(on) 145mΩ
IXFH42N50P2
IXFT42N50P2
N-Channel Enhancement Mode
Avalanche Rated
Fast Intrinsic Diode
TO-247 (IXFH)
G
D
Symbol
VDSS
Test Conditions
Maximum Ratings
D (Tab)
S
TJ = 25°C to 150°C
TJ = 25°C to 150°C, RGS = 1MΩ
500
500
V
V
VDGR
TO-268 (IXFT)
VGSS
VGSM
Continuous
Transient
± 30
± 40
V
V
G
ID25
IDM
TC = 25°C
42
A
A
S
TC = 25°C, Pulse Width Limited by TJM
126
D (Tab)
IA
TC = 25°C
TC = 25°C
42
A
J
EAS
1.4
G = Gate
D
= Drain
S = Source
Tab = Drain
dv/dt
PD
IS IDM, VDD VDSS, TJ 150°C
TC = 25°C
15
V/ns
W
830
TJ
-55 ... +150
150
°C
°C
°C
TJM
Tstg
Features
-55 ... +150
z International Standard Packages
z Fast Intrinsic Rectifier
z Avalanche Rated
TL
Tsold
1.6mm (0.062in.) from Case for 10s
Plastic Body for 10 seconds
300
260
°C
°C
Md
Mounting Torque (TO-247)
1.13 / 10
Nm/lb.in.
z Low RDS(ON) and QG
z Low Package Inductance
Weight
TO-247
TO-268
6
4
g
g
Advantages
z High Power Density
z Easy to Mount
Symbol
Test Conditions
Characteristic Values
z Space Savings
(TJ = 25°C Unless Otherwise Specified)
Min.
500
2.5
Typ.
Max.
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 1mA
VDS = VGS, ID = 4mA
VGS = ±30V, VDS = 0V
VDS = VDSS, VGS= 0V
V
V
Applications
4.5
z Switch-Mode and Resonant-Mode
Power Supplies
z DC-DC Converters
±100 nA
IDSS
10 μA
z Laser Drivers
z AC and DC Motor Drives
z Robotics and Servo Controls
TJ = 125°C
1 mA
RDS(on)
VGS = 10V, ID = 0.5 • ID25, Note 1
145 mΩ
DS100255(03/10)
© 2010 IXYS CORPORATION, All Rights Reserved
IXFH42N50P2
IXFT42N50P2
Symbol
Test Conditions
Characteristic Values
TO-247 Outline
(TJ = 25°C Unless Otherwise Specified)
Min.
Typ.
Max.
gfs
VDS = 20V, ID = 0.5 • ID25, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
23
36
S
Ciss
Coss
Crss
5300
555
43
pF
pF
pF
P
1
2
3
td(on)
tr
td(off)
tf
23
12
42
9
ns
ns
ns
ns
Resistive Switching Times
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
RG = 3Ω (External)
e
Terminals: 1 - Gate
2 - Drain
3 - Source
Qg(on)
Qgs
92
26
36
nC
nC
nC
Dim.
Millimeter
Min. Max.
Inches
Min. Max.
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
Qgd
A
A1
A2
4.7
2.2
2.2
5.3
2.54
2.6
.185 .209
.087 .102
.059 .098
RthJC
RthCS
0.15 °C/W
°C/W
b
b1
b2
1.0
1.65
2.87
1.4
2.13
3.12
.040 .055
.065 .084
.113 .123
0.21
C
D
E
.4
.8
.016 .031
.819 .845
.610 .640
20.80 21.46
15.75 16.26
Source-Drain Diode
e
5.20
5.72 0.205 0.225
L
L1
19.81 20.32
4.50
.780 .800
.177
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C Unless Otherwise Specified)
Min.
Typ.
Max.
P 3.55
3.65
.140 .144
Q
5.89
6.40 0.232 0.252
IS
VGS = 0V
42
A
A
V
R
S
4.32
6.15 BSC
5.49
.170 .216
242 BSC
ISM
VSD
Repetitive, Pulse Width Limited by TJM
IF = IS, VGS = 0V, Note 1
168
1.3
TO-268 Outline
trr
250
ns
A
IF = 21A, -di/dt = 100A/μs
IRM
QRM
12
1.05
VR = 85V, VGS = 0V
μC
Note
1. Pulse test, t 300μs, duty cycle, d 2%.
Terminals: 1 - Gate
3 - Source
2 - Drain
4 - Drain
ADVANCE TECHNICAL INFORMATION
The product presented herein is under development. The Technical Specifications offered are derived
from a subjective evaluation of the design, based upon prior knowledge and experience, and constitute a
"considered reflection" of the anticipated result. IXYS reserves the right to change limits, test
conditions, and dimensions without notice.
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or more of the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXFH42N50P2
IXFT42N50P2
Fig. 1. Output Characteristics @ TJ = 25ºC
Fig. 2. Extended Output Characteristics @ TJ = 25ºC
45
40
35
30
25
20
15
10
5
100
90
80
70
60
50
40
30
20
10
0
VGS = 10V
8V
VGS = 10V
7V
7V
6V
5V
6V
5V
0
0
0
0
1
2
3
4
5
6
7
0
5
10
15
20
25
30
150
150
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 21A Value vs.
Junction Temperature
Fig. 3. Output Characteristics @ TJ = 125ºC
45
40
35
30
25
20
15
10
5
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
VGS = 10V
7V
VGS = 10V
6V
I D = 42A
I D = 21A
5V
4V
0
2
4
6
8
10
12
14
16
-50
-25
0
25
50
75
100
125
VDS - Volts
TJ - Degrees Centigrade
Fig. 5. RDS(on) Normalized to ID = 21A Value vs.
Drain Current
Fig. 6. Maximum Drain Current vs.
Case Temperature
45
40
35
30
25
20
15
10
5
3.6
3.2
2.8
2.4
2.0
1.6
1.2
0.8
VGS = 10V
TJ = 125ºC
TJ = 25ºC
0
10
20
30
40
50
60
70
80
90
100
-50
-25
0
25
50
75
100
125
ID - Amperes
TC - Degrees Centigrade
© 2010 IXYS CORPORATION, All Rights Reserved
IXFH42N50P2
IXFT42N50P2
Fig. 7. Input Admittance
Fig. 8. Transconductance
55
50
45
40
35
30
25
20
15
10
5
TJ = - 40ºC
60
50
40
30
20
10
0
25ºC
TJ = 125ºC
25ºC
- 40ºC
125ºC
0
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
0
5
10
15
20
25
30
35
40
45
50
55
VGS - Volts
ID - Amperes
Fig. 10. Gate Charge
Fig. 9. Forward Voltage Drop of Intrinsic Diode
120
100
80
60
40
20
0
10
9
8
7
6
5
4
3
2
1
VDS = 250V
I D = 21A
I G = 10mA
TJ = 125ºC
TJ = 25ºC
0
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
0
10
20
30
40
50
60
70
80
90
100
VSD - Volts
QG - NanoCoulombs
Fig. 11. Capacitance
Fig. 12. Maximum Transient Thermal Impedance
10,000
1,000
100
0.30
0.10
C
iss
C
oss
C
rss
= 1 MHz
5
f
10
0.01
0
10
15
20
25
30
35
40
0.0001
0.001
0.01
0.1
1
10
Pulse Width - Seconds
VDS - Volts
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS REF: F_42N50P2(7J-N45)03-17-10
