DXTA42-13

型号:

DXTA42-13

描述:

NPN表面贴装晶体管[ NPN SURFACE MOUNT TRANSISTOR ]

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

4 页

PDF大小:

155 K

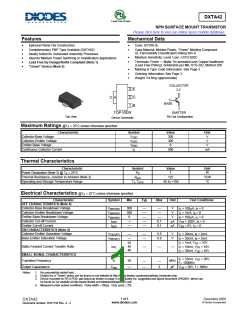

DXTA42
NPN SURFACE MOUNT TRANSISTOR
Please click here to visit our online spice models database.
Features
Mechanical Data
Epitaxial Planar Die Construction
Case: SOT89-3L
Case Material: Molded Plastic, "Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish — Matte Tin annealed over Copper leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Marking & Type Code Information: See Page 3
Ordering Information: See Page 3
Weight: 54.8mg (approximate)
Complementary PNP Type Available (DXTA92)
Ideally Suited for Automated Assembly Processes
Ideal for Medium Power Switching or Amplification Applications
Lead Free By Design/RoHS Compliant (Note 1)
"Green" Device (Note 2)
TOR
LLEC
CO
3 E
2,4
2 C
1 B
C 4
1
ASE
B
3
EW
Device Schematic
EMITTER
Pin Out Configuration
VI
OP
T
Top View
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Symbol
VCBO
VCEO
VEBO
IC
Value
300
300
6
Unit
V
V
V
mA
500
Thermal Characteristics
Characteristic
Power Dissipation (Note 3) @ TA = 25°C
Thermal Resistance, Junction to Ambient (Note 3)
Operating and Storage Temperature Range
Symbol
PD
Rθ
Value
1
Unit
W
125
°C/W
°C
JA
-55 to +150
TJ, TSTG
Electrical Characteristics @TA = 25°C unless otherwise specified
Characteristic
OFF CHARACTERISTICS (Note 4)
Collector-Base Breakdown Voltage
Symbol
Min
Typ
Max
Unit
Test Conditions
300
300
6
V
V
V
V(BR)CBO
V(BR)CEO
V(BR)EBO
ICBO
I
I
I
C = 100μA, IE = 0
C = 1mA, IB = 0
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-off Current
E = 100μA, IC = 0
0.1
μA VCB = 200V, IE = 0
μA VEB = 6V, IC = 0
Emitter Cut-off Current
0.1
IEBO
ON CHARACTERISTICS (Note 4)
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
0.5
0.9
V
V
VCE(SAT)
VBE(SAT)
IC = 20mA, IB = 2mA
IC = 20mA, IB = 2mA
IC = 1mA, VCE = 10V
IC = 10mA, VCE = 10V
IC = 30mA, VCE = 10V
25
40
40
Static Forward Current Transfer Ratio
hFE
SMALL SIGNAL CHARACTERISTICS
Transition Frequency
IC = 10mA, VCE = 20V,
f = 100MHz
50
MHz
pF
fT
Output Capacitance
3
Cobo
VCB = 20V, f = 1MHz
Notes:
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB; pad layout as shown on page 4 or in Diodes Inc. suggested pad layout document AP02001, which can
be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
4. Measured under pulsed conditions. Pulse width = 300μs. Duty cycle 2%.
1 of 4
www.diodes.com
December 2009
© Diodes Incorporated
DXTA42
Document number: DS31158 Rev. 4 - 2
DXTA42
R
= 125°C
JA
θ
0.5
0.4
0.3
0.2
0.1
0
0.01
0.1
1
10
100
1,000
IC, COLLECTOR CURRENT (mA)
Fig. 4 Collector-Emitter Saturation Voltage
vs. Collector Current
2 of 4
www.diodes.com
December 2009
© Diodes Incorporated
DXTA42
Document number: DS31158 Rev. 4 - 2
DXTA42
Ordering Information (Note 5)
Part Number
Case
Packaging
DXTA42-13
SOT89-3L
2500/Tape & Reel
Notes:
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
(Top View)
= Manufacturer’s code marking
K3M = Product Type Marking Code
YWW = Date Code Marking
Y = Last digit of year ex: 9 = 2009
WW = Week code 01 - 52
YWW
K3M
Package Outline Dimensions
D1
SOT89-3L
C
Dim Min Max Typ
A
B
B1
C
D
D1
E
1.40 1.60 1.50
0.45 0.55 0.50
0.37 0.47 0.42
0.35 0.43 0.38
4.40 4.60 4.50
1.50 1.70 1.60
2.40 2.60 2.50
E
H
L
B
e
B1
e
1.50
H
L
3.95 4.25 4.10
0.90 1.20 1.05
A
All Dimensions in mm
D
3 of 4
www.diodes.com
December 2009
© Diodes Incorporated
DXTA42
Document number: DS31158 Rev. 4 - 2
DXTA42
Suggested Pad Layout
X1
Dimensions Value (in mm)
X1
X2
X3
Y1
Y2
Y3
C
1.7
0.9
0.4
2.7
1.3
1.9
3.0
Y1
X3
X2
Y2
Y3
C
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2009, Diodes Incorporated
www.diodes.com
4 of 4
www.diodes.com
December 2009
© Diodes Incorporated
DXTA42
Document number: DS31158 Rev. 4 - 2
