WT6018

型号：

WT6018

描述：

数字监控器[ Digital Monitor Controller ]

品牌：

ETC[ ETC ]

页数：

23 页

PDF大小：

528 K

下载PDF手册

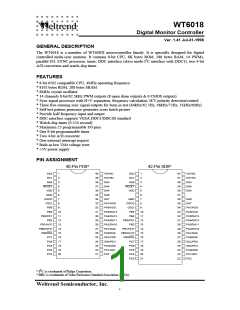

WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
GENERAL DESCRIPTION
The WT6018 is a member of WT60XX microcontroller family. It is specially designed for digital
controlled multi-sync monitor. It contains 8-bit CPU, 8K bytes ROM, 288 bytes RAM, 14 PWMs,
parallel I/O, SYNC processor, timer, DDC interface (slave mode I2C interface with DDC1), two 4-bit
A/D convertors and watch-dog timer.
FEATURES
* 8-bit 6502 compatible CPU, 4MHz operating frequency
* 8192 bytes ROM, 288 bytes SRAM
* 8MHz crystal oscillator
* 14 channels 8-bit/62.5kHz PWM outputs (8 open drain outputs & 6 CMOS outputs)
* Sync signal processor with H+V separation, frequency calculation, H/V polarity detection/control
* Three free-running sync signal outputs for burn-in test (64kHz/62.5Hz, 48kHz/75Hz, 31kHz/60Hz)
* Self-test pattern generator generates cross hatch picture
* Provide half frequency input and output
* DDC interface supports VESA DDC1/DDC2B standard
* Watch-dog timer (0.524 second)
* Maximum 25 programmable I/O pins
* One 8-bit programmable timer
* Two 4-bit A/D converter
* One external interrupt request
* Built-in low VDD voltage reset
* +5V power supply
PIN ASSIGNMENT
40-Pin PDIP
42-Pin SDIP
DA2
DA1
1
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
VSYNC
HSYNC
DA3
DA2
DA1
1
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
VSYNC
HSYNC
DA3
2
2
DA0
3
DA0
3
RESET
VDD
4
DA4
RESET
VDD
4
DA4
5
DA5
5
DA5
GND
6
DA6
6
OSCO
OSCI
7
DA7
GND
OSCO
OSCI
7
DA6
8
PA7/HSO
PA6/VSO
PA5/DA13
PA4/DA12
PA3/DA11
PA2/DA10
PA1/DA9
PA0/DA8
SCL/PD0
SDA/PD1
PC0/AD0
PC1/AD1
PC2
8
DA7
PB5
9
9
PA7/HSO
PA6/VSO
PA5/DA13
PA4/DA12
PA3/DA11
PA2/DA10
PA1/DA9
PA0/DA8
SCL/PD0
SDA/PD1
PC0/AD0
PC1/AD1
PC2
PB4
10
11
12
13
14
15
16
17
18
19
20
PB5
10
11
12
13
14
15
16
17
18
19
20
21
PB3/PAT
PB2
PB4
PB3/PAT
PB2
PB1/HLFI
PB0/HLFO
PB6/IRQ
PC7
PB1/HLFI
PB0/HLFO
PB6/IRQ
PC7
PC6
PC5
PC6
PC4
PC5
PC3
PC4
PC3
2
* I C is a trademark of Philips Corporation.
* DDC is a trademark of Video Electronics Standard Association (VESA).
Weltrend Semiconductor, Inc.
1
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
PIN DESCRIPTION
Pin No. Pin Name I/O
40 42
Descriptions
1
2
3
4
5
6
7
8
9
1
2
3
4
5
7
8
9
10
DA2
DA1
DA0
/RESET
VDD
GND
OSCO
OSCI
PB5
O
O
O
I
D/A converter 2. Open-drain output. External applied voltage can up to 10V.
D/A converter 1. Open-drain output. External applied voltage can up to 10V.
D/A converter 0. Open-drain output. External applied voltage can up to 10V.
Reset. Active low. Schmitt trigger input, Internal pull high.
Power supply (+5V).
Ground (0V).
Oscillator Output. Connects a 8MHz crystal.
Oscillator Input. Connects a 8MHz crystal.
I/O Port B5. When it is an input pin, it has an internal pull-up resistor. When it is
an output pin, the sink current is 5mA and the source current is 5mA.
I/O Port B4. Same as PB5.
I/O Port B3 or self-test pattern output. When as an I/O port, it is same as PB5.
When it is configured to test pattern output, a vedio signal is output.
I/O Port B2. Same as PB5.
O
I
I/O
10 11
11 12
PB4
PB3/PAT
I/O
I/O
12 13
13 14 PB1/HLFI
PB2
I/O
I/O
I/O Port B1 or half frequency input.
14 15 PB0/HLFO I/O
I/O Port B0 or half frequency output.
15 16
PB6/IRQ
I/O
I/O Port B6 or Interrupt Request . When as interrupt request input, it has an
internal pull high resistor. When as an I/O port, it is same as PB5.
I/O Port C7. When it is an input pin, it has an internal pull-up resistor. When it is
an output pin, the sink current is 10mA and the source current is 5mA.
I/O Port C6. Same as PC7.
I/O Port C5. Same as PC7.
I/O Port C4. Same as PC7.
I/O Port C3. Same as PC7.
I/O Port C2. Same as PC7.
16 17
PC7
I/O
17 18
18 19
19 20
20 21
21 22
22 23
23 24
PC6
PC5
PC4
PC3
PC2
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
PC1/AD1
PC0/AD0
I/O Port C1 or A/D converter input 0.
I/O Port C0 or A/D converter input 1.
24 25 SDA/PD1
DDC serial data or I/O Port D1. When it is a DDC interface pin, It is an open-
drain output. When as an I/O port, it is same as Port B.
DDC serial clock or I/O Port D0. When it is a DDC interface pin, It is an open-
drain output. When as an I/O port, it is same as Port B.
I/O Port A0 or D/A converter 8. This pin can be the output of D/A converter 8
(source/sink = 5mA) or an I/O pin (source = -100uA, sink = 5mA).
I/O Port A1 or D/A converter 9. Same as PA0/DA8.
I/O Port A2 or D/A converter 10. Same as PA0/DA8.
I/O Port A3 or D/A converter 11. Same as PA0/DA8.
I/O Port A4 or D/A converter 12. Same as PA0/DA8.
I/O Port A5 or D/A converter 13. Same as PA0/DA8.
I/O Port A6 / VSYNC OUT. This pin can be the output of VSYNC or an I/O pin.
When as an I/O pin, it is same as PA0.
25 26
26 27
27 28
28 29 PA2/DA10
29 30 PA3/DA11
30 31 PA4/DA12
31 32 PA5/DA13
32 33 PA6/VSO
SCL/PD0
PA0/DA8
PA1/DA9
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
33 34 PA7/HSO
I/O
I/O Port A7 / HSYNC OUT. This pin can be the output of HSYNC or an I/O pin.
When as an I/O pin, it is same as PA0.
34 35
35 36
36 38
37 39
38 40
39 41
40 42
DA7
DA6
DA5
DA4
DA3
O
O
O
O
O
I
D/A converter 7. Open-drain output. External applied voltage can up to 10V.
D/A converter 6. Open-drain output. External applied voltage can up to 10V.
D/A converter 5. Open-drain output. External applied voltage can up to 10V.
D/A converter 4. Open-drain output. External applied voltage can up to 10V.
D/A converter 3. Open-drain output. External applied voltage can up to 10V.
HSYNC input. Schmitt trigger input.
HSYNC
VSYNC
I
VSYNC input. Schmitt trigger input.
Weltrend Semiconductor, Inc.
2
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
FUNCTIONAL DESCRIPTION
CPU
The CPU core is 6502 compatible, operating frequency is 4MHz. Address bus is 16-bit and data bus is
8-bit. the non-maskable interrupt (/NMI) of 6502 is changed to maskable interrupt and is defined as
the INT0. The interrupt request (/IRQ) of 6502 is defined as the INT1.
Default stack pointer is 01FFH.
Please refer the 6502 reference menu for more detail.
ROM
8192 bytes maskable ROM is provided for program codes.
Address is located from E000H to FFFFH.
The following addresses are reserved for special purpose :
FFFAH (low byte) and FFFBH (high byte) : INT0 interrupt vector.
FFFCH (low byte) and FFFDH (high byte) : program reset vector.
FFFEH (low byte) and FFFFH (high byte) : INT1 interrupt vector.
RAM
Built-in 288 bytes SRAM, address is located from 0080H to 019FH. Because the initial stack pointer
is 01FFH, so program must set proper stack pointer when program starts. A recommended value is
019FH.
0000H
:
REGISTERS
Reserved
RAM
0020H
0021H
:
007FH
0080H
:
019FH
01A0H
:
Reserved
DFFFH
E000H
:
:
:
ROM
FFFFH
Low VDD Voltage Reset
A VDD voltage detector is built inside the chip. When VDD is below 4.0 volts, the whole chip will be
reset just like power-on-reset.
Note that the 4.0 volts varies with temperature and process. Please refer the electrical characteristics.
Weltrend Semiconductor, Inc.
3
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
PWM D/A Converter
The WT6018 provides 14 PWM D/A converters. DA0 to DA7 are open-drain outputs and external
applied voltage on these pins can be up to 10 volts. DA8 to DA13 are 5 volts push-pull CMOS outputs
and are shared with I/O Port PA0 to PA5. All D/A converters are 62.5kHz frequency with 8-bit
resolution. Each D/A converter is controlled by the corresponding register (REG#00H to REG#0DH),
the duty cycle can be programmed from 1/256 (data = 01H) to 255/256 (data = FFH).
Duty cycle = 1/256
62.5ns
Duty cycle = 2/256
125ns
62.5ns
Duty cycle = 255/256
1/62.5kHz=16us
To program the PWM D/A converters, write the corresponding registers ( REG#00H to REG#0DH).
Address R/W
0000H R/W
0001H R/W
0002H R/W
0003H R/W
0004H R/W
0005H R/W
0006H R/W
0007H R/W
0008H R/W
0009H R/W
000AH R/W
000BH R/W
000CH R/W
000DH R/W
Initial
80H
80H
80H
80H
80H
80H
80H
80H
80H
80H
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
DA07 DA06 DA05 DA04 DA03 DA02 DA01 DA00
DA17 DA16 DA15 DA14 DA13 DA12 DA11 DA10
DA27 DA26 DA25 DA24 DA23 DA22 DA21 DA20
DA37 DA36 DA35 DA34 DA33 DA32 DA31 DA30
DA47 DA46 DA45 DA44 DA43 DA42 DA41 DA40
DA57 DA56 DA55 DA54 DA53 DA52 DA51 DA50
DA67 DA66 DA65 DA64 DA63 DA62 DA61 DA60
DA77 DA76 DA75 DA74 DA73 DA72 DA71 DA70
DA87 DA86 DA85 DA84 DA83 DA82 DA81 DA80
DA97 DA96 DA95 DA94 DA93 DA92 DA91 DA90
80H DA107 DA106 DA105 DA104 DA103 DA102 DA101 DA100
80H DA117 DA116 DA115 DA114 DA113 DA112 DA111 DA110
80H DA127 DA126 DA125 DA124 DA123 DA122 DA121 DA120
80H DA137 DA136 DA135 DA134 DA133 DA132 DA131 DA130
Bit Name
Bit value
DAx7-DAx0
01H : 1/256 duty cycle
02H : 2/256 duty cycle
03H : 3/256 duty cycle
:
FFH : 255/256 duty cycle
** Do not write 00H to the PWM registers. This will cause unstable
output on the corresponding pin.
Weltrend Semiconductor, Inc.
4
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
I/O Ports
Port_A :
Pin PA0/DA8
Pin PA1/DA9
- general purpose I/O shared with DA8 output.
- general purpose I/O shared with DA9 output.
Pin PA2/DA10 - general purpose I/O shared with DA10 output.
Pin PA3/DA11 - general purpose I/O shared with DA11 output.
Pin PA4/DA12 - general purpose I/O shared with DA12 output.
Pin PA5/DA13 - general purpose I/O shared with DA13 output.
Pin PA6/VSO
Pin PA7/HSO
- general purpose I/O shared with VSYNC output.
- general purpose I/O shared with HSYNC output.
Port_A is controlled by REG#10H & REG#11H. In REG#10H, each corresponding bit enables
HSYNC output, VSYNC output or D/A converter output when it is "1". If the corresponding bit is "0",
the output level is decided by REG#11H. In REG#11H, if the I/O corresponding bit (PAn) is "0", the
output is low level (IOL=5mA). If PAn bit is "1", the output is high level (IOH= -100uA) and can be
used as an input.
Address R/W
Initial
00H
FFH
--
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
0010H
0011H
0011H
W
W
R
EHO
EVO EDA13 EDA12 EDA11 EDA10 EDA9 EDA8
PA7W PA6W PA5W PA4W PA3W PA2W PA1W PA0W
PA7R PA6R PA5R PA4R PA3R PA2R PA1R PA0R
Bit Name
EHO
EVO
EDA13
EDA12
EDA11
EDA10
EDA9
EDA8
Bit value = “1”
Bit value = “0”
PA7 as general purpose I/O.
PA6 as general purpose I/O.
PA5 as general purpose I/O.
PA4 as general purpose I/O.
PA3 as general purpose I/O.
PA2 as general purpose I/O.
PA1 as general purpose I/O.
PA0 as general purpose I/O.
Outputs low level (IOL= 5mA).
Pin is low level.
Enable PA7 as HSYNC output.
Enable PA6 as VSYNC output.
Enable PA5 as DA13 output.
Enable PA4 as DA12 output.
Enable PA3 as DA11 output.
Enable PA2 as DA10 output.
Enable PA1 as DA9 output.
Enable PA0 as DA8 output.
PA7W - PA0W Outputs high level (IOH= -100uA).
PA7R- PA0R Pin is high level.
* If the program wants to force VSYNC output (VSO pin) in low state, write "0" to PA6 bit first, then
write "0" to EVO bit. This is used to prevent high frequency output on VSO pin when the VSYNC
frequency is increased to read EDID data in DDC1 mode.
EDAx
5mA
100uA
5mA
DAx
Pin PAn
PAnW
PAnR
Weltrend Semiconductor, Inc.
5
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
Port_B :
Pin PB0/HLFO - general purpose I/O pins shared with half frequency output.
Pin PB1/HLFI - general purpose I/O pins shared with half frequency input.
Pin PB2 - general purpose I/O pins.
Pin PB3/PAT - general purpose I/O pin shared with self-test pattern output.
Pin PB4 to PB5 - general purpose I/O pins.
Pin PB6/IRQB - general purpose I/O pin shared with interrupt request input.
The source/sink current of port_B is 5mA when as an output. When it is input, an internal pull
high resistor is connected.
Address R/W
Initial
00H
FFH
--
Bit7
0
1
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
0012H
0013H
0013H
W
W
R
PB6OE PB5OE PB4OE PB3OE PB2OE PB1OE PB0OE
PB6W PB5W PB4W PB3W PB2W PB1W PB0W
PB6R PB5R PB4R PB3R PB2R PB1R PB0R
--
Bit Name
Bit value = “1”
Bit value = “0”
Output disable (internal pull-up).
Outputs low level (IOL= 5mA).
Pin is low level.
PB6OE - PB0OE Output enable.
PB6W - PB0W
PB6R- PB0R
Outputs high level (IOH= -5mA).
Pin is high level.
* If ENHALF bit in REG#17H is “1”, the PB0 and PB1 pins are for half frequency function.
* If ENPAT bit in REG#16H is “1”, the PB3 pin becomes self-test pattern output.
* If IEN_X bit in REG#1AH is “1” and PB6OE bit is "0", the PB6 pin becomes interrupt request
input.
PBnOE
5mA
Pin PB0 to PB6
5mA
PBnW
100uA
PBnR
Structure of I/O Port B
Weltrend Semiconductor, Inc.
6
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
Port_C :
Pin PC0 - general purpose I/O pin shared with 4-bit A/D converter 0 input.
Pin PC1 - general purpose I/O pin shared with 4-bit A/D converter 1 input
Pin PC2 to PC7 - general purpose I/O pins.
The REG#14H defines the I/O direction and the REG#15H controls the output level.
The structure of Port_C is same as the Port_B except the sink current is 10mA. When PC0 and
PC1 are programmed as the A/D converter inputs, the pull high transistor is disconnected.
Address R/W
Initial
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
0014H
0015H
0015H
W
W
R
00H PC7OE PC6OE PC5OE PC4OE PC3OE PC2OE PC1OE PC0OE
FFH
--
PC7W PC6W PC5W PC4W PC3W PC2W PC1W PC0W
PC7R PC6R PC5R PC4R PC3R PC2R PC1R PC0R
Bit Name
Bit value = “1”
Bit value = “0”
Output disable (internal pull-up).
Outputs low level (IOL= 10mA).
Pin is low level.
PC7OE - PC0OE Output enable.
PC7W - PC0W
PC7R - PC0R
Outputs high level (IOH= -5mA).
Pin is high level.
Port_D :
Pin SCL/PD0 - general purpose I/O pin shared with DDC interface serial clock.
Pin SDA/PD1 - general purpose I/O pin shared with DDC interface serial data.
The structure of these two pins are same as the PB4 and PB5. Default is DDC interface and can be
changed to I/O port D by setting ENPD bit.
Address R/W
Initial
00H
--
Bit7
--
--
Bit6
--
--
Bit5
--
--
Bit4
ENPD PD1OE PD0OE PD1W PD0W
-- -- -- PD1R PD0R
Bit3
Bit2
Bit1
Bit0
000FH
000FH
W
R
Bit Name
ENPD
PD1OE - PD0OE Output enable.
PD1W - PD0W
PD1R- PD0R
Bit value = “1”
Enable I/O Port_D.
Bit value = “0”
DDC interface.(open drain)
Output disable (internal pull-up).
Outputs low level (IOL= 5mA).
Pin is low level.
Outputs high level (IOH= -5mA).
Pin is high level.
* If program wants to read current status on the I/O pins (any I/O port), do not set output enable bit to
“0”. Because the registers for reading I/O are always indicating the current state on the I/O pins, set
output enable bit to “0” will change the level on the I/O pin. Please reference the I/O pin structure.
Weltrend Semiconductor, Inc.
7
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
SYNC Processor
The SYNC processor can : (1) separate the composite sync signal; (2) calculate HSYNC and
VSYNC frequencies; (3) detect polarities of HSYNC and VSYNC inputs; (4) control the output
polarities of HSO and VSO pins. (5) generate free-running horizontal and vertical sync signals for
burn-in test; (6) generate self-test pattern signal.
Mux
H Polarity
detect
Sync
H/V Freq. Counter
HSYNC
Mux
Separator
H+V
H Polarity
Control
H
V
SELF
Mux
H/V SYNC
Generator
HSO
VSO
V Polarity
detect & control
Mux
H+V
VSYNC
Test Pattern
Generator
Mux
PB3/PAT
PB3
Composite Sync Signal Separation
The composite sync signal comes from HSYNC pin and is separated by the sync separator.
The operations of sync separator are:
- detect the polarity and convert composite sync signal to positive polarity.
- extract Vsync
Pulse width less than 8us will be filtered, but the Vsync will be widened about 8us.
- count the pulses during the separated Vsync is low and save the counter value (NH).
- bypass the composite sync pulses before the counter equals to NH.
- start inserting Hsync pulses after the counter equals to NH until the separated Vsync is low.
- the period of inserted Hsync is decided by the last two bypassed Hsync.
- the pulse width of the inserted Hsync is 2us.
Positive H+V
separated Hsync
bypass
insert HSYNC
separated Vsync
To decide whether the HSYNC input is a composite sync signal or not, program should check the
frequency of VSYNC first (reset H+V bit to “0”). If the VSYNC frequency is lower than 15.25Hz
(OVF2=1), set H+V bit to “1” and check VSYNC frequency again. If VSYNC still has no frequency,
that is power saving condition, program should reset H+V bit. If it has a valid frequency, the HSYNC
input is composite signal.
Weltrend Semiconductor, Inc.
8
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
Frequency Calculation
Horizontal frequency and vertical frequencies calculation are done by using one 10-bit up counter.
After power is on, the SYNC processor calculates the vertical frequency first (H/V bit ="0"). A
31.25KHz clock counts the time interval between two VSYNC pulses, then sets the FRDY bit and
generates an INT1 interrupt (if IEN_S bit is "1"). The software can either use interrupt or polling the
FRDY bit to read the correct vertical frequency. After reading the REG#16H, the FRDY bit is cleared
to "0", counter is reset and H/V bit is set. The SYNC processor starts to count horizontal frequency.
The horizontal frequency calculation is done by counting the HSYNC pulses in 8.192 ms. Like the
vertical frequency, the horizontal frequency can be read when the FRDY bit is set or INT1 occurs.
After reading the REG#16H, the FRDY, INT_S and H/V bits are cleared. The SYNC processor starts
to calculate the vertical frequency again, and so on.
The relationships between counter value and frequency are :
Hfreq = (counter value x 122.07) Hz
Vfreq = ( 31250 / counter value ) Hz
The frequency range :
Hfreq range : 122.07 Hz to 124.8 kHz ; Resolution : 122.07Hz
Vfreq range : 30.5 Hz to 31.25 kHz
If counter overflowed, the OVF1 bit will be set to "1". The counter keeps on counting until it
overflowed again. The OVF2 bit and FRDY bit will be set when counter overflowed twice. This is
designed for finding the vertical frequency bellows 15.25Hz. The program should check REG#17H
before reading REG#16H.
Polarity Detect/Control
The polarities of HSYNC and VSYNC are automatically detected and are shown in the H_POL
and V_POL bits. The polarities of HSO and VSO are controlled by the HOP and VOP bits. For
example, set HOP bit to “1”, the HSO pin always outputs positive horizontal sync signal, whatever the
HSYNC input’ s polarity is.
Free-running Sync Signal
The self-generated sync signals are output from HSO and VSO pins if SELF bit is “1”. Three kinds
of frequencies are provided :
(1) Hfreq = 8MHz/125 = 64.0kHz, Vfreq = Hfreq/1024 = 62.5Hz.
(2) Hfreq = 8MHz/167 = 47.9kHz, Vfreq = Hfreq/640 = 74.9Hz.
(3) Hfreq = 8MHz/257 = 31.1kHz, Vfreq = Hfreq/512 = 60.8Hz .
The output polarities are controlled by the HOP and VOP bits.
The pulse width of HSO is 2us and VSO is four HSO cycles. The timing relationship is shown in
the following :
2us
HSO
VSO
Weltrend Semiconductor, Inc.
9
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
Test Pattern Generation
A self-test pattern signal comes out from pin PB3/PAT. It can generate a cross hatch picture, a
inverted cross hatch picture, a white picture or a black picture.
8 X 8 cross hatch
Inverted 8 X 8 cross hatch
White Picture
Black Picture
The test pattern signal is generated when SELF and ENPAT are both set to “1”. This vedio signal
will synchronize to the free-running Hsync and Vsync, no matter which frequency is chosen. The
following diagram shows the timing relationship of cross hatch picture.
HSO
PAT
T2
T1
T1
T3
T2
T2
HSO
VSO
T1
T3
31.1kHz
47.9kHz
64kHz
60.8Hz
74.9Hz
62.5Hz
6us
5.125us
3.625us
1us
0.625us
0.875us
62.5ns
62.5ns
62.5ns
Weltrend Semiconductor, Inc.
10
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
Half Frequency
HLFO pin outputs same or half frequency from HLFI pin. The divide-by-2 operation is done on the falling
edge of HLFI pin when HALF bit is set. Polarity of HLFO is specified by HLFPO bit.
HLFI
HLFO
(HALF=0)
(HLFPO=0)
HLFO
(HALF=0)
(HLFPO=1)
HLFO
(HALF=1)
R/W
W
R
W
R
Initial
--
--
--
00H
Bit7
0
F9
--
Bit6
0
F8
--
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
0016H
0016H
0017H
0017H
ENPAT PAT1 PAT0 SELF H64K H48K
F7
F6
F5
F4
F3
HOP
F1
F2
VOP
F0
ENHLF HALF HLFPO H+V
H_POL V_POL OVF2 OVF1
H/V
--
Bit Name
ENPAT
Bit value = “1”
Pin PB3/PAT outputs test pattern.
Bit value = “0”
Pin PB3/PAT is I/O port.
PAT1,PAT0
If PAT1=0, PAT0=0, cross hatch picture.
If PAT1=0, PAT0=1, white picture.
If PAT1=1, PAT0=0, inverted cross hatch picture.
If PAT1=1, PAT0=1, black picture.
SELF
HSO and VSO output free-running
HSO and VSO output sync signals.
frequency.
H64K, H48K
H64K=“1”,H48K=“1” : Burn-in frequency=47.9kHz/74.9Hz
H64K=“0”,H48K=“1” : Burn-in frequency=47.9kHz/74.9Hz
H64K=“1”,H48K=“0” : Burn-in frequency=64kHz/62.5Hz
H64K=“0”,H48K=“0” : Burn-in frequency=31.1kHz/60.8Hz
ENHLF
Pin PB1/HLFI is frequency input.
Pin PB0/HLFO is half frequency
output.
Pin PB1/HLFI and PB0/HLFO is I/O
port.
HALF
HLFPO
H+V
HLFO outputs half frequency of HLFI. HLFO outputs same frequency of HLFI
HLFO is positive polarity.
HLFO is negative polarity.
Disable H+V separation.
Enable H+V separation function.
This will select the sync signals come
from the sync separator.
HOP
VOP
HSO pin is always positive polarity.
VSO pin is always positive polarity.
HSO pin is always negative polarity.
VSO pin is always negative polarity.
H/V
Counter stores horizontal frequency. Counter stores vertical frequency.
H_POL
V_POL
OVF2, OVF1
HSYNC input is positive polarity.
VSYNC input is positive polarity.
OVF2=“1”,OVF1=“0” : Counter overflowed twice.
OVF2=“0”,OVF1=“1” : Counter overflowed once.
OVF2=“0”,OVF1=“0” : No overflow.
HSYNC input is negative polarity.
VSYNC input is negative polarity.
OVF2=“1”,OVF1=“1” : No such condition.
Frequency counter value. (F9 is MSB)
F9-F0
Weltrend Semiconductor, Inc.
11
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
DDC Interface
The DDC interface is a slave mode I2C interface with DDC1 function. It is fully compatible with
VEAS DDC1/2B standard. The functional block diagram is shown in the below.
Internal Data Bus
ENACK
Data Buffer
SDA
I/O
VSYNC
Shift Register
MUX
R/W
Address Compare
ADDR
START
MSB
START/STOP Detect
Handshake Control
1 0 1 0 0 0 0
STOP
DDC2B
Address Register
SCL
After power on or reset the DDC interface, it is in DDC1 state. The shift register shifts out data to
SDA pin on the rising edge of VSYNC clock. Data format is an 8-bit byte followed by a null bit. Most
significant bit (MSB) is transmitted first. Every time when the ninth bit has been transmitted, the shift
register will load a data byte from data buffer (REG#18H). After loading data to the shift register, the
data buffer becomes empty and generates an INT0 interrupt. So the program must write one data byte
into REG#18 every nine VSYNC clocks.
Since the default values of data buffer(REG#22) and shift register are FFH, the SDA pin outputs
high level if no data had been written into data buffer after power on reset. When program finished
initialization and set the IEN_D bit to "1", the INT0 will occur because the data buffer is empty. The
INT0 service routine should check the DDC2B bit is "0" and then writes the first EDID data byte into
data buffer. When the second INT0 occurs, the INT0 service routine writes the second EDID data byte
into data buffer and so on.
SDA
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Bit7
VSYNC
9
10
18
19
1
2
3
Load data to
shift register
INT0
IEN_D
Weltrend Semiconductor, Inc.
12
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
If a low level occurs on the SCL pin in DDC1 state, the DDC interface will switch to DDC2B state
immediately and set the DDC2B bit to "1". No interrupt will be generated. But, if there is no valid
device address and it receives 128 VSYNC pulses while the SCL is high level, it will go back to
DDC1 state automatically. If it receives a valid device address, it will lock into DDC2B state and
disregard VSYNC.
In some case, program wants to go back DDC1 state, set RDDC bit in REG#1AH and reset it again.
This operation resets the DDC interface to the initial condition.
When it is in DDC2B state, the VSYNC clock is disregarded and the communication protocol
follows the DDC standard. The data format on SDA pin is:
S
Address
R/W A
D7,D6,...., D0
A
D7,D6,...., D0
A
P
S : Start condition. A falling edge occurs when SCL is high level.
P : Stop condition. A rising edge occurs when SCL is high level.
A : Acknowledge bit. “0” means acknowledge and “1” means non-acknowledge.
Address : 7-bit device address.
R/W : Read/Write control bit, "1" is read and "0" is write.
D7,D6,...., D0 : data byte.
The hardware operations in DDC2B state are :
(1) START/STOP detection
When the START condition is detected, the DDC interface is enabled and set START bit to "1".
When the STOP condition is detected, the DDC interface is disabled, set STOP bit to "1" and
generate INT0 interrupt.
The START bit is cleared when the following data byte received.
The STOP bit is cleared after writing REG#19H.
(2) Address Recognition
It contains two device addresses in WT6018. One fixed address (‘ 1010000’ ) is for EDID reading
and one programmable address (REG#19H) is for external control, such as auto alignment.
If the address is equal to "1010000", set ADDR bit to "0".
If the address is equal to the bit A6 to bit A0 (REG#19H), set ADDR bit to "1".
If the address is not equal to anyone above, the DDC interface will not response acknowledge.
The ADDR bit is updated when a new device address is received.
(3) Store R/W bit and decide the direction of SDA pin
The R/W bit on the SDA pin will be stored in the RW bit.
(4) Acknowledge bit control/detection
Acknowledge bit control in receive direction :
If ENACK=1 and address compare is true, response acknowledge (Acknowledge bit ="0").
If ENACK=0 or address compare is false, response non-acknowledge (Acknowledge bit ="1").
Acknowledge bit detect in transmit direction :
If the acknowledge bit is "1" , the DDC interface will be disabled and release the SDA pin.
If the acknowledge bit is "0" , the DDC interface keeps on communicating.
Weltrend Semiconductor, Inc.
13
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
(5) Data bytes transmit/receive
If the RW bit is "1", the shift register will load data from the data buffer (REG#18H) before the
data byte is transmitted and shift out data to the SDA pin before the rising edge of the SCL clock.
If the RW bit is "0", the shift register will shift in data on the rising edge of the SCL clock and the
whole data byte is latched to the data buffer(REG#18H).
(6) Handshaking procedure
The handshaking is done on the byte level. The DDC interface will hold the SCL pin low after the
acknowledge bit automatically. The bus master will be forced to wait until the WT6018 is ready for
the next byte transfer. To release the SCL pin, write REG#19H will release clear the wait state.
(7) Interrupt INT0
The DDC interface interrupt is enabled by setting the IEN_D bit in the REG#1AH.
Interrupt INT0 occurs when:
- Transmit buffer empty in DDC1 state.
The INT0 occurs when the shift register load data from data buffer.
Write REG#18H will clear the transmit buffer empty condition.
- Acknowledge is detected in DDC2B state.
The INT0 occurs on the falling edge of the SCL clock after the acknowledge had been
detected.
The SCL pin will be pulled low to force the bus master to wait until the service routine write
REG#19H.
- STOP condition occurs in DDC2B mode
Address R/W
0018H R/W
Initial
FFH
Bit7
D7
Bit6
D6
Bit5
D5
Bit4
D4
Bit3
D3
Bit2
D2
--
Bit1
D1
--
Bit0
D0
--
0019H
0019H
R
W
40H DDC2B ADDR
A0H A6 A5
RW START STOP
A4
A3
A2
A1
A0 ENACK
Bit Name
DDC2B
ADDR
Bit value = “1”
DDC2B state.
received address equals to the address received address equals to ‘ 1010000’ .
in REG#19H(W).
Bit value = “0”
DDC1 state.
RW
START
STOP
received R/W bit is ‘ 1’ .
START condition is detected.
STOP condition is detected.
Enable acknowledge.
received R/W bit is ‘ 0’ .
No START condition is detected.
No STOP condition is detected.
Disable acknowledge.
ENACK
A6,A5, …., A0
D7,D6, …., D0
7-bit slave address
Data to be transmitted or received data.
Weltrend Semiconductor, Inc.
14
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
Pull low SCL
Pull low SCL
Pull low SCL
SCL
SDA
In
Data Byte
Data Byte
1
0
1
0 0
0
0
0
SDA
Out
A
A
A
Write REG#19H to release SCL
Shift register to data buffer
INT0
DDC2B=1
DDC2B=1
DDC2B=1
ADDR=0
R/W=0
DDC2B=1
ADDR=0
R/W=0
ADDR=0
R/W=0
ADDR=0
R/W=0
START=1
STOP=0
START=0
STOP=1
START=0
STOP=0
START=0
STOP=0
DDC2B state write timing
Pull low SCL
Pull low SCL
SCL
SDA
A
1
0
1
0
0
0
0
1
N
In
SDA
Out
A
Data Byte
Data Byte
Write REG#19H to release SCL
Data buffer to shift reg
INT0
DDC2B=1
DDC2B=1
DDC2B=1
ADDR=0
R/W=1
ADDR=0
R/W=1
ADDR=0
R/W=1
START=1
STOP=0
START=0
STOP=1
START=0
STOP=0
DDC2B state read timing
Weltrend Semiconductor, Inc.
15
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
Interrupt Control
There are two interrupt sources : INT0 and INT1. INT0 has the higher priority.
Interrupt vector :
INT0 : FFFAH (low byte) and FFFBH (high byte).
INT1 : FFFEH (low byte) and FFFFH (high byte).
INT0 occurs when :
(1) data buffer empty in the DDC1 mode (DDC="1" and DDC2B="0").
(2) acknowledge or STOP condition is detected in the DDC2B mode (DDC="1" and DDC2B="0").
INT1 occurs when :
(1) a falling edge or a low level occurs on the /IRQ pin (EXT="1").
(2) the timer is time out (TIM="1").
(3) SYNC processor has a valid frequency (SYNC="1").
If H/V ="0" , it is vertical frequency ready.
If H/V ="1" , it is horizontal frequency ready.
INT0 is cleared when :
(1) writing the REG#18H in DDC1 state.
(2) writing the REG#19H in DDC2B state.
INT1 is cleared when :
(1) reading the REG#1AH if EXT="1".
(2) reading the REG#1BH if TIM="1".
(3) reading the REG#16H if SYNC="1".
IEN_D
D
Q
Q
DDC
INT0
4MHz
CK
IEN_X
IRQ
IEN_T
TOUT
INT1
IEN_S
FRDY
Weltrend Semiconductor, Inc.
16
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
Address R/W
Initial
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
0
Bit0
0
--
001AH
001AH
W
R
00H IEN_X IEN_T IEN_S IEN_D EDGE RDDC
00H
EXT
TIM
SYNC DDC
IRQ
TOUT FRDY
Bit Name
IEN_X
IEN_T
IEN_S
IEN_D
EDGE
Bit value = “1”
Bit value = “0”
Enable /IRQ pin interrupt.
Enable timer interrupt.
Enable SYNC processor interrupt.
Enable DDC interface interrupt.
/IRQ pin interrupt is edge trigger.
Reset DDC interface.
Disable /IRQ pin interrupt.
Disable timer interrupt.
Disable SYNC processor interrupt.
Disable DDC interface interrupt.
/IRQ pin interrupt is level trigger.
Clear the reset of DDC interface.
RDDC
It will always reset DDC interface if
this bit keeps “1”.
EXT
TIM
/IRQ pin interrupt occurs.
Timer interrupt occurs.
No /IRQ pin interrupt.
No timer interrupt.
SYNC
DDC
IRQ
SYNC processor interrupt occurs.
DDC interface interrupt occurs.
/IRQ pin is low level
No SYNC processor interrupt.
No DDC interface interrupt.
/IRQ pin is high level
TOUT
FRDY
Timer is time-out.
H/V frequency counter is ready.
The counter value is valid.
Timer is not time-out.
H/V frequency counter is not ready.
The counter value is invalid.
Weltrend Semiconductor, Inc.
17
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
Timer
It is a 8-bit down counter and clock frequency is 976.5625Hz (period=1.024ms). The timer is
started by writing a value into REG#1BH. When the timer counts down to zero, the timer stops, sets
the TOUT bit and generates an INT1 interrupt (if the IEN_T bit is "1"). The TOUT bit will be cleared
after REG#1BH is read.
Watch-Dog Timer
The watch-dog timer is always enable after power is on. Software must clear the watch-dog timer
within every 524ms. If the watch-dog timer expired, It will cause the whole chip reset just like
external reset.
To clear the watch-dog timer, write any data to REG#1CH.
Address R/W
001BH R/W
Initial
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
--
--
TM7
WDT WDT
TM6
TM5
TM4
TM3
TM2
TM1
TM0
001CH
W
WDT WDT WDT
WDT WDT WDT
Bit Name
TM7 to TM0
WDT
Bit value
Timer value (0 - 255)
Write any value to this register will reset the watchdog timer.
Weltrend Semiconductor, Inc.
18
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
A/D Converter
Two 4-bit A/D converter inputs are shared with I/O port_C PC0 and PC1. Use ENAD1 bit and
ENAD0 bit to enable the corresponding A/D converter. The converted value is store in REG#20H.
Regardless of one A/D enabling or two A/D enabling ,the converted value is automatically updated at
2.048ms intervals.
4-bit data
1111
1110
1101
1100
1011
1010
1001
1000
0111
0110
0101
0100
0011
0010
0001
0000
Volt
0
0.75
4.02
Address R/W
Initial
--
00H
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
0020H
0020H
R
W
AD13 AD12 AD11 AD10 AD03 AD02 AD01 AD00
0
0
0
0
0
0
ENAD1 ENAD0
Bit Name
ENAD1
Bit value = “1”
Bit value = “0”
Disable A/D converter 1.
Pin PC1 is the input of A/D converter 1. Pin PC1 is I/O.
Enable A/D converter 1.
ENAD0
Enable A/D converter 0.
Disable A/D converter 0.
Pin PC0 is the input of A/D converter 0. Pin PC0 is I/O.
AD13,…,AD10 4-bit data of A/D converter 1.
AD03,…,AD00 4-bit data of A/D converter 0.
Weltrend Semiconductor, Inc.
19
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
REGISTER MAP
Initial
R/W value
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Address
0000H R/W 80H
0001H R/W 80H
0002H R/W 80H
0003H R/W 80H
0004H R/W 80H
0005H R/W 80H
0006H R/W 80H
0007H R/W 80H
0008H R/W 80H
0009H R/W 80H
DA07
DA17
DA27
DA37
DA47
DA57
DA67
DA77
DA87
DA97
DA06
DA16
DA26
DA36
DA46
DA56
DA66
DA76
DA86
DA96
DA05
DA15
DA25
DA35
DA45
DA55
DA65
DA75
DA85
DA95
DA04
DA14
DA24
DA34
DA44
DA54
DA64
DA74
DA84
DA94
DA03
DA13
DA23
DA33
DA43
DA53
DA63
DA73
DA83
DA93
DA02
DA12
DA22
DA32
DA42
DA52
DA62
DA72
DA82
DA92
DA01
DA11
DA21
DA31
DA41
DA51
DA61
DA71
DA81
DA91
DA00
DA10
DA20
DA30
DA40
DA50
DA60
DA70
DA80
DA90
000AH R/W 80H DA107 DA106 DA105 DA104 DA103 DA102 DA101 DA100
000BH R/W 80H DA117 DA116 DA115 DA114 DA113 DA112 DA111 DA110
000CH R/W 80H DA127 DA126 DA125 DA124 DA123 DA122 DA121 DA120
000DH R/W 80H DA137 DA136 DA135 DA134 DA133 DA132 DA131 DA130
000EH
000FH
Reserved
--
R
W
W
R
X
00H
00H
X
--
0
EHO
PA7R
--
0
EVO
PA6R
--
0
--
--
PD1R
PD0R
ENPD PD1OE PD0OE PD1W PD0W
EDA13 EDA12 EDA11 EDA10 EDA9
PA5R PA4R PA3R PA2R PA1R
0010H
0011H
EDA8
PA0R
W
W
R
W
W
R
W
R
W
R
FFH PA7W PA6W PA5W PA4W PA3W PA2W PA1W PA0W
0012H
0013H
00H
X
FFH
0
--
1
PB6OE PB5OE PB4OE PB3OE PB2OE PB1OE PB0OE
PB6R PB5R PB4R PB3R PB2R PB1R PB0R
PB6W PB5W PB4W PB3W PB2W PB1W PB0W
0014H
0015H
00H PC7OE PC6OE PC5OE PC4OE PC3OE PC2OE PC1OE PC0OE
FFH
X
PC7R
PC6R
PC5R
PC4R
PC3R
PC2R
PC1R
PC0R
PC7W PC6W PC5W PC4W PC3W PC2W PC1W PC0W
0016H
0017H
X
F9
0
H/V
0
F8
0
--
0
D6
F7
F6
F5
PAT0
F4
SELF
F3
H62K
F1
HOP
D1
F2
H48K
F0
VOP
D0
00H
00H
X
ENPAT PAT1
H_POL V_POL OVF2 OVF1
0
D5
RW
A4
W
0
D4
0
D3
H+V
D2
--
0018H R/W FFH
D7
0019H
R
W
R
40H DDC2B ADDR
A0H
00H
START STOP
A3
DDC
--
A0
--
A6
EXT
A5
TIM
A2
IRQ
A1 ENACK
TOUT FRDY --
001AH
SYNC
W
00H IEN_X IEN_T IEN_S IEN_D EDGE RDDC
0
0
001BH R/W
X
X
X
TM7
TM6
TM5
TM4
TM3
TM2
TM1
TM0
001CH
0020H
W
R
CWDT CWDT CWDT CWDT CWDT CWDT CWDT CWDT
AD13
0
AD12
0
AD11
0
AD10
0
AD03
0
AD02
0
AD01
ENAD1 ENAD0
AD00
W
00H
X
: No default value.
-- : No function.
: Must write 0..
0
Weltrend Semiconductor, Inc.
20
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings
Parameter
Min.
-0.3
Max
7.0
Units
V
DC Supply Voltage (VDD)
Input and output voltage with respect to Ground
All pins except DA0 to DA7
DA0 to DA7
-0.3
-0.3
-65
VDD+0.3
11.5V
150
V
V
o
Storage temperature
C
o
Ambient temperature with power applied
-10
70
C
* Note : Stresses above those listed may cause permanent damage to the device.
O
D.C. Characteristics ( VDD=5.0V + 5% , Ta=0 - 70 C)
Symbol
Parameter
Supply Voltage
Condition
Min. Typ. Max. Units
V
DD
4.0
5
-
5.5
V
V
V
IH
Input High Voltage
All input pins (except HSYNC and VSYNC) 3.0
VDD+
0.3
V
Input Low Voltage
All input pins (except HSYNC and VSYNC) -0.3
-
-
1.5
V
V
IL
V
SIH
Sync Input High
Voltage
Sync Input Low
Voltage
HSYNC and VSYNC pin
HSYNC and VSYNC pin
2.0
-0.3
3.5
3.5
VDD+
0.3
0.8
V
SIL
-
-
-
V
V
V
V
OH
Output High Voltage
I
OH
= -100uA
-
-
PA0-PA7 pins
= -6mA
I
OH
PB0-PB6, PC0-PC7, PD0, PD1, DA8-DA13,
HSO, VSO and HSO pins
DA0-DA7 pins (external voltage)
SCL and SDA pins (open drain)
-
-
-
-
-
-
10.5
5.5
0.4
V
V
V
V
OL
Output Low Voltage
I
OL
= 5mA
PA0-PA7, PB0-PB6, PD0-1, DA0-DA13,
SCL, SDA, VSO and HSO pins
I
= 10mA
-
-
-
0.4
10
V
OL
PC0-PC7 pins
I
IL
Input Leakage Current SDA, SCL, HSYNC and VSYNC pins ( V
= 0 to 5V)
Pull High Resistance VIN=0.8V
-10
16
uA
IN
R
PH
22
28 Kohm
PA0-PA7, PB0-PB6, PC0-PC7, /RESET and
/IRQ pins
I
Operating Current
Reset Voltage
No load
-
3
20
mA
V
DD
V
/RESET pin
3.8
4.0
4.2
RESET
Weltrend Semiconductor, Inc.
21
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
A.C. Characteristics ( VDD=5.0V + 5%, fosc=8MHz, Ta=0 - 70OC)
RESET and IRQ Timing
Symbol
Parameter
Min. Typ. Max. Units
tLOW,RES /RESET pin low pulse
250
250
-
-
-
-
ns
ns
tLOW,IRQ /IRQ low pulse (level trigger)
RESET
IRQ
tLOW,RES
tHIGH,IRQ
SYNC Processor Timing
Symbol
Parameter
Min. Typ. Max. Units
tHIGH,SYNC HSYNC and VSYNC high time
250
250
-
-
-
-
-
-
ns
ns
us
tLOW,SYNC HSYNC and VSYNC low time
tFPW,HSO Self generated free-running HSO pulse width
tFPW,VSO Self generated free-running VSO pulse width
tIPW,HSO Inserted Hsync pulse width (composite sync input)
2
4 x HSO period
-
2
-
us
HSYNC
VSYNC
tHIGH,SYNC
tLOW,SYNC
DDC1 Timing
Symbol
Parameter
Min. Typ. Max. Units
tVAA,DDC1 SDA output valid from VSYNC rising edge
125
-
-
-
500
500
ns
ns
tMT
Mode transition time (DDC1 to DDC2B)
tMT
SCL
SDA
tVAA,DDC1
Bit 0 (LSB)
Null Bit
Bit 7 (MSB)
VSYNC
tHIGH,SYNC
tLOW,SYNC
Weltrend Semiconductor, Inc.
22
WT6018
Digital Monitor Controller
Ver. 1.41 Jul-31-1998
DDC2B Timing
Symbol
Parameter
SCL input clock frequency
Bus free time
Min. Typ. Max. Units
fSCL
tBF
0
2
-
-
-
-
-
-
-
-
-
-
-
-
100
kHz
us
us
us
us
us
ns
ns
ns
ns
us
ns
-
tHD,START Hold time for START condition
tSU,START Set-up time for START condition
tHIGH,SCL SCL clock high time
1
-
1
-
1
-
tLOW,SCL SCL clock low time
1
-
tHD,DATA Hold time for DATA input
Hold time for DATA output
0
-
250
250
500
-
-
-
tSU,DATA Set-up time for DATA input
Set-up time for DATA output
-
tRISE
SCL and SDA rise time
SCL and SDA fall time
1
tFALL
-
300
tSU,STOP Set-up time for STOP condition
4
-
-
us
tBF
SDA
tRISE
tFALL
tHD,START
SCL
tSU,DATA
tSU,START
tHIGH,SCL
tSU,STOP
tLOW,SCL
tHD,DATA
Weltrend Semiconductor, Inc.
23
