IXA12IF1200TC

型号:

IXA12IF1200TC

描述:

由于易于并联的导通电压的正温度系数[ Easy paralleling due to the positive temperature coefficient of the on-state voltage ]

品牌:

IXYS[ IXYS CORPORATION ]

页数:

6 页

PDF大小:

157 K

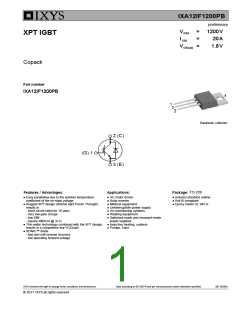

IXA12IF1200PB
preliminary
VCES
IC25
=
=
=
1200V
20A
XPT IGBT
VCE(sat)
1.8V
Copack
Part number
IXA12IF1200PB
Backside: collector
2 (C)
(G) 1
3 (E)
TO-220
Package:
Features / Advantages:
Applications:
Easy paralleling due to the positive temperature
coefficient of the on-state voltage
Rugged XPT design (Xtreme light Punch Through)
results in:
- short circuit rated for 10 µsec.
- very low gate charge
AC motor drives
Solar inverter
Industry standard outline
RoHS compliant
Epoxy meets UL 94V-0
Medical equipment
Uninterruptible power supply
Air-conditioning systems
Welding equipment
Switched-mode and resonant-mode
power supplies
- low EMI
- square RBSOA @ 3x Ic
Thin wafer technology combined with the XPT design
results in a competitive low VCE(sat)
SONIC™ diode
Inductive heating, cookers
Pumps, Fans
- fast and soft reverse recovery
- low operating forward voltage
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20110330a
© 2011 IXYS all rights reserved
IXA12IF1200PB
preliminary
Ratings
IGBT
Symbol
VCES
Definition
collector emitter voltage
Conditions
min. typ. max. Unit
TVJ
=
25°C
1200
±20
±30
20
V
V
V
A
A
W
V
V
V
max. DC gate voltage
VGES
VGEM
IC25
max. transient gate emitter voltage
collector current
TC = 25°C
TC = 100°C
TC = 25°C
TVJ = 25°C
TVJ = 125°C
TVJ = 25°C
TVJ = 25°C
TVJ = 125°C
IC
13
100
total power dissipation
P
tot
85
collector emitter saturation voltage
VCE(sat)
IC = 10A; V = 15 V
1.8
2.1
5.9
2.1
GE
gate emitter threshold voltage
collector emitter leakage current
VGE(th)
ICES
IC = 0.3mA; VGE = VCE
5.4
6.5
VCE = VCES; V = 0 V
0.1 mA
mA
GE
0.1
gate emitter leakage current
total gate charge
IGES
VGE = ±20 V
500
nA
nC
ns
QG(on)
td(on)
tr
VCE = 600 V; V = 15 V; IC = 10 A
27
70
GE
turn-on delay time
current rise time
40
ns
inductive load
VCE 600V; IC = 10A
TVJ = 125°C
turn-off delay time
td(off)
t f
250
100
1.1
1.1
ns
=
current fall time
ns
VGE = ±15 V; RG=100
turn-on energy per pulse
turn-off energy per pulse
reverse bias safe operating area
Eon
mJ
mJ
Eoff
RBSOA
ICM
VGE = ±15 V; RG=100 Ω
VCEmax = 1200V
TVJ = 125°C
TVJ = 125°C
A
30
10
short circuit safe operating area
short circuit duration
SCSOA
tSC
VCEmax = 900V
VCE = 900V; VGE = ±15 V
RG =100; non-repetitive
µs
A
short circuit current
ISC
40
thermal resistance junction to case
thermal resistance case to heatsink
RthJC
RthCH
1.5 K/W
K/W
0.50
Diode
VRRM
IF25
max. repetitive reverse voltage
forward current
TVJ = 25°C
TC = 25°C
TC = 100°C
TVJ = 25°C
TVJ = 125°C
TVJ = 25°C
TVJ = 125°C
1200
V
A
22
14
IF100
VF
A
forward voltage
IF = 10A
VR = VRRM
2.20
V
1.95
V
reverse current
IR
*
mA
mA
µC
A
* not applicable, see Ices value above
reverse recovery charge
*
1.3
Qrr
VR = 600 V
max. reverse recovery current
reverse recovery time
IRM
10.5
350
0.35
-diF /dt = -250 A/µs
TVJ = 125°C
trr
ns
mJ
IF = 10A; V = 0 V
GE
reverse recovery energy
Erec
RthJC
RthCH
thermal resistance junction to case
thermal resistance case to heatsink
1.8 K/W
K/W
0.50
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20110330a
© 2011 IXYS all rights reserved
IXA12IF1200PB
preliminary
Ratings
Package TO-220
Symbol
IRMS
Definition
Conditions
per terminal
min. typ. max.
35
150
Unit
A
RMS current
TVJ
-40
-40
-40
°C
°C
°C
g
virtual junction temperature
operation temperature
storage temperature
125
150
Top
Tstg
Weight
2
MD
0.4
20
0.6 Nm
60
mounting torque
F
N
mounting force with clip
C
Product Marking
Part number
I = IGBT
X = XPT IGBT
A = Gen 1 / std
12 = Current Rating [A]
IF = Copack
1200 = Reverse Voltage [V]
PB = TO-220AB (3)
Part Number
Logo
XXXXXX
Zyyww
Assembly Line
Lot #
abcdef
Date Code
Ordering
Standard
Part Number
Marking on Product
IXA12IF1200PB
Delivery Mode
Tube
Quantity Code No.
IXA12IF1200PB
50
507428
Similar Part
Package
TO-247AD (3)
Voltage class
IXA12IF1200HB
IXA12IF1200TC
1200
1200
TO-268AA (D3Pak) (2)
TVJ = 150°C
Diode
* on die level
Equivalent Circuits for Simulation
IGBT
V0
I
R0
threshold voltage
slope resistance *
V0 max
R0 max
1.1
1.25
85
V
153
mΩ
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20110330a
© 2011 IXYS all rights reserved
IXA12IF1200PB
preliminary
Outlines TO-220
Dim.
Millimeter
Min.
Inches
Max. Min.
Max.
A
A
A1
A2
4.32
1.14
2.29
4.82
1.39
2.79
0.170 0.190
0.045 0.055
A1
E
0.090
0.110
b
b2
0.64
1.15
1.01
1.65
0.025 0.040
0.045 0.065
ØP
4
C
D
0.35
14.73 16.00
0.56
0.014 0.022
0.580 0.630
1
2
3
E
9.91 10.66
0.390 0.420
e
H1
2.54
5.85
BSC
6.85
0.100
0.230 0.270
BSC
3x b2
3x b
L
L1
12.70 13.97
2.79
0.500 0.550
0.110 0.230
5.84
ØP
Q
3.54
2.54
4.08
3.18
0.139 0.161
0.100 0.125
C
2x e
A2
2 (C)
3 (E)
(G) 1
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20110330a
© 2011 IXYS all rights reserved
IXA12IF1200PB
preliminary
IGBT
20
20
16
12
8
20
16
12
8
VGE = 15 V
VGE = 15 V
13 V
11 V
17 V
19 V
16
IC
TVJ = 125°C
12
IC
IC
TVJ = 25°C
[A]
TVJ = 125°C
[A]
[A]
8
9 V
4
0
4
4
TVJ = 125°C
TVJ = 25°C
0
0
0
1
2
3
0
1
2
3
4
5
6
7
8
9
10 11 12 13
VGE [V]
Fig. 3 Typ. tranfer characteristics
VCE [V]
VCE [V]
Fig. 1 Typ. output characteristics
Fig. 2 Typ. output characteristics
20
3.0
2.5
2.0
1.5
1.0
0.5
0.0
1.8
1.6
1.4
RG = 100
IC = 10 A
IC =
VCE = 600 V
VGE 15 V
TVJ = 125°C
10 A
Eon
VCE = 600 V
Eon
VCE = 600 V
VGE
= 15 V
=
15
TVJ = 125°C
VGE
E
10
E
Eoff
[V]
[mJ] 1.2
[mJ]
Eoff
5
0
1.0
0.8
80
120
160
200
240
0
10
20
30
0
4
8
12
16
20
IC [A]
QG [nC]
RG [ ]
Fig. 4 Typ. turn-on gate charge
Fig. 5 Typ. switching energy
vs. collector current
Fig. 6 Typ. switching energy
vs. gate resistance
Fig. 7 Typ. transient thermal impedance junction to case
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20110330a
© 2011 IXYS all rights reserved
IXA12IF1200PB
preliminary
Diode
20
2.4
2.0
1.6
1.2
0.8
0.4
0.0
24
20
16
12
8
TVJ = 125°C
VR = 600 V
TVJ = 125°C
VR = 600 V
20 A
20 A
15
IF
Qrr
IRM
[A]
10 A
5 A
10 A
5 A
10
[A]
[μC]
TVJ = 125°C
5
TVJ
= 25°C
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0
200 250 300 350 400 450 500
200 250 300 350 400 450 500
VF [V]
diF /dt [A/μs]
diF /dt [A/μs]
Fig. 1 Typ. forward current
versus VF
Fig. 2 Typical reverse recov. charge
Qrr versus. diF /dt
Fig.3 Typ: peak reverse current
IRR versus diF /dt
500
0.6
20 A
TVJ = 125°C
VR = 600 V
TVJ = 125°C
VR = 600 V
20 A
10 A
5 A
0.5
0.4
0.3
0.2
0.1
400
300
200
100
10 A
trr
Erec
[ns]
[mJ]
5 A
200 250 300 350 400 450 500
200 250 300 350 400 450 500
diF /dt [A/μs]
diF /dt [A/μs]
Fig. 5 Typ. recovery time
trr versus diF /dt
Fig. 6 Typ. recovery energy
Erec vs. diF /dt
Fig. 4 Dynamic parameters
Qrr, IRM versus TVJ
Fig. 7 Typ. transient thermal impedance junction to case
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20110330a
© 2011 IXYS all rights reserved
