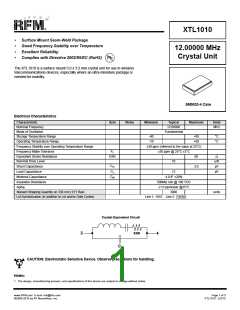

XTL1010
•
•
•
•
Surface Mount Seam-Weld Package
Good Frequency Stability over Temperature
Excellent Reliability
12.00000 MHz
Crystal Unit
Complies with Directive 2002/95/EC (RoHS)
P
b
The XTL1010 is a surface mount 5.0 x 3.2 mm crystal unit for use in wireless
telecommunications devices, especially where an ultra-miniature package is
needed for mobility.
SM5032-4 Case
Electrical Characteristics
Characteristic
Sym
Notes
Minimum
Typical
12.00000
Maximum
Units
Nominal Frequency
MHz
Mode of Oscillation
Fundamental
Storage Temperature Range
Operating Temperature Range
Frequency Stability over Operating Temperature Range
-40
-10
+85
+60
°C
°C
±30 ppm (referred to the value at 25°C)
F
Frequency Make Tolerance
Equivalent Series Resistance
Nominal Drive Level
±30 ppm @ 25°C ±3°C
L
ESR
60
Ω
10
uW
C
Shunt Capacitance
3.0
pF
O
C
Load Capacitance
12
pF
L
C
Motional Capacitance
4.0 fF ±20%
M
Insulation Resistance
500MΩ min @ 100 VDC
±1.0 ppm/year @25°C
3000
Aging
Stanard Shipping Quantity on 330 mm (13”) Reel
Lid Symbolization (in addition to Lot and/or Date Codes)
units
Line 1: 1010 Line 2: YWWS
C
r
y
s
t
a
l
E
q
u
i
v
a
l
e
n
t
C
i
r
c
u
i
t
E
S
R
2
4
C
O
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling.
Notes:
1. The design, manufacturing process, and specifications of this device are subject to change without notice.
www.RFM.com E-mail: info@rfm.com
©2009-2010 by RF Monolithics, Inc.
Page 1 of 3
XTL1010 - 2/3/10
