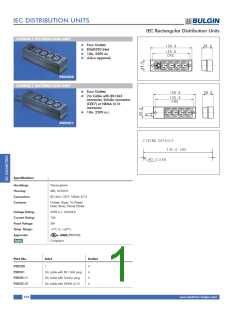

IEC DISTRIBUTION UNITS
IEC Rectangular Distribution Units
COMPACT DISTRIBUTION UNIT
ᔢ
ᔢ
ᔢ
ᔢ
Four Outlets
EN60320 Inlet
10A, 250V ac
cULus Approval
PXD200
COMPACT DISTRIBUTION UNIT
ᔢ
ᔢ
Four Outlets
2m Cable with BS1363
connector, Schuko connector
(CEE7) or NEMA 5/15
connector
ᔢ
10A, 250V a.c.
PXD201
FIXING DETAILS
135.0 CRS
M3 CLEAR
Specification
Mouldings:
Housing:
Thermoplastic
ABS, UL94V-0
Connectors:
Contacts:
BS1363, CEE7, NEMA 5/15
Outlets: Brass, Tin Plated
Inlets: Brass, Nickel Plated
Voltage Rating:
Current Rating:
Proof Voltage:
Temp. Range:
Approvals:
250V a.c. 50/60Hz
10A
2kV
–5˚C to +60˚C
Listed (PXD200)
Compliant
Part No.
Inlet
Outlet
PXD200
1
4
4
4
4
PXD201
2m cable with BS 1363 plug
2m cable with Schuko plug
2m cable with NEMA 5/15
PXD201/1
PXD201/2
102
