BUCCANEER FOR DATA
®

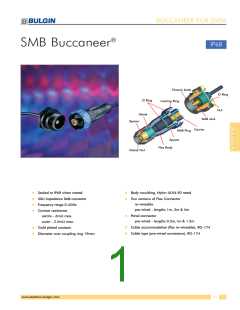

SMB Buccaneer
RE-WIREABLE FLEX CONNECTOR
46.0 max
42.3 max
ᔢ Mates with Panel connector
19.1
(PX0414)
ᔢ Re-wireable connector
ᔢ For RG-174 cable
ᔢ Supplied with SMB plug
PX0415/1
Part no.
Description
Re-wireable connector with SMB Plug - for RG-174 cable
PX0415/1
PRE-WIRED FLEX CONNECTOR
ᔢ Mates with Panel connector
(PX0414)
ᔢ Pre-wired
ᔢ Overmoulded construction
ᔢ Supplied with SMB plug
terminated with RG-174 cable
ᔢ 1m, 3m & 5m cable lengths
PX0416/xMxx
Part no.
Description
PX0416/1M00
PX0416/3M00
PX0416/5M00
Overmoulded connector with SMB plug - cable length 1m
Overmoulded connector with SMB plug - cable length 3m
Overmoulded connector with SMB plug - cable length 5m
PANEL MOUNTING CONNECTOR
19.9
Ø22.0
12.3
ᔢ Mates with Flex connectors
Ø16.10
(PX0415, PX0416)
ᔢ Single hole fixing
ᔢ Supplied with SMB jack
terminated with RG-174 cable
ᔢ U.FL cable version also
available
3.2 max
PX0414/xMxx
Part no.
Description
PX0414/0M50
PX0414/1M00
PX0414/1M50
Panel connector with SMB jack - cable length 0.5m
Panel connector with SMB jack - cable length 1m
Panel connector with SMB jack - cable length 1.5m
SEALING CAPS AND ACCESSORIES
ᔢ
Sealing caps maintain IP rating
when connectors are not in use
Part no.
Description
PX0480
PX0481
PX0485
14319
Sealing cap for PX0414 chassis connector
Sealing cap for PX0415 re-wireable flex connectors
Sealing cap for PX0416 overmoulded flex connector
Hand crimp tool for SMB
PX0480
PX0481
PX0485
www.elektron-bulgin.com
