ZXTN4006ZTA

型号:

ZXTN4006ZTA

描述:

NPN 200V的LED驱动晶体管SOT89[ 200V NPN LED DRIVING TRANSISTOR IN SOT89 ]

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

5 页

PDF大小:

119 K

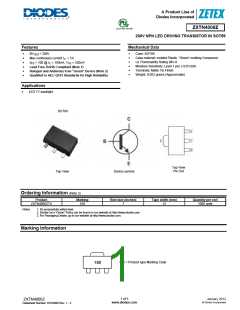

A Product Line of
Diodes Incorporated
ZXTN4006Z
200V NPN LED DRIVING TRANSISTOR IN SOT89
Features
Mechanical Data
Case: SOT89
BVCEO > 200V
Max continuous current IC = 1A
FE > 100 @ IC = 150mA, VCE = 320mV
Lead Free, RoHS Compliant (Note 1)
Halogen and Antimony Free "Green" Device (Note 2)
Qualified to AEC-Q101 Standards for High Reliability
Case material: molded Plastic. “Green” molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
h
Weight: 0.052 grams (Approximate)
Applications
LED TV backlight
SOT89
Top View
Pin Out
Top View
Device symbol
Ordering Information (Note 3)
Product
ZXTN4006ZTA
Marking
1S5
Reel size (inches)
Tape width (mm)
Quantity per reel
7
12
1000 units
Notes:
1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
3. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
1S5 = Product type Marking Code
1S5
1 of 5
www.diodes.com
January 2012
© Diodes Incorporated
ZXTN4006Z
Datasheet Number: DS35609 Rev. 1 - 2
A Product Line of
Diodes Incorporated
ZXTN4006Z
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Collector-Base Voltage
Symbol
VCBO
VCEO
VEBO
IC
Value
200
200
7
Unit
V
Collector-Emitter Voltage
Emitter-Base Voltage
V
V
Continuous Collector Current
Peak Pulse Current (Note 4)
Base Current
1
A
3
A
ICM
500
mA
IB
Thermal Characteristics @TA = 25°C unless otherwise specified
Characteristic
Symbol
Value
1.5
Unit
W
Power Dissipation (Note 5)
PD
RθJA
Thermal Resistance, Junction to Ambient (Note 5)
Thermal Resistance, Junction to Leads (Note 6)
Operating and Storage Temperature Range
83
°C/W
°C/W
°C
16.7
RθJL
-55 to +150
TJ, TSTG
Notes:
4. Measured under pulsed conditions. Pulse width = 300µs. Duty cycle 2%.
5. For a device surface mounted on 25mm X 25mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions
6. Thermal resistance from junction to solder-point (at the end of the collector lead).
Thermal Characteristics and Derating information
2 of 5
www.diodes.com
January 2012
© Diodes Incorporated
ZXTN4006Z
Datasheet Number: DS35609 Rev. 1 - 2
A Product Line of
Diodes Incorporated
ZXTN4006Z
Electrical Characteristics @TA = 25°C unless otherwise specified
Characteristic
Collector-Emitter Breakdown Voltage (Note 7)
Collector Cut-off Current
Symbol
BVCEO
ICBO
Min
200
Typ
Max
-
Unit
V
Test Condition
IC = 10mA
-
-
-
-
-
50
50
nA
nA
VCB = 200V
Emitter Cut-off Current
IEBO
VEB = 7V
IC = 85mA, VCE = 0.25V
IC = 150mA, VCE = 0.32V
IC = 150mA, VCE = 0.32V
60
100
-
-
-
-
Static Forward Current Transfer Ratio (Note 7)
-
hFE
Base-Emitter Turn-On Voltage (Note 7)
-
-
-
-
-
-
-
0.72
600
496
2730
293
56
0.95
V
VBE(on)
t(d)
Delay Time
Rise Time
-
-
-
-
-
-
ns
ns
ns
ns
ns
ns
t(r)
VCC = 160V, IC = 150mA,
-IB2 = 1.5mA, VCE(ON) = 0.32V
Storage Time
Fall Time
t(s)
t(f)
Storage Time
Fall Time
t(s)
VCC = 80V, IC = 150mA,
IB1 = -IB2 = 1.5mA, VCE(ON) = 4V
243
t(f)
Notes:
7. Measured under pulsed conditions. Pulse width = 300µs. Duty cycle 2%
Electrical Characteristics
1.0
500
VCE=0.32V
VCE=0.32V
-55°C
125°C
25°C
0.8
0.6
0.4
0.2
400
85°C
300
25°C
200
125°C
100
-55°C
85°C
10m
0
100µ
1m
10m
100m
1
100µ
1m
100m
1
IC Collector Current (A)
IC Collector Current (A)
hFE v IC
VBE(on) v IC
30
25
20
15
10
5
f = 1MHz
Cobo
0
100m
1
10
100
Voltage(V)
Capacitance v Voltage
3 of 5
www.diodes.com
January 2012
© Diodes Incorporated
ZXTN4006Z
Datasheet Number: DS35609 Rev. 1 - 2
A Product Line of
Diodes Incorporated
ZXTN4006Z
Package Outline Dimensions
D1
C
SOT89
Min
Dim
A
B
B1
C
D
D1
E
e
e1
H
L
Max
1.60
0.62
0.54
0.43
4.60
1.83
2.60
1.40
0.44
0.35
0.35
4.40
1.52
2.29
1.50 Typ
3.00 Typ
3.94
0.89
E
H
L
B
e
B1
e1
4.25
1.20
A
All Dimensions in mm
D
Suggested Pad Layout
X1
Dimensions Value (in mm)
X
0.900
1.733
0.416
1.300
4.600
1.475
0.950
1.125
1.500
X2 (2x)
X1
X2
Y
Y1
Y2
Y3
Y4
C
Y1
Y3
Y
Y4
Y2
C
X (3x)
4 of 5
www.diodes.com
January 2012
© Diodes Incorporated
ZXTN4006Z
Datasheet Number: DS35609 Rev. 1 - 2
A Product Line of
Diodes Incorporated
ZXTN4006Z
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2012, Diodes Incorporated
www.diodes.com
5 of 5
www.diodes.com
January 2012
© Diodes Incorporated
ZXTN4006Z
Datasheet Number: DS35609 Rev. 1 - 2
