PX0595

型号：

PX0595

描述：

POLYSNAP ？电源输入模块[ POLYSNAP? POWER INLET MODULES ]

品牌：

BULGIN[ ELEKTRON COMPONENTS LTD. ]

页数：

26 页

PDF大小：

1545 K

下载PDF手册
®

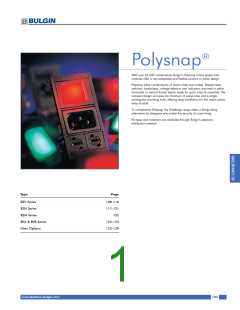

Polysnap
With over 26,000 combinations Bulgin’s Polysnap mains power inlet
modules offer a very adaptable and flexible solution to panel design.
Polysnap allow combinations of mains inlets and outlets, filtered inlets,
switches, fuseholders, voltage selectors and indicators mounted in either
horizontal or vertical format bezels ready for quick snap-fit assembly. The
compact design occupies the minimum of panel area and a single
rectangular mounting hole, offering easy installation for this mains power
entry module.
To complement Polysnap the Polyflange range offers a flange fixing
alternative for designers who prefer the security of screw fixing.
All types and variations are available through Bulgin’s extensive
distribution network.
Type
Page
BZV Series
108-116
117-121
122
BZH Series
BZM Series
BVA & BVB Series
Filter Options
123-124
125-129
www.elektron-bulgin.com
105
®
POLYSNAP POWER INLET MODULES
®
Components used in Polysnap and Polyflange Power Inlet Modules
Note: Components are Approved Individually (where applicable). Please see individual component pages for full specifications.
IEC CONNECTORS, FUSEHOLDERS AND VOLTAGE SELECTORS
Type
Description
Rating
Approvals
DX0928
FX0359
Neon Indicator
110V or 250V a.c./d.c. working
5 x 20mm Fuseholder
Max. rating 10A. 250V
See Page 150
PF0011
PF0033
PX0575
PX0595
PX0695
PX0783
PX0598
VS0001
C14 Power Inlet with Integral 5 x 20mm
Fuseholder
Max. rating 10A. 250V a.c.
See Page 81
C14 Power Inlet with Integral twin 5 x 20mm
Fuseholder
Max. rating 10A. 250V a.c.
See Page 82
C14 Power Inlet, Cold condition
C16 Power Inlet, Hot Condition
Sheet F Power Outlet
Max. rating 10A. 250V a.c.
See Page 77
Max. rating 10A. 250V a.c.
See Page 83
Max. rating 10A. 250V a.c.
See Page 90
Sheet F Shuttered Power Outlet
C20 Power Inlet
Max. rating 10A. 250V a.c.
See Page 91
Max. rating 16A, 250V a.c.
See Page 93
Voltage Selector marked 120/240V
Max. rating 6.3A. 120/240V a.c.
See Page 196
SWITCHES, INDICATORS AND CIRCUIT BREAKERS
No Poles
Illumination
Current Ratings
Circuit
Approvals
Single Pole
Non-illuminated
High Inrush
Max. rating 16A Resistive, 4A Inductive, 250Vac.
1
1
2
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Inrush current, 150A to IEC65.
3
2
Illuminated
Max. rating 16A Resistive, 4A Inductive, 250Vac.
2
1
4
Double Pole
Non-illuminated
High Inrush
Max. rating 16A Resistive, 4A Inductive, 250Vac.
5
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Inrush current, 150A to IEC65.
2
5
1
Illuminated
Max. rating 16A Resistive, 4A Inductive, 250Vac.
250Vac Neon.
4
For Mini Bezel:
Single Pole
2a
2a
1a
Non-illuminated
Illuminated
Max. rating 10A Resistive, 4A Inductive, 250Vac.
1a
Max. rating 10A Resistive, 4A Inductive, 250Vac.
250Vac Neon.
3b
2
5
1
4
Double Pole
Non-illuminated
High Inrush
Max. rating 10A Resistive, 4A Inductive, 250Vac.
2a
4b
1a
Max. rating 10A Resistive, 4A Inductive, 250Vac.
Inrush current, 85A to EN61058-1.
3b
2
1
Illuminated
Max. rating 10A Resistive, 4A Inductive, 250Vac.
250Vac Neon.
5
4
1
3
Indicator
250Vac neon lamp connected internally to terminals.
RoHS
Polysnap and Polyflange range and all components are compliant
106
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
OVERVIEW OF POLYSNAP MODULES
INLETS
OUTLETS
Sheet F
INLET/OUTLET COMBINATIONS
Style
C14
C14 Fused
C16
C20
C14
C14 Fused
Snap to Panel -
Vertical
With SP switch
Page 110
With SP switch
Page 108
With SP switch
Page 110
With SP switch
Page 114
With SP switch
Page 116
With DP Switch
Page 109
With other
components
Pages 111, 112, 113
With other
components
Pages 111, 112, 113
With other
components
Page 115
Snap to Panel -
Horizontal
With SP switch
Page 117
With SP switch
Page 119
With DP Switch
Page 118
With DP switch
Page 120
Mini Bezel
With SP Switch
Page 122
No additional
components
Page 121
Mini Bezel
With DP Switch
Page 122
Flange Mount -
Vertical
With SP switch
Page 123
With DP switch
Page 124
www.elektron-bulgin.com
107
C14 IEC Fused Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
ᔢ
Fused Inlet with 2.8mm or
6.3mm tags
ᔢ
ᔢ
ᔢ
Single Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZV01/Z0000/01
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
Single Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
Z0000 = Non Filtered
Single Pole Switch:
Axxxx = Standard
01 = S.P. Switch
01 = PF0011/63
02 = PF0011/28
Bxxxx = Medical (Twin Fuse Version only)
Single Pole Neon Switch:
02 = S.P. Red Neon Switch
08 = S.P. Green Neon Switch
Twin Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
Neon Indicator:
15 = PF0033/63
16 = PF0033/28
03 = Red Neon Indicator
Single Pole High Inrush Switch:
46 = S.P. High Inrush Switch
Single Pole Switch Marked I/O:
69 = S.P. Switch (I/O)
For Filtered inlet use 6th to 9th characters from filter
ordering code see pages 127-129.
E.g. BZV01/A0620/01
Single Pole Neon Switch Marked (I/O):
71 = S.P. Red Neon Switch (I/O)
74 = S.P. Green Neon Switch (I/O)
Single Pole High Inrush Switch Marked (I/O):
98 = S.P. High Inrush Switch (I/O)
Note: For technical details of individual components please see page 106
108
www.elektron-bulgin.com
C14 IEC Fused Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
ᔢ
ᔢ
Fused Inlet with 2.8mm or
6.3mm tags
Double Pole Switch or
Indicator Variations
ᔢ
ᔢ
Filtered Inlet Option
Options of I/O marked
switches
BZV01/Z0000/10
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
Single Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
Z0000 = Non Filtered
Neon Indicator:
Axxxx = Standard
D3 = Red Neon Indicator
01 = PF0011/63
02 = PF0011/28
Bxxxx = Medical (Twin Fuse Version only)
Double Pole Switch:
10 = D.P. Switch
Twin Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
Double Pole Neon Switch:
15 = PF0033/63
16 = PF0033/28
11 = D.P. Red Neon Switch
12 = D.P. Green Neon Switch
Double Pole High Inrush Switch:
13 = D.P. High Inrush Switch
For Filtered inlet use 6th to 9th characters from filter
ordering code see pages 127-129.
Double Pole Switch Marked I/O:
70 = D.P. Switch (I/O)
E.g. BZV01/A0620/10
Double Pole Neon Switch Marked (I/O):
76 = D.P. Red Neon Switch (I/O)
77 = D.P. Green Neon Switch (I/O)
Double Pole High Inrush Switch Marked
(I/O):
78 = D.P. High Inrush Switch (I/O)
B1 = D.P. High Inrush Green Neon Switch
(I/O)
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
109
®
POLYSNAP POWER INLET MODULES
C14 and C16 IEC Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
ᔢ
ᔢ
Inlet with 2.8mm or 6.3mm
tags
Single Pole Switch or Neon
Indicator Variations
ᔢ
ᔢ
Filtered Inlet Option
Options of I/O marked
switches
ᔢ
Non Fused
BZV03/Z0000/02
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
C14 Power Inlet (cold condition), 6.3 or 2.8mm
tabs:
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
Single Pole Switch:
01 = S.P. Switch
03 = PX0575/63
04 = PX0575/28
Single Pole Neon Switch:
02 = S.P. Red Neon Switch
08 = S.P. Green Neon Switch
C16 Power Inlet (hot condition), 6.3 or 2.8mm
tabs:
05 = PX0595/63
06 = PX0595/28
Neon Indicator:
03 = Red Neon Indicator
Single Pole High Inrush Switch:
Please note type 05 and 06 are not available in
filtered version
46 = S.P. High Inrush Switch
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 125-126.
Single Pole Switch Marked I/O:
69 = S.P. Switch (I/O)
E.g. BZV03/A0120/02
Single Pole Neon Switch Marked (I/O):
71 = S.P. Red Neon Switch (I/O)
74 = S.P. Green Neon Switch (I/O)
Single Pole High Inrush Switch Marked
(I/O):
98 = S.P. High Inrush Switch (I/O)
Note: For technical details of individual components please see page 106
110
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 and C16 IEC Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
ᔢ
Inlet with 2.8mm or 6.3mm
tags
ᔢ
Double Pole Switch/
Fuseholder/Indicator/
Voltage Selectors/
Blanking Plate
ᔢ
Filtered Inlet Option
ᔢ
Options of I/O marked
switches
BZV03/Z0000/07
How to Order
BZV xx / xxxxx / xx
Combination of Other Components
Twin Fuseholder and Double Pole
Voltage Selector, Neon Indicator and
Filtered or Non Filtered Inlet
Type of Inlet / Outlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
C14 Power Inlet (cold
condition), 6.3 or 2.8mm
tabs:
Switch:
Double Pole Switch
05 = 2 x FX0359 + D.P. Switch
25 = 1 x VS0001 + 1 x
DX0928/110V/Red + D.P. Switch
26 = 1 x VS0001 + 1 x
DX0928/110V/Green + D.P. Switch
27 = 1 x VS0001 + 1 x
DX0928/250V/Red + D.P. Switch
28 = 1 x VS0001 + 1 x
DX0928/250V/Green + D.P. Switch
Twin Fuseholder and Double Pole Neon
Switch:
06 = 2 x FX0359 + D.P. Red Neon
Switch
09 = 2 x FX0359 + D.P. Green Neon
Switch
03 = PX0575/63
04 = PX0575/28
C16 Power Inlet (hot
condition), 6.3 or 2.8mm
tabs:
19 = 2 x FX0359 + D.P. Red Neon
Switch 125V
Voltage Selector, Neon Indicator and
Double Pole High Inrush Switch:
29 = 1 x VS0001 + 1 x
DX0928/250V/Red + D.P. High Inrush
Switch
05 = PX0595/63
06 = PX0595/28
Twin Fuseholder and Neon Indicator:
07 = 2 x FX0359 + Red Neon
Indicator
30 = 1 x VS0001 + 1 x
DX0928/250V/Green + D.P. High
Inrush Switch
Voltage Selector, Fuseholder and Double
Pole Switch:
15 = 1 x VS0001 + 1 x FX0359 +
Double Pole switch
Please note type 05 and
06 are not available in
filtered version
For Filtered inlet use 6th to 9th
characters from filter ordering code
see pages 125-126.
Fuseholder, Neon Indicator and Double
Pole Switch
31 = 1 x FX0359 + 1 x
DX0928/110V/Red + D.P. Switch
32 = 1 x FX0359 + 1 x
DX0928/110V/Green + D.P. Switch
33 = 1 x FX0359 + 1 x
DX0928/250V/Red + D.P. Switch
34 = 1 x Fx0359 + 1 x
DX0928/250V/Green + D.P. Switch
Voltage Selector, Fuseholder and Double
Pole Neon Switch:
16 = 1 x VS0001 + 1 x FX0359 + D.P.
Red Neon Switch
18 = 1 x VS0001 + 1 x FX0359 + D.P.
Green Neon Switch
E.g. BZV03/A0120/07
Voltage Selector, Fuseholder and Neon
Indicator:
17 = 1 x VS0001 + 1 x FX0359 + Red
Neon Indicator
Fuseholder, Neon Indicator and Double
Pole High Inrush Switch:
35 = 1 x FX0359 + 1 x
DX0928/250V/Red + D.P. High Inrush
Switch
36 = 1 x FX0359 + 1 x
DX0928/250V/Green + D.P. High
Inrush Switch
Twin Fuseholder and Double Pole High
Inrush Switch:
20 = 2 x FX0359 + D.P. High Inrush
Switch
Twin Fuseholder and Double Pole High
Inrush Neon Switch:
Fuseholder, Blanking Plate and Double
Pole High Inrush Neon Switch:
47 = 1 x FX0359 + 1 x Blanking Plate
(Right) + D.P. High Inrush Green Neon
Switch
21 = 2 x FX0359 + 1 x D.P. High
Inrush Green Neon Switch
22 = 2 x FX0359 + 1 x D.P. High
Inrush Red Neon Switch
Fuseholder, Blanking Plate and Double
Pole Switch:
48 = 1 x FX0359 + 1 x Blanking Plate
(Right) + D.P. Switch
www.elektron-bulgin.com
111
®
POLYSNAP POWER INLET MODULES
C14 and C16 IEC Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
ᔢ
ᔢ
Inlet with 2.8mm or 6.3mm
tags
Double Pole Switch/
Fuseholder/Indicator/
Voltage Selectors/
Blanking Plate
ᔢ
ᔢ
Filtered Inlet Option
Options of I/O marked
switches
BZV03/Z0000/07
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
C14 Power Inlet (cold
condition), 6.3 or 2.8mm
tabs:
Voltage Selector, Neon Indicator and
Double Pole High Inrush Switch Marked
(I/O):
90 = 1 x VS0001 + 1 x
DX0928/250V/Red + D.P. High Inrush
Switch(I/O)
91 = 1 x VS0001 + 1 x
DX0928/250V/Green + D.P. High
Inrush Switch(I/O)
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
Twin Fuseholder and Double Pole Switch
Marked (I/O):
72 = 2 x FX0359 + D.P. Switch (I/O)
03 = PX0575/63
04 = PX0575/28
Twin Fuseholder and Double Pole Neon
Switch Marked (I/O):
73 = 2 x FX0359 + D.P. Red Neon
Switch (I/O)
75 = 2 x FX0359 + D.P. Green Neon
Switch(I/O)
82 = 2 x FX0359 + D.P. Red Neon
Switch 125V(I/O)
C16 Power Inlet (hot
condition), 6.3 or 2.8mm
tabs:
Fuseholder, Neon Indicator and Double
Pole Switch Marked (I/O)
92 = 1 x FX0359 + 1 x
DX0928/110V/Red + D.P. Switch (I/O)
93 = 1 x FX0359 + 1 x
DX0928/110V/Green + D.P. Switch
(I/O)
94 = 1 x FX0359 + 1 x
DX0928/250V/Red + D.P. Switch (I/O)
95 = 1 x FX0359 + 1 x
DX0928/250V/Green + D.P. Switch
(I/O)
05 = PX0595/63
06 = PX0595/28
Voltage Selector, Fuseholder and Double
Pole Switch Marked (I/O):
79 = 1 x VS0001 + 1 x FX0359 +
Double Pole switch (I/O)
Please note type 05 and
06 are not available in
filtered version
Voltage Selector, Fuseholder and Double
Pole Neon Switch Marked (I/O):
80 = 1 x VS0001 + 1 x FX0359 + D.P.
Red Neon Switch (I/O)
81 = 1 x VS0001 + 1 x FX0359 + D.P.
Green Neon Switch (I/O)
For Filtered inlet use 6th to 9th
characters from filter ordering
code see pages 125-126.
Fuseholder, Neon Indicator and Double
Pole High Inrush Switch Marked (I/O):
96 = 1 x FX0359 + 1 x
DX0928/250V/Red + D.P. High Inrush
Switch (I/O)
E.g. BZV03/A0120/07
Twin Fuseholder and Double Pole High
Inrush Switch Marked (I/O):
83 = 2 x FX0359 + D.P. High Inrush
Switch (I/O)
97 = 1 x FX0359 + 1 x
DX0928/250V/Green + D.P. High
Inrush Switch (I/O)
Twin Fuseholder and Double Pole High
Inrush Neon Switch Marked (I/O):
84 = 2 x FX0359 + 1 x D.P. High
Inrush Green Neon Switch (I/O)
85 = 2 x FX0359 + 1 x D.P. High
Inrush Red Neon Switch (I/O)
Fuseholder, Blanking Plate and Double
Pole High Inrush Neon Switch Marked
(I/O):
99 = 1 x FX0359 + 1 x Blanking Plate
(Right) + D.P. High Inrush Green Neon
Switch (I/O)
Voltage Selector, Neon Indicator and
Double Pole Switch Marked (I/O):
86 = 1 x VS0001 + 1 x
DX0928/110V/Red + D.P. Switch (I/O)
87 = 1 x VS0001 + 1 x
DX0928/110V/Green + D.P. Switch
(I/O)
88 = 1 x VS0001 + 1 x
Fuseholder, Blanking Plate and Double
Pole Switch Marked (I/O):
A0 = 1 x FX0359 + 1 x Blanking Plate
(Right) + D.P. Switch (I/O)
B2 = 1 x VS0002 + 1 x Blanking Plate
B3 = 1 x FX0359 + 1 x Blanking Plate
+ D.P. High Inrush Switch (I/O)
DX0928/250V/Red + D.P. Switch (I/O)
89 = 1 x VS0001 + 1 x
DX0928/250V/Green + D.P. Switch
(I/O)
112
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 and C16 IEC Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
ᔢ
Inlet with 2.8mm or 6.3mm
tags
ᔢ
Fuseholder/Voltage
Selector/Indicator
options/Blanking plate
ᔢ
Filtered Inlet Option
BZV04/Z0000/04
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
C14 Power Inlet (cold condition), 6.3 or
2.8mm tabs:
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
Twin Fuseholder:
04 = 2 x FX0359
03 = PX0575/63
04 = PX0575/28
Voltage Selector and Fuseholder:
14 = 1 x VS0001 + 1 x FX0359
C16 Power Inlet (hot condition), 6.3 or 2.8mm
tabs:
Voltage selector and Neon:
05 = PX0595/63
06 = PX0595/28
37 = 1 x VS0001 + DX0928/110V/Red
38 = 1 x VS0001 + DX0928/110V/Green
39 = 1 x VS0001 + DX0928/250V/Red
40 = 1 x VS0001 + DX0928/250V/Green
Please note type 05 and 06 are not available in
filtered version
Fuseholder and Neon:
41 = 1 x FX0359 + DX0928/110V/Red
42 = 1 x FX0359 + DX0928/110V/Green
43 = 1 x FX0359 + DX0928/250V/Red
44 = 1 x FX0359 + DX0928/250V/Green
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 125-126.
E.g. BZV04/A0120/04
Fuseholder and Blanking Plate:
45 = 1 x FX0359 + Blanking Plate
Voltage Selector and Blanking Plate:
B2 = 1 x VS0001 + Blanking Plate
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
113
®
POLYSNAP POWER INLET MODULES
C20 IEC Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
ᔢ
ᔢ
ᔢ
ᔢ
Inlet with 4.8mm or 6.3mm
tags
Single Pole Switch marked
I/O
Illuminated, red or green,
switches
High inrush non-illuminated
switch
BZV49/Z0000/69
Panel Thickness: 1.0, 1.5, 2.0, 3.0mm.
How to Order
Type of Inlet
BZV xx / xxxxx / xx
Filtered or Non Filtered Inlet
Combination of Other Components
C20 Power Inlet (cold condition), 4.8 or
6.3mm tabs:
Z0000 = Non Filtered
Single Pole Switch:
01 = S.P. Switch
49 = PX0598/63
50 = PX0598/48
Single Pole Switch Marked (I/O):
69 = S.P. Switch (I/O)
Single Pole Illuminated Switch:
02 = S.P. Illuminated Red
08 = S.P. Illuminated Green
Single Pole Non-illuminated High Inrush
Switch Marked I/O:
98 = S.P. High Inrush Switch (I/O)
Single Pole Illuminated (Red or Green 250v
Neon) Switch Marked I/O:
71 = S.P. Switch Illuminated Red (I/O)
74 = S.P. Switch Illuminated Green (I/O)
Note: For technical details of individual components please see page 106
114
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 IEC Inlet/Sheet F IEC Outlet - Vertical
VERTICAL MODULE ARRANGEMENT
ᔢ
ᔢ
ᔢ
Inlet/Outlet Combination
2.8mm or 6.3mm tags
Filtered Inlet and Blanking
Plate options
ᔢ
ᔢ
Shuttered or Non-shuttered
Outlet
Fused
BZV09/Z0000/04
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
C14 Power Inlet (cold condition) and Sheet F
Non-shuttered Power Outlet, 2.8 or 6.3mm tabs:
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
Twin Fuseholder:
04 = 2 x FX0359
09 = PX0575/63 + PX0695/63
10 = PX0575/28 + PX0695/28
Voltage Selector and Fuseholder:
14 = 1 x VS0001 + 1 x FX0359
C14 Power Inlet (cold condition) and Sheet F
Shuttered Power Outlet, 2.8 or 6.3mm tabs:
Voltage selector and Neon:
17 = PX0575/63 + PX0783/63
18 = PX0575/28 + PX0783/28
37 = 1 x VS0001 + DX0928/110V/Red
38 = 1 x VS0001 + DX0928/110V/Green
39 = 1 x VS0001 + DX0928/250V/Red
40 = 1 x VS0001 + DX0928/250V/Green
Fuseholder and Neon:
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 125-126.
41 = 1 x FX0359 + DX0928/110V/Red
42 = 1 x FX0359 + DX0928/110V/Green
43 = 1 x FX0359 + DX0928/250V/Red
44 = 1 x FX0359 + DX0928/250V/Green
E.g. BZV09/A0120/04
Fuseholder and Blanking Plate:
45 = 1 x FX0359 + Blanking Plate
Voltage Selector and Blanking Plate:
B2 = 1 x VS0001 + Blanking Plate
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
115
®
POLYSNAP POWER INLET MODULES
Sheet F IEC Outlet - Vertical
VERTICAL MODULE ARRANGEMENT
ᔢ
Outlet with 2.8mm or 6.3mm
tags
ᔢ
ᔢ
Shuttered or Non-Shuttered
Single Pole Switch or Neon
Indicator
ᔢ
I/O Marking Options
BZV45/Z0000/02
Panel Thickness: 1.0, 1.5, 2.0, 3.0mm.
How to Order
Type of Outlet
BZV xx / xxxxx / xx
Non Filtered Outlet
Combination of Other Components
Sheet F Power Outlet (non shuttered), 6.3 or
2.8mm tabs:
Z0000 = Non Filtered
Single Pole Switch:
01 = S.P. Switch
45 = PX0695/63
46 = PX0695/28
Single Pole Neon Switch:
02 = S.P. Red Neon Switch
08 = S.P. Green Neon Switch
Sheet F Power Outlet (shuttered), 6.3 or
2.8mm tabs:
Neon Indicator:
47 = PX0783/63
48 = PX0783/28
03 = Red Neon Indicator
Single Pole High Inrush Switch:
46 = S.P. High Inrush Switch
Single Pole Switch Marked I/O:
69 = S.P. Switch (I/O)
Single Pole Neon Switch Marked (I/O):
71 = S.P. Red Neon Switch (I/O)
74 = S.P. Green Neon Switch (I/O)
Single Pole High Inrush Switch Marked (I/O):
98 = S.P. High Inrush Switch (I/O)
Note: For technical details of individual components please see page 106
116
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 IEC Fused Inlet - Horizontal
HORIZONTAL MODULE ARRANGEMENT
ᔢ
Fused Inlet with 2.8mm or
6.3mm tags
ᔢ
ᔢ
ᔢ
Single Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZH01/Z0000/01
How to Order
BZH xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
Single Fused C14 Power Inlet (cold condition),
2.8 or 6.3mm tabs:
Z0000 = Non Filtered
Single Pole Switch:
Axxxx = Standard
01 = S.P. Switch
01 = PF0011/63
02 = PF0011/28
Bxxxx = Medical (Twin Fuse Version only)
Single Pole Neon Switch:
02 = S.P. Red Neon Switch
08 = S.P. Green Neon Switch
Twin Fused C14 Power Inlet (cold condition),
2.8 or 6.3mm tabs:
15 = PF0033/63
16 = PF0033/28
Neon Indicator:
03 = Red Neon Indicator
Single Pole High Inrush Switch:
46 = S.P. High Inrush Switch
Single Pole Switch Marked I/O:
69 = S.P. Switch (I/O)
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 127-129.
E.g. BZH01/A0620/01
Single Pole Neon Switch Marked (I/O):
71 = S.P. Red Neon Switch (I/O)
74 = S.P. Green Neon Switch (I/O)
Single Pole High Inrush Switch Marked (I/O):
98 = S.P. High Inrush Switch (I/O)
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
117
®
POLYSNAP POWER INLET MODULES
C14 IEC Fused Inlet - Horizontal
HORIZONTAL MODULE ARRANGEMENT
ᔢ
Fused Inlet with 2.8mm or
6.3mm tags
ᔢ
ᔢ
ᔢ
Double Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZH01/Z0000/10
How to Order
BZH xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
Single Fused C14 Power Inlet (cold condition),
2.8 or 6.3mm tabs:
Z0000 = Non Filtered
Neon Indicator:
Axxxx = Standard
03 = Red Neon Indicator
01 = PF0011/63
02 = PF0011/28
Bxxxx = Medical (Twin Fuse Version only)
Double Pole Switch:
10 = D.P. Switch
Twin Fused C14 Power Inlet (cold condition),
2.8 or 6.3mm tabs:
Double Pole Neon Switch:
15 = PF0033/63
16 = PF0033/28
11 = D.P. Red Neon Switch
12 = D.P. Green Neon Switch
Double Pole High Inrush Switch:
13 = D.P. High Inrush Switch
Double Pole Switch marked I/O:
70 = D.P. Switch (I/O)
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 127-129.
E.g. BZH01/A0620/10
Double Pole Neon Switch Marked (I/O):
76 = D.P. Red Neon Switch (I/O)
77 = D.P. Green Neon Switch (I/O)
Double Pole High Inrush Switch Marked
(I/O):
78 = D.P. High Inrush Switch (I/O)
B1 = D.P. High Inrush Green Neon Switch
(I/O)
Note: For technical details of individual components please see page 106
118
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 IEC Inlet/Sheet F IEC Outlet - Horizontal
HORIZONTAL MODULE ARRANGEMENT
ᔢ
Inlet/Outlet Combination
with 2.8mm or 6.3mm tags
ᔢ
Shuttered or Non-Shuttered
Outlet
ᔢ
ᔢ
ᔢ
Single Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZH09/Z0000/01
How to Order
BZH xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
C14 Power Inlet (cold condition) and Sheet F
Non-shuttered Power Outlet, 2.8 or 6.3mm tabs:
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
Single Pole Switch:
01 = S.P. Switch
09 = PX0575/63 + PX0695/63
10 = PX0575/28 + PX0695/28
Single Pole Neon Switch:
02 = S.P. Red Neon Switch
08 = S.P. Green Neon Switch
C14 Power Inlet (cold condition) and Sheet F
Shuttered Power Outlet , 2.8 or 6.3mm tabs:
17 = PX0575/63 + PX0783/63
18 = PX0575/28 + PX0783/28
Neon Indicator:
03 = Red Neon Indicator
Single Pole High Inrush Switch:
46 = S.P. High Inrush Switch
Single Pole Switch Marked I/O:
69 = S.P. Switch (I/O)
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 125-126.
E.g. BZH09/A0120/01
Single Pole Neon Switch Marked (I/O):
71 = S.P. Red Neon Switch (I/O)
74 = S.P. Green Neon Switch (I/O)
Single Pole High Inrush Switch Marked
(I/O):
98 = S.P. High Inrush Switch (I/O)
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
119
®
POLYSNAP POWER INLET MODULES
C14 IEC Inlet/Sheet F IEC Outlet - Horizontal
HORIZONTAL MODULE ARRANGEMENT
ᔢ
Inlet/Outlet Combination
with 2.8mm or 6.3mm tags
ᔢ
ᔢ
Single or Twin Fused Inlet
Shuttered or Non-Shuttered
Outlet
ᔢ
ᔢ
ᔢ
Double Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZH11/Z0000/10
How to Order
BZH xx / xxxxx / xx
Type of Inlet/Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
Single Fused C14 Power Inlet (cold condition) and
Sheet F Power Outlet, 2.8 or 6.3mm tabs:
Z0000 = Non Filtered
Neon Indicator:
Axxxx = Standard
D3 = Red Neon Indicator
11 = PF0011/63 + PX0695/63
12 = PF0011/28 + PX0695/28
Bxxxx = Medical (Twin Fuse Version only)
Double Pole Switch:
10 = D.P. Switch
Twin Fused C14 Power Inlet (cold condition)
and Sheet F Power Outlet , 2.8 or 6.3mm tabs:
Double Pole Neon Switch:
11 = D.P. Red Neon Switch
12 = D.P. Green Neon Switch
13 = PF0033/63 + PX0695/63
14 = PF0033/28 + PX0695/28
Single Fused C14 Power Inlet (cold condition) and
Sheet F Shuttered Power Outlet, 2.8 or 6.3mm tabs:
Double Pole High Inrush Switch:
19 = PF0011/63 + PX0783/63
20 = PF0011/28 + PX0783/28
13 = D.P. High Inrush Switch
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 127-129.
Double Pole Switch Marked I/O:
70 = D.P. Switch (I/O)
Twin Fused C14 Power Inlet (cold condition) and
Sheet F Shuttered Power Outlet , 2.8 or 6.3mm tabs:
E.g. BZH11/A0620/10
21 = PF0033/63 + PX0783/63
22 = PF0033/28 + PX0783/28
Double Pole Neon Switch Marked (I/O):
76 = D.P. Red Neon Switch (I/O)
77 = D.P. Green Neon Switch (I/O)
Double Pole High Inrush Switch Marked
(I/O):
78 = D.P. High Inrush Switch (I/O)
B1 = D.P. High Inrush Green Neon Switch
(I/O)
Note: For technical details of individual components please see page 106
120
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 IEC Fused Inlet/Sheet F IEC Outlet - Horizontal
HORIZONTAL MODULE ARRANGEMENT
ᔢ
Fused Inlet/Outlet
Combination with 2.8mm or
6.3mm tags
ᔢ
ᔢ
Filtered Inlet Option
Single or Twin Fused
BZH11/Z0000/00
How to Order
BZH xx / xxxxx / xx
Type of Inlet / Outlet
Filtered or Non Filtered Inlet
Combination of Other Components
Single Fused C14 Power Inlet (cold condition) and
Sheet F Non-shuttered Power Outlet, 2.8 or 6.3mm
tabs:
Z0000 = Non Filtered
None
Axxxx = Standard
00 = None
Bxxxx = Medical (Twin Fuse Version only)
11 = PF0011/63 + PX0695/63
12 = PF0011/28 + PX0695/28
Twin Fused C14 Power Inlet (cold condition) and
Sheet F Non-shuttered Power Outlet , 2.8 or 6.3mm
tabs:
13 = PF0033/63 + PX0695/63
14 = PF0033/28 + PX0695/28
Single Fused C14 Power Inlet (cold condition) and
Sheet F Shuttered Power Outlet, 2.8 or 6.3mm tabs:
19 = PF0011/63 + PX0783/63
20 = PF0011/28 + PX0783/28
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 127-129.
E.g. BZH11/A0620/00
Twin Fused C14 Power Inlet (cold condition) and
Sheet F Shuttered Power Outlet , 2.8 or 6.3mm
tabs:
21 = PF0033/63 + PX0783/63
22 = PF0033/28 + PX0783/28
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
121
®
POLYSNAP POWER INLET MODULES
C14 IEC Inlet - Mini Bezel
MINIMUM COMBINED BEZEL SIZE
ᔢ
ᔢ
ᔢ
ᔢ
Inlet with 2.8, 4.8 or 6.3mm
tags
Horizontal Module
Arrangement
Single and Double Pole
Switch Variations
Filtered Inlet Option
BZM27/Z0000/57B
How to Order
BZM xx / xxxxx / xx x
Type of Inlet / Outlet
Panel Thickness
Switch Variation
Filtered or Non Filtered Inlet
C14 Power Inlet (cold
condition), 6.3, 4.8 &
2.8mm tabs:
1.0mm = A
1.5mm = B
2.0mm = C
3.0mm = D
Single Pole Switch, 4.8mm or solder tab, marked I/O:
53 = S.P. Switch, 4.8mm tab (I/O)
54 = S.P. Switch, solder tab (I/O)
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
27 = PX0575/63
42 = PX0575/48*
28 = PX0575/28
Single Pole Illuminated Switch, 4.8mm or solder tab:
55 = S.P. Switch Illum. Red, 4.8mm tab
61 = S.P. Switch Illum. Green, 4.8mm tab
56 = S.P. Switch Illum. Red, solder tab
62 = S.P. Switch Illum. Green, solder tab
*filter option not available
Double Pole Switch, 4.8mm or solder tab, marked I/O:
57 = D.P. Switch, 4.8mm tab (I/O)
58 = D.P. Switch, solder tab (I/O)
Double Pole Illuminated Switch, 4.8mm or solder tab:
59 = D.P. Switch Illum. Red, 4.8mm tab
63 = D.P. Switch Illum. Green, 4.8mm tab
60 = D.P. Switch Illum. Red, solder tab
64 = D.P. Switch Illum. Green, solder tab
For Filtered inlet use 6th to 9th
characters from filter ordering code
see pages 125-126.
Double Pole High Inrush, 4.8mm tabs:
65 = D.P. High Inrush Switch, 4.8mm tabs (S.P. format)
Double Pole High Inrush, 4.8mm tabs, marked I/O:
68 = D.P. High Inrush Switch, 4.8mm tabs, I/O (S.P.
format)
E.g. BZM27/A0120/57B
Single Pole Illuminated Switch, 4.8mm or solder tab,
Marked I/O:
A1 = S.P. Switch Illum. Red, 4.8mm tab (I/O)
A5 = S.P. Switch Illum. Green, 4.8mm tab (I/O)
A2 = S.P. Switch Illum. Red, solder tab (I/O)
A6 = S.P. Switch Illum. Green, solder tab (I/O)
Double Pole Illuminated Switch, 4.8mm or solder tab,
Marked I/O:
A3 = D.P. Switch Illum. Red, 4.8mm tab
A7 = D.P. Switch Illum. Green, 4.8mm tab
A4 = D.P. Switch Illum. Red, solder tab
A8 = D.P. Switch Illum. Green, solder tab
Note: For technical details of individual components please see please see page 106
Inlet Approvals:
122
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 IEC Fused Inlet - Polyflange
VERTICAL MODULE ARRANGEMENT
ᔢ
Fused Inlet with 2.8mm or
6.3mm tags
ᔢ
ᔢ
ᔢ
ᔢ
Screw Fixing to Panel
Single Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BVA01/Z0000/02
VERTICAL MODULE ARRANGEMENT
ᔢ
Fused Inlet with 2.8mm or
6.3mm tags
ᔢ
ᔢ
ᔢ
ᔢ
Screw Fixing to Panel
Single Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BVB01/Z0000/01
How to Order
BVx xx / xxxxx / xx
Type of Inlet / Outlet
Flange Type
Filtered or Non Filtered Inlet
Combination of Other Components
Single Fused C14 Power Inlet
(cold condition), 6.3 or 2.8mm
tabs:
Single Pole Switch:
01 = S.P. Switch
A = Top fixing
B = Side fixing
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical (Twin Fuse Version only)
Single Pole Neon Switch:
01 = PF0011/63
02 = PF0011/28
02 = S.P. Red Neon Switch
08 = S.P. Green Neon Switch
Twin Fused C14 Power Inlet
(cold condition), 6.3 or 2.8mm
tabs:
Neon Indicator:
03 = Red Neon Indicator
Single Pole High Inrush Switch:
46 = S.P. High Inrush Switch
Single Pole Switch Marked I/O:
69 = S.P. Switch (I/O)
15 = PF0033/63
16 = PF0033/28
For Filtered inlet use 6th to 9th
characters from filter ordering code see
pages 127-129.
Single Pole Neon Switch Marked (I/O):
71 = S.P. Red Neon Switch (I/O)
74 = S.P. Green Neon Switch (I/O)
E.g. BVA01/A0620/01
Single Pole High Inrush Switch Marked (I/O):
98 = S.P. High Inrush Switch (I/O)
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
123
®
POLYSNAP POWER INLET MODULES
C14 IEC Fused Inlet - Polyflange
VERTICAL MODULE ARRANGEMENT
ᔢ
Fused Inlet with 2.8mm or
6.3mm tags
ᔢ
ᔢ
ᔢ
ᔢ
Screw Fixing to Panel
Double Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BVA01/Z0000/10
VERTICAL MODULE ARRANGEMENT
ᔢ
Fused Inlet with 2.8mm or
6.3mm tags
ᔢ
ᔢ
ᔢ
ᔢ
Screw Fixing to Panel
Double Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BVB01/Z0000/11
How to Order
BVx xx / xxxxx / xx
Type of Inlet / Outlet
Flange Type
Filtered or Non Filtered Inlet
Combination of Other Components
Fused C14 Power Inlet (cold
condition), 6.3 or 2.8mm tabs:
A = Top fixing
B = Side fixing
Z0000 = Non Filtered
Neon Indicator:
Axxxx = Standard
D3 = Red Neon Indicator
Double Pole Switch:
10 = D.P. Switch
01 = PF0011/63
02 = PF0011/28
Bxxxx = Medical (Twin Fuse Version only)
Twin Fused C14 Power Inlet
(cold condition), 6.3 or 2.8mm
tabs:
Double Pole Neon Switch:
11 = D.P. Red Neon Switch
12 = D.P. Green Neon Switch
15 = PF0033/63
16 = PF0033/28
Double Pole High Inrush Switch:
13 = D.P. High Inrush Switch
Double Pole Switch Marked I/O:
70 = D.P. Switch (I/O)
For Filtered inlet use 6th to 9th
characters from filter ordering code see
pages 127-129.
Double Pole Neon Switch Marked (I/O):
76 = D.P. Red Neon Switch (I/O)
77 = D.P. Green Neon Switch (I/O)
E.g. BVA01/A0620/10
Double Pole High Inrush Switch Marked
(I/O):
78 = D.P. High Inrush Switch (I/O)
B1 = D.P. High Inrush Green Neon Switch
(I/O)
Note: For technical details of individual components please see page 106
124
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 IEC Inlet - Standard Filter
EMI FILTER OPTIONS
ᔢ
For Polysnap modules BZV03,
BZV04, BZV09, BZV10,
BZV17, BZV18, BZH09,
BZH10, BZH17, BZH18,
BZM27, BZM28
ᔢ
ᔢ
ᔢ
PX0575 style IEC inlet
Using PS01/A style filter
Standard Attenuation Filter
Bxxxx/A xx x x / xx
Additional
Polysnap Part No.
Filter Type
Rating
L/C Circuit
Components
Polysnap Part No.
From Polysnap Selection
A = Standard
01 = 1A
03 = 3A
06 = 6A
10 = 10A
1 = Version 1
2 = Version 2
3 = Version 3
0 = None
From Polysnap Selection
1 = Bleed (R) Resistor
2 = Surge (VDR) Protection
3 = “R” plus “VDR”
Part No. Example
BZV03/A0120/02 =
Rating
Version
L1
Cx
Cy
1 AMP
1
2
3
2 x 2.8mH
2 x 10mH
2 x 10mH
1 x 15nF
1 x 15nF
1 x 47nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
“
“
BZV style Polysnap module with PX0575 IEC
power inlet, filter rated at 1 amp, L/C circuit
version 2 (L1 = 2 x 10mH, Cx = 1 x 15nF,
Cy = 2 x 2.2nF), without bleed resistor or surge
protection device fitted, 6.3mm tabs and single
pole red neon switch.
3 AMP
1
2
3
2 x 0.75mH
2 x 1.8mH
2 x 1.8mH
1 x 15nF
1 x 15nF
1 x 47nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
“
“
6 AMP
1
2
3
2 x 0.3mH
2 x 0.7mH
2 x 0.7mH
1 x 15nF
1 x 15nF
1 x 47nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
“
“
10 AMP
1
2
3
2 x 0.17mH
2 x 0.35mH
2 x 0.17mH
1 x 15nF
1 x 15nF
1 x 47nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
“
“
Filter Specification
Max. Working Voltage:
Earth Leakage Current:
Temperature Range:
250V a.c. 50-400Hz
<0.35mA (250V. 50Hz)
–25ºC to +85ºC
Max. Ambient Temp.:
(@ Full Load)
40ºC (derate linearly to 0A @ 85ºC)
Test Voltage:
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Approvals:
Attenuation Curves:
See PS01/A filter, page 132
www.elektron-bulgin.com
125
®
POLYSNAP POWER INLET MODULES
C14 IEC Inlet - Medical Filter
EMI FILTER OPTIONS
ᔢ
For Polysnap modules BZV03,
BZV04, BZV09, BZV10,
BZV17, BZV18, BZH09,
BZH10, BZH17, BZH18,
BZM27, BZM28
ᔢ
ᔢ
ᔢ
PX0575 style IEC inlet
Using PS01/B style filter
Medical Filter
Bxxxx/Bxx x x / xx
Additional
Polysnap Part No.
Filter Type
Rating
L/C Circuit
Components
Polysnap Part No.
From Polysnap Selection
B = Medical
01 = 1A
03 = 3A
06 = 6A
10 = 10A
1 = Version 1
2 = Version 2
3 = Version 3
0 = None
From Polysnap Selection
1 = Bleed (R) Resistor
2 = Surge (VDR) Protection
3 = “R” plus “VDR”
Part No. Example
BZV04/B0322/04 =
Rating
Version
L1
Cx
1 AMP
1
2
3
2 x 2.8mH
2 x 10mH
2 x 10mH
1 x 15nF
1 x 15nF
1 x 47nF
“
“
BZV style Polysnap module with PX0575 IEC
power inlet, filter rated at 3 amps, L/C circuit
version 2 (L1 = 2 x 1.8mH, Cx = 1 x 15nF),
without bleed resistor, with surge protection
device fitted, 2.8mm tabs and two fuseholders.
3 AMP
1
2
3
2 x 0.75mH
2 x 1.8mH
2 x 1.8mH
1 x 15nF
1 x 15nF
1 x 47nF
“
“
6 AMP
1
2
3
2 x 0.3mH
2 x 0.7mH
2 x 0.7mH
1 x 15nF
1 x 15nF
1 x 47nF
“
“
10 AMP
1
2
3
2 x 0.17mH
2 x 0.35mH
2 x 0.17mH
1 x 15nF
1 x 15nF
1 x 47nF
“
“
Filter Specification
Max. Working Voltage:
Earth Leakage Current:
Temperature Range:
250V a.c. 50-400Hz
<100µA (typically 5µA, 250V. 50Hz)
–25ºC to +85ºC
Max. Ambient Temp.:
(@ Full Load)
40ºC (derate linearly to 0A @ 85ºC)
Test Voltage:
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Approvals:
Attenuation Curves:
See PS01/B filter, page 134
126
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 Inlet Single Fuse - Standard Filter
EMI FILTER OPTIONS
ᔢ
ᔢ
For Polysnap modules BZV01,
BZV02, BZH01, BZH02,
BZH11, BZH12, BZH19,
BZH20, BVA01, BVA02,
BVB01, BVB02
PF0011 style single fuse IEC
inlet
ᔢ
ᔢ
Using PS21/A style filter
Standard Attenuation Filter
Bxxxx/A xx x x / xx
Additional
Polysnap Part No.
Filter Type
Rating
L/C Circuit
Components
Polysnap Part No.
From Polysnap Selection
A = Standard
01 = 1A
03 = 3A
06 = 6A
2 = Version 2
3 = Version 3
0 = None
From Polysnap Selection
Part No. Example
BZV01/A0630/01 =
Rating
Version
L1
Cx
Cy
1 AMP
1
2
3
“
“
BZV style Polysnap module with PF0011 single
fused (5 x 20mm) IEC power inlet, filter rated at
6 amp, L/C circuit version 3 (L1 = 2 x 2.0mH, Cx
= 1 x 47nF, Cy = 2 x 2.2nF), 6.3mm tabs and
single pole switch.
2 x 12mH
1 x 47nF
2 x 2.2nF
3 AMP
1
2
3
“
“
2 x 1.8mH
2 x 6.5mH
1 x 15nF
1 x 47nF
2 x 2.2nF
2 x 2.2nF
6 AMP
1
2
3
“
“
2 x 0.7mH
2 x 2mH
1 x 15nF
1 x 47nF
2 x 2.2nF
2 x 2.2nF
10 AMP
1
2
3
“
“
Filter Specification
Max. Working Voltage:
Earth Leakage Current:
Temperature Range:
250V a.c. 50-400Hz
<0.35mA (250V. 50Hz)
–25ºC to +85ºC
Max. Ambient Temp.:
(@ Full Load)
40ºC (derate linearly to 0A @ 85ºC)
Test Voltage:
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Approvals:
Attenuation Curves:
See PS21/A filter, page 140
www.elektron-bulgin.com
127
®
POLYSNAP POWER INLET MODULES
C14 Inlet Twin Fuse - Standard Filter
EMI FILTER OPTIONS
ᔢ
For Polysnap modules BZV15,
BZV16, BZH13, BZH14,
BZH15, BZH16, BZH21,
BZH22, BVA15, BVA16,
BVB15, BVB16
ᔢ
PF0033 style twin fuse IEC
inlet
ᔢ
ᔢ
Using PS26/A filter
Standard Attenuation Filter
Bxxxx/A xx x x / xx
Additional
Polysnap Part No.
Filter Type
Rating
L/C Circuit
Components
Polysnap Part No.
From Polysnap Selection
A = Standard
02 = 2A
04 = 4A
2 = Version 2
0 = None
From Polysnap Selection
1 = Bleed (R) Resistor
Part No. Example
BZH13/A0420/00 =
Rating
Version
L1
Cx
Cy
2 AMP
1
2
3
“
“
2 x 1.8mH
1 x 15nF
2 x 2.2nF
BZH style Polysnap module with PF0033 twin
fused (5 x 20mm) IEC power inlet, filter rated at
4 amps, L/C circuit version 2 (L1 = 2 x 0.7mH,
Cx = 1 x 15nF, Cy = 2 x 2.2nF), without bleed
resistor fitted, 6.3mm tabs and no additional
components.
4 AMP
1
2
3
“
“
2 x 0.7mH
1 x 15nF
2 x 2.2nF
Filter Specification
Max. Working Voltage:
Earth Leakage Current:
Temperature Range:
250V a.c. 50-400Hz
<0.35mA (250V. 50Hz)
–25ºC to +85ºC
Max. Ambient Temp.:
(@ Full Load)
40ºC (derate linearly to 0A @ 85ºC)
Test Voltage:
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Approvals:
Attenuation Curves:
See PS26/A filter, page 142
128
www.elektron-bulgin.com
®
POLYSNAP POWER INLET MODULES
C14 Inlet Twin Fuse - Medical Filter
EMI FILTER OPTIONS
ᔢ
For Polysnap modules BZV15,
BZV16, BZH13, BZH14,
BZH15, BZH16, BZH21,
BZH22, BVA15, BVA16,
BVB15, BVB16
ᔢ
PF0033 style twin fuse IEC
inlet
ᔢ
ᔢ
Using PS26/B style filter
Medical Attenuation Filter
Bxxxx/Bxx x x / xx
Additional
Polysnap Part No.
Filter Type
Rating
L/C Circuit
2 = Version 2
Components
Polysnap Part No.
From Polysnap Selection
B = Medical
02 = 2A
04 = 4A
0 = None
From Polysnap Selection
1 = Bleed (R) Resistor
Part No. Example
BZH15/B0221/01 =
Rating
Version
L1
Cx
2 AMP
1
2
3
“
“
2 x 1.8mH
1 x 15nF
BZH style Polysnap module with PF0033 twin
fused (5 x 20mm) IEC power inlet, filter rated at
2 amp, L/C circuit version 2 (L1 = 2 x 1.8mH, Cx
= 1 x 15nF), with bleed resistor fitted, 6.3mm
tabs and single pole switch.
4 AMP
1
2
3
“
“
2 x 0.7mH
1 x 15nF
Filter Specification
Max. Working Voltage:
Earth Leakage Current:
Temperature Range:
250V a.c. 50-400Hz
<100µA (typically 5µA 250V. 50Hz)
–25ºC to +85ºC
Max. Ambient Temp.:
(@ Full Load)
40ºC (derate linearly to 0A @ 85ºC)
Test Voltage:
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Approvals:
Attenuation Curves:
See PS26/B filter, page 144
www.elektron-bulgin.com
129
®
POLYSNAP POWER INLET MODULES
130
www.elektron-bulgin.com
厂商 型号 描述 页数 下载

ETC

 		PX0112 与盖栓八路\n[ PLUG OCTAL WITH COVER ] 1 页

ETC

 		PX0400 [ 400 Series Buccaneer ] 6 页

ETC

 		PX0401 [ 400 Series Buccaneer ] 6 页

ETC

 		PX0402 [ 400 Series Buccaneer ] 6 页

BULGIN

 		PX0407 海盗天线[ Buccaneer Antenna ] 1 页

BULGIN

 		PX0408 海盗天线[ Buccaneer Antenna ] 1 页

BULGIN

 		PX0409 海盗天线[ Buccaneer Antenna ] 1 页

BULGIN

 		PX0410/02P/3035 [ 400 Series Buccaneer® ] 6 页

BULGIN

 		PX0410/02P/3540 [ 400 Series Buccaneer® ] 6 页

BULGIN

 		PX0410/02P/4045 [ 400 Series Buccaneer® ] 6 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.184918s
