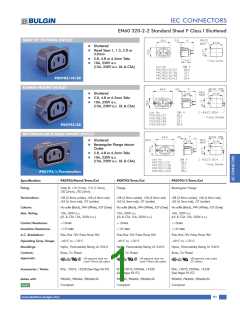

IEC CONNECTORS
EN60 320-2-2 Standard Sheet F Class I Shuttered
SNAP FIT TO PANEL OUTLET
ᔢ
ᔢ
Shuttered
Panel Sizes 1, 1.5, 2.0 or
3.0mm
ᔢ
ᔢ
2.8, 4.8 or 6.3mm Tabs
10A, 250V a.c.
(15A, 250V a.c. UL & CSA)
PX0783/10/28
FLANGE MOUNT OUTLET
ᔢ
ᔢ
ᔢ
Shuttered
2.8, 4.8 or 6.3mm Tabs
10A, 250V a.c.
(15A, 250V a.c. UL & CSA)
PX0793/28
RECTANGULAR FLANGE MOUNT OUTLET
ᔢ
ᔢ
Shuttered
Rectangular Flange Mount
Outlet
ᔢ
ᔢ
2.8, 4.8 or 6.3mm Tabs
10A, 250V a.c.
(15A, 250V a.c. UL & CSA)
PX0793/1/Termination
Specification
PX0783/Panel/Term/Col
PX0793/Term/Col
PX0793/1/Term/Col
Fixing:
Snap fit, /10 (1mm), /15 (1.5mm),
/20 (2mm), /30 (3mm)
Flange
Rectangular Flange
Terminations:
/28 (2.8mm solder), /48 (4.8mm tab)
/63 (6.3mm tab), /ST (solder)
/28 (2.8mm solder), /48 (4.8mm tab)
/63 (6.3mm tab), /ST (solder)
/28 (2.8mm solder), /48 (4.8mm tab)
/63 (6.3mm tab), /ST (solder)
Colours:
No suffix (Black), /WH (White), /GY (Grey)
No suffix (Black), /WH (White), /GY (Grey) No suffix (Black), /WH (White), /GY (Grey)
Max. Rating:
10A, 250V a.c.
10A, 250V a.c.
10A, 250V a.c.
(UL & CSA 15A, 250V a.c.)
(UL & CSA 15A, 250V a.c.)
(UL & CSA 15A, 250V a.c.)
Contact Resistance:
Insulation Resistance:
A.C. Breakdown:
<10m
Ω
<10m
Ω
<10mΩ
4
4
4
>10 M
Ω
>10 M
Ω
>10 M
Ω
Pole-Pole 7kV. Poles-Panel 9kV
–40˚C to 70˚C
Pole-Pole 7kV. Poles-Panel 9kV
–40˚C to 70˚C
Pole-Pole 7kV. Poles-Panel 9kV
–40˚C to 70˚C
Operating Temp. Range:
Mouldings:
+
+
+
Nylon, Flammability Rating UL 94V-0
Brass, Tin Plated
Nylon, Flammability Rating UL 94V-0
Brass, Tin Plated
Nylon, Flammability Rating UL 94V-0
Brass, Tin Plated
Contacts:
Approvals:
UR approval does not
cover 4.8mm tab option
UR approval does not
cover 4.8mm tab option
UR approval only covers
/ST version
Accessories / Notes:
Mates with:
P.No. 12075, 14228 (See Page 96-97)
P.No. 12075, KT0006, 14228
(See Pages 95-97)
P.No. 12075, KT0006, 14228
(See Pages 95-97)
PX0685, PX0686, PX0686/SE
Compliant
PX0685, PX0686, PX0686/SE
Compliant
PX0685, PX0686, PX0686/SE
Compliant
