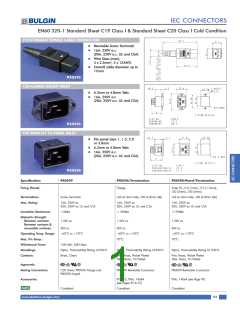

IEC CONNECTORS
EN60 320-1 Standard Sheet C19 Class I & Standard Sheet C20 Class I Cold Condition
C19 STRAIGHT FEMALE CABLE CONNECTOR
ᔢ
ᔢ
Rewirable Screw Terminals
16A, 250V a.c.
(20A, 250V a.c. UL and CSA)
ᔢ
ᔢ
Wire Sizes (max);
3 x 2.5mm , 3 x 12AWG
Overall cable diameter up to
12mm
2
PX0599
C20 FLANGE MOUNT INLET
ᔢ
ᔢ
6.3mm or 4.8mm Tabs
16A, 250V a.c.
(20A, 250V a.c. UL and CSA)
PX0596
C20 SNAP FIT TO PANEL INLET
ᔢ
Fits panel sizes 1, 1.5, 2.0
or 3.0mm
ᔢ
ᔢ
6.3mm or 4.8mm Tabs
16A, 250V a.c.
(20A, 250V a.c. UL and CSA)
PX0598
Specification
PX0599
PX0596/Termination
PX0598/Panel/Termination
Fixing (Panel):
-
Flange
Snap Fit, /10 (1mm), /15 (1.5mm),
/20 (2mm), /30 (3mm)
Terminations:
Max. Rating:
Screw Terminals
16A, 250V ac
/63 (6.3mm tab), /48 (4.8mm tab)
/63 (6.3mm tab), /48 (4.8mm tab)
16A, 250V ac
16A, 250V ac
20A, 250V ac UL and CSA
20A, 250V ac UL and CSA
20A, 250V ac UL and CSA
6
6
Insulation Resistance:
>5MΩ
>10 MΩ
>10 MΩ
Dielectric Strength
Between contacts:
Between contacts &
accessible surfaces:
1.5kV ac
1.5kV ac
1.5kV ac
3kV ac
3kV ac
3kV ac
Operating Temp. Range:
Max. Pin Temp.:
Withdrawal Force:
Mouldings:
–40ºC to +70ºC
–40ºC to +70ºC
–40ºC to +70ºC
-
70ºC
70ºC
15N Min, 60N Max.
-
-
Nylon, Flammability Rating UL94V-0
Brass, Clean
Nylon, Flammability Rating UL94V-0
Nylon, Flammability Rating UL 94V-0
Contacts:
Pins: Brass, Nickel Plated
Tabs: Brass, Tin Plated
Pins: Brass, Nickel Plated
Tabs: Brass, Tin Plated
Approvals:
Mating Connectors:
C20 Inlets; PX0596 Flange and
PX0598 Snapfit
PX0599 Rewirable Connector
PX0599 Rewirable Connector
P.No. 14064 (see Page 97)
Accessories:
KT0012, P.No. 14064
(see Pages 95 & 97)
Compliant
Compliant
Compliant
www.elektron-bulgin.com
93
