JUR1112LU

型号：

JUR1112LU

描述：

PLCC侧面看类型LED符合RoHS[ PLCC Side Viewing Type LED RoHS Compliant ]

品牌：

STANLEY[ STANLEY ELECTRIC CO.,LTD. ]

页数：

11 页

PDF大小：

240 K

下载PDF手册

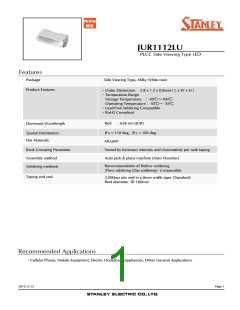

JUR1112LU
PLCC Side Viewing Type LED
Features
Package
Side Viewing Type, Milky White resin
Product Features
・Outer Dimension 2.8 x 1.2 x 0.8mm ( L x W x H )
・Temperature Range
Storage Temperature ：-40℃～100℃
Operating Temperature：-30℃～ 85℃
・Lead-Free Soldering Compatible
・RoHS Compliant
Red
: 626 nm (JUR)
Dominant Wavelength
θx = 110 deg., θy = 105 deg.
Spatial Distribution
Die Materials
AlGaInP
Rank Grouping Parameter
Assembly method
Sorted by luminous intensity and chromaticity per rank taping
Auto pick & place machine (Auto Mounter)
Recommendation of Reflow soldering
/Flow soldering (Dip soldering) is impossible
Soldering methods
Taping and reel
3,000pcs per reel in a 8mm width tape. (Standard)
Reel diameter: Φ 180mm
Recommended Applications
・Cellular Phone, Mobile Equipment, Electric Household Appliances, Other General Applications
Page 1
2010.12.15
JUR1112LU
PLCC Side Viewing Type LED
(Ta=25℃)
Color and Luminous Intensity
Dominant
Wavelength
Luminous Intensity
Emitted
Color
Lens
Color
Part No.
Material
AlGaInP
Iv (mc d)
T YP .
λd(nm)
TYP.
626
IF
MIN.
360
IF
Milky
White
J UR1112LU
Red
20
420
20
※Note: The above luminous intensity (Iv) is the setup values of the setup values of the
sorting machine.
（Tolerance ： IV…±10%）
Page 2
2010.12.15
JUR1112LU
PLCC Side Viewing Type LED
(Ta=25℃)
Absolute Maximum Ratings
Absolute Maximum
Ratings
Item
Symbol
Unit
Power Dissipation
Pd
IF
110
40
mW
mA
Continuous
Forward Current
Repetitive Peak
IFRM
100
mA
Forward Current※
1
I
0.66
1.33
5
mA/
⊿
℃
F
Derating
(Ta=40 or higher)
℃
I
mA/
V
⊿
℃
FRM
Revers Voltage
Operating
Temperature
Storage
VR
Topr
Tstg
-30 +85
～
℃
℃
-40 +100
～
Temperature
※1 IFRM Measurement condition／Pulse Width ≦ 1ms ., Duty≦1/20
Page 3
2010.12.15
JUR1112LU
PLCC Side Viewing Type LED
(Ta=25℃)
Electro-Optical Characteristics
Item
S ymbol
VF
Characteristics
Unit
V
Condition
IF =20mA
TYP.
MAX .
MAX .
TYP.
TYP.
TYP.
2.2
2.6
50
1
Forward Voltage※
Reverse Current
Peak Wavelength
VR=5V
IR
λp
λd
Δλ
A
μ
IF =20mA
IF =20mA
IF =20mA
631
626
20
nm
nm
nm
Dominant
Wavelength
S pectral Line Half
width
110( x)
θ
Half Intensity Angle IF =20mA
2
θ
1/2 TYP.
deg.
105(
θｙ
)
※1 Forward Voltage Tolerance Range : ±0.1V
Page 4
2010.12.15
JUR1112LU
PLCC Side Viewing Type LED
(Ta=25℃)
Luminous Intensity（Unit：mcd）
Intensity Tolerance each Rank : +/-10%
Rank
IV（mcd）
MIN. MAX.
430
Condition
R1
R2
S1
360
430
500
500 IF=20mA
600
※Please contact our sales staff concerning rank designation.
(Ta=25℃)
Color Tone Groups（λd）
Tolerance : +/-1nm
Dominant Wavelength
nm
）
Rank
λd（
Condition
IF=20mA
MIN.
616
624
MAX.
624
632
A
B
※Please contact our sales staff concerning rank designation.
Page 5
2010.12.15
JUR1112LU
PLCC Side Viewing Type White LED
Technical Data
Relative Intensity vs. Wavelength
Condition : Ta = 25℃, IF = 20mA
Spatial Distribution Example
Condition : Ta = 25℃
y direction
x direction
Wavelength [nm]
Forward Voltage vs. Forward Current
Forward Current vs. Relative Intensity
Condition : Ta = 25℃
Condition : Ta = 25℃
Forward Voltage VF(V)
Forward Current IF(mA)
Page 6
2010.12.15
JUR1112LU
PLCC Side Viewing Type LED
Technical Data
Ambient Temperature vs. Relative Intensity
Condition : IF = 20mA
Ambient Temperature vs. Maximum Forward Current
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Ambient Temperature vs. Forward Voltage
Condition : IF = 20mA
Ambient Temperature : Ta(℃)
Page 7
2010.12.15
JUR1112LU
PLCC Side Viewing Type LED
(Unit：mm)
Package Dimensions
MASS : (5.3)mg
(Unit：mm)
Recommended Soldering Pattern
(Unit：mm)
Taping Specification
※Quantity：3,000pcs/reel(standard)
Page 8
2010.12.15
JUR1112LU
PLCC Side Viewing Type LED
Reflow Soldering Conditions
1) The above profile temperature gives the maximum temperature of the LED resin surface.
Please set the temperature so as to avoid exceeding this range.
2) Total times of reflow soldering process shall be no more than 2 times.
When the second reflow soldering process is performed, intervals between the first
and second reflow should be short as possible (while allowing some time for the
component to return to normal temperature after the first reflow) in order to prevent the
LED from absorbing moisture.
Manual Soldering Condition
Iron tip temp
350℃ （MAX）
3s （MAX）
Soldering time and frequency
1 time （MAX）
Page 9
2010.12.15
JUR1112LU
PLCC Side Viewing Type LED
Reliability Testing Result
Reliability Testing
Applicable
Standard
EIAJ ED-
Testing Conditions
Duration
Failure
Result
Room Temp.
Operating Life
F
Ta = 25℃, I = 40mA
1,000 h
0/20
0/20
0/20
0/20
0/20
0/20
0/20
0/20
0/20
4701/100(101)
High Temp.
Operating Life
EIAJ ED-
4701/100(101)
F
Ta = 85℃ ,I = 10mA
1,000 h
1,000 h
Low Temp.
Operating Life
EIAJ ED-
4701/100(101)
F
Ta = -30℃, I = 40mA
Wet High Temp.
Operating Life
EIAJ ED-
4701/100(102)
F
Ta = 60℃, 90%, I = 26mA
1,000 h
Wet High Temp.
Storage Life
EIAJ ED-
4701/100(103)
Ta = 60℃, 90%
1,000 h
EIAJ ED-
4701/100(105)
Thermal Shock
Ta = -40℃ ～ 100℃ (each 15min.)
Ta = 100℃
200 cycles
1,000 h
High Temp.
Storage Life
EIAJ ED-
4701/200(201)
Low Temp.
Storage Life
EIAJ ED-
4701/200(202)
Ta = -40℃
1,000 h
Cycled Temp.
Humidity Life
EIAJ ED-
4701/200(203)
Ta = -10℃ ～ 65℃, 95%, 24h/cycle
10 cycles
Preheat : 150 ～ 180℃(120s Max.)
Soldering Temp : 260℃(5s)
Moisture Soak : 30℃, 70%, 72h
Resistance to Reflow
soldering
EIAJ ED-
4701/300(301)
Twice
0/20
EIAJ ED-
4701/300(304)
once each
polality
Bectnic Static Discharge
(ESD)
C = 100pF, R2 = 1.5KΩ, ±1,000V
0/20
0/20
98.1m/s2 (10G), 100 ～ 2KHz, 20min,
each direction
XYZ
Vibration,
Variable Frequency
EIAJ ED-
4701/400(403)
2 h
Failure Criteria
Conditions
Items
S ymbols
Failure criteria
Luminous Intens ity
Iv
IF=20mA
IF=20mA
VR=5V
-
Tes ting Min.Value
Tes ting Max.Value
Tes ting Max.Value
Spec.Min.Value × 0.7
Spec.Max.Value x 1.2
Spec.Max.Value x 2.5
＜
≧
≧
Forward Voltage
Revers e Current
VF
IR
-
Cos metic Appearance
Occurrence of notable decoloration, deformation and cracking
Page 10
2010.12.15
JUR1112LU
PLCC Side Viewing Type LED
Special Notice to Customers Using the Products and
Technical Information Shown in This Data Sheet
1) The technical information shown in the data sheets are limited to the typical characteristics and circuit
examples of the referenced products. It does not constitute the warranting of industrial property nor the
granting of any license.
2) For the purpose of product improvement, the specifications, characteristics and technical data described in
the data sheets are subject to change without prior notice. Therefore it is recommended that the most
updated specifications be used in your design.
3) When using the products described in the data sheets, please adhere to the maximum ratings for operating
voltage, heat dissipation characteristics, and other precautions for use. We are not responsible for any
damage which may occur if these specifications are exceeded.
4) The products that have been described to this catalog are manufactured so that they will be used for the
electrical instrument of the benchmark (OA equipment, telecommunications equipment, AV machine, home
appliance and measuring instrument).
The application of aircrafts, space borne application, transportation equipment, medical equipment and
nuclear power control equipment, etc. needs a high reliability and safety, and the breakdown and the wrong
operation might influence the life or the human body. Please consult us beforehand if you plan to use our
product for the usages of aircrafts, space borne application, transportation equipment, medical equipment
and nuclear power control equipment, etc. except OA equipment, telecommunications equipment, AV
machine, home appliance and measuring instrument.
5) In order to export the products or technologies described in this data sheet which are under the
“Foreign Exchange and Foreign Trade Control Law,” it is necessary to first obtain an export permit from the
Japanese government.
6) No part of this data sheet may be reprinted or reproduced without prior written permission from Stanley
Electric Co., Ltd.
7) The most updated edition of this data sheet can be obtained from the address below:
http://www.stanley-components.com
Page 11
2010.12.15
