IXGH24N170_08

型号:

IXGH24N170_08

描述:

高压IGBT[ High Voltage IGBT ]

品牌:

IXYS[ IXYS CORPORATION ]

页数:

2 页

PDF大小:

114 K

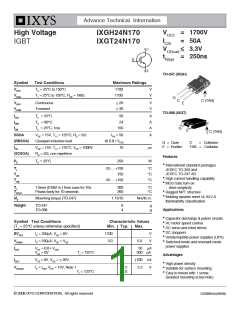

Advance Technical Information
VCES = 1700V
IC25 = 50A
VCE(sat) 3.3V
tfi(typ) = 250ns
High Voltage
IGBT
IXGH24N170
IXGT24N170
TO-247 (IXGH)
Symbol
VCES
Test Conditions
Maximum Ratings
TC = 25°C to 150°C
1700
1700
V
V
VCGR
TJ = 25°C to 150°C, RGE = 1MΩ
G
C
C (TAB)
VGES
VGEM
Continuous
Transient
± 20
± 30
V
V
E
TO-268 (IXGT)
IC25
IC90
ICM
TC = 25°C
50
24
A
A
A
TC = 90°C
TC = 25°C, 1ms
150
G
E
C (TAB)
SSOA
VGE = 15V, TVJ = 125°C, RG = 5Ω
ICM = 50
A
(RBSOA)
Clamped inductive load
@ 0.8 • VCES
G = Gate
C
= Collector
E = Emitter
TAB = Collector
tSC
VGE = 15V, TVJ = 125°C, VCE = 1000V
10
μs
(SCSOA)
RG = 5Ω, non repetitive
Features
PC
TC = 25°C
250
W
z International standard packages
JEDEC TO-268 and
TJ
-55 ... +150
150
°C
°C
°C
JEDEC TO-247 AD
TJM
Tstg
z High current handling capability
z MOS Gate turn-on
-55 ... +150
TL
TSOLD
1.6mm (0.062 in.) from case for 10s
Plastic body for 10 seconds
300
260
°C
°C
- drive simplicity
z Rugged NPT structure
z Molding epoxies meet UL94V-0
flammability classification
Md
Mounting torque (TO-247)
1.13/10
Nm/lb.in.
Weight
TO-247
TO-268
6
4
g
g
Applications
z Capacitor discharge & pulser circuits
z AC motor speed control
Symbol Test Conditions
(TJ = 25°C unless otherwise specified)
Characteristic Values
Min. Typ.
Max.
z DC servo and robot drives
z DC choppers
BVCES
VGE(th)
ICES
IC = 250μA, VGE = 0V
IC = 250μA, VCE = VGE
1700
3.0
V
V
z Uninterruptible power supplies (UPS)
z Switched-mode and resonant-mode
power supplies
5.0
VCE = 0.8 • VCES
VGE = 0V
50 μA
500 μA
TJ = 125°C
TJ = 125°C
Advantages
IGES
VCE = 0V, VGE = ± 20V
±100 nA
z High power density
z Suitable for surface mounting
z Easy to mount with 1 screw,
(isolated mounting screw hole)
VCE(sat)
IC = IC90, VGE = 15V, Note 1
2.5
3.0
3.3
V
© 2008 IXYS CORPORATION, All rights reserved
DS98994A(09/08)
IXGH24N170
IXGT24N170
Symbol
Test Conditions
Characteristic Values
TO-247 AD Outline
(TJ = 25°C unless otherwise specified)
Min.
Typ.
Max.
gfs
IC = IC90, VCE = 10V, Note 1
VCE = 10V, VGE = 10V
18
25
S
A
IC(ON)
100
Cies
Coes
Cres
2400
120
33
pF
pF
pF
1
2
3
VCE = 25V, VGE = 0V, f = 1MHz
Qg
106
18
nC
nC
nC
Qge
Qgc
IC = IC90, VGE = 15V, VCE = 0.5 • VCES
Terminals: 1 - Gate
2 - Drain
32
Dim.
Millimeter
Min. Max.
Inches
Min. Max.
Inductive load, TJ = 25°C
td(on)
tri
td(off)
tfi
42
39
ns
ns
A
A1
A2
4.7
2.2
2.2
5.3
2.54
2.6
.185 .209
.087 .102
.059 .098
IC = IC25, VGE = 15V
VCE = 0.8 • VCES, RG = Roff = 5Ω
200
250
8
400
500
12
ns
ns
b
b1
b2
1.0
1.65
2.87
1.4
2.13
3.12
.040 .055
.065 .084
.113 .123
Remarks: Switching times may
increase for VCE (Clamp) > 0.8 • VCES
higher TJ or increased RG
,
,
Eoff
mJ
C
D
E
.4
.8
.016 .031
.819 .845
.610 .640
20.80 21.46
15.75 16.26
td(on)
tri
50
55
ns
ns
Inductive load, TJ = 125°C
e
L
L1
5.20
5.72 0.205 0.225
IC = IC25, VGE = 15V
19.81 20.32
4.50
.780 .800
.177
Eon
td(off)
tfi
2.0
200
360
12
mJ
ns
VCE = 0.8 • VCES, RG = Roff = 5Ω
P 3.55
Q
3.65
.140 .144
5.89
6.40 0.232 0.252
Remarks: Switching times may
increase for VCE (Clamp) > 0.8 • VCES
higher TJ or increased RG
R
4.32
5.49 .170 .216
ns
Eoff
mJ
TO-268 Outline
RthJC
RthCS
0.50 °C/W
°C/W
(TO-247)
0.25
Note 1: Pulse test, t 300μs, duty cycle, d 2%.
Min Recommended Footprint
Terminals: 1 - Gate
2 - Drain
ADVANCE TECHNICAL INFORMATION
The product presented herein is under development. The Technical Specifications offered are derived
from a subjective evaluation of the design, based upon prior knowledge and experience, and constitute a
"considered reflection" of the anticipated result. IXYS reserves the right to change limits, test
conditions, and dimensions without notice.
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYS MOSFETs and IGBTs are covered
by one or more of the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
