IXFV52N30PS

型号:

IXFV52N30PS

描述:

PolarHT功率MOSFET HiPerFET[ PolarHT Power MOSFET HiPerFET ]

品牌:

IXYS[ IXYS CORPORATION ]

页数:

5 页

PDF大小:

183 K

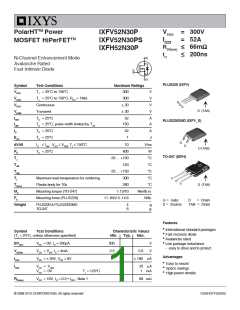

PolarHTTM Power
VDSS = 300V
ID25 = 52A
RDS(on) 66mΩ
200ns
IXFV52N30P
IXFV52N30PS
IXFH52N30P
MOSFET HiPerFETTM
trr
N-Channel Enhancement Mode
Avalanche Rated
Fast Intrinsic Diode
PLUS220 (IXFV)
Symbol
VDSS
Test Conditions
Maximum Ratings
TJ = 25°C to 150°C
300
V
V
V
V
VDGR
VGSS
VGSM
TJ = 25°C to 150°C, RGS = 1MΩ
Continuous
300
± 20
± 30
G
D
S
D (TAB)
Transient
ID25
IDM
TC = 25°C
52
A
A
PLUS220SMD (IXFV_S)
TC = 25°C, pulse width limited by TJM
150
IA
TC = 25°C
TC = 25°C
52
1
A
J
EAS
G
S
dV/dt
PD
IS IDM, VDD VDSS, TJ 150°C
10
400
V/ns
W
D (TAB)
TC = 25°C
TO-247 (IXFH)
TJ
-55 ... +150
150
°C
°C
°C
°C
°C
TJM
Tstg
TL
-55 ... +150
300
Maximum lead temperature for soldering
Plastic body for 10s
D (TAB)
TSOLD
Md
260
Mounting torque (TO-247)
Mounting force (PLUS220)
1.13/10
Nm/lb.in.
N/lb.
FC
11..65/2.5..14.6
G = Gate
D
= Drain
S = Source
TAB = Drain
Weight
PLUS220 & PLUS220SMD
TO-247
4
6
g
g
Features
z International standard packages
z Fast recovery diode
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C, unless otherwise specified)
Min.
Typ.
Max.
z Avalanche rated
z Low package inductance
- easy to drive and to protect
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 250μA
VDS = VGS, ID = 4mA
VGS = ± 20V, VDS = 0V
300
V
V
2.5
5.0
Advantages
± 100 nA
25 μA
z
Easy to mount
Space savings
High power density
IDSS
VDS = VDSS
VGS = 0V
z
TJ = 125°C
1
mA
z
RDS(on)
VGS = 10V, ID = 0.5 • ID25, Note 1
66 mΩ
DS99197F(05/08)
© 2008 IXYS CORPORATION, All rights reserved
IXFH52N30P IXFV52N30P
IXFV52N30PS
Symbol
Test Conditions
Characteristic Values
PLUS220 (IXFV) Outline
(TJ = 25°C unless otherwise specified)
Min.
Typ.
Max.
gfs
VDS = 10V, ID = 0.5 • ID25, Note 1
20
30
S
Ciss
Coss
Crss
3490
550
pF
VGS = 0V, VDS = 25V, f = 1MHz
pF
pF
130
td(on)
tr
td(off)
tf
24
22
60
20
ns
ns
ns
ns
Resistive Switching Times
VGS = 10V, VDS = 0.5 • VDSS, ID = 52A
RG = 4Ω (External)
Qg(on)
Qgs
110
25
nC
nC
nC
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
Qgd
53
RthJC
RthCS
0.31 °C/W
°C/W
(TO-247, PLUS220)
0.25
Source-Drain Diode
Characteristic Values
TJ = 25°C unless otherwise specified)
Min.
Typ.
Max.
IS
VGS = 0V
52
A
A
V
ISM
VSD
Repetitive, pulse width limited by TJM
IF = IS, VGS = 0V, Note 1
150
1.5
TO-247 (IXFH) Outline
trr
160
800
7
200 ns
nC
IF = 25A, -di/dt = 100A/μs
QRM
IRM
VR = 100V, VGS = 0V
A
P
Note 1: Pulse test, t 300μs; duty cycle, d 2%.
e
PLUS220SMD (IXFV_S) Outline
Dim.
Millimeter
Inches
Min. Max.
Min. Max.
A
A1
A2
4.7
2.2
2.2
5.3
2.54
2.6
.185 .209
.087 .102
.059 .098
b
b1
b2
1.0
1.65
2.87
1.4
2.13
3.12
.040 .055
.065 .084
.113 .123
C
D
E
.4
.8
.016 .031
.819 .845
.610 .640
20.80 21.46
15.75 16.26
e
5.20
5.72 0.205 0.225
L
L1
19.81 20.32
4.50
.780 .800
.177
P 3.55
3.65
.140 .144
Q
5.89
6.40 0.232 0.252
R
S
4.32
6.15 BSC
5.49
.170 .216
242 BSC
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYS MOSFETs and IGBTs are covered
by one or more of the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,727,585
7,005,734 B2 7,157,338B2
7,063,975 B2
6,534,343
6,583,505
6,710,405 B2 6,759,692
6,710,463
6,771,478 B2 7,071,537
IXFH52N30P IXFV52N30P
IXFV52N30PS
Fig. 1. Output Characteristics
@ 25ºC
Fig. 2. Extended Output Characteristics
@ 25ºC
150
125
100
75
55
50
45
40
35
30
25
20
15
10
5
VGS = 10V
9V
VGS = 10V
8V
7V
6V
8V
7V
50
6V
5V
25
5V
0
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
VD S - Volts
0
4
8
12
16
20
24
28
VD S - Volts
Fig. 3. Output Characteristics
@ 125ºC
Fig. 4. RDS(on) Normalized to ID = 26A Value
vs. Junction Temperature
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
55
50
45
40
35
30
25
20
15
10
5
VGS = 10V
8V
VGS = 10V
7V
6V
5V
ID = 52A
ID = 26A
0
-50 -25
0
25
50
75
100 125 150
0
1
2
3
4
5
6
VD S - Volts
7
8
9
10
TJ - Degrees Centigrade
Fig. 6. Drain Current vs. Case
Temperature
Fig. 5. RDS(on) Normalized to ID = 26A Value
vs. Drain Current
60
50
40
30
20
10
0
3.8
3.4
3.0
2.6
2.2
1.8
1.4
1.0
0.6
VGS = 10V
TJ = 125ºC
TJ = 25ºC
0
25
50 75 100
I D - Amperes
125
150
-50 -25
0
25
TC - Degrees Centigrade
50
75
100 125 150
© 2008 IXYS CORPORATION, All rights reserved
IXFH52N30P IXFV52N30P
IXFV52N30PS
Fig. 8. Transconductance
Fig. 7. Input Admittance
100
90
80
70
60
50
40
30
20
10
0
60
55
50
45
40
35
30
25
20
15
10
5
TJ = - 40ºC
25ºC
125ºC
TJ = 125ºC
25ºC
-40ºC
0
0
10 20 30 40 50 60 70 80 90 100
I D - Amperes
4.0
4.5
5.0
5.5 6.0
VG S - Volts
6.5
7.0
7.5
8.0
Fig. 9. Source Current vs.
Source-To-Drain Voltage
Fig. 10. Gate Charge
160
140
120
100
80
10
9
8
7
6
5
4
3
2
1
0
VDS = 150V
ID = 26A
IG = 10mA
60
TJ = 125ºC
40
TJ = 25ºC
20
0
0
10 20 30 40 50 60 70 80 90 10 11 12
0
0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4
VS D - Volts
0
0
Q G - nanoCoulombs
Fig. 12. Forward-Bias Safe
Operating Area
Fig. 11. Capacitance
1000
100
10
10000
1000
100
f = 1MHz
TJ = 25ºC
TJ = 150ºC
Single Pulse
C
iss
RDS(on) Limit
25µs
1ms
C
C
oss
rss
10ms
100ms
DC
1
0
5
10
15
20
VD S - Volts
25
30
35
40
10
100
VD S - Volts
1000
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYS REF: T_52N30P(6S)3-14-06-C
IXFH52N30P IXFV52N30P
IXFV52N30PS
Fig. 13. Maximum Transient Thermal Impedance
1.00
0.10
0.01
1
10
100
1000
Pulse Width - milliseconds
© 2008 IXYS CORPORATION, All rights reserved
IXYS REF: T_52N30P(6S)3-14-06-C
