IXFK30N110P

型号：

IXFK30N110P

描述：

Polar功率MOSFET HiperFET[ Polar Power MOSFET HiPerFET ]

品牌：

IXYS[ IXYS CORPORATION ]

页数：

4 页

PDF大小：

115 K

下载PDF手册

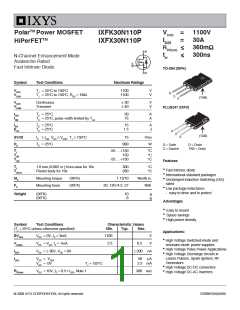

PolarTM Power MOSFET
HiPerFETTM
VDSS = 1100V
ID25 = 30A
IXFK30N110P
IXFX30N110P
RDS(on) ≤ 360mΩ
trr
≤ 300ns
N-Channel Enhancement Mode
Avalanche Rated
Fast Intrinsic Diode
TO-264 (IXFK)
Symbol
Test Conditions
Maximum Ratings
VDSS
VDGR
TJ = 25°C to 150°C
TJ = 25°C to 150°C, RGS = 1MΩ
1100
1100
V
V
G
D
S
(TAB)
VGSS
VGSM
Continuous
Transient
± 30
± 40
V
V
PLUS247 (IXFX)
ID25
IDM
TC = 25°C
TC = 25°C, pulse width limited by TJM
30
75
A
A
IAR
EAS
TC = 25°C
TC = 25°C
15
1.5
A
J
(TAB)
dV/dt
PD
IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C
TC = 25°C
15
V/ns
W
960
G = Gate
S = Source
D = Drain
TAB = Drain
TJ
TJM
Tstg
-55 ... +150
150
-55 ... +150
°C
°C
°C
Features
TL
TSOLD
1.6 mm (0.062 in.) from case for 10s
Plastic body for 10s
300
260
°C
°C
z Fast intrinsic diode
z International standard packages
z Unclamped Inductive Switching (UIS)
rated
Md
FC
Mounting torque
Mounting force
(IXFK)
(IXFX)
1.13/10
Nm/lb.in.
N/lb
20..120 /4.5..27
z Low package inductance
- easy to drive and to protect
Weight
(IXFK)
(IXFX)
10
6
g
g
Advantages
z
Easy to mount
Space savings
High power density
z
z
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C unless otherwise specified)
Min.
Typ.
Max.
Applications:
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 3mA
VDS = VGS, ID = 1mA
VGS = ± 30V, VDS = 0V
1100
V
V
z High Voltage Switched-mode and
resonant-mode power supplies
z High Voltage Pulse Power Applications
z High Voltage Discharge circuits in
Lasers Pulsers, Spark Igniters, RF
Generators
3.5
6.5
± 200 nA
50 μA
IDSS
VDS = VDSS
VGS = 0V
TJ = 125°C
2.5 mA
z High Voltage DC-DC converters
z High Voltage DC-AC inverters
RDS(on)
VGS = 10V, ID = 0.5 • ID25, Note 1
360 mΩ
DS99855B(04/08)
© 2008 IXYS CORPORATION, All rights reserved
IXFK30N110P
IXFX30N110P
Symbol
Test Conditions
Characteristic Values
TO-264 (IXFK) Outline
(TJ = 25°C unless otherwise specified)
Min.
Typ.
Max.
gfs
VDS= 20V, ID = 0.5 • ID25, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
Gate Input Resistance
15
25
S
Ciss
Coss
Crss
13.6
795
70
nF
pF
pF
RGI
1.50
Ω
td(on)
tr
td(off)
tf
Resistive Switching Times
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
RG = 1Ω (External)
50
48
83
52
ns
ns
ns
ns
Millimeter
Inches
Dim.
Min.
Max.
Min.
Max.
A
A1
A2
4.82
2.54
2.00
5.13
2.89
2.10
.190
.100
.079
.202
.114
.083
Qg(on)
Qgs
235
102
79
nC
nC
nC
b
b1
b2
1.12
2.39
2.90
1.42
2.69
3.09
.044
.094
.114
.056
.106
.122
VGS= 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
c
0.53
0.83
.021
1.020
.780
.033
1.030
.786
Qgd
D
25.91 26.16
E
e
J
19.81 19.96
5.46 BSC
RthJC
RthCS
0.13 °C/W
°C/W
.215 BSC
0.00
0.00
0.25
0.25
.000
.000
.010
.010
0.15
K
L
L1
20.32 20.83
.800
.090
.820
.102
2.29
2.59
P
3.17
3.66
.125
.144
Q
Q1
6.07
8.38
6.27
8.69
.239
.330
.247
.342
Source-Drain Diode
Characteristic Values
(TJ = 25°C unless otherwise specified)
R
R1
S
3.81
1.78
6.04
4.32
2.29
6.30
.150
.070
.238
.170
.090
.248
Symbol
IS
Test Conditions
Min.
Typ.
Max.
VGS = 0V
30
A
A
V
PLUS 247TM (IXFX) Outline
ISM
Repetitive, pulse width limited by TJM
IF = IS, VGS = 0V, Note 1
120
1.5
VSD
trr
300
ns
μC
A
IF = 20A, -di/dt = 100 A/μs
QRM
IRM
1.8
13
VR = 100 V, VGS = 0V
Note 1: Pulse test, t ≤ 300μs; duty cycle, d ≤ 2%.
Terminals: 1 - Gate
2 - Drain (Collector)
3 - Source (Emitter)
Dim.
Millimeter
Inches
Min. Max.
Min. Max.
A
A1
A2
4.83
2.29
1.91
5.21
2.54
2.16
.190 .205
.090 .100
.075 .085
b
b1
b2
1.14
1.91
2.92
1.40
2.13
3.12
.045 .055
.075 .084
.115 .123
C
D
E
0.61
20.80 21.34
15.75 16.13
0.80
.024 .031
.819 .840
.620 .635
e
5.45 BSC
.215 BSC
L
L1
19.81 20.32
.780 .800
.150 .170
3.81
4.32
Q
5.59
6.20
.220 0.244
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYS MOSFETs and IGBTs are covered
by one or moreof the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXFK30N110P
IXFX30N110P
Fig. 1. Output Characteristics
@ 25ºC
Fig. 2. Extended Output Characteristics
@ 25ºC
30
25
20
15
10
5
70
60
50
40
30
20
10
0
VGS = 10V
8V
VGS = 10V
7V
7V
6V
6V
5V
20
0
0
0
0
1
2
3
4
5
6
7
8
9
10
0
5
10
15
25
30
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 15A Value
vs. Junction Temperature
Fig. 3. Output Characteristics
@ 125ºC
3.2
2.8
2.4
2
30
25
20
15
10
5
VGS = 10V
VGS = 10V
7V
I D = 30A
I D = 15A
1.6
1.2
0.8
0.4
6V
5V
0
5
10
15
20
25
-50
-25
0
25
50
75
100
125
150
VDS - Volts
TJ - Degrees Centigrade
Fig. 5. RDS(on) Normalized to ID = 15A Value
vs. Drain Current
Fig. 6. Maximum Drain Current vs.
Case Temperature
35
30
25
20
15
10
5
2.6
2.4
2.2
2
VGS = 10V
TJ = 125ºC
1.8
1.6
1.4
1.2
1
TJ = 25ºC
0
0.8
-50
-25
0
25
50
75
100
125
150
5
10 15 20 25 30 35 40 45 50 55 60 65
ID - Amperes
TC - Degrees Centigrade
© 2008 IXYS CORPORATION, All rights reserved
IXFK30N110P
IXFX30N110P
Fig. 7. Input Admittance
Fig. 8. Transconductance
40
35
30
25
20
15
10
5
55
50
45
40
35
30
25
20
15
10
5
TJ = - 40ºC
TJ = 125ºC
25ºC
- 40ºC
25ºC
125ºC
0
0
0
5
10
15
20
25
30
35
40
45
50
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
1.2
40
VGS - Volts
ID - Amperes
Fig. 9. Forward Voltage Drop of
Intrinsic Diode
Fig. 10. Gate Charge
16
14
12
10
8
90
80
70
60
50
40
30
20
10
0
VDS = 550V
I D = 15A
I G = 10mA
6
TJ = 125ºC
TJ = 25ºC
4
2
0
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
0
50
100
150
200
250
300
350
VSD - Volts
QG - NanoCoulombs
Fig. 12. Maximum Transient Thermal
Impedance
Fig. 11. Capacitance
100,000
10,000
1,000
100
1.000
0.100
0.010
0.001
= 1 MHz
f
C
iss
C
C
oss
rss
10
0
5
10
15
20
25
30
35
0.00001
0.0001
0.001
0.01
0.1
1
10
Pulse Width - Seconds
VDS - Volts
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYS REF: F_30N110P(96) 04-01-08-A
