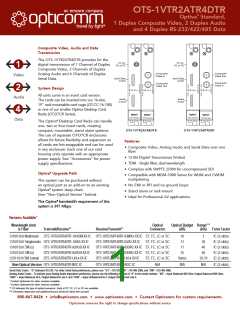

OTS-1VTR2ATR4DTR
Optiva® Standard,
1 Duplex Composite Video, 2 Duplex Audio
and 4 Duplex RS-232/422/485 Data
Composite Video, Audio and Data
Transmission
The OTS-1VTR2ATR4DTR provides for the
digital transmission of 1 Channel of Duplex
Composite Video, 2 Channels of Duplex
Analog Audio and 4 Channels of Duplex
Serial Data.
ST, LC,
SC or FC
ST, LC,
SC or FC
Composite
Video In
Composite
Video Out
Video
Audio
Data
Serial Data
In/Out
Serial Data
In/Out
Composite
Video In
Composite
Video Out
System Design
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva Desktop Card
Racks (OT-DTCR Series).
Audio
In/Out
Audio
In/Out
®
The Optiva Desktop Card Racks can handle
one, two or four insert cards, creating
compact, mountable, stand alone systems.
The use of separate OT-DTCR enclosures
allows for future flexibility and expansion as
all cards are hot-swappable and can be used
in any enclosure. Each one of our card
housing units operate with an appropriate
power supply. See “Accessories” for power
supply specifications.
OTS-1VTR2ATR4DTR
OTS-1VRT2ART4DRT
Features
• Composite Video, Analog Audio and Serial Data over one
fiber
• 12-Bit Digital Transmission (Video)
• TDM - Single fiber, dual wavelength
• Complies with SMPTE 259M for uncompressed SDI
Optiva® Upgrade Path
• Compatible with MDM-7000 Series for WDM and CWDM
multiplexing
This system can be purchased without
an optical port as an add-on to an existing
Optiva system daisy-chain.
(See “Non-Optical Version” below).
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
®
• Ideal for Professional AV applications
®
The Optiva bandwidth requirement of this
system is 397 Mbps.
Versions Available*
Wavelength (nm)
& Fiber
Optical
Connector
Optical Budget Range***
Transmit/Receive**
Receive/Transmit**
(dB)
(km) Form Factor
1310/1550 Multimode OTS-1VTR2ATR4DTR- A1/A3M-XX-IC OTS-1VRT2ART4DRT-A3M/A1-XX-IC ST, FC, LC or SC
1310/1550 Singlemode OTS-1VTR2ATR4DTR- A2/A3-XX-IC OTS-1VRT2ART4DRT-A3/A2-XX-IC ST, FC, LC or SC
10
12
3
20
IC (2-slots)
IC (2-slots)
IC (2-slots)
IC (2-slots)
IC (2-slots)
1310/1550 SM (D)
1310/1550 SM (H)
OTS-1VTR2ATR4DTR-A2/A3D-XX-IC
OTS-1VTR2ATR4DTR-A2/A3H-XX-IC
OTS-1VRT2ART4DRT-A3D/A2-XX-IC ST, FC, LC or SC
OTS-1VRT2ART4DRT-A3H/A2-XX-IC ST, FC, LC or SC
17
40
25
60
1270-1610 SM (CWDM) OTS-1VTR2ATR4DTR-L4/L4-XX-IC
OTS-1VRT2ART4DRT-L4/L4-XX-IC
OTS-1VRT2ART4DRT-NOC-IC
ST, FC, LC or SC
N/A
Varies
20-70
Non-Optical Version OTS-1VTR2ATR4DTR-NOC-IC
N/A
N/A
IC (2-slots)
Serial Data Codes - "D" indicates RS-232. For other Serial Data preferences, please use: "DJ" = RS-422; "DK" = RS-485 (2W); and "DW" = RS-485 (4W).
Analog Audio Codes - To indicate your Analog Audio impedance preference, please use the following instead of "A" in the model number: "AB" = Input Balanced 600 Ohm, Output Balanced 600 Ohm;
"ABH" = Input Balanced Hi-Z, Output Balanced Low-Z; and "AUH" = Input Unbalanced Hi-Z, Output Unbalanced Low-Z.
* Contact Opticomm for other versions available.
* Contact Opticomm for other versions available.
** XX indicates the type of optical connector. Each of ST, FC, LC or SC are available.
*** Chromatic dispersion and additional losses should be taken into account.
800-867-8426 • info@opticomm.com • www.opticomm.com • Contact Opticomm for custom requirements.
Opticomm reserves the right to change specifications without notice
