EZ430-RF2480

型号：

EZ430-RF2480

描述：

Z-加速的2.4GHz的ZigBee处理器[ Z-Accel 2.4 GHz ZigBee Processor ]

品牌：

TI[ TEXAS INSTRUMENTS ]

页数：

48 页

PDF大小：

953 K

下载PDF手册

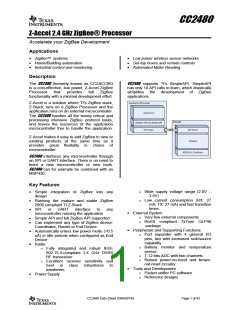

CC2480
Z-Accel 2.4 GHz ZigBee® Processor
Accelerate your ZigBee Development
Applications
• ZigBee™ systems
• Home/Building automation
• Industrial control and monitoring
• Low power wireless sensor networks
• Set-top boxes and remote controls
• Automated Meter Reading
Description
The CC2480 (formerly known as CCZACC06)
CC2480 supports TI’s SimpleAPI. SimpleAPI
has only 10 API calls to learn, which drastically
simplifies the development of ZigBee
applications.
is a cost-effective, low power, Z-Accel ZigBee
Processor
that
provides
full
ZigBee
functionality with a minimal development effort.
Z-Accel is a solution where TI’s ZigBee stack,
Z-Stack, runs on a ZigBee Processor and the
application runs on an external microcontroller.
The CC2480 handles all the timing critical and
processing intensive ZigBee protocol tasks,
and leaves the resources of the application
microcontroller free to handle the application.
Z-Accel makes it easy to add ZigBee to new or
existing products at the same time as it
provides great flexibility in choice of
microcontroller.
CC2480 interfaces any microcontroller through
an SPI or UART interface. There is no need to
learn a new microcontroller or new tools.
CC2480 can for example be combined with an
MSP430.
Key Features
o Wide supply voltage range (2.0V –
3.6V)
• Simple integration of ZigBee into any
design
o Low current consumption (RX: 27
mA, TX: 27 mA) and fast transition
times.
• Running the mature and stable ZigBee
2006 compliant TI Z-Stack
• SPI
or
UART
interface
to
any
• External System
microcontroller running the application
o Very few external components
o RoHS compliant 7x7mm QLP48
package
• Simple API and full ZigBee API supported
• Can implement any type of ZigBee device:
Coordinator, Router or End Device
• Automatically enters low power mode (<0.5
uA) in idle periods when configured as End
Device
• Peripherals and Supporting Functions
o Port expander with 4 general I/O
pins, two with increased sink/source
capability
• Radio
o Battery monitor and temperature
sensor
o 7-12 bits ADC with two channels
o Robust power-on-reset and brown-
out-reset circuitry
o Fully integrated and robust IEEE
802.15.4-compliant 2.4 GHz DSSS
RF transceiver
o Excellent receiver sensitivity and
best in class robustness to
interferers
• Tools and Development
o Packet sniffer PC software
o Reference designs
• Power Supply
CC2480 Data Sheet SWRS074A
Page 1 of 43

CC2480
Table Of Contents
APPLICATIONS.............................................................................................................................................. 1
DESCRIPTION ................................................................................................................................................ 1
KEY FEATURES ............................................................................................................................................. 1
TABLE OF CONTENTS ................................................................................................................................. 2
1
2
3
4
5
ABBREVIATIONS................................................................................................................................ 4
REFERENCES...................................................................................................................................... 5
ABSOLUTE MAXIMUM RATINGS .................................................................................................. 6
OPERATING CONDITIONS............................................................................................................... 6
ELECTRICAL SPECIFICATIONS .................................................................................................... 7
5.1 GENERAL CHARACTERISTICS ................................................................................................................ 8
5.2 RF RECEIVE SECTION ........................................................................................................................... 9
5.3 RF TRANSMIT SECTION......................................................................................................................... 9
5.4 32 MHZ CRYSTAL OSCILLATOR.......................................................................................................... 10
5.5 32.768 KHZ CRYSTAL OSCILLATOR.................................................................................................... 10
5.6 32 KHZ RC OSCILLATOR..................................................................................................................... 11
5.7 16 MHZ RC OSCILLATOR ................................................................................................................... 11
5.8 FREQUENCY SYNTHESIZER CHARACTERISTICS ................................................................................... 12
5.9 ANALOG TEMPERATURE SENSOR........................................................................................................ 12
5.10 ADC ................................................................................................................................................... 12
5.11 CONTROL AC CHARACTERISTICS........................................................................................................ 14
5.12 SPI AC CHARACTERISTICS ................................................................................................................. 15
5.13 PORT OUTPUTS AC CHARACTERISTICS............................................................................................... 15
5.14 DC CHARACTERISTICS........................................................................................................................ 15
6
7
8
PIN AND I/O PORT CONFIGURATION ........................................................................................ 17
CIRCUIT DESCRIPTION ................................................................................................................. 19
APPLICATION CIRCUIT ................................................................................................................. 20
8.1 INPUT / OUTPUT MATCHING................................................................................................................. 20
8.2 BIAS RESISTORS .................................................................................................................................. 20
8.3 CRYSTAL............................................................................................................................................. 20
8.4 VOLTAGE REGULATORS ...................................................................................................................... 20
8.5 POWER SUPPLY DECOUPLING AND FILTERING...................................................................................... 21
9
PERIPHERALS................................................................................................................................... 23
9.1 RESET ................................................................................................................................................. 23
9.2 I/O PORTS............................................................................................................................................ 23
9.3 ADC ................................................................................................................................................... 25
9.4 RANDOM NUMBER GENERATOR ......................................................................................................... 27
9.5 USART............................................................................................................................................... 28
10
RADIO.................................................................................................................................................. 29
10.1 IEEE 802.15.4 MODULATION FORMAT............................................................................................... 30
10.2 DEMODULATOR, SYMBOL SYNCHRONIZER AND DATA DECISION ....................................................... 31
10.3 FRAME FORMAT.................................................................................................................................. 31
10.4 SYNCHRONIZATION HEADER ............................................................................................................... 32
10.5 MAC PROTOCOL DATA UNIT ............................................................................................................... 32
10.6 FRAME CHECK SEQUENCE ................................................................................................................... 32
10.7 LINEAR IF AND AGC SETTINGS .......................................................................................................... 33
10.8 CLEAR CHANNEL ASSESSMENT........................................................................................................... 33
10.9 VCO AND PLL SELF-CALIBRATION.................................................................................................... 33
10.10 INPUT / OUTPUT MATCHING................................................................................................................ 33
10.11 SYSTEM CONSIDERATIONS AND GUIDELINES ...................................................................................... 34
10.12 PCB LAYOUT RECOMMENDATION ...................................................................................................... 35
10.13 ANTENNA CONSIDERATIONS............................................................................................................... 35
CC2480 Data Sheet SWRS074A
Page 2 of 43

CC2480
11
VOLTAGE REGULATORS............................................................................................................... 36
11.1 VOLTAGE REGULATORS POWER-ON.................................................................................................... 36
12
PACKAGE DESCRIPTION (QLP 48).............................................................................................. 37
12.1 RECOMMENDED PCB LAYOUT FOR PACKAGE (QLP 48)...................................................................... 38
12.2 PACKAGE THERMAL PROPERTIES......................................................................................................... 38
12.3 SOLDERING INFORMATION .................................................................................................................. 38
12.4 TRAY SPECIFICATION .......................................................................................................................... 38
12.5 CARRIER TAPE AND REEL SPECIFICATION ............................................................................................ 38
13
14
ORDERING INFORMATION........................................................................................................... 40
GENERAL INFORMATION............................................................................................................. 41
14.1 DOCUMENT HISTORY .......................................................................................................................... 41
15
16
ADDRESS INFORMATION .............................................................................................................. 41
TI WORLDWIDE TECHNICAL SUPPORT................................................................................... 41
CC2480 Data Sheet SWRS074A
Page 3 of 43
CC2480
1
ADC
Abbreviations
Analog to Digital Converter
LSB
Least Significant Byte
AES
AGC
API
Advanced Encryption Standard
Automatic Gain Control
MAC
MISO
MOSI
MPDU
MSB
MUX
NA
Medium Access Control
Master In Slave Out
Master Out Slave In
MAC Protocol Data Unit
Most Significant Byte
Multiplexer
Application Programming Interface
ARIB
Association of Radio Industries and
Businesses
BOD
Brown Out Detector
BOM
CCA
Bill of Materials
Not Available
Clear Channel Assessment
Code of Federal Regulations
Central Processing Unit
Cyclic Redundancy Check
NC
Not Connected
CFR
O-QPSK
PA
Offset - Quadrature Phase Shift Keying
Power Amplifier
CPU
CRC
PCB
PER
PHY
PLL
Printed Circuit Board
Packet Error Rate
CSMA-CA
Carrier Sense Multiple Access with
Collision Avoidance
Physical Layer
CW
Continuous Wave
Phase Locked Loop
Power Mode 0-3
DAC
DC
Digital to Analog Converter
Direct Current
PM{0-3}
POR
PWM
QLP
RAM
RC
Power On Reset
DNL
DSM
DSSS
EM
Differential Nonlinearity
Delta Sigma Modulator
Direct Sequence Spread Spectrum
Evaluation Module
Pulse Width Modulator
Quad Leadless Package
Random Access Memory
Resistor-Capacitor
ENOB
ESD
ESR
ETSI
Effective Number of bits
Electro Static Discharge
Equivalent Series Resistance
RCOSC
RF
RC Oscillator
Radio Frequency
RoHS
RSSI
RX
Restriction on Hazardous Substances
Receive Signal Strength Indicator
Receive
European Telecommunications
Standards Institute
EVM
FCC
FCF
FCS
I/O
Error Vector Magnitude
Federal Communications Commission
Frame Control Field
SCK
SFD
SHR
SINAD
SPI
Serial Clock
Start of Frame Delimiter
Synchronization Header
Signal-to-noise and distortion ratio
Serial Peripheral Interface
Static Random Access Memory
Sleep Timer
Frame Check Sequence
Input / Output
I/Q
In-phase / Quadrature-phase
IEEE
Institute of Electrical and Electronics
Engineers
SRAM
ST
IF
Intermediate Frequency
Integral Nonlinearity
T/R
Tape and reel
INL
T/R
Transmit / Receive
ISM
JEDEC
Industrial, Scientific and Medical
TBD
THD
TI
To Be Decided / To Be Defined
Total Harmonic Distortion
Texas Instruments
Joint Electron Device Engineering
Council
KB
1024 bytes
TX
Transmit
kbps
LFSR
LNA
LO
kilo bits per second
Linear Feedback Shift Register
Low-Noise Amplifier
Local Oscillator
UART
Universal Asynchronous
Receiver/Transmitter
USART
Universal Synchronous/Asynchronous
Receiver/Transmitter
LQI
Link Quality Indication
Least Significant Bit / Byte
VGA
Variable Gain Amplifier
Crystal Oscillator
LSB
XOSC
CC2480 Data Sheet SWRS074A
Page 4 of 43

CC2480
2
References
[1] IEEE std. 802.15.4 - 2006: Wireless Medium Access Control (MAC) and Physical Layer (PHY)
specifications for Low Rate Wireless Personal Area Networks (LR-WPANs).
http://standards.ieee.org/getieee802/download/802.15.4-2006.pdf
[2] CC2480 Interface Specification
http://www.ti.com/lit/pdf/swra175
CC2480 Data Sheet SWRS074A
Page 5 of 43


CC2480
3
Absolute Maximum Ratings
Under no circumstances must the absolute maximum ratings given in Table 1 be violated. Stress
exceeding one or more of the limiting values may cause permanent damage to the device.
Table 1: Absolute Maximum Ratings
Parameter
Min
–0.3
–0.3
Max
Units
Condition
Supply voltage, VDD
Voltage on any digital pin
3.9
V
V
All supply pins must have the same voltage
VDD+0.3,
max 3.9
Voltage on the 1.8V pins (pin no.
22, 25-40 and 42)
–0.3
–50
2.0
V
Input RF level
10
dBm
°C
Storage temperature range
Reflow soldering temperature
150
260
Device not programmed
According to IPC/JEDEC J-STD-020C
°C
On RF pads (RF_P, RF_N, AVDD_RF1,
and AVDD_RF2), according to Human
Body Model, JEDEC STD 22, method A114
<500
V
ESD
All other pads, according to Human Body
Model, JEDEC STD 22, method A114
700
200
V
V
According to Charged Device Model,
JEDEC STD 22, method C101
Caution! ESD sensitive device. Precaution should be used
when handling the device in order to prevent
permanent damage.
4
Operating Conditions
The operating conditions for CC2480 are listed in Table 2.
Table 2: Operating Conditions
Parameter
Min
Max
Unit
Condition
Operating ambient temperature
range, TA
-40
85
°C
Operating supply voltage
2.0
3.6
V
The supply pins to the radio part must be driven
by the 1.8 V on-chip regulator
CC2480 Data Sheet SWRS074A
Page 6 of 43



CC2480
5
Electrical Specifications
Measured on Texas Instruments CC2480 EM reference design with TA=25°C and VDD=3.0V
unless stated otherwise.
Table 3: Electrical Specifications
Parameter
Min Typ Max
Unit
Condition
Current Consumption
Digital regulator on. 16 MHz RCOSC running. No radio,
crystals, or peripherals active.
Low CPU activity: no flash access (i.e. only cache hit), no
RAM access.
CPU Active Mode, 16 MHz,
low CPU activity
4.3
5.1
5.7
mA
mA
mA
Digital regulator on. 16 MHz RCOSC running. No radio,
crystals, or peripherals active.
CPU Active Mode, 16 MHz,
medium CPU activity
Medium CPU activity: normal flash access1, minor RAM
access.
Digital regulator on. 16 MHz RCOSC running. No radio,
crystals, or peripherals active.
High CPU activity: normal flash access, extensive RAM
access and heavy CPU load.
CPU Active Mode, 16 MHz,
high CPU activity
32 MHz XOSC running. No radio or peripherals active.
Low CPU activity : no flash access (i.e. only cache hit),
no RAM access
CPU Active Mode, 32 MHz,
low CPU activity
9.5
mA
mA
mA
mA
mA
µA
32 MHz XOSC running. No radio or peripherals active.
Medium CPU activity: normal flash access1, minor RAM
access.
CPU Active Mode, 32 MHz,
medium CPU activity
10.5
12.3
26.7
26.9
190
32 MHz XOSC running. No radio or peripherals active.
High CPU activity: normal flash access1, extensive RAM
access and heavy CPU load.
CPU Active Mode, 32 MHz,
high CPU activity
CPU running at full speed (32MHz), 32MHz XOSC
running, radio in RX mode, -50 dBm input power. No
peripherals active. Low CPU activity.
CPU Active and RX Mode
CPU Active and TX Mode, 0dBm
Power mode 1
CPU running at full speed (32MHz), 32MHz XOSC
running, radio in TX mode, 0dBm output power. No
peripherals active. Low CPU activity.
Digital regulator on, 16 MHz RCOSC and 32 MHz crystal
oscillator off. 32.768 kHz XOSC, POR and ST active.
RAM retention.
Digital regulator off, 16 MHz RCOSC and 32 MHz crystal
oscillator off. 32.768 kHz XOSC, POR and ST active.
RAM retention.
Power mode 2
Power mode 3
0.5
0.3
µA
µA
No clocks. RAM retention. POR active.
Peripheral Current
Consumption
Adds to the figures above if the peripheral unit is
activated
Including 32.753 kHz RCOSC.
When converting.
Sleep Timer
ADC
0.2
1.2
3
µA
mA
mA
mA
Flash write
Flash erase
Estimated value
3
Estimated value
1 Normal Flash access means that the code used exceeds the cache storage so cache misses will
happen frequently.
CC2480 Data Sheet SWRS074A
Page 7 of 43



CC2480
5.1 General Characteristics
Measured on Texas Instruments CC2480 EM reference design with TA=25°C and VDD=3.0V
unless stated otherwise.
Table 4: General Characteristics
Parameter
Min
Typ
Max
Unit
Condition/Note
Wake-Up and Timing
Digital regulator on, 16 MHz RCOSC and
32 MHz crystal oscillator off. Start-up of
16 MHz RCOSC.
Power mode 1 Æ power
mode 0
4.1
µs
µs
Digital regulator off, 16 MHz RCOSC and
32 MHz crystal oscillator off. Start-up of
regulator and 16 MHz RCOSC.
Power mode 2 or 3 Æ power
mode 0
120
Time from enabling radio part in power
mode 0, until TX or RX starts. Includes
start-up of voltage regulator and crystal
oscillator in parallel. Crystal ESR=16Ω.
Active Æ TX or RX
32MHz XOSC initially OFF.
Voltage regulator initially OFF
525
320
µs
µs
Time from enabling radio part in power
mode 0, until TX or RX starts. Includes
start-up of voltage regulator.
Active Æ TX or RX
Voltage regulator initially OFF
Radio part already enabled.
Time until RX or TX starts.
Active Æ RX or TX
192
192
µs
µs
RX/TX turnaround
Radio part
RF Frequency Range
2400
2483.5
MHz
Programmable in 1 MHz steps, 5 MHz
between channels for compliance with
[1]
Radio bit rate
250
2.0
kbps
As defined by [1]
Radio chip rate
MChip/s
As defined by [1]
CC2480 Data Sheet SWRS074A
Page 8 of 43

CC2480
5.2 RF Receive Section
Measured on Texas Instruments CC2480 EM reference design with TA=25°C and VDD=3.0V
unless stated otherwise.
Table 5: RF Receive Parameters
Parameter
Min
Typ
Max
Unit Condition/Note
Receiver sensitivity
-92
dBm PER = 1%, as specified by [1]
Measured in 50 Ω single endedly through a balun.
[1] requires –85 dBm
Saturation (maximum input
level)
10
dBm PER = 1%, as specified by [1]
Measured in 50 Ω single endedly through a balun.
[1] requires –20 dBm
Adjacent channel rejection
+ 5 MHz channel spacing
Wanted signal -88dBm, adjacent modulated channel
at +5 MHz, PER = 1 %, as specified by [1].
41
30
55
53
dB
[1] requires 0 dB
Adjacent channel rejection
- 5 MHz channel spacing
Wanted signal -88dBm, adjacent modulated channel
at -5 MHz, PER = 1 %, as specified by [1].
dB
[1] requires 0 dB
Alternate channel rejection
+ 10 MHz channel spacing
Wanted signal -88dBm, adjacent modulated channel
at +10 MHz, PER = 1 %, as specified by [1]
dB
[1] requires 30 dB
Alternate channel rejection
- 10 MHz channel spacing
Wanted signal -88dBm, adjacent modulated channel
at -10 MHz, PER = 1 %, as specified by [1]
dB
[1] requires 30 dB
Channel rejection
≥ + 15 MHz
Wanted signal @ -82 dBm. Undesired signal is an
802.15.4 modulated channel, stepped through all
channels from 2405 to 2480 MHz. Signal level for
PER = 1%. Values are estimated.
55
53
dB
≤ - 15 MHz
dB
Co-channel rejection
Wanted signal @ -82 dBm. Undesired signal is
-6
dB
802.15.4 modulated at the same frequency as the
desired signal. Signal level for PER = 1%.
Blocking / Desensitization
+ 5 MHz from band edge
+ 10 MHz from band edge
+ 20 MHz from band edge
+ 50 MHz from band edge
-42
-29
-26
-22
dBm Wanted signal 3 dB above the sensitivity level, CW
dBm jammer, PER = 1%. Measured according to EN 300
dBm 440 class 2.
dBm
- 5 MHz from band edge
- 10 MHz from band edge
- 20 MHz from band edge
- 50 MHz from band edge
-31
-36
-24
-25
dBm
dBm
dBm
dBm
Spurious emission
30 – 1000 MHz
1 – 12.75 GHz
−64
−75
dBm
dBm
Conducted measurement in a 50 Ω single ended
load. Complies with EN 300 328, EN 300 440 class
2, FCC CFR47, Part 15 and ARIB STD-T-66.
Frequency error tolerance
Symbol rate error tolerance
±140
±900
ppm Difference between centre frequency of the received
RF signal and local oscillator frequency.
[1] requires minimum 80 ppm
ppm Difference between incoming symbol rate and the
internally generated symbol rate
[1] requires minimum 80 ppm
5.3 RF Transmit Section
Measured on Texas Instruments CC2480 EM reference design with TA=25°C, VDD=3.0V, and
nominal output power unless stated otherwise.
CC2480 Data Sheet SWRS074A
Page 9 of 43

CC2480
Table 6: RF Transmit Parameters
Parameter
Min
Typ
Max Unit Condition/Note
Nominal output
power
0
dBm
Delivered to a single ended 50 Ω load through a balun.
[1] requires minimum –3 dBm
Harmonics
2nd harmonic
3rd harmonic
4th harmonic
5th harmonic
-50.7
-55.8
-54.2
-53.4
dBm Measurement conducted with 100 kHz resolution bandwidth on
spectrum analyzer. Output Delivered to a single ended 50 Ω load
dBm
dBm
dBm
through a balun.
Maximum output power.
Spurious emission
30 - 1000 MHz
1– 12.75 GHz
1.8 – 1.9 GHz
5.15 – 5.3 GHz
Texas Instruments CC2480 EM reference design complies with
EN 300 328, EN 300 440, FCC CFR47 Part 15 and ARIB STD-
T-66.
-47
-43
-58
-56
dBm
dBm
dBm
dBm
Transmit on 2480MHz under FCC is supported by duty-cycling
The peak conducted spurious emission is -47 dBm @ 192 MHz
which is in an EN 300 440 restricted band limited to -54 dBm. All
radiated spurious emissions are within the limits of
ETSI/FCC/ARIB. Conducted spurious emission (CSE) can be
reduced with a simple band pass filter connected between
matching network and RF connector (1.8 pF in parallel with 1.6
nH reduces the CSE by 20 dB), this filter must be connected to
good RF ground.
EVM
11
%
Measured as defined by [1]
[1] requires max. 35 %
Optimum load
impedance
60
+ j164
Ω
Differential impedance as seen from the RF-port (RF_Pand
RF_N) towards the antenna2.
5.4 32 MHz Crystal Oscillator
Measured on Texas Instruments CC2480 EM reference design with TA=25°C and VDD=3.0V
unless stated otherwise.
Table 7: 32 MHz Crystal Oscillator Parameters
Parameter
Min
Typ
Max
Unit
MHz
ppm
Condition/Note
Crystal frequency
32
Crystal frequency
accuracy
- 40
40
Including aging and temperature dependency, as specified by [1]
requirement
ESR
6
1
16
1.9
13
60
7
Simulated over operating conditions
Simulated over operating conditions
Simulated over operating conditions
Ω
pF
pF
µs
C0
CL
10
16
Start-up time
212
5.5 32.768 kHz Crystal Oscillator
Measured on Texas Instruments CC2480 EM reference design with TA=25°C and VDD=3.0V
unless stated otherwise.
2 This is for 2440MHz
CC2480 Data Sheet SWRS074A
Page 10 of 43



CC2480
Table 8: 32.768 kHz Crystal Oscillator Parameters
Parameter
Min
Typ
Max
Unit Condition/Note
Crystal frequency
32.768
kHz
Crystal frequency
accuracy
–40
40
ppm
Including aging and temperature dependency, as specified by [1]
requirement
ESR
40
0.9
12
130
2.0
16
Simulated over operating conditions
Simulated over operating conditions
Simulated over operating conditions
Value is simulated.
kΩ
pF
C0
CL
pF
Start-up time
400
ms
5.6 32 kHz RC Oscillator
Measured on Texas Instruments CC2480 EM reference design with TA=25°C and VDD=3.0V
unless stated otherwise.
Table 9: 32 kHz RC Oscillator parameters
Parameter
Min
Typ
Max
Unit
Condition/Note
Calibrated frequency
32.753
kHz
The calibrated 32 kHz RC Oscillator frequency
is the 32 MHz XTAL frequency divided by 977
Frequency accuracy after
calibration
±0.2
+0.4
+3
%
Value is estimated.
Temperature coefficient
Supply voltage coefficient
Initial calibration time
Frequency drift when temperature changes
after calibration. Value is estimated.
% / °C
% / V
ms
Frequency drift when supply voltage changes
after calibration. Value is estimated.
1.7
When the 32 kHz RC Oscillator is enabled,
calibration is continuously done in the
background as long as the 32 MHz crystal
oscillator is running.
5.7 16 MHz RC Oscillator
Measured on Texas Instruments CC2480 EM reference design with TA=25°C and VDD=3.0V
unless stated otherwise.
Table 10: 16 MHz RC Oscillator parameters
Parameter
Min
Typ
Max
Unit
Condition/Note
Frequency
16
MHz
The calibrated 16 MHz RC Oscillator
frequency is the 32 MHz XTAL frequency
divided by 2
Uncalibrated frequency
accuracy
%
%
±18
Calibrated frequency
accuracy
±0.6
±1
Start-up time
10
µs
Temperature coefficient
-325
Frequency drift when temperature changes
after calibration
ppm / °C
ppm / mV
µs
Supply voltage coefficient
Initial calibration time
28
Frequency drift when supply voltage changes
after calibration
50
When the 16 MHz RC Oscillator is enabled it
will be calibrated continuously when the
32MHz crystal oscillator is running.
CC2480 Data Sheet SWRS074A
Page 11 of 43

CC2480
5.8 Frequency Synthesizer Characteristics
Measured on Texas Instruments CC2480 EM reference design with TA=25°C and VDD=3.0V
unless stated otherwise.
Table 11: Frequency Synthesizer Parameters
Parameter
Min
Typ
Max
Unit
Condition/Note
Phase noise
Unmodulated carrier
−116
−117
−118
dBc/Hz
dBc/Hz
dBc/Hz
At ±1.5 MHz offset from carrier
At ±3 MHz offset from carrier
At ±5 MHz offset from carrier
PLL lock time
192
The startup time until RX/TX turnaround. The crystal
oscillator is running.
µs
5.9 Analog Temperature Sensor
Measured on Texas Instruments CC2480 EM reference design with TA=25°C and VDD=3.0V
unless stated otherwise.
Table 12: Analog Temperature Sensor Parameters
Parameter
Min
Typ
Max
Unit
Condition/Note
0.648
0.743
0.840
0.939
2.45
V
V
V
V
Value is estimated
Value is estimated
Value is estimated
Value is estimated
Output voltage at –40°C
Output voltage at 0°C
Output voltage at +40°C
Output voltage at +80°C
Temperature coefficient
mV/°C Fitted from –20°C to +80°C on estimated values.
Absolute error in calculated
temperature
–8
°C
°C
From –20°C to +80°C when assuming best fit for
absolute accuracy on estimated values: 0.743V at
0°C and 2.45mV / °C.
Error in calculated
temperature, calibrated
-2
0
2
From –20°C to +80°C when using 2.45mV / °C,
after 1-point calibration at room temperature.
Values are estimated. Indicated min/max with 1-
point calibration is based on simulated values for
typical process parameters
Current consumption
280
µA
increase when enabled
5.10 ADC
Measured with TA=25°C and VDD=3.0V. Note that other data may result when using Texas
Instruments’ CC2480 EM reference design.
Table 13: ADC Characteristics
Parameter
Min
Typ
Max
Unit
Condition/Note
Input voltage
0
VDD
V
VDD is voltage on AVDD_SOC pin
Simulated using 4 MHz clock speed.
Peak-to-peak, defines 0dBFS
Input resistance, signal
Full-Scale Signal3
197
kΩ
V
2.97
3 Measured with 300 Hz Sine input and VDD as reference.
CC2480 Data Sheet SWRS074A
Page 12 of 43



CC2480
Parameter
Min
Typ
Max
Unit
Condition/Note
ENOB3
5.7
7.5
bits
7-bits setting.
9-bits setting.
10-bits setting.
12-bits setting.
7-bits setting.
9-bits setting.
10-bits setting.
12-bits setting.
7-bits setting
Single ended input
9.3
10.8
6.5
ENOBError! Bookmark not defined.
Differential input
bits
8.3
10.0
11.5
0-20
Useful Power Bandwidth
THD3
kHz
-Single ended input
-75.2
-86.6
dB
dB
12-bits setting, -6dBFS
12-bits setting, -6dBFS
-Differential input
Signal To Non-Harmonic Ratio3
-Single ended input
-Differential input
70.2
79.3
dB
dB
12-bits setting
12-bits setting
Spurious Free Dynamic Range3
-Single ended input
-Differential input
78.8
88.9
<-84
dB
dB
dB
12-bits setting, -6dBFS
12-bits setting, -6dBFS
CMRR, differential input
12- bit setting, 1 kHz Sine (0dBFS), limited by ADC
resolution
Crosstalk, single ended input
<-84
dB
12- bit setting, 1 kHz Sine (0dBFS), limited by ADC
resolution
Offset
-3
mV
%
Mid. Scale
Gain error
DNL3
0.68
0.05
0.9
LSB
LSB
LSB
LSB
dB
dB
dB
dB
dB
dB
dB
dB
µs
12-bits setting, mean
12-bits setting, max
12-bits setting, mean
12-bits setting, max
7-bits setting.
INL3
4.6
13.3
35.4
46.8
57.5
66.6
40.7
51.6
61.8
70.8
20
SINAD3
Single ended input
(-THD+N)
9-bits setting.
10-bits setting.
12-bits setting.
7-bits setting.
SINADError! Bookmark not defined.
Differential input
(-THD+N)
9-bits setting.
10-bits setting.
12-bits setting.
7-bits setting.
Conversion time
36
9-bits setting.
µs
68
10-bits setting.
12-bits setting.
µs
132
1.2
µs
Power Consumption
mA
CC2480 Data Sheet SWRS074A
Page 13 of 43
CC2480
5.11 Control AC Characteristics
TA= -40°C to 85°C, VDD=2.0V to 3.6V if nothing else stated.
Table 14: Control Inputs AC Characteristics
Parameter
Min
Typ
Max
Unit
Condition/Note
System clock,
fSYSCLK
16
32
MHz
System clock is 32 MHz when crystal oscillator is used.
System clock is 16 MHz when calibrated 16 MHz RC
oscillator is used.
t
SYSCLK= 1/ fSYSCLK
RESET_N low
width
250
ns
ns
See item 1, Figure 1. This is the shortest pulse that is
guaranteed to be recognized as a complete reset pin
request. Note that shorter pulses may be recognized but
will not lead to complete reset of all modules within the
chip.
Interrupt pulse
width
tSYSCLK
See item 2, Figure 1.This is the shortest pulse that is
guaranteed to be recognized as an interrupt request. In
PM2/3 the internal synchronizers are bypassed so this
requirement does not apply in PM2/3.
1
RESET_N
GPIOx
2
2
GPIOx
Figure 1: Control Inputs AC Characteristics
CC2480 Data Sheet SWRS074A
Page 14 of 43


CC2480
5.12 SPI AC Characteristics
TA= -40°C to 85°C, VDD=2.0V to 3.6V if nothing else stated.
Table 15: SPI AC Characteristics
Parameter
Min
Typ
Max Unit
Condition/Note
SSN low to SCK
SCK to SSN high
SCK period
SCK duty cycle
SI setup
2*tSYSCLK
30
See item 5 Figure 2
See item 6 Figure 2
See item 1 Figure 2
ns
ns
100
50%
10
10
ns
ns
See item 2 Figure 2
SI hold
See item 3 Figure 2
SCK to SO
25
ns
See item 4 Figure 2, load = 10 pF
Figure 2: SPI AC Characteristics
5.13 Port Outputs AC Characteristics
TA= 25°C, VDD=3.0V if nothing else stated.
Table 16: Port Outputs AC Characteristics
Parameter
Min
Typ
Max
Unit
Condition/Note
Load = 10 pF
GPIO/USART output
rise time
(SC=0/SC=1)
3.15/
1.34
ns
Timing is with respect to 10% VDD and 90% VDD levels.
Values are estimated
Load = 10 pF
fall time
3.2/
Timing is with respect to 90% VDD and 10% VDD.
Values are estimated
(SC=0/SC=1)
1.44
5.14 DC Characteristics
The DC Characteristics of CC2480 are listed in Table 17 below.
TA=25°C, VDD=3.0V if nothing else stated.
Table 17: DC Characteristics
CC2480 Data Sheet SWRS074A
Page 15 of 43




CC2480
Digital Inputs/Outputs
Min
Typ
Max
Unit
%
Condition
Logic "0" input voltage
30
Of VDD supply (2.0 – 3.6 V)
Of VDD supply (2.0 – 3.6 V)
Input equals 0V
Logic "1" input voltage
70
NA
NA
%
Logic "0" input current per pin
Logic "1" input current
12
12
70
70
nA
nA
nA
nA
kΩ
Input equals VDD
Total logic “0” input current all pins
Total logic “1” input current all pins
I/O pin pull-up and pull-down
resistor
20
CC2480 Data Sheet SWRS074A
Page 16 of 43
CC2480
6
Pin and I/O Port Configuration
The CC2480 pinout is shown in Figure 3 with details in Table 18.
Figure 3: Pinout top view
Note: The exposed die attach pad must be connected to a solid ground plane as this is the
ground connection for the chip.
CC2480 Data Sheet SWRS074A
Page 17 of 43


CC2480
Table 18: Pinout overview
Pin Pin name
Pin type
Ground
Description
-
GND
The exposed die attach pad must be connected to a solid ground plane
1
NC
N/A
2
NC
N/A
3
GPIO3
GPIO2
SRDY
Digital I/O
Digital I/O
Digital Output
Digital Input
General I/O pin 3
4
General I/O pin 2
5
Slave ready. Mandatory for SPI, optional for UART.
Master ready. Optional for SPI and UART.
6
MRDY
DVDD
7
Power (Digital) 2.0V-3.6V digital power supply for digital I/O
8
GPIO1
GPIO0
RESET_N
CFG0
Digital I/O
General I/O pin 1 – increased drive capability
General I/Opin 0 – increased drive capability
Reset, active low
9
Digital I/O
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Digital input
Digital Input
Digital Input
Digital Input
Digital Output
Digital I/O
Configuration input 0
CFG1
Configuration input 1
SO/RX
SI/TX
SPI slave output or UART RX data
SPI slave input or UART TX data
SPI slave select (in) or UART CTS (out)
SPI clock or UART RTS
SS/CT
C/RT
Digital Input
Analog Input
Analog Input
Analog I/O
A0
ADC input A0
A1
ADC input A1
XOSC_Q2
AVDD_SOC
XOSC_Q1
RBIAS1
AVDD_RREG
RREG_OUT
32 MHz crystal oscillator pin 2
Power (Analog) 2.0V-3.6V analog power supply connection
Analog I/O
Analog I/O
32 MHz crystal oscillator pin 1, or external clock input
External precision bias resistor for reference current
Power (Analog) 2.0V-3.6V analog power supply connection
Power output 1.8V Voltage regulator power supply output. Only intended for supplying the analog
1.8V part (power supply for pins 25, 27-31, 35-40).
25
AVDD_IF1
Power (Analog) 1.8V Power supply for the receiver band pass filter, analog test module, global bias
and first part of the VGA
26
27
28
29
30
31
32
RBIAS2
Analog output
External precision resistor, 43 kΩ, ±1 %
AVDD_CHP
VCO_GUARD
AVDD_VCO
AVDD_PRE
AVDD_RF1
RF_P
Power (Analog) 1.8V Power supply for phase detector, charge pump and first part of loop filter
Power (Analog) Connection of guard ring for VCO (to AVDD) shielding
Power (Analog) 1.8V Power supply for VCO and last part of PLL loop filter
Power (Analog) 1.8V Power supply for Prescaler, Div-2 and LO buffers
Power (Analog) 1.8V Power supply for LNA, front-end bias and PA
RF I/O
Positive RF input signal to LNA during RX. Positive RF output signal from PA during
TX
33
34
TXRX_SWITCH
RF_N
Power (Analog) Regulated supply voltage for PA
RF I/O
Negative RF input signal to LNA during RX
Negative RF output signal from PA during TX
35
36
37
38
39
40
41
42
43
44
45
46
47
48
AVDD_SW
AVDD_RF2
AVDD_IF2
AVDD_ADC
DVDD_ADC
Power (Analog) 1.8V Power supply for LNA / PA switch
Power (Analog) 1.8V Power supply for receive and transmit mixers
Power (Analog) 1.8V Power supply for transmit low pass filter and last stages of VGA
Power (Analog) 1.8V Power supply for analog parts of ADCs and DACs
Power (Digital) 1.8V Power supply for digital parts of ADCs
AVDD_DGUARD Power (Digital) Power supply connection for digital noise isolation
AVDD_DREG
DCOUPL
32K_XOSC_Q2
32K_XOSC_Q1
NC
Power (Digital) 2.0V-3.6V digital power supply for digital core voltage regulator
Power (Digital) 1.8V digital power supply decoupling. Do not use for supplying external circuits.
Analog I/O
Analog I/O
N/A
32.768 kHz XOSC
32.768 kHz XOSC
NC
N/A
DVDD
Power (Digital) 2.0V-3.6V digital power supply for digital I/O
N/A
NC
CC2480 Data Sheet SWRS074A
Page 18 of 43
CC2480
7
Circuit Description
DIGITAL
ANALOG
MIXED
VDD (2.0 - 3.6 V)
DCOUPL
ON-CHIP VOLTAGE
REGULATOR
32K_XOSC_Q2
32 MHz
CRYSTAL OSC
HIGH SPEED
RC-OSC
POWER ON RESET
BROWN OUT
32K_XOSC_Q1
XOSC_Q2
XOSC_Q1
32.768 kHz
CRYSTAL OSC
32 kHz RC-OSC
SLEEP TIMER
CLOCK MUX &
CALIBRATION
RESET_N
RESET
SLEEP MODE CONTROLLER
128 KB
GPIO3
GPIO2
GPIO1
GPIO0
FLASH
GP
8051 CPU
CORE
MEMORY
DMA
I/O
ARBITRATOR
8 KB
SRAM
IRQ
CTRL
FLASH
WRITE
AES
ENCRYPTION
&
∆Σ ADC
AUDIO / DC
2 CHANNELS
A1
A0
DEMODULATOR
AGC
MODULATOR
DECRYPTION
SRDY
MRDY
SI/TX
USART
RECEIVE
CHAIN
TRANSMIT
CHAIN
SO/RX
SS/CT
C/RT
RF_P
RF_N
Figure 4: CC2480 Block Diagram
A block diagram of CC2480 is shown in Figure
4. The modules can be roughly divided into
one of three categories: CPU-related modules,
modules related to power and clock
distribution, and radio-related modules. CC2480
features an IEEE 802.15.4 compliant radio
based on the leading CC2420 transceiver. See
Section 10 for details.
CC2480 Data Sheet SWRS074A
Page 19 of 43


CC2480
8
Application Circuit
Few external components are required for the
operation of CC2480. A typical application
circuit is shown in Figure 5. Typical values and
description of external components are shown
in Table 19.
8.1 Input / output matching
The RF input/output is high impedance and
differential. The optimum differential load for
the RF port is 60 + j164 Ω4.
LNA (RX) and the PA (TX). See Input/output
matching section on page 33 for more details.
If a balanced antenna such as a folded dipole
is used, the balun can be omitted. If the
antenna also provides a DC path from
TXRX_SWITCH pin to the RF pins, inductors
are not needed for DC bias.
When using an unbalanced antenna such as a
monopole, a balun should be used in order to
optimize performance. The balun can be
implemented using low-cost discrete inductors
and capacitors. The recommended balun
shown, consists of C341, L341, L321 and
Figure 5 shows a suggested application circuit
using a differential antenna. The antenna type
is a standard folded dipole. The dipole has a
virtual ground point; hence bias is provided
without degradation in antenna performance.
L331 together with
a
PCB microstrip
transmission line (λ/2-dipole), and will match
the RF input/output to 50 Ω. An internal T/R
switch circuit is used to switch between the
Also
refer
to
the
section
Antenna
Considerations on page 35.
4 This is for 2440MHz.
8.2 Bias resistors
The bias resistors are R221 and R261. The
bias resistor R221 is used to set an accurate
bias current for the 32 MHz crystal oscillator.
8.3 Crystal
An external 32 MHz crystal, XTAL1, with two
loading capacitors (C191 and C211) is used
for the 32 MHz crystal oscillator. See page 10
for details. The load capacitance seen by the
32 MHz crystal is given by:
sleep current consumption and accurate wake
up times. The load capacitance seen by the
32.768 kHz crystal is given by:
1
CL =
+ Cparasitic
1
1
1
+
CL =
+ Cparasitic
C441 C431
1
1
+
C191 C211
A series resistor may be used to comply with
the ESR requirement.
XTAL2 is an optional 32.768 kHz crystal, with
two loading capacitors (C441 and C431), used
for the 32.768 kHz crystal oscillator. The
32.768 kHz crystal oscillator is used in
applications where you need both very low
8.4 Voltage regulators
The on chip voltage regulators supply all 1.8 V
power supply pins and internal power supplies.
C241 and C421 are required for stability of the
regulators.
CC2480 Data Sheet SWRS074A
Page 20 of 43



CC2480
8.5 Power supply decoupling and filtering
Proper power supply decoupling must be used
for optimum performance. The placement and
size of the decoupling capacitors and the
power supply filtering are very important to
achieve the best performance in an
application. TI provides a compact reference
design that should be followed very closely.
Refer
to
the
section
PCB
Layout
Recommendation on page 35.
Figure 5:
CC2480
Applicatio
n Circuit.
(Digital I/O
and ADC
interface
not
C431
C441
C421
2.0 - 3.6V Power Supply
XTAL2
optional
connected
).
Decouplin
g
capacitors
not shown.
Antenna
(50 Ohm)
1
2
3
4
5
6
7
8
9
36
NC
AVDD_RF2
35
NC
AVDD_SW
34
GPIO3
GPIO2
SRDY
MRDY
DVDD
GPIO1
GPIO0
C341
L341
RF_N
L321
33
TXRX_SWITCH
32
RF_P
L331
CC2480
31
30
29
28
27
26
AVDD_RF1
AVDD_PRE
AVDD_VCO
VCO_GUARD
AVDD_CHP
RBIAS2
λ/4
λ/4
10 RESET_N
or
R261
11
12
CFG0
CFG1
AVDD_IF1 25
L331
L321
XTAL1
R221
C241
C191
C211
CC2480 Data Sheet SWRS074A
Page 21 of 43


CC2480
Table 19: Overview of external components (excluding supply decoupling capacitors)
Component
C191
Description
Differential Antenna
Single Ended 50Ω Output
33 pF, 5%, NP0, 0402
27 pF, 5%, NP0, 0402
220 nF, 10%, 0402
32 MHz crystal load capacitor
32 MHz crystal load capacitor
33 pF, 5%, NP0, 0402
27 pF, 5%, NP0, 0402
220 nF, 10%, 0402
C211
C241
Load capacitance for analogue power
supply voltage regulators
C421
C341
Load capacitance for digital power supply
voltage regulators
1 µF, 10%, 0402
1 µF, 10%, 0402
DC block to antenna and match
5.6 pF, 5%, NP0, 0402
Not used
Note: For RF connector a LP filter can be
connected between this C, the antenna
and good ground in order to remove
conducted spurious emission by using
1.8pF in parallel with 1.6nH
1.8 pF, Murata COG 0402,
GRM15
1.6 nH, Murata 0402,
LQG15HS1N6S02
C431, C441
L321
32.768 kHz crystal load capacitor (if low-
frequency crystal is needed in application)
15 pF, 5%, NP0, 0402
15 pF, 5%, NP0, 0402
Discrete balun and match
Discrete balun and match
Discrete balun and match
6.8 nH, 5%,
Monolithic/multilayer, 0402
12 nH 5%,
Monolithic/multilayer, 0402
L331
22 nH, 5%,
Monolithic/multilayer, 0402
27 nH, 5%,
Monolithic/multilayer, 0402
L341
1.8 nH, +/-0.3 nH,
Not used
Monolithic/multilayer, 0402
R221
Precision resistor for current reference
generator to system-on-chip part
56 kΩ, 1%, 0402
56 kΩ, 1%, 0402
43 kΩ, 1%, 0402
R261
Precision resistor for current reference
generator to RF part
43 kΩ, 1%, 0402
XTAL1
XTAL2
32 MHz Crystal
32 MHz crystal,
ESR < 60 Ω
32 MHz crystal,
ESR < 60 Ω
Optional 32.768 kHz watch crystal (if low-
frequency crystal is needed in application) Epson MC 306.
32.768 kHz crystal,
32.768 kHz crystal,
Epson MC 306.
CC2480 Data Sheet SWRS074A
Page 22 of 43

CC2480
9
Peripherals
In the following sub-sections the user-
accessible CC2480 peripheral modules are
described
in
detail.
9.1 Reset
The initial conditions after a reset are as
follows:
The CC2480 has four reset sources. The
following events generate a reset:
•
•
I/O pins are configured as inputs with pull-
up
See the CC2480 Interface Specification [2]
for a description of the interaction between
CC2480 and the host processor after
reset.
•
•
•
•
Forcing RESET_N input pin low
A power-on reset condition
A brown-out reset condition
A
firmware-generated
reset
(SYS_RESET_REQ [2])
9.1.1
Power On Reset and Brown Out Detector
state until the supply voltage reaches above
the Power On Reset and Brown Out voltages.
The CC2480 includes a Power On Reset (POR)
providing correct initialization during device
power-on. Also includes is a Brown Out
Detector (BOD) operating on the regulated
1.8V digital power supply only, The BOD will
protect the memory contents during supply
voltage variations which cause the regulated
1.8V power to drop below the minimum level
required by flash memory and SRAM.
Figure 6 shows the POR/BOD operation with
the 1.8V (typical) regulated supply voltage
together with the active low reset signals
BOD_RESET and POR_RESET shown in the
bottom of the figure (note that signals are not
available, just for illustration of events).
When power is initially applied to the CC2480
the Power On Reset (POR) and Brown Out
Detector (BOD) will hold the device in reset
1.8V REGULATED
UNREGULATED
VOLT
BOD RESET ASSERT
POR RESET DEASSERT RISING VDD
POR RESET ASSERT FALLING VDD
0
POR OUTPUT
X
X
X
BOD RESET
POR RESET
X
X
X
Figure 6 : Power On Reset and Brown Out Detector Operation
9.2 I/O ports
The CC2480 has digital input/output pins that
have the following key features:
•
•
•
General purpose I/O or peripheral I/O
Pull-up or pull-down capability on inputs
External interrupt capability
Two of the I/O pins have external interrupts
that can be used to wake up the device from
sleep modes.
CC2480 Data Sheet SWRS074
Page 23 of 43


CC2480
9.2.1
Unused I/O pins
Unused I/O pins should have a defined level
and not be left floating. One way to do this is to
leave the pin unconnected and configured with
pull-up resistor. This is also the state of all pins
after reset.
9.2.2
Low I/O Supply Voltage
In applications where the digital I/O power
supply voltage pin DVDD is below 2.6 V, the
SC bit should be set to 1 in order to obtain
output DC characteristics specified in section
5.14. See the CC2480 user guide [2] for a
description of how to do this.
9.2.3
General Purpose I/O
up, pull-down or tri-state mode of operation. By
default, after a reset, inputs are configured as
inputs with pull-up. Please note that GPIO0
and GPIO1 do not have pull-up or pull-down
capabilities.
See the CC2480 user guide [2] for a description
of how to configure and use the GPIO pins.
The output drive strength is 4 mA on all
outputs, except for the two high-drive outputs,
GPIO0 and GPIO1, which each have ~20 mA
output drive strength.
In power modes PM2 and PM3 the I/O pins
retain the I/O mode and output value (if
applicable) that was set when PM2/3 was
entered
When used as an input, the general purpose
I/O port pins can be configured to have a pull-
CC2480 Data Sheet SWRS074
Page 24 of 43
CC2480
9.3 ADC
9.3.1
ADC Introduction
The ADC supports up to 12-bit analog-to-
digital conversion. The ADC includes an
analog multiplexer with up to two individually
configurable channels and reference voltage
generator.
•
•
Selectable decimation rates which also
sets the resolution (7 to 12 bits).
Two individual input channels, single-
ended or differential
Internal voltage reference
Temperature sensor input
•
•
•
The main features of the ADC are as follows:
Battery measurement capability
A1
A0
Sigma-delta
modulator
Decimation
filter
input
mux
VDD/3
TMP_SENSOR
Int 1.25V
Clock generation and
control
Figure 7: ADC block diagram.
9.3.2
ADC Operation
This section describes the general setup and
operation of the ADC.
9.3.2.1
ADC Core
The ADC includes an ADC capable of
converting an analog input into a digital
representation with up to 12 bits resolution.
The ADC uses a selectable positive reference
voltage.
9.3.2.2
ADC Inputs
The signals from input pins A0 and A1 are
used as single-ended ADC inputs. The ADC
selected as an input to the ADC for
temperature measurements.
automatically performs
conversions when the SYS_ADC_READ
command is issued.
a
sequence of
It is also possible to select a voltage
corresponding to AVDD_SOC/3 as an ADC
input. This input allows the implementation of
e.g. a battery monitor in applications where
In addition to the input pins A0-1, the output of
an on-chip temperature sensor can be
this
feature
is
required.
9.3.2.3
ADC conversion sequences
In the case where differential inputs are
selected, the differential inputs consist of the
input pair A0-1. Note that no negative supply
can be applied to these pins, nor a supply
larger than VDD (unregulated power). It is the
difference between the pairs that are
converted in differential mode.
The CC2480 has two ADC channels that are
connected to external pins. Additionally, the
ADC can measure the chip voltage and
temperature.
The ADC conversions are done channel by
channel incrementally.
The two external pin inputs A0 and A1 can be
used as single-ended or differential inputs.
CC2480 Data Sheet SWRS074
Page 25 of 43

CC2480
In addition to the input pins A0-1, the output of
an on-chip temperature sensor can be
selected as an input to the ADC for
temperature measurements.
It is also possible to select a voltage
corresponding to AVDD_SOC/3 as an ADC
input. This input allows the implementation of
e.g. a battery monitor in applications where
this feature is required.
9.3.2.4
ADC Operating Modes
This section describes the operating modes
and initialization of conversions.
The decimation rate (and thereby also the
resolution and time required to complete a
conversion and sample rate) is configurable
from 7-12 bits.
The ADC uses an internal voltage reference
for single-ended conversions.
9.3.2.5
ADC Conversion Results
The digital conversion result is represented in
two's complement form. The result is always
positive. This is because the result is the
difference between ground and input signal
For differential configurations the difference
between the pins is converted and this
difference can be negatively signed. For 12-bit
resolution the digital conversion result is 2047
when the analog input, Vconv, is equal to
VREF, and the conversion result is -2048
when the analog input is equal to –VREF.
which
is
always
posivitely
signed
(Vconv=Vinp-Vinn, where Vinn=0V). The
maximum value is reached when the input
amplitude is equal VREF, the internal voltage
reference.
9.3.2.6
ADC Reference Voltage
The positive reference voltage for analog-to-
digital conversions is an internally generated
1.25V voltage.
9.3.2.7
ADC Conversion Timing
The ADC is run on the 32MHz system clock,
which is divided by 8 to give a 4 MHz clock.
multiplexer is allowed 16 4 MHz clock cycles to
settle in case the channel has been changed
since the previous conversion. The 16 clock
cycles settling time applies to all decimation
rates. Thus in general, the conversion time is
given by:
The time required to perform a conversion
depends on the selected decimation rate.
When the decimation rate is set to for instance
128, the decimation filter uses exactly 128 of
the 4 MHz clock periods to calculate the result.
When a conversion is started, the input
Tconv = (decimation rate + 16) x 0.25 µs.
CC2480 Data Sheet SWRS074
Page 26 of 43
CC2480
9.4 Random Number Generator
9.4.1 Introduction
The random number generator has the
following features.
The random number generator is a 16-bit
Linear Feedback Shift Register (LFSR) with
polynomial X 16 + X 15 + X 2 +1 (i.e. CRC16).
It uses different levels of unrolling depending
on the operation it performs. The basic version
(no unrolling) is shown in Figure 8.
•
Generate pseudo-random bytes which can
be read by the external microprocessor.
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
+
+
in_bit
+
Figure 8: Basic structure of the Random Number Generator
9.4.2
Semi random sequence generation
The operation is to clock the LFSR once (13x
unrolling) each time the external
microprocessor reads the random value. This
leads to the availability of a fresh pseudo-
random byte from the LSB end of the LFSR.
CC2480 Data Sheet SWRS074
Page 27 of 43


CC2480
9.5 USART
The USART is a serial communications
interface that can be operated in either
asynchronous UART mode or in synchronous
SPI mode.
9.5.1
UART mode
For asynchronous serial interfaces, the UART
mode is provided. In the UART mode the
interface uses a two-wire or four-wire interface
consisting of the pins RXD, TXD and optionally
RTS and CTS. The UART mode of operation
is as follows:
•
•
8N1 byte format.
DCE signal connection.
The UART mode provides full duplex
asynchronous transfers, and the
synchronization of bits in the receiver does not
interfere with the transmit function. A UART
byte transfer consists of a start bit, eight data
bits, a parity bit, and one stop bit.
•
•
Baud rate: 115200.
Hardware (RTS/CTS) flow control.
9.5.2
SPI Mode
This section describes the SPI mode of
operation for synchronous communication. In
SPI mode, the USART communicates with an
external system through a 3-wire or 4-wire
interface. The interface consists of the pins SI,
SO, SCK and SS_N. The SPI mode is as
follows:
•
•
•
SPI slave.
Clock speed up to 4 MHz.
Clock polarity 0 and clock phase 0 on
CC2480 .
•
Bit order: MSB first.
9.5.2.1
SPI Slave Operation
An SPI byte transfer in slave mode is
controlled by the external system. The data on
the SI input is shifted into the receive register
controlled by the serial clock SCK which is an
input in slave mode. At the same time the byte
in the transmit register is shifted out onto the
SO output.
9.5.3
SSN Slave Select Pin
When the USART is operating in SPI mode,
configured as an SPI slave, a 4-wire interface
is used with the Slave Select (SSN) pin as an
input to the SPI (edge controlled). At falling
edge of SSN the SPI slave is active and
receives data on the SI input and outputs data
on the SO output. At rising edge of SSN, the
SPI slave is inactive and will not receive data.
Note that the SO output is not tri-stated after
rising edge on SSn. This could be achieved
using an external buffer. Also note that release
of SSn (rising edge) must be aligned to end of
byte recived or sent. If released in a byte the
next received byte will not be received
properly as information about previous byte is
present in SPI system.
CC2480 Data Sheet SWRS074
Page 28 of 43

CC2480
10 Radio
AUTOMATIC GAIN CONTROL
DIGITAL
DEMODULATOR
RADIO
ADC
Register bus
REGISTER
BANK
- Digital RSSI
- Gain Control
- Image Suppression
- Channel Filtering
- Demodulation
- Frame
LNA
FFCTRL
ADC
synchronization
CSMA/CA
STROBE
TXRX SWITCH
PROCESSOR
0
FREQ
SYNTH
SFR bus
90
TX POWER CONTROL
IRQ
HANDLING
DAC
DIGITAL
MODULATOR
Power
Control
- Data spreading
- Modulation
PA
Σ
DAC
Figure 9: CC2480 Radio Module
A simplified block diagram of the IEEE
802.15.4 compliant radio inside CC2480 is
shown in Figure 9. The radio core is based on
the industry leading CC2420 RF transceiver.
The RF signal is amplified in the power
amplifier (PA) and fed to the antenna.
The internal T/R switch circuitry makes the
antenna interface and matching easy. The RF
connection is differential. A balun may be used
for single-ended antennas. The biasing of the
PA and LNA is done by connecting
TXRX_SWITCH to RF_P and RF_N through an
external DC path.
CC2480 features
a
low-IF receiver. The
received RF signal is amplified by the low-
noise amplifier (LNA) and down-converted in
quadrature (I and Q) to the intermediate
frequency (IF). At IF (2 MHz), the complex I/Q
signal is filtered and amplified, and then
digitized by the RF receiver ADCs.
The frequency synthesizer includes
a
completely on-chip LC VCO and a 90 degrees
phase splitter for generating the I and Q LO
signals to the down-conversion mixers in
receive mode and up-conversion mixers in
transmit mode. The VCO operates in the
frequency range 4800 – 4966 MHz, and the
frequency is divided by two when split into I
and Q signals.
The CC2480 transmitter is based on direct up-
conversion. The preamble and start of frame
delimiter are generated in hardware. Each
symbol (4 bits) is spread using the IEEE
802.15.4 spreading sequence to 32 chips and
output to the digital-to-analog converters
(DACs).
An on-chip voltage regulator delivers the
regulated 1.8 V supply voltage.
An analog low pass filter passes the signal to
the quadrature (I and Q) up-conversion mixers.
CC2480 Data Sheet SWRS074
Page 29 of 43


CC2480
10.1 IEEE 802.15.4 Modulation Format
This section is meant as an introduction to the
2.4 GHz direct sequence spread spectrum
(DSSS) RF modulation format defined in IEEE
802.15.4. For a complete description, please
refer to [1].
For multi-byte fields, the least significant byte
is transmitted first.
Each symbol is mapped to one out of 16
pseudo-random sequences, 32 chips each.
The symbol to chip mapping is shown in Table
20. The chip sequence is then transmitted at 2
MChips/s, with the least significant chip (C0)
transmitted first for each symbol.
The modulation and spreading functions are
illustrated at block level in Figure 10 [1]. Each
byte is divided into two symbols, 4 bits each.
The least significant symbol is transmitted first.
Transmitted
bit-stream
(LSB first)
Bit-to-
Symbol
Symbol-
to-Chip
O-QPSK
Modulator
Modulated
Signal
Figure 10: Modulation and spreading functions [1]
The modulation format is Offset – Quadrature
Phase Shift Keying (O-QPSK) with half-sine
chip shaping. This is equivalent to MSK
modulation. Each chip is shaped as a half-
sine, transmitted alternately in the I and Q
channels with one half chip period offset. This
is illustrated for the zero-symbol in Figure 11.
Table 20: IEEE 802.15.4 symbol-to-chip mapping [1]
Symbol Chip sequence (C0, C1, C2, … , C31)
1 1 0 1 1 0 0 1 1 1 0 0 0 0 1 1 0 1 0 1 0 0 1 0 0 0 1 0 1 1 1 0
1 1 1 0 1 1 0 1 1 0 0 1 1 1 0 0 0 0 1 1 0 1 0 1 0 0 1 0 0 0 1 0
0 0 1 0 1 1 1 0 1 1 0 1 1 0 0 1 1 1 0 0 0 0 1 1 0 1 0 1 0 0 1 0
0 0 1 0 0 0 1 0 1 1 1 0 1 1 0 1 1 0 0 1 1 1 0 0 0 0 1 1 0 1 0 1
0 1 0 1 0 0 1 0 0 0 1 0 1 1 1 0 1 1 0 1 1 0 0 1 1 1 0 0 0 0 1 1
0 0 1 1 0 1 0 1 0 0 1 0 0 0 1 0 1 1 1 0 1 1 0 1 1 0 0 1 1 1 0 0
1 1 0 0 0 0 1 1 0 1 0 1 0 0 1 0 0 0 1 0 1 1 1 0 1 1 0 1 1 0 0 1
1 0 0 1 1 1 0 0 0 0 1 1 0 1 0 1 0 0 1 0 0 0 1 0 1 1 1 0 1 1 0 1
1 0 0 0 1 1 0 0 1 0 0 1 0 1 1 0 0 0 0 0 0 1 1 1 0 1 1 1 1 0 1 1
1 0 1 1 1 0 0 0 1 1 0 0 1 0 0 1 0 1 1 0 0 0 0 0 0 1 1 1 0 1 1 1
0 1 1 1 1 0 1 1 1 0 0 0 1 1 0 0 1 0 0 1 0 1 1 0 0 0 0 0 0 1 1 1
0 1 1 1 0 1 1 1 1 0 1 1 1 0 0 0 1 1 0 0 1 0 0 1 0 1 1 0 0 0 0 0
0 0 0 0 0 1 1 1 0 1 1 1 1 0 1 1 1 0 0 0 1 1 0 0 1 0 0 1 0 1 1 0
0 1 1 0 0 0 0 0 0 1 1 1 0 1 1 1 1 0 1 1 1 0 0 0 1 1 0 0 1 0 0 1
1 0 0 1 0 1 1 0 0 0 0 0 0 1 1 1 0 1 1 1 1 0 1 1 1 0 0 0 1 1 0 0
1 1 0 0 1 0 0 1 0 1 1 0 0 0 0 0 0 1 1 1 0 1 1 1 1 0 1 1 1 0 0 0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CC2480 Data Sheet SWRS074
Page 30 of 43



CC2480
TC
1
0
1
1
0
1
0
1
0
1
0
0
0
0
1
1
I-phase
Q-phase
1
1
0
1
1
0
0
1
1
1
0
0
0
0
1
0
2TC
Figure 11: I / Q Phases when transmitting a zero-symbol chip sequence, TC = 0.5 µs
10.2 Demodulator, Symbol Synchronizer and Data Decision
Soft decision is used at the chip level, i.e. the
demodulator does not make a decision for
each chip, only for each received symbol. De-
spreading is performed using over-sampling
symbol correlators. Symbol synchronization is
achieved by a continuous start of frame
delimiter (SFD) search.
The block diagram for the CC2480 demodulator
is shown in Figure 12. Channel filtering and
frequency offset compensation is performed
digitally. The signal level in the channel is
estimated to generate the RSSI level. Data
filtering is also included for enhanced
performance.
With the ±40 ppm frequency accuracy
requirement from [1], a compliant receiver
must be able to compensate for up to 80 ppm
or 200 kHz. The CC2480 demodulator tolerates
up to 300 kHz offset without significant
degradation of the receiver performance.
The CC2480 demodulator also handles symbol
rate errors in excess of 120 ppm without
performance degradation. Resynchronization
is performed continuously to adjust for error in
the incoming symbol rate.
Digital
IF Channel
Filtering
Frequency
Offset
Compensation
Digital
Data
Filtering
Symbol
Correlators and
Synchronisation
Data
Symbol
Output
I / Q Analog
IF signal
ADC
Average
Correlation
Value (may be
used for LQI)
RSSI
Generator
RSSI
Figure 12: Demodulator Simplified Block Diagram
10.3 Frame Format
Figure 13 [1] shows a schematic view of the
IEEE 802.15.4 frame format. Similar figures
describing specific frame formats (data
frames, beacon frames, acknowledgment
frames and MAC command frames) are
included in [1].
CC2480 has hardware support for parts of the
IEEE 802.15.4 frame format. This section
gives a brief summary to the IEEE 802.15.4
frame format, and describes how CC2480 is
set up to comply with this.
CC2480 Data Sheet SWRS074
Page 31 of 43


CC2480
Bytes:
2
1
Data
Sequence
Number
0 to 20
n
2
Frame
Frame Check
Sequence
(FCS)
MAC Footer
(MFR)
MAC
Layer
Address
Information
Control Field
(FCF)
Frame payload
MAC Payload
MAC Header (MHR)
Bytes:
4
1
1
5 + (0 to 20) + n
Start of frame
Delimiter
(SFD)
MAC Protocol
Data Unit
(MPDU)
PHY
Layer
Preamble
Sequence
Frame
Length
Synchronisation Header
PHY Header
(PHR)
PHY Service Data Unit
(SHR)
(PSDU)
11 + (0 to 20) + n
PHY Protocol Data Unit
(PPDU)
Figure 13: Schematic view of the IEEE 802.15.4 Frame Format [1]
10.4 Synchronization header
The synchronization header (SHR) consists of
the preamble sequence followed by the start of
frame delimiter (SFD). In [1], the preamble
sequence is defined to be four bytes of 0x00.
The SFD is one byte, set to 0xA7.
A
synchronization
header
is
always
transmitted first in all transmit modes.
In receive mode CC2480 uses the preamble
sequence for symbol synchronization and
frequency offset adjustments. The SFD is
used
for
byte
synchronization.
10.5 MAC protocol data unit
The FCF, data sequence number and address
information follows the length field as shown in
Figure 13. Together with the MAC data
payload and Frame Check Sequence, they
form the MAC Protocol Data Unit (MPDU).
The format of the FCF is shown in Figure 14.
Please refer to [1] for details.
Bits: 0-2
3
4
5
6
7-9
10-11
12-13
14-15
Frame
Type
Security
Enabled
Frame
Pending
Acknowledge
request
Intra
PAN
Reserved
Destination
addressing
mode
Reserved
Source
addressing
mode
Figure 14: Format of the Frame Control Field (FCF) [1]
10.6 Frame check sequence
A 2-byte frame check sequence (FCS) follows
the last MAC payload byte as shown in Figure
13. The FCS is calculated over the MPDU, i.e.
the length field is not part of the FCS.
The CC2480 hardware implementation is
shown in Figure 15. Please refer to [1] for
further details.
In transmit mode the FCS is appended at the
correct position defined by the length field.
The FCS polynomial is [1]:
x16 + x12 + x5 + 1
The most significant bit in the last byte of each
frame is set high if the CRC of the received
frame is correct and low otherwise.
Data
input
(LSB
first)
r0
r1
r2
r3
r4
r5
r6
r7
r8
r9
r10
r11 r12 r13 r14 r15
Figure 15: CC2480 Frame Check Sequence (FCS) hardware implementation [1]
CC2480 Data Sheet SWRS074
Page 32 of 43




CC2480
10.7 Linear IF and AGC Settings
The AGC (Automatic Gain Control) loop
ensures that the ADC operates inside its
dynamic range by using an analog/digital
feedback loop.
CC2480 is based on a linear IF chain where the
signal amplification is done in an analog VGA
(variable gain amplifier). The gain of the VGA
is digitally controlled.
10.8 Clear Channel Assessment
The clear channel assessment signal is based
CSMA-CA functionality specified in [1]. CCA is
valid when the receiver has been enabled for
at least 8 symbol periods.
on the measured RSSI value and
a
programmable threshold. The clear channel
assessment function is used to implement the
10.9 VCO and PLL Self-Calibration
10.9.1
VCO
The VCO is completely integrated and
operates at 4800 – 4966 MHz. The VCO
frequencies in the desired band (2400-2483.5
MHz).
frequency is divided by
2
to generate
10.9.2 PLL self-calibration
The VCO's characteristics will vary with
temperature, changes in supply voltages, and
the desired operating frequency.
In order to ensure reliable operation the VCO’s
bias current and tuning range are
automatically calibrated every time the RX
mode or TX mode is enabled.
10.10 Input / Output Matching
The RF output and DC bias can be done using
different topologies. Some are shown in Figure
5 on page 21.
The RF input / output is differential (RF_Nand
RF_P). In addition there is supply switch output
pin (TXRX_SWITCH) that must have an
external DC path to RF_Nand RF_P.
Component values are given in Table 19 on
page 22. If
implemented, no balun is required.
a
differential antenna is
In RX mode the TXRX_SWITCH pin is at
ground and will bias the LNA. In TX mode the
TXRX_SWITCHpin is at supply rail voltage and
will properly bias the internal PA.
If a single ended output is required (for a
single ended connector or a single ended
antenna), a balun should be used for optimum
performance.
CC2480 Data Sheet SWRS074
Page 33 of 43

CC2480
10.11 System Considerations and Guidelines
10.11.1 SRD regulations
International regulations and national laws
regulate the use of radio receivers and
transmitters. SRDs (Short Range Devices) for
license free operation are allowed to operate
in the 2.4 GHz band worldwide. The most
important regulations are ETSI EN 300 328
and EN 300 440 (Europe), FCC CFR-47 part
15.247 and 15.249 (USA), and ARIB STD-T66
(Japan).
10.11.2 Frequency hopping and multi-channel systems
The 2.4 GHz band is shared by many systems
both in industrial, office and home
environments. CC2480 uses direct sequence
spread spectrum (DSSS) as defined by [1] to
spread the output power, thereby making the
communication link more robust even in a
noisy environment.
10.11.3 Crystal accuracy and drift
A crystal accuracy of ±40 ppm is required for
compliance with IEEE 802.15.4 [1]. This
accuracy must also take ageing and
temperature drift into consideration.
total frequency offset between the transmitter
and receiver. This could e.g. relax the
accuracy requirement to 60 ppm for each of
the devices.
A crystal with low temperature drift and low
aging could be used without further
compensation. A trimmer capacitor in the
crystal oscillator circuit (in parallel with C191 in
Figure 5) could be used to set the initial
frequency accurately.
Optionally in a star network topology, the full-
function device (FFD) could be equipped with
a more accurate crystal thereby relaxing the
requirement on the reduced-function device
(RFD). This can make sense in systems where
the reduced-function devices ship in higher
volumes than the full-function devices.
For non-IEEE 802.15.4 systems, the robust
demodulator in CC2480 allows up to 140 ppm
10.11.4 Communication robustness
highly important parameters for reliable
operation in the 2.4 GHz band, since an
increasing number of devices/systems are
using this license free frequency band.
CC2480 provides very good adjacent, alternate
and co channel rejection, image frequency
suppression and blocking properties. The
CC2480 performance is significantly better than
the requirements imposed by [1]. These are
10.11.5 Communication security
The hardware encryption and authentication
of data processing, which is costly in an 8-bit
microcontroller system. The hardware support
within CC2480 enables a high level of security
with minimum CPU processing requirements.
operations
in
CC2480
enable
secure
communication, which is required for many
applications. Security operations require a lot
10.11.6 Low cost systems
A differential antenna will eliminate the need
for a balun, and the DC biasing can be
achieved in the antenna topology.
As the CC2480 provides 250 kbps multi-
channel performance without any external
filters, a very low cost system can be made
(e.g. two layer PCB with single-sided
component mounting).
10.11.7 Battery operated systems
consumption may be achieved since the
voltage regulators are turned off.
In low power applications, the CC2480 should
be placed in the low-power modes PM2 or
PM3 when not active. Ultra low power
CC2480 Data Sheet SWRS074
Page 34 of 43

CC2480
10.12 PCB Layout Recommendation
In the Texas Instruments reference design, the
top layer is used for signal routing, and the
open areas are filled with metallization
connected to ground using several vias. The
area under the chip is used for grounding and
must be well connected to the ground plane
with several vias.
The external components should be as small
as possible (0402 is recommended) and
surface mount devices must be used.
If using any external high-speed digital
devices, caution should be used when placing
these in order to avoid interference with the
RF circuitry.
The ground pins should be connected to
ground as close as possible to the package
pin using individual vias. The de-coupling
capacitors should also be placed as close as
possible to the supply pins and connected to
the ground plane by separate vias. Supply
power filtering is very important.
It is strongly advised that this reference layout
is followed very closely in order to obtain the
best performance.
The schematic, BOM and layout Gerber files
for the reference designs are all available from
the TI website.
10.13 Antenna Considerations
the antenna. Many vendors offer such
antennas intended for PCB mounting.
CC2480 can be used together with various
types of antennas. A differential antenna like a
dipole would be the easiest to interface not
needing a balun (balanced to un-balanced
transformation network).
Helical antennas can be thought of as a
combination of a monopole and a loop
antenna. They are a good compromise in size
critical applications. Helical antennas tend to
be more difficult to optimize than the simple
monopole.
The length of the λ/2-dipole antenna is given
by:
L = 14250 / f
Loop antennas are easy to integrate into the
PCB, but are less effective due to difficult
impedance matching because of their very low
radiation resistance.
where f is in MHz, giving the length in cm. An
antenna for 2450 MHz should be 5.8 cm. Each
arm is therefore 2.9 cm.
Other commonly used antennas for short-
range communication are monopole, helical
and loop antennas. The single-ended
monopole and helical would require a balun
network between the differential output and
the antenna.
For low power applications the differential
antenna is recommended giving the best
range and because of its simplicity.
The antenna should be connected as close as
possible to the IC. If the antenna is located
away from the RF pins the antenna should be
matched to the feeding transmission line
(50Ω).
Monopole antennas are resonant antennas
with a length corresponding to one quarter of
the electrical wavelength (λ/4). They are very
easy to design and can be implemented
simply as a “piece of wire” or even integrated
into the PCB.
The length of the λ/4-monopole antenna is
given by:
L = 7125 / f
where f is in MHz, giving the length in cm. An
antenna for 2450 MHz should be 2.9 cm.
Non-resonant monopole antennas shorter than
λ/4 can also be used, but at the expense of
range. In size and cost critical applications
such an antenna may very well be integrated
into the PCB.
Enclosing the antenna in high dielectric
constant material reduces the overall size of
CC2480 Data Sheet SWRS074
Page 35 of 43

CC2480
11 Voltage Regulators
The analog voltage regulator input pin
AVDD_RREG is to be connected to the
unregulated 2.0 to 3.6 V power supply. The
regulated 1.8 V voltage output to the analog
parts, is available on the RREG_OUT pin. The
digital regulator input pin AVDD_DREG is also
to be connected to the unregulated 2.0 to 3.6
V power supply. The output of the digital
regulator is connected internally within the
CC2480 to the digital power supply.
The CC2480 includes two low drop-out voltage
regulators. These are used to provide a 1.8 V
power supply to the CC2480 analog and digital
power supplies.
Note: It is recommended that the voltage
regulators are not used to provide power to
external circuits. This is because of limited
power sourcing capability and due to noise
considerations. External circuitry can be
powered if they can be used when internal
power consumption is low and can be set I PD
mode when internal power consumption I high.
The voltage regulators require external
components as described in section 8 on page
20.
11.1 Voltage Regulators Power-on
When the analog voltage regulator is powered-
on before use of the radio, there will be a
delay before the regulator is enabled.
The digital voltage regulator is disabled when
the CC2480 is placed in low power modes to
reduce power consumption.
CC2480 Data Sheet SWRS074
Page 36 of 43

CC2480
12 Package Description (QLP 48)
All dimensions are in millimeters, angles in degrees. NOTE: The CC2480 is available in RoHS lead-
free package only. Compliant with JEDEC MS-020.
Table 21: Package dimensions
Quad Leadless Package (QLP)
D
D1
E
E1
e
b
L
D2
E2
QLP 48
Min
6.9
7.0
7.1
6.65
6.75
6.85
6.9
7.0
7.1
6.65
6.75
6.85
0.18
0.3
0.4
0.5
5.05
5.10
5.15
5.05
5.10
5.15
0.5
Max
0.30
The overall package height is 0.85 +/- 0.05
All dimensions in mm
Figure 16: Package dimensions drawing
CC2480 Data Sheet SWRS074
Page 37 of 43

CC2480
12.1 Recommended PCB layout for package (QLP 48)
Figure 17: Recommended PCB layout for QLP 48 package
Note: The figure is an illustration only and not to scale. There are nine 14 mil diameter via holes
distributed symmetrically in the ground pad under the package. See also the CC2480 EM reference
design
12.2 Package thermal properties
Table 22: Thermal properties of QLP 48 package
Thermal resistance
Air velocity [m/s]
Rth,j-a [K/W]
0
25.6
12.3 Soldering information
The recommendations for lead-free solder reflow in IPC/JEDEC J-STD-020C should be followed.
12.4 Tray specification
Table 23: Tray specification
Tray Specification
Package
QLP 48
Tray Width
Tray Height
Tray Length
Units per Tray
260
135.9mm ± 0.25mm
7.62mm ± 0.13mm
322.6mm ± 0.25mm
12.5 Carrier tape and reel specification
Carrier tape and reel is in accordance with EIA Specification 481.
CC2480 Data Sheet SWRS074
Page 38 of 43

CC2480
Table 24: Carrier tape and reel specification
Tape and Reel Specification
Package
Tape Width
Component
Pitch
Hole
Pitch
Reel
Diameter
Units per Reel
QLP 48
16mm
12mm
4mm
13 inches
2500
CC2480 Data Sheet SWRS074
Page 39 of 43
CC2480
13 Ordering Information
Table 25: Ordering Information
Ordering part number
CC2480A1RTC
Description
MOQ
CC2480, QLP48 package, RoHS compliant Pb-free assembly, trays with 260 pcs per
tray, ZigBee 2006 Network Processor.
260
2,500
1
CC2480A1RTCR
eZ430-RF2480
CC2480, QLP48 package, RoHS compliant Pb-free assembly, T&R with 2500 pcs
per reel, ZigBee 2006 Network Processor.
CC2480 Demonstration Board based on the eZ430-RF platform
MOQ = Minimum Order Quantity
T&R = tape and reel
CC2480 Data Sheet SWRS074
Page 40 of 43

CC2480
14 General Information
14.1 Document History
Table 26: Document History
Revision Date
1.0 2008-04-02
Description/Changes
First data sheet for released product.
15 Address Information
Texas Instruments Norway AS
Gaustadalléen 21
N-0349 Oslo
NORWAY
Tel: +47 22 95 85 44
Fax: +47 22 95 85 46
Web site: http://www.ti.com/lpw
16 TI Worldwide Technical Support
Internet
TI Semiconductor Product Information Center Home Page:
TI Semiconductor KnowledgeBase Home Page:
support.ti.com
support.ti.com/sc/knowledgebase
Product Information Centers
Americas
Phone:
+1(972) 644-5580
Fax:
+1(972) 927-6377
Internet/Email:
support.ti.com/sc/pic/americas.htm
Europe, Middle East and Africa
Phone:
Belgium (English)
Finland (English)
France
+32 (0) 27 45 54 32
+358 (0) 9 25173948
+33 (0) 1 30 70 11 64
+49 (0) 8161 80 33 11
180 949 0107
Germany
Israel (English)
Italy
800 79 11 37
Netherlands (English)
Russia
+31 (0) 546 87 95 45
+7 (0) 95 363 4824
+34 902 35 40 28
Spain
Sweden (English)
United Kingdom
Fax:
+46 (0) 8587 555 22
+44 (0) 1604 66 33 99
+49 (0) 8161 80 2045
support.ti.com/sc/pic/euro.htm
Internet:
CC2480 Data Sheet SWRS074
Page 41 of 43

CC2480
Japan
Fax
International
Domestic
+81-3-3344-5317
0120-81-0036
Internet/Email
International
Domestic
support.ti.com/sc/pic/japan.htm
www.tij.co.jp/pic
Asia
Phone
International
Domestic
Australia
China
+886-2-23786800
Toll-Free Number
1-800-999-084
800-820-8682
Hong Kon
India
800-96-5941
+91-80-51381665 (Toll)
001-803-8861-1006
080-551-2804
Indonesia
Korea
Malaysia
New Zealand
Philippines
Singapore
Taiwan
1-800-80-3973
0800-446-934
1-800-765-7404
800-886-1028
0800-006800
Thailand
001-800-886-0010
+886-2-2378-6808
tiasia@ti.com or ti-china@ti.com
support.ti.com/sc/pic/asia.htm
Fax
Email
Internet
CC2480 Data Sheet SWRS074
Page 42 of 43
PACKAGE MATERIALS INFORMATION
www.ti.com
8-Dec-2009
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
B0
K0
P1
W
Pin1
Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant
(mm) W1 (mm)
CC2480A1RTCR
VQFN
RTC
48
2500
330.0
16.4
7.4
7.4
1.6
12.0
16.0
Q2
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
8-Dec-2009
*All dimensions are nominal
Device
Package Type Package Drawing Pins
VQFN RTC 48
SPQ
Length (mm) Width (mm) Height (mm)
378.0 70.0 346.0
CC2480A1RTCR
2500
Pack Materials-Page 2
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Applications
Audio
www.ti.com/audio
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
Communications and Telecom www.ti.com/communications
Amplifiers
Data Converters
DLP® Products
DSP
Computers and Peripherals
Consumer Electronics
Energy and Lighting
Industrial
www.ti.com/computers
www.ti.com/consumer-apps
www.ti.com/energy
dsp.ti.com
www.ti.com/industrial
www.ti.com/medical
www.ti.com/security
Clocks and Timers
Interface
www.ti.com/clocks
interface.ti.com
logic.ti.com
Medical
Security
Logic
Space, Avionics and Defense www.ti.com/space-avionics-defense
Power Mgmt
power.ti.com
Transportation and
Automotive
www.ti.com/automotive
Microcontrollers
RFID
microcontroller.ti.com
www.ti-rfid.com
Video and Imaging
Wireless
www.ti.com/video
www.ti.com/wireless-apps
RF/IF and ZigBee® Solutions www.ti.com/lprf
TI E2E Community Home Page
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
厂商 型号 描述 页数 下载

EXTECH

 		EZ40 EzFlex可燃气体检漏仪[ EzFlex Combustible Gas Leak Detector ] 5 页

MARKTECH

 		EZ400 [ Gen II LED ] 5 页

MARKTECH

 		EZ400_15 [ Gen II LED ] 5 页

ETC

 		EZ4021 EZ4021 MiniRISC微处理器内核\n[ EZ4021 MiniRISC microprocessor core ] 2 页

ETC

 		EZ4102 微处理器\n[ Microprocessor ] 24 页

TI

 		eZ430-Chronos 超低功耗微控制器[ ULTRA-LOW-POWER MICROCONTROLLERS ] 21 页

TI

 		eZ430-F2013 超低功耗微控制器[ ULTRA-LOW-POWER MICROCONTROLLERS ] 21 页

TI

 		eZ430-F2500T 超低功耗微控制器[ ULTRA-LOW-POWER MICROCONTROLLERS ] 21 页

TI

 		eZ430-RF2500 超低功耗微控制器[ ULTRA-LOW-POWER MICROCONTROLLERS ] 21 页

TI

 		eZ430-RF2500-SEH 超低功耗微控制器[ ULTRA-LOW-POWER MICROCONTROLLERS ] 21 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.185362s
