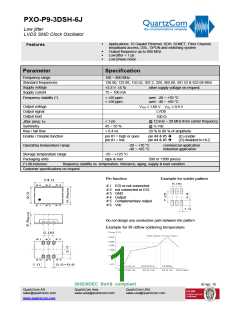

PXO-P9-3DSH-6J
Low jitter
LVDS SMD Clock Oscillator
.
Applications: 10 Gigabit Ethernet, SDH, SONET, Fibre Channel
broadband access, DSL, GPON and switching system
Output frequency up to 800 MHz
Low jitter < 1 ps
Low phase noise
Features
.
.
.
Parameter
Specification
Frequency range
Standard frequencies
Supply voltage
100 ~ 800 MHz
120.00, 122.88, 155.52, 307.2, 320, 460.80, 491.52 & 622.08 MHz
+3.3 V 5 %
other supply voltage on request
Supply current
75 ~ 100 mA
Frequency stability (*)
< 25 ppm
< 50 ppm
over -20 ~ +70 °C
over -40 ~ +85 °C
Output voltage
Output signal
VOH 1.60 V VOL 0.9 V
LVDS
Output load
100
< 1 ps
@ 12 kHz ~ 20 MHz from carrier frequency
@ ½ Vdc
Jitter (rms) 1
Symmetry
45 ~ 55 %
< 0.4 ns
Rise / fall time
Enable / Disable function
20 % to 80 % of amplitude
pin #1 = high or open
pin #1 = low
pin #4 & #5
pin #4 & #5
(E) enable
(D) disabled to Hi-Z
Operating temperature range
-20 ~ +70 °C
-40 ~ +85 °C
commercial application
industrial application
Storage temperature range
Packaging units
-55 ~ +125 °C
tape & reel
500 or 1’000 pieces
(*) All inclusive:
frequency stability vs. temperature, tolerance, aging, supply & load variation
Customer specifications on request
Pin function
Example for solder pattern
# 1 E/D or not connected
# 2 not connected or E/D
# 3 GND
# 4 Output
# 5 Complementary output
# 6 Vdc
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
20 Apr. 10
