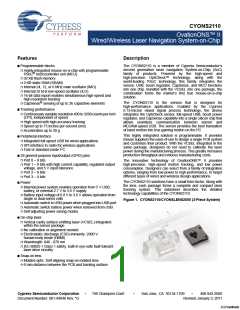

CYONS2110

OvationONS™ II

Wired/Wireless Laser Navigation System-on-Chip

Features

Description

■ Programmable blocks

The CYONS2110 is a member of Cypress Semiconductor’s

second generation laser navigation System-on-Chip (SoC)

family of products. Powered by the high-speed and

high-precision OptiCheck™ technology, along with the

world-leading PSoC technology, this family integrates the

sensor, USB, boost regulator, CapSense, and MCU functions

into one chip. Bundled with the VCSEL into one package, the

combination forms the market’s first true mouse-on-a-chip

solution.

❐ Highly integrated mouse-on-a-chip with programmable

PSoC^®microcontroller unit (MCU)

❐ 32 KB flash memory

❐ 2 KB static RAM (SRAM)

❐ Internal 24, 12, or 6 MHz main oscillator (IMO)

❐ Internal 32 kHz low-speed oscillator (ILO)

❐ 16-bit data report enables simultaneous high-speed and

high-resolution tracking

❐ CapSense^®sensing of up to 26 capacitive elements

The CYONS2110 is the version that is designed for

high-performance applications. Enabled by the Cypress

0.13-micron mixed signal process technology, the device

integrates the OptiCheck sensor, full-speed USB, boost power

regulator, and CapSense capability into a single silicon chip that

allows seamless communication between sensor and

MCU/full-speed USB. The sensor provides the best translation

of hand motion into true gaming motion on the PC.

■ Tracking performance

❐ Continuously variable resolution 400 to 3200 counts per inch

(CPI), independent of speed

❐ High speed with high accuracy tracking

❐ Speed up to 75 inches per second (in/s)

❐ Acceleration up to 30 g

This highly integrated solution is programmable. It provides

mouse suppliers the ease-of-use to design a single PCB system

and customize their product. With the VCSEL integrated in the

same package, designers do not need to calibrate the laser

power during the manufacturing process. This greatly increases

production throughput and reduces manufacturing costs.

■ Peripheral interface

❐ Integrated full-speed USB for wired applications

❐ SPI interface to radio for wireless applications

❐ Fast or standard mode I²C

■ 28 general purpose input/output (GPIO) pins

❐ Port 0 – 8 bits

❐ Port 1 – 8 bits with high current capability, regulated output

voltage, and 5 V input tolerance

❐ Port 2 – 8 bits

❐ Port 3 – 4 bits

The innovative technology of OvationONS™ II provides

high-precision, high-speed motion tracking, and low power

consumption. Designers can select from a family of integration

options, ranging from low-power to high-performance, to target

different types of wired and wireless design applications.

The CYONS2110 solutions have a small form factor. Along with

the lens, each package forms a complete and compact laser

tracking system. This datasheet describes the detailed

technology capabilities of the CYONS2110.

■ Power

❐ Internal power system enables operation from 5 V USB,

battery, or external 2.7 V to 3.6 V supply

❐ Battery input voltage of 0.8 V to 3.6 V allows operation from

single or dual series cells

❐ Automatic switch to USB power when plugged into USB port

❐ Automatic switch battery power when removed from USB

❐ Self adjusting power saving modes

Figure 1. CYONS2110/CYONSLENS2000 (2-Piece System)

■ On-chip laser

❐ Vertical cavity surface emitting laser (VCSEL) integrated

within the sensor package

❐ No calibration or alignment needed

❐ Electrostatic discharge (ESD) immunity: 2000 V

human body mode (HBMl)

❐ Wavelength: 840 - 870 nm

❐ IEC 60825-1 Class 1 safety: built-in eye-safe fault tolerant

laser drive circuitry

■ Snap-on lens

❐ Molded optic: Self-aligning snap on molded lens

❐ 6 mm distance between the PCB and tracking surface

Cypress Semiconductor Corporation

Document Number: 001-44048 Rev. *G

•

198 Champion Court

•

San Jose, CA 95134-1709

•

408-943-2600

Revised January 3, 2011

[+] Feedback

CYONS2110

Contents

OvationONS II Family Performance Table...................... 3

OvationONS II Family Applications ................................ 3

OvationONS II Family Functional Description............... 3

Pin Description ................................................................. 5

Microcontroller System.................................................... 7

Features ...................................................................... 7

PSoC Functional Overview.............................................. 8

The PSoC Core........................................................... 8

The CapSense Analog System ................................... 8

The Analog Multiplexer System................................... 8

Additional System Resources ..................................... 9

Getting Started.................................................................. 9

Application Notes ........................................................ 9

Development Kits ........................................................ 9

Training ....................................................................... 9

CYPros Consultants.................................................... 9

Solutions Library.......................................................... 9

Technical Support ....................................................... 9

Development Tools .......................................................... 9

PSoC Designer Software Subsystems........................ 9

Designing with PSoC Designer..................................... 10

Select User Modules ................................................. 10

Configure User Modules............................................ 10

Organize and Connect .............................................. 10

Generate, Verify, and Debug..................................... 10

Power Supply Connections........................................... 11

Overview ................................................................... 11

Understanding DVDD................................................ 11

AVDD, VREGA, and VREGD.................................... 11

Using USB Power...................................................... 11

Using Battery Power.................................................. 11

Using External Power................................................ 11

Filtering and Grounding............................................. 11

Wired Mouse Application Example............................... 12

Wireless Mouse Application Example.......................... 13

Electrical Specifications ................................................ 14

Absolute Maximum Ratings....................................... 14

Operating Conditions................................................. 14

.................................................................................. 14

Power Consumption.................................................. 15

Power Specifications................................................. 16

DC General Purpose I/O Specifications.................... 17

DC Analog Mux Bus Specifications........................... 18

DC Low Power Comparator Specifications ............... 18

DC POR and LVD Specifications .............................. 18

DC Programming Specifications ............................... 19

DC Characteristics - USB Interface........................... 19

AC Chip Level Specifications .................................... 20

AC General Purpose I/O Specifications .................... 20

AC External Clock Specifications.............................. 21

AC Analog Mux Bus Specifications........................... 21

AC Programming Specifications................................ 21

AC SPI Specifications ............................................... 22

AC Comparator Specifications .................................. 25

AC I2C Specifications................................................ 25

AC USB Specifications.............................................. 26

PCB Land Pads and Keepout Zones ........................ 27

Orientation of Axes.................................................... 28

PCB Mounting Height and Thickness........................ 28

Thermal Impedances ................................................ 29

Solder Reflow Peak Temperature ............................. 29

Laser Safety Considerations......................................... 30

Laser Output Power .................................................. 30

Laser Output Power Test Procedure......................... 30

Registration Assistance............................................. 30

Development Tool Selection ......................................... 31

Software .................................................................... 31

Mouse Design Kits .................................................... 31

Development Kits ...................................................... 31

Evaluation Tools........................................................ 31

Device Programmers................................................. 32

Third Party Tools....................................................... 32

Package Diagrams.......................................................... 33

Ordering Information...................................................... 34

Ordering Code Definition........................................... 34

Document Conventions ................................................. 35

Acronyms Used......................................................... 35

Units of Measure ....................................................... 35

Numeric Naming........................................................ 35

Document History Page................................................. 36

Worldwide Sales and Design Support....................... 36

Products.................................................................... 36

PSoC Solutions......................................................... 36

Document Number: 001-44048 Rev. *G

Page 2 of 36

[+] Feedback

CYONS2110

OvationONS II Family Performance Table

Parameter

Variable resolution

CYONS2000

CYONS2001

CYONS2100 CYONS2101 CYONS2110

Unit

CPI

in/s

g

400, 800, 1600 400, 800, 1600

400–3200

Maximum speed

Maximum acceleration

Integrated MCU

CapSense

30

20

Yes

No

16

2

30

20

Yes

No

16

2

75

30

Yes

No

32

2

75

30

Yes

No

32

2

75

30

Yes

26 inputs

32

Flash

KB

SRAM

2

Interfaces

Full-speed USB

4-wire SPI

up to 28 GPIOs

4-wire SPI

up to 28 GPIOs

Full-speed USB 4-wire SPI Full-speed USB

4-wire SPI

up to 28

GPIOs

4-wire SPI

up to 28 GPIO

up to 28 GPIOs

Battery supply voltage

USB supply voltage

External supply voltage

Zero motion

NA

4.25 to 5.25

2.7 to 3.6

1

0.8 to 3.6

NA

4.25 to 5.25

2.7 to 3.6

1

0.8 to 3.6

NA

0.8 to 3.6

4.25 to 5.25

2.7 to 3.6

1

V

2.7 to 3.6

1

2.7 to 3.6

1

V

Count

In addition to controlling the navigation engine, the PSoC MCU

also serves as the main application processor. Based on

Cypress’s M8C architecture, the PSoC supports a rich

instruction set, multiple processor speeds, and flexible GPIOs.

Its internal main oscillator requires no external crystal. On-chip

Flash and RAM allow entire navigation systems to be

implemented with the single SoC.

OvationONS II Family Applications

■ Wired and wireless laser mice

❐ Gaming, graphic design, desktop, and mobile mice

■ Optical trackballs

■ Battery powered devices

The OvationONS II family supports a wide range of powering

options. Internal regulators minimize the need for external

circuitry. Depending on the product selected, the device can be

power from a USB 5-V supply, from a single battery, from dual

batteries, or from an external supply. The configuration and use

of the power blocks are controlled with the integrated PSoC.

■ Motion sensing applications

OvationONS II Family Functional Description

The OvationONS II family is a two-piece laser navigation SoC kit

containing the integrated IC package and the molded lens.

Wired sensors include integrated full-speed USB. As with the

navigation engine and power system, the USB block is controlled

by the integrated PSoC.

The 2-kV ESD-rated IC package integrates the VCSEL and laser

sensor SoC. Depending on the product selected, the SoC

includes an MCU, flash, SRAM, two internal oscillators,

CapSense system, battery boost regulator, power regulator, and

full-speed USB.

All sensors support a 4-wire SPI interface. A typical use of the

SPI interface is to provide access to a radio for wireless

applications. An I²C interface is also included with all devices.

The molded lens collimates the VCSEL beam and images the

light scattered from the tracking surface on to the sensor portion

of the laser detector. The lens has features for registration to the

package and easily snaps onto the PC board.

The CYONS2110 device also supports CapSense functions,

allowing additional features and differentiation in end products.

All features of the OvationONS II family are configured using

Cypress’s PSoC Designer™ software, allowing fast application

development and time to market.

At the heart of the system is the OptiCheck laser navigation

engine. It supports all functions required for tracking, including

laser power control, resolution control, and self-adjusting power

reduction, which reduces power consumption when motion

stops. The laser output power is pre-calibrated to meet the eye

safety requirements of IEC 60825 Class 1.

The OvationONS II family block diagram is shown on Figure 2 on

page 4. It shows a true SoC solution that enables design cycle

reductions along with savings on manufacturing, PCB area, and

component inventory management. The packaged solution

delivers a fully integrated system that demonstrates tracking

performance with efficient power consumption.

The navigation engine is accessed and controlled by an

integrated PSoC-based MCU. The interface between the two

blocks is through a system bus and a collection of navigation

engine interrupts. Full details are available in the OvationONS II

Laser Navigation System-on-Chip TRM (Technical Reference

Manual) or in the PSoC Designer integrated development

environment (IDE) software.

Document Number: 001-44048 Rev. *G

Page 3 of 36

[+] Feedback

CYONS2110

Figure 2. Block Diagram

OptiCheckTM

Navigation

System

Ovation II

Power

System

3.3V Regulator

Boost Regulator

Resolution

Control

VCSEL

Laser

Control

DSP

Battery

Filter

Power Control

POWER BUS

Port 3

1.8V

PSoC

Core

Port 2

Port 1

Port 0

Analog

Regulator

PSoC CORE

SYSTEM BUS

Global Analog Interconnect

Flash

Nonvolatile Memory

SRAM

Supervisory ROM (SROM)

Interrupt

Controller

Sleep and

Watchdog

CPU Core (M8C)

32 kHz Internal Low Speed

Oscillator (ILO)

6/12/24 MHz Internal Main Oscillator (IMO)

Multiple Clock Sources

SYSTEM BUS

Full

Speed

USB

Internal

Voltage

References

POR

and

LVD

SPI

Master/

Slave

Three 16-Bit

Programmable

Timers

System

Resets

Digital

Clocks

I2C

Slave

ADC

CapSense

System

SYSTEM RESOURCES

NOTE: Shaded blocks indicate optional functions - Refer to OvationONS^TMII Family Performance Table for details

Document Number: 001-44048 Rev. *G

Page 4 of 36

[+] Feedback

CYONS2110

Pin Description

This section describes, lists, and illustrates the CYONS2110 device pins and pinout configurations. The CYONS2110 is available in

a 42-pin quad flat no-leads (QFN) package.

Table 1. CYONS2110 Pin Description

Name

Digital

I

Analog

Description

Active high external reset with internal pull down

Boost regulator ground

1

2

3

4

5

XRES

BOOST_GND

BOOST_IND

VBATT

Power

Boost regulator inductor

Boost regulator input

DVDD

Digital supply voltage and regulated output (see Power Supply

Connections on page 11)

6

VREGD

AVDD

VREGA

P2[7]

P1[5]

P1[3]

P2[3]

P2[5]

P1[7]

P1[1]

P3[3]

P1[0]

P3[5]

P1[6]

P1[2]

P2[2]

P3[7]

P3[1]

OCDE

AVSS

P2[1]

P2[0]

P1[4]

P2[4]

DVSS

P2[6]

P0[0]

P0[2]

P0[4]

P0[6]

P0[1]

Power

I/O

Power

Digital VREG

7

Power

Analog supply voltage

8

Power

Analog VREG

9

I

GPIO port 2 pin 7

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

IOHR

I/O

I

SPI MISO, I2C_SDA, GPIO port 1 pin 5

SPI CLK, GPIO port 1 pin 3

GPIO port 2 pin 3

I

I/O

I

GPIO port 2 pin 5

IOHR

I/O

I

SPI SS, I2C_SCL, GPIO port 1 pin 7

SPI MOSI, ISSP CLK^[1], I2C_SCL, GPIO port 1 pin 1

HCLK (OCD high speed clock output), GPIO port 3 pin 3

ISSP DATA^[1], I2C_SDA, GPIO port 1 pin 0

CCLK (OCD CPU clock output), GPIO port 3 pin 5

GPIO port 1 pin 6

I

I/O

I

IOHR

I/O

I

GPIO port 1 pin 2

I

GPIO port 2 pin 2

I/O

I

OCDOE (OCD mode direction pin), GPIO port 3 pin 7

OCDO (OCD odd data output), GPIO port 3 pin 1

OCDE (OCD even data output)

Analog ground

I/O

I

OCD

Power

I/O

OCD

Power

I

GPIO port 2 pin 1

I/O

I

GPIO port 2 pin 0

IOHR

I/O

I

EXT CLK, GPIO port 1 pin 4

GPIO port 2 pin 4

I

Power

I/O

Power

Digital ground

I

GPIO port 2 pin 6

I/O

GPIO port 0 pin 0

I/O

GPIO port 0 pin 2

I/O

GPIO port 0 pin 4

I/O

GPIO port 0 pin 6

I/O

GPIO port 0 pin 1

Document Number: 001-44048 Rev. *G

Page 5 of 36

[+] Feedback

CYONS2110

Table 1. CYONS2110 Pin Description (continued)

Name

Digital

I/O

Analog

Description

37

38

39

40

41

42

CP

P0[3]

P0[5]

P0[7]

D-

I

GPIO port 0 pin 3

GPIO port 0 pin 5

GPIO port 0 pin 7

USB data

I/O

D+

I/O

USB data

VDD5V

DVSS

Power

5V power

Center pad (CP) must be connected to digital ground

Legend: I=Input; O=Output; H=5 mA High Output Drive, R=Regulated Output, OCD=On-Chip Debug

Figure 3. Pin Diagram

1

34

33

32

XRES

BOOST_GND

BOOST_IND

BVATT

AI, P0[4]

AI, P0[2]

AI, P0[0]

AI, P2[6]

DVSS

AI, P2[4]

AI, EXT CLK, P1[4]

AI, P2[0]

AI, P2[1]

AVSS

2

3

4

5

6

7

8

9

31

CYONS2110

DVDD

VREGD

AVDD

VREGA

AI, P2[7]

30

29

28

27

26

QFN

(Top View)

25

24

OCDE

AI, OCDO, P3[1]

23

Note

1. These are the in-system serial programming (ISSP) pins. Unlike other GPIOs, they are not high-impedance at power-on reset (POR). See the Technical Reference

Manual (TRM) at www.cypress.com or in the PSoC Designer development software for more details.

Document Number: 001-44048 Rev. *G

Page 6 of 36

[+] Feedback

CYONS2110

■ Precision programmable clocking

❐ Internal ±5.0% 6-, 12-, 24-MHz main oscillator

❐ Internal 32-kHz low speed oscillator

Microcontroller System

Features

❐ Support for optional external 32-kHz crystal

❐ 0.25% accuracy for USB with no external crystal

■ Powerful Harvard-architecture processor

❐ M8C processor speed up to 24 MHz

❐ Low power at high speed

■ Programmable pin configurations

❐ 25-mA sink current on all GPIOs

❐ Interrupt controller

❐ Operating temperature range: +5°C to +45°C

❐ Pull-up, high-Z, open drain, or strong drive modes on all

GPIOs

■ Flexible on-chip memory

❐ 32 KB flash program storage

50,000 erase and write cycles

❐ 2 KB SRAM data storage

❐ Partial flash updates

❐ Flexible protection modes

❐ In-system serial programming (ISSP)

❐ Up to 28 analog inputs on GPIO

❐ Configurable inputs on all GPIOs

❐ Selectable, regulated digital I/O on port 1

• 3.3-, 2.5-, or 1.8-V output

❐ 3.0 V, 20 mA total port 1 source current

❐ 5-mA source current mode on ports 0 and 1

❐ Hot swap capable

■ Full-speed USB (12 Mbps)

❐ Eight unidirectional endpoints

❐ One bidirectional control endpoint

❐ USB 2.0 compliant

❐ Dedicated 512-byte buffer

❐ Internal 3.3-V output regulator

■ Versatile analog mux

❐ Common internal analog bus

❐ Simultaneous connection of I/O combinations

❐ High power supply rejection ratio (PSRR) comparator

❐ Low dropout voltage regulator for the analog array

■ Additional system resources

❐ SPI master and SPI slave

• Clock speed up to 12 MHz

■ Low-power CapSense block

❐ Configurable capacitive sensing elements

❐ Supports combination of CapSense buttons, sliders,

touchpads, touchscreens, and proximity sensors

❐ Three 16-bit timers

❐ Watchdog and sleep timers

❐ Internal voltage reference

❐ Integrated supervisory circuit

❐ Analog-to-digital converter (ADC)

❐ I²C slave

■ Complete development tools

❐ Free development tool (PSoC Designer)

❐ Full featured in-circuit emulator (ICE) and programmer

❐ Full-speed emulation

❐ Complex breakpoint structure

❐ 128 K trace memory

Document Number: 001-44048 Rev. *G

Page 7 of 36

[+] Feedback

CYONS2110

Figure 4. Analog System Block Diagram

PSoC Functional Overview

Cypress's programmable system-on-chip (PSoC) on-chip

controllers combine dynamic, configurable analog and digital

blocks and an 8-bit MCU on a single chip, replacing multiple

discrete components while delivering advanced flexibility and

functionality. A PSoC device includes configurable analog and

digital blocks, and programmable interconnect. This architecture

enables the creation of customized peripheral configurations, to

match the requirements of each individual application.

Additionally, a fast CPU, flash program memory, SRAM data

memory, and configurable I/O are included in a range of conve-

nient pinouts.

IDAC

Vr

Reference

Buffer

The architecture for this device family, as shown in Figure 2 on

page 4, contains: the core, the sensor, the CapSense analog

system, and the system resources (including a full-speed USB

port). A common, versatile bus enables connection between I/O

and the analog system. Each PSoC device includes a dedicated

CapSense block that provides sensing and scanning control

circuitry for capacitive sensing applications. GPIO is also

included. The GPIO provides access to the MCU and analog

mux.

Cinternal

Comparator

Mux

Refs

Mux

CapSenseCounters

CSCLK

The PSoC Core

The PSoC core is a powerful engine that supports a rich

instruction set. The PSoC core encompasses SRAM for data

storage, an interrupt controller, Sleep and Watchdog timers, an

IMO, and an ILO. The CPU core, called the M8C, is a powerful

processor with speeds up to 24 MHz. The M8C is a 4 MIPS, 8-bit

Harvard-architecture microprocessor.

CapSense

ClockSelect

IMO

Oscillator

The Analog Multiplexer System

System resources provide additional capability, such as config-

urable USB and SPI master-slave communication interface,

three 16-bit programmable timers, and various system resets

supported by the M8C.

The analog mux bus connects to every GPIO pin. Pins are

connected to the bus individually or in any combination. The bus

also connects to the analog system for analysis with the

CapSense block comparator.

The analog system is composed of the CapSense PSoC block

and an internal 1.8 V analog reference, which together support

capacitive sensing of up to 26 inputs.

Switch control logic enables selected pins to precharge continu-

ously under hardware control. This enables capacitive

measurement for applications such as touch sensing. Other

multiplexer applications include:

The CapSense Analog System

The analog system contains the capacitive sensing hardware.

Several hardware algorithms are supported. This hardware

performs capacitive sensing and scanning without requiring

external components. Capacitive sensing is configurable on

each GPIO pin. Scanning of enabled CapSense pins are

completed quickly and easily across multiple ports.

■ Complex capacitive sensing interfaces, such as sliders and

touchpads

■ Chip-wide mux that enables analog input from any I/O pin

■ Crosspoint connection between any I/O pin combinations

When designing capacitive sensing applications, refer to the

latest signal-to-noise signal level requirements application notes,

which are at http://www.cypress.com. In general, and unless

otherwise noted in the relevant application notes, the minimum

signal-to-noise ratio (SNR) for CapSense applications is 5:1.

Document Number: 001-44048 Rev. *G

Page 8 of 36

[+] Feedback

CYONS2110

Additional System Resources

Development Tools

System resources, some previously listed, provide additional

capability useful to complete systems. Additional resources

include low voltage detection (LVD) and power-on reset (POR).

Brief statements describing the merits of each system resource

follows.

PSoC Designer™ is the revolutionary Integrated Design

Environment (IDE) that you can use to customize PSoC to meet

your specific application requirements. PSoC Designer software

accelerates system design and time-to-market. Develop your

applications using a library of precharacterized analog and digital

peripherals (called User Modules) in a drag-and-drop design

environment. Then, customize your design by leveraging the

dynamically generated application programming interface (API)

libraries of code. Finally, debug and test your designs with the

integrated debug environment including in-circuit emulation

(ICE) and standard software debug features. PSoC Designer

includes:

■ The SPI master/slave module

❐ Provides communication over three or four wires.

❐ Runs at speeds of 46.9 kHz to 3 MHz (lower for a slower

system clock).

■ An I²C slave module

■ LVD interrupts can signal the application of falling voltage

levels, while the advanced POR circuit eliminates the need for

a system

supervisor.

■ Application Editor GUI for device and User Module

configuration and dynamic reconfiguration

■ Extensive User Module catalog

■ An internal reference provides an absolute reference for capac-

■ Integrated source code editor (C and Assembly)

■ Free C compiler with no size restrictions or time limits

■ Built in debugger

itive sensing.

Getting Started

For in depth information, along with detailed programming

details, see the PSoC^®Technical Reference Manual.

■ Integrated Circuit Emulation (ICE)

For up-to-date ordering, packaging, and electrical specification

information, see the latest PSoC device datasheets on the web.

■ Built-in Support for Communication Interfaces:

❐ Hardware and software I²C slaves and masters

❐ Full-speed USB 2.0

❐ Up to 4 full-duplex UARTs, SPI master and slave, and Wire-

less

Application Notes

Cypress application notes are an excellent introduction to the

wide variety of possible PSoC designs.

PSoC Designer supports the entire library of PSoC 1 devices and

runs on Windows XP, Windows Vista, and Windows 7.

Development Kits

PSoC Designer Software Subsystems

PSoC Development Kits are available online from and through a

growing number of regional and global distributors, which

include Arrow, Avnet, Digi-Key, Farnell, Future Electronics, and

Newark.

Design Entry

In the chip-level view you choose a base device to work with and

then select different onboard analog and digital components

called user modules that use the PSoC blocks. Examples of user

modules are ADCs, DACs, amplifiers, and filters. You configure

the user modules for your chosen application and connect them

to each other and to the proper pins. Then you generate your

project. This prepopulates your project with APIs and libraries

that you can use to program your application.

Training

Free PSoC technical training (on demand, webinars, and

workshops), which is available online via www.cypress.com,

covers a wide variety of topics and skill levels to assist you in

your designs.

CYPros Consultants

The tool also supports easy development of multiple configura-

tions and dynamic reconfiguration. Dynamic reconfiguration

allows for changing configurations at run time. In essence, this

allows you to usemore than 100% of PSoC’s resources for a

given application.

Certified PSoC Consultants offer everything from technical

assistance to completed PSoC designs. To contact or become a

PSoC Consultant go to the CYPros Consultants web site.

Solutions Library

Code Generation Tools

Visit our growing library of solution focused designs. Here you

can find various application designs that include firmware and

hardware design files that enable you to complete your designs

quickly.

The code generation tools work seamlessly within the PSoC

Designer interface and have been tested with a full

range of debugging tools. You can develop your design in C,

assembly, or a combination of the two - the choice is yours.

Technical Support

Technical support – including a searchable Knowledge Base

articles and technical forums – is also available online. If you

cannot find an answer to your question, call our Technical

Support hotline at 1-800-541-4736.

Assemblers. The assemblers allow you to merge assembly

code seamlessly with C code. Link libraries automatically use

absolute addressing or are compiled in relative mode, and linked

with other software modules to get absolute addressing.

Document Number: 001-44048 Rev. *G

Page 9 of 36

[+] Feedback

CYONS2110

C Language Compilers. C language compilers are available

that support the PSoC family of devices. The products allow you

to create complete C programs for the PSoC family devices. The

optimizing C compilers provide all the features of C tailored to

the PSoC architecture. They come complete with embedded

libraries providing port and bus operations, standard keypad and

display support, and extended math functionality.

Select User Modules

PSoC Designer provides a library of prebuilt, pretested hardware

peripheral components called “user modules.” User modules

make selecting and implementing peripheral devices, both

analog and digital, simple.

Configure User Modules

Debugger

Each user module that you select establishes the basic register

settings that implement the selected function. They also provide

parameters and properties that allow you to tailor their precise

configuration to your particular application. For example, a pulse

width modulator (PWM) User Module configures one or more

digital PSoC blocks, one for each 8 bits of resolution. The user

module parameters permit you to establish the pulse width and

duty cycle. Configure the parameters and properties to corre-

spond to your chosen application. Enter values directly or by

selecting values from drop-down menus. All the user modules

are documented in datasheets that may be viewed directly in

PSoC Designer or on the Cypress website. These user module

datasheets explain the internal operation of the user module and

provide performance specifications. Each datasheet describes

the use of each user module parameter, and other information

you may need to successfully implement your design.

PSoCDesignerhasadebugenvironmentthatprovideshardware

in-circuit emulation (ICE), allowing you to test the program in a

physical system while providing an internal view of the PSoC

device. Debugger commands allow a designer to read and

program and read and write data memory, read and write I/O

registers, read and write CPU registers, set and clear break-

points, and provide program run, halt, and step control. The

debugger also allows the designer to create a trace buffer of

registers and memory locations of interest.

Online Help System

The online help system displays online, context-sensitive help.

Designed for procedural and quick reference, each functional

subsystem has its own context-sensitive help. This system also

provides tutorials and links to FAQs and an Online Support

Forum to aid the designer.

Organize and Connect

You build signal chains at the chip level by interconnecting user

modules to each other and the I/O pins. You perform the

selection, configuration, and routing so that you have complete

control over all on-chip resources.

In-Circuit Emulator

A low cost, high functionality In-Circuit Emulator (ICE) is

available for development support. This hardware has the

capability to program single devices.

Generate, Verify, and Debug

The emulator consists of a base unit that connects to the PC

using a USB port. The base unit is universal and operates with

all PSoC devices. Emulation pods for each device family are

available separately. The emulation pod takes the place of the

PSoC device in the target board and performs full speed

(24 MHz) operation.

When you are ready to test the hardware configuration or move

on to developing code for the project, you perform the “Generate

Configuration Files” step. This causes PSoC Designer to

generate source code that automatically configures the device to

your specification and provides the software for the system. The

generated code provides APIs with high-level functions to control

and respond to hardware events at run time and interrupt service

routines that you can adapt as needed.

Designing with PSoC Designer

The development process for the PSoC® device differs from that

of a traditional fixed function microprocessor. The configurable

analog and digital hardware blocks give the PSoC architecture a

unique flexibility that pays dividends in managing specification

change during development and by lowering inventory costs.

These configurable resources, called PSoC Blocks, have the

ability to implement a wide variety of user-selectable functions.

The PSoC development process is summarized in four steps:

A complete code development environment allows you to

develop and customize your applications in either C, assembly

language, or both.

The last step in the development process takes place inside

PSoC Designer’s debugger (access by clicking the Connect

icon). PSoC Designer downloads the HEX image to the ICE

where it runs at full speed. PSoC Designer debugging capabil-

ities rival those of systems costing many times more. In addition

to traditional single-step, run-to-breakpoint and watch-variable

features, the debug interface provides a large trace buffer and

allows you to define complex breakpoint events that include

monitoring address and data bus values, memory locations and

external signals.

1. Select User Modules.

2. Configure user modules.

3. Organize and connect.

4. Generate, verify, and debug.

Document Number: 001-44048 Rev. *G

Page 10 of 36

[+] Feedback

CYONS2110

Power Supply Connections

Figure 5. Power Connections

CYONS2110

VDD5V 42

47 uH

BOOST_IND

VBATT

3

4

4.25 - 5.25 V

Battery

0.8 - 3.6V

3.3V

USB IO

Boost

Regulator

22

uF

Regulator Regulator

External 3.3V

Supply, 15

mA max

Global

Analog

Interconnect

Battery

Filter

5

7

DVDD

AVDD

Digital

GND

10 nH

22 22

uF uF

VREGD

VREGA

6

8

Analog

GND

Digital

GND

1.8V PSoC

1.8V Analog

Regulator

Core

Regulator

1.8V Analog

Circuitry

3V Analog

Circuitry

1.8V Digital

Circuitry

3V Digital

Circuitry

Digital

GND

Analog

GND

Analog

GND

Digital

GND

Digital

GND

Overview

Using Battery Power

The CYONS2110 incorporates a powerful and flexible powering

system. It can be powered from one of three sources: a 5V

supply (typically from the USB VBUS line), a battery, or an

external 3.3V supply. Additionally, the CYONS2110’s internal

regulators can supply current to external devices. This section

describes the capabilities and usage of the power system. Refer

to Figure 5 for a block diagram of the CYONS2110’s power

system.

For wireless applications, the device may be powered by the

boost regulator. In this configuration, BOOST_GND should be

connected to DVSS, BOOST_IND and VBATT pins should be

connected as shown in Figure 5, and VDD5V should be left

unconnected. Do not run the device without the appropriate

bypass capacitors, or excessive voltage may be generated

across the inductor.

VBATT connects to an internal low-pass filter. The filter output

can be routed through the global analog interconnect to the

device’s ADC, enabling the battery voltage to be monitored.

Understanding DVDD

DVDD is a unique pin because it serves as either an input or an

output. When the device is powered from USB (using the 3.3-V

regulator) or battery (using the Boost Regulator), DVDD acts as

an output, providing a 3.3-V voltage that can be used to power

AVDD, VREGD, VREGA, and external parts. When the device is

powered from an external 3.3-V supply, DVDD acts as an input

only.

For designs using two series batteries, an option is to drive

VREGA directly from the battery output. Doing so reduces the

conversion loss in the boost regulator. However, care must be

taken to ensure that the battery voltage does not fall below

1.71 V.

Using External Power

The CYONS2110 can also be powered from an external source.

In this case, BOOST_GND should be connected to DVSS,

VDD5V and BOOST_IND should be left unconnected, and the

external 3.3V source should connect to DVDD. VBATT can be

connected to DVSS or left unconnected.

AVDD, VREGA, and VREGD

As with DVDD, these signals power the internal circuitry of the

device. Unlike DVDD, these are always inputs. They should be

connected as shown in Figure 5.

Using USB Power

Filtering and Grounding

For most USB applications, the device is powered from the USB

VBUS signal. In this case, the 5-V VBUS signal should be

connected directly to the CYONS2110’s VDD5V pin. Pins VBATT

and BOOST_GND should be connected to DVSS, and

BOOST_IND should be left unconnected.

For all designs, it is important to provide proper grounding and

isolation between the analog and digital power supplies. The

analog and digital grounds should be isolated, except for a single

connection point that is placed as close as possible to the device.

On the supply side, an L-C filter should be placed between AVDD

and DVDD, as shown in Figure 5.

Document Number: 001-44048 Rev. *G

Page 11 of 36

[+] Feedback

CYONS2110

Wired Mouse Application Example

Figure 6 shows an implementation of a wired mouse. For complete details, refer to the CY4631 - OvationONS™ II Laser Gaming

Mouse Reference Design Kit.

Figure 6. Wired Mouse

V R E G D

6

D V S S

3 0

V D D 5 V

4 2

D V D D

5

A V S S

2 5

V R E G A

8

A V D D

7

C P

4 3

Document Number: 001-44048 Rev. *G

Page 12 of 36

[+] Feedback

CYONS2110

Wireless Mouse Application Example

Figure 7 shows an implementation of a wireless mouse.

Figure 7. Wireless Mouse

2

1

V D D

3 5

V C C 3

V C C 2

V C C 1

1 6

7

3

E - P A D

4 1

V R E G

4 0

3 3

V I O

N D G 1

1 2

V B A T 0

V B A T 1

V B A T 2

3 8

6

8

1

2

V D D 5 V

4 2

V R E G D

D V D D

6

5

D V S S

3 0

A V S S

2 5

V R E G A

A V D D

8

7

Document Number: 001-44048 Rev. *G

Page 13 of 36

[+] Feedback

CYONS2110

Electrical Specifications

This section presents the DC and AC electrical specifications of the CYONS2110 device. For the most up-to-date electrical specifica-

tions, confirm that you have the most recent datasheet by visiting http://www.cypress.com.

Absolute Maximum Ratings

Parameter

Storage temperature^[2]

Min

–40

–15

–

Typ

25

–

Max

65

Unit

°C

V

Conditions

Case temperature

Operating temperature

Lead solder temperature

55

Case temperature

10 seconds

–

260

3.6

Supply voltage, DVDD, AVDD, VREGA,

and VREGD relative to DVSS)

–

Supply voltage, VDD5V relative to DVSS

Supply voltage, VBATT relative to DVSS

ESD

–

5.5

3.6

V

–

2.0

kV

V

All pins, HBM MIL 883 method 3015

GPIO ports 0, 2, and 3

I/O voltage relative to DVSS

Latch-up current

–0.5

–

DVDD + 0.5

5.5

V

GPIO port 1

–

100

mA

In accordance with JESD78 standard.

Maximum current into any GPIO pin

–25

+50

Operating Conditions

Parameter

Min

Typ

–

Max

Unit

°C

Conditions

Operating temperature

5

45

Ambient air temperature

Power supply voltage

VDD5V

DVDD, AVDD, VREGD

VREGA

–

V

4.35

2.70

1.71

0.80

5.25

3.60

VBATT

Power supply rise time

100

–

6

–

µs

DVDD, AVDD, VREGD, VREGA

Supply noise – AVDD (sinusoidal)

Supply noise – VDD, DVDD (sinusoidal)

Distance from PCB to tracking surface

PCB thickness

25

mV pp 10 kHz to 50 MHz

–

100

6.20

1.79

5.80

1.54

mm

See Figure 17

Note

2. High storage temperature reduces flash data retention time specified in Table 7 on page 19. Recommended storage temperature is 25 ± 25°C. Extended duration

above 65°C can degrade reliability.

Document Number: 001-44048 Rev. *G

Page 14 of 36

[+] Feedback

CYONS2110

with four sets of sleep mode settings, allowing four levels of

sleep. By controlling the parameters of these four sleep modes,

the designer can tailor the solution to make appropriate tradeoffs

between power consumption and wakeup latency.

Power Consumption

Introduction

As described in Overview on page 11, the CYONS2110 has a

highly advanced power system, which can be used to develop

very low power applications. This section describes and

specifies the power consumption performance of the device.

The transition between sleep modes is under the control of the

CYONS2110’s digital signal processor (DSP) – no firmware

needs to be written to manage the transition between modes.

Each of the four available sleep modes is defined by three

parameters. These parameters are defined as registers that can

be controlled by firmware, either through direct register writes or

by using the NAV User Module in PSoC Designer.

Enabling Low-Power Modes

In some cases, designers may wish to develop “always-on”

applications, with no power-saving modes, and consequently no

wakeup latency in performance. In other applications,

conserving power is crucial and power saving modes are a firm

requirement. The CYONS2110 allows low power modes to be

enabled or disabled in firmware, either through register writes or

through the application programming interface in Cypress’s

PSoC Designer development software. The remainder of this

section applies to applications requiring power saving modes.

■ Sleep time: This is the amount of time that the device is in its

low power inactive state.

■ Motion threshold: This is the amount of motion that is required

to bring the device out of sleep.

■ Sleep mode time: This is the amount of time that the device

stays in a particular sleep mode before transitioning to the next

lowest sleep mode. Longer sleep times saves power but have

higher wakeup latency.

Operating Modes

From a power consumption standpoint, consider these three

operating modes.

Figure 8 shows the flowchart for a particular sleep mode,

showing how the three parameters affect behavior.

■ Tracking mode: In this mode, the device is actively tracking on

a surface. It is the highest power mode of the device. The

current consumption has a slight dependence on speed and

surface. The current, however, is independent of resolution.

Calculating Power for Sleep Mode

The power consumption in sleep mode can be found by using a

duty cycle calculation. The sleep mode current is determined by

the tracking mode current, the inactive current, the time required

to check for motion (typically 2.9 ms), and the time between

check-for-motion events. The expected current consumption is

given by the formula

■ Inactive mode: In this mode, the device is in its lowest power

state. In inactive mode, the device cannot sense motion, but a

timer is running. The timer can generate an interrupt that can

wake the rest of the device and start tracking motion.

■ Sleepmode:Insleepmode,thedeviceself-transitionsbetween

tracking mode and inactive mode. The typical use of sleep

modes is when the device is at rest, but might still be moved.

In sleep mode, the CYONS2110 stays in inactive mode for a

fixed time, then wakes up and checks for motion. If motion is

detected, the device fully wakes up and begins tracking. If no

motion is detected, the device can go back to sleep mode.

I_TRACK× 2.9 + I_INACT× T_SLEEP

----------------------------------------------------------------------------------

=

I_SLEEP

2.9 + T_SLEEP

where I_SLEEPis the sleep current, I_TRACKis the tracking current,

I_INACTis the inactive current, and T_SLEEPis the time (in ms) in

the low power state. As an example, if the tracking current is

8.5 mA, the inactive current is 7.5 µA and the sleep time is

100 ms, then the expected sleep current is 0.25 mA.

Power Management Through Sleep Mode Control

Power management for the CYONS2110 consists of setting the

parameters that define the sleep modes. The device is equipped

Figure 8. Sleep Mode Flowchart.

Enter from

higher sleep

mode

Go to sleep for N ms

Wake up, check for motion

Y

Go to active

tracking mode

Motion > threshold T?

N

Go to deeper

sleep mode

Y

Time in mode > M sec?

N

Document Number: 001-44048 Rev. *G

Page 15 of 36

[+] Feedback

CYONS2110

With USB powering, the 5-V USB supply is connected to VDD5V,

and DVDD, AVDD, VREGD, and VREGA are driven by the

internal 5-V USB regulator. The boost regulator is turned off.

Tracking current in this case is specified by I_{TRACK_USB}. Sleep

current must include the current consumption of the regulator

itself, and is specified by the sum of I_SLEEPand I_REG5V. For

designs using the CYONS2110, low power operation is often

only needed to support USB Suspend. Reference code for this

is available in the CY4631 - OvationONS™ II Laser Gaming

Mouse Reference Design Kit.

Power Specifications

There are three ways to power the CYONS2110 – external

powering, battery powering, and USB powering. Table 4

provides the current consumption values for each mode.

With external powering, a 3-V supply is connected to DVDD,

AVDD, VREGD, and VREGA, and the internal regulators are

turned off. In this case, the current consumption during tracking

is I_{TRACK_EXT}, and the consumption during sleep is I_SLEEP

.

With battery powering, the device is powered by the internal

boost regulator. The 5-V USB regulator is turned off. Total

tracking current must include the current consumed by the

Sleep current is achieved by activating “Navigation Sleep

Modes” in Cypress’s PSoC Designer development environment.

Doing so enables the sleep mode progressions described

earlier. If sleep modes are not activated, the device current stays

at tracking levels, even when the device is not sensing motion.

regulator itself, and is given by the sum of I_TRACKand I_REGBOOST

.

Sleep current is likewise given by the sum of I_SLEEPand

I_REGBOOST. In both cases, the current drawn from the battery

must be adjusted by the voltage conversion ratio and the boost

regulator efficiency η_TRACKand η_INACT

I

_SBis the current in the lowest-power mode of the device. In this

.

mode, the CPU is halted and operation can only be restarted with

an external reset at the XRES pin.

Table 2. Power Specifications

Symbol Description

I_{TRACK_EXT}Tracking current into DVDD, 3.0 V, 25 °C, 5 inch/second, 24 MHz IMO, 6 MHz

Conditions

Min

Typ

Max

Units

–

9

12.5

mA

AVDD, VREGD, VREGA CPU clock, white surface, nominal tracking height

I_{TRACK_USB}Tracking current into VDD5V 5.25 V, 25 °C, 5 inch/second, 24 MHz IMO, 6 MHz

CPU clock, white surface, nominal tracking height,

DVDD, AVDD, VREGD, and VREGA powered by

internal regulator

–

12.5

16

mA

I_INACT

I_SLEEP

I_REG5V

Inactive current into DVDD, 3.0 V, 25 °C, CPU in sleep state

–

7

14

µA

AVDD, VREGD, VREGA

Sleep current into DVDD,

AVDD, VREGD, VREGA

3.0 V, 25 °C

See Calculating Power for Sleep

Mode on page 15 for equation

5 V-to-3 V regulator current VDD5V = 5.25 V, regulator active

consumption

–

250

20

90

70

–

µA

%

I_REGBOOSTBoost regulator current

consumption

3.0 V at VBATT, 25 °C

–

Boost converter efficiency,

tracking mode

1.2 V VBATT input, 47 µH inductor, 10 mA load,

400 kHz switching frequency

–

η_TRACK

Boost converter efficiency,

inactive mode

1.2 V VBATT input, 47 µH inductor

–

%

η_INACT

V_{BOOST_SET}Boost converter nominal

Programmed using PSoC Designer user module

calibration feature

2.7

3.3

V

output

[3]

V_BOOST

I_SB

Boost converter accuracy

Offset from set point

–10

–

+10

11

%

ShutdowncurrentintoDVDD, 3.0 V, 25 °C, 5 V supply not present

AVDD, VREGD, VREGA, all

blocks off

4

µA

I_{SB_USB}

Shutdown current, all blocks 5.25 V, 25C, DVDD, AVDD, VREGA, VREGD

–

80

–

µA

off, into VDD5V

powered by internal 5 V-to-3 V regulator in standby

I_{SB_DUALUSB}Shutdown current, all blocks 25 °C, dual mode trip circuit active, 5V supply

16.5

off, into DVDD, AVDD,

VREGD, VREGA

present

Note

3. Boost output specification requires use of calibrated user module in PSoC Designer version 5.0 Service Pack 6 or later.

Document Number: 001-44048 Rev. *G

Page 16 of 36

[+] Feedback

CYONS2110

DC General Purpose I/O Specifications

GPIOs are arranged into four ports. Ports 0, 1, and 2 have eight GPIO pins and Port 3 has four GPIO pins. Port 1 has an optional low

drop out (LDO) regulator that adjusts the port’s output voltage to 1.8, 2.5, or 3.0 volts. Additionally, each GPIO pin can be independently

set to one of four drive modes: strong drive, open drain, pull-up, or Hi-Z analog.

Rise and fall times are specified for 10% and 90% voltage values.

The following tables list guaranteed maximum and minimum specifications for the voltage range of 2.7 V to 3.6 V at the DVDD pin,

and over the temperature range 5 °C ≤ T_A≤ 45 °C. Typical parameters apply to 3.3 V at 25 °C and are for design guidance only.

Table 3. 2.7V to 3.6V DC GPIO Specifications

Symbol

R_PU

Description

Pull-up resistor

Conditions

Min

4.0

Typ

5.6

–

Max

8.0

–

Units

kΩ

Pin configured for pull-up mode.

V_OH1

High output voltage

Port 2 or 3 Pins

I_OH< 10 μA, maximum of 10 mA

source current in all I/Os.

DVDD - 0.2

V

V_OH2

V_OH3

High output voltage

Port 2 or 3 Pins

I_OH= 1 mA, maximum of 20 mA source DVDD - 0.9

current in all I/Os.

–

V

High output voltage

Port 0 or 1 Pins with LDO Regulator source current in all I/Os.

Disabled for Port 1

I

_OH< 10 μA, maximum of 10 mA

DVDD - 0.2

V_OH4

V_OH5

V_OH6

V_OH7

V_OH8

V_OH9

V_OH10

V_OL

High output voltage

Port 0 or 1 Pins with LDO Regulator current in all I/Os.

Disabled for Port 1

I_OH= 5 mA, maximum of 20 mA source DVDD - 0.9

–

3.00

–

3.30

–

V

High output voltage

Port 1 Pins with LDO Regulator

Enabled for 3V Out

I_OH< 10 μA, DVDD > 3.1V, maximum

of 4 I/Os all sourcing 5 mA.

2.85

2.20

2.35

1.90

1.60

1.20

–

High output voltage

Port 1 Pins with LDO Regulator

Enabled for 3V Out

I_OH= 5 mA, DVDD > 3.1V, maximum

of 20 mA source current in all I/Os.

Highoutput voltage

Port 1 Pins with LDO Enabled for 2.5V of 20 mA source current in all I/Os.

Out

I_OH< 10 μA, DVDD > 2.7V, maximum

2.50

–

2.75

–

High output voltage

Port 1 Pins with LDO Enabled for 2.5V of 20 mA source current in all I/Os.

Out

I_OH= 2 mA, DVDD > 2.7V, maximum

High output voltage

Port 1 Pins with LDO Enabled for 1.8V of 20 mA source current in all I/Os.

Out

I

_OH< 10 μA, DVDD > 2.7V, maximum

1.80

–

2.10

–

High output voltage

Port 1 Pins with LDO Enabled for 1.8V of 20 mA source current in all I/Os.

Out

I_OH= 1 mA, DVDD > 2.7V, maximum

Low output voltage

I_OL= 25 mA, DVDD > 3.3V, maximum

of 60 mA sink current on even port pins

(for example, P0[2] and P1[4]) and 60

mA sink current on odd port pins (for

example, P0[3] and P1[5]).

–

0.75

V_IL

V_IH

V_H

Input low voltage

–

2.00

–

0.80

V

Input high voltage

–

Input hysteresis voltage

Input leakage (absolute value)

Pin capacitance

80

0.5

1.7

–

mV

µA

pF

I_IL

Gross tested to 1 μA.

Temp = 25 °C.

–

1.0

8.0

C_PIN

0.5

Document Number: 001-44048 Rev. *G

Page 17 of 36

[+] Feedback

CYONS2110

DC Analog Mux Bus Specifications

The analog mux bus can connect signals from GPIOs to and from internal analog blocks and other GPIOs. Table 4 lists guaranteed

maximum and minimum specifications for the entire voltage and temperature ranges.

Table 4. DC Analog Mux Bus Specifications

Parameter

R_SW

Description

Conditions

Min

–

Typ

–

Max

800

Unit

Ω

Switch resistance to common analog bus

Pin voltage < 1.8 V

R_GND

Resistance of initialization switch to DVSS Pin voltage < 1.8 V

–

Ω

DC Low Power Comparator Specifications

The device includes two general-purpose comparators, using internal or external signals from the analog mux bus. Table 5 lists

guaranteed maximum and minimum specifications for the entire voltage and temperature ranges.

Table 5. DC Comparator Specifications

Parameter

Description

Conditions

Min

Typ

Max

Unit

V_LPC

Low power comparator (LPC)

common mode

Maximum voltage limited to DVDD.

0.0

–

1.8

V

I_LPC

LPC supply current

LPC voltage offset

–

10

40

30

μA

V_OSLPC

2.5

mV

DC POR and LVD Specifications

The device features two mechanisms for dealing with low power supply voltages. Both POR and LVD events occur when DVDD falls

below a threshold. A POR completely resets the device. An LVD generates an interrupt to the MCU, allowing the application developer

to better manage power supply drops.

The POR threshold is defined by bits 7 (HPOR) and 5:4 (PORLEV) and of the VLT_CR register at address E3h in register bank 1.

The LVD threshold is defined by bits 2:0 (VM) of the same register. Refer to the technical reference manual for more details.

Table 6 lists guaranteed maximum and minimum specifications for the entire voltage and temperature ranges.

Table 6. DC POR and LVD Specifications

Parameter

Description

Conditions

Min

Typ

Max

Unit

DVDD value for POR trip

DVDD must be greater than or equal to

V_POR0

V_POR1

V_POR2

V_POR3

PORLEV[1:0] = 00b, HPOR = 0 1.71V during startup, reset from the XRES

PORLEV[1:0] = 00b, HPOR = 1 pin, or reset from watchdog.

PORLEV[1:0] = 01b, HPOR = 1

1.61

-

–

1.66

2.36

2.60

2.82

1.71

2.40

2.65

2.95

V

PORLEV[1:0] = 10b, HPOR = 1

DVDD value for LVD trip

VM[2:0] = 000b

VM[2:0] = 001b

VM[2:0] = 010b

VM[2:0] = 011b

VM[2:0] = 100b

VM[2:0] = 101b

VM[2:0] = 110b

V_LVD0

V_LVD1

V_LVD2

V_LVD3

V_LVD4

V_LVD5

V_LVD6

2.40^[4]

2.64^[5]

2.85^[6]

2.95

2.45

2.71

2.92

3.02

3.13

1.90

1.80

2.51

2.78

2.99

3.09

3.20

1.96

1.84

V

3.06

1.84

1.75^[7]

Notes

4. Always greater than 50 mV above V

5. Always greater than 50 mV above V

6. Always greater than 50 mV above V

7. Always greater than 50 mV above V

voltage for falling supply.

POR1

POR2

POR3

POR0

Document Number: 001-44048 Rev. *G

Page 18 of 36

[+] Feedback

CYONS2110

DC Programming Specifications

Table 7 lists guaranteed maximum and minimum specifications for the entire voltage and temperature ranges.

The CYONS2110 must be properly powered for flash programming, with DVDD, AVDD, VREGD, and VREGA all held within the

specified range. A suitable option for in-circuit programming USB designs is to apply 5 V to the VDD5V pin, and use the internal

regulator to drive DVDD, AVDD, VREGD, and VREGA. This enables direct connection to Cypress’s CY3210-Miniprog. For in-circuit

programming of battery or externally-powered designs, the designer must include provisions for supplying DVDD, AVDD, VREGD,

and VREGA externally.

Table 7. DC Programming Specifications

Parameter

Description

Conditions

Min Typ

Max

Unit

V_IW

Supply voltage for flash write operations

V_IWapplied to DVDD, AVDD,

VREGD, and VREGA

2.7

–

3.6

V

I_DDP

V_ILP

Supply current during programming or verify

–

5

–

25

mA

V

Input low voltage during programming or verify See DC General Purpose I/O

Specifications on page 17.

V_IL

V_IHP

I_ILP

Input high voltage during programming or

verify

See DC General Purpose I/O

Specifications on page 17.

V_IH

–

V

Input current when applying V_ILPto ISSP CLK Driving internal pull-down

and ISSP DATA pins during programming or resistor.

verify

0.2

mA

I_IHP

Input current when applying V_IHPto ISSP CLK Driving internal pull-down

and ISSP DATA pins during programming or resistor.

verify

–

1.5

mA

V_OLP

V_OHP

Output low voltage during programming or

verify

–

DVSS + 0.75

DVDD

V

Output high voltage during programming or

verify

DC General Purpose I/O Speci- V_OH

fications on page 17.For DVDD

> 3V use the value with I_OH= 5

mA.

Flash_ENPBFlash write endurance

Flash_DRFlash data retention

Erase/write cycles by block.

50,000

5

–

Cycles

Years

Following maximum flash write

cycles at ambient temp of 45°C.

10

DC Characteristics - USB Interface

The device includes an integrated full-speed USB block. Table 8 lists guaranteed maximum and minimum specifications for the entire

voltage and temperature ranges.

Table 8. DC USB Characteristics

Symbol

Description

USB D+ pull-up resistance

Static output high

Conditions

With idle bus

Min

0.900

1.425

2.8

Typ

–

Max

1.575

3.090

3.6

Units

kΩ

V

Rusbi

Rusba

Vohusb

Volusb

Vdi

While receiving traffic

–

Static output low

–

0.3

V

Differential input sensitivity

Differential input common mode range

Single-ended receiver threshold

Transceiver capacitance

High-Z state data line leakage

PS/2 pull-up resistance

0.2

–

V

Vcm

Vse

0.8

–

2.5

V

0.8

–

2.0

V

Cin

–

50

pF

uA

kΩ

Ω

Iio

On D+ or D- line

–10

3

–

10

Rps2

Rext

5

7

External USB series resistor

In series with each USB pin

21.78

22

22.22

Document Number: 001-44048 Rev. *G

Page 19 of 36

[+] Feedback

CYONS2110

AC Chip Level Specifications

The device has two internal oscillators. The IMO controls the clock speeds for the CPU. An programmable frequency divider allows

the CPU to run at lower speeds than the IMO. The ILO is a typically active in sleep modes, clocking sleep, and watchdog timers. Other

internal timers can be clocked by either the CPU clock or the ILO.

Table 9 lists guaranteed maximum and minimum specifications for the entire voltage and temperature ranges.

Table 9. AC Specifications

Parameter

F_IMO24

F_IMO12

F_IMO6

Description

IMO frequency for 24 MHz setting

IMO frequency for 12 MHz setting

IMO frequency for 6 MHz setting

IMO output duty cycle at 6 and 12 MHz setting^[8]

CPU frequency^[9]

Min

Typ

24

12

6.0

50

–

Max

25.2

12.6

6.3

60

Unit

MHz

%

22.8

11.4

5.7

DC_IMO

F_CPU

40

F_IMO/ 256

F_IMO

50

MHz

kHz

μs

F_32K1

ILO frequency^[10]

19

20

1

32

–

T_RAMP

TXRST

TXRST2

TMOT

Supply ramp time

–

External reset pulse width at power-up

External reset pulse width after power-up

Motion delay from reset to valid tracking data^[11]

–

ms

10

–

μs

–

30

ms

AC General Purpose I/O Specifications

GPIOs are arranged into ports. Ports 0, 1, and 2 have eight GPIO pins and Port 3 has four GPIO pins. Port 1 has an optional LDO

regulator that adjusts the port’s output voltage to 1.8, 2.5, or 3.0 volts. Additionally, each GPIO pin can be independently set to one

of four drive modes: strong drive, open drain, pull-up, or high-Z analog.

Rise and fall times are specified for 10% and 90% voltage values.

Specifications are for the entire operating temperature range.

Table 10. AC GPIO Specs

Parameter

F_GPIO

Description

GPIO operating frequency

Rise time, ports 0 -1

Conditions

Min Typ Max Units

Strong drive

Strong drive, C_LOAD= 50 pF, DVDD = 3.0 - 3.6

0

–

12

50

70

50

70

100

80

50

70

50

70

80

MHz

ns

T_{RISE_01}

T_{RISE_01_L}

T_{RISE_LDO_3}

Rise time, ports 0 -1, low supply Strong drive, C_LOAD= 50 pF, DVDD = 2.7 - 3.0

Rise time, port 1, 3V LDO enabled Strong drive, C_LOAD= 50 pF, DVDD > 3.1V

T_{RISE_LDO_2.5}Rise time, port 1, 2.5 LDO enabled Strong drive, C_LOAD= 50 pF, DVDD > 2.7V

T_{RISE_LDO_1.8}Rise time, port 1, 1.8 LDO enabled Strong drive, C_LOAD= 50 pF, DVDD > 2.7V

T_{RISE_23}

T_FALL

Rise time, ports 2 - 3

Fall time, all ports

Strong drive, C_LOAD= 50 pF, DVDD = 2.7 - 3.6

Strong drive, C_LOAD= 50 pF, DVDD = 3.0 - 3.6

Strong drive, C_LOAD= 50 pF, DVDD = 2.7 - 3.0

T_{FALL_L}

Fall time, all ports, low supply

T_{FALL_LDO_3}

Fall time, port 1, 3V LDO enabled Strong drive, C_LOAD= 50 pF, DVDD > 3.1V

T_{FALL_LDO_2.5}Fall time, port 1, 2.5 LDO enabled Strong drive, C_LOAD= 50 pF, DVDD > 2.7V

T_{FALL_LDO_1.8}Fall time, port 1, 1.8 LDO enabled Strong drive, C_LOAD= 50 pF, DVDD > 2.7V

Notes

8. IMO can be output from chip by routing to GPIO. Maximum GPIO output frequency is 12 MHz, so duty cycle at 24 MHz is not defined. See Technical Reference Manual

at www.cypress.com or in Cypress's PSoC Designer software for details on routing IMO to GPIO pin.

9. Available frequency divisors are 1, 2, 4, 8, 16, 32, 128, and 256.

10. 32 kHz oscillator can be locked to external crystal. See technical reference manual available at www.cypress.com or in Cypress’ PSoC Designer software.

11. Value provided represents maximum startup time for typical application. Applications requiring additional startup code, processing, or delay may increase TMOT.

Document Number: 001-44048 Rev. *G

Page 20 of 36

[+] Feedback

CYONS2110

AC External Clock Specifications

The IMO can be replaced with an external clock at the EXT CLK / P[1]4 pin. Refer to the technical reference manual for more details.

Table 11 lists guaranteed maximum and minimum specifications for the entire voltage and temperature ranges.

Table 11. AC External Clock Specifications

Parameter

Description

Min

0.750

20.6

150

Typ

–

Max

25.2

5300

–

Unit

MHz

ns

F_OSCEXT

Frequency

High period

Low period

–

ns

Required time to run from IMO before switching to external clock

–

μs

AC Analog Mux Bus Specifications

The analog mux bus can connect signals from GPIOs to and from internal analog blocks and other GPIOs. Table 12 lists guaranteed

maximum and minimum specifications for the entire voltage and temperature ranges.

Table 12. AC Analog Mux Bus Specifications

Parameter

Description

Conditions

Min

Typ

Max

Unit

F_SW

Switch rate

Pin voltage < 1.8 V

–

6.3

MHz

AC Programming Specifications

Table 13 lists guaranteed maximum and minimum specifications for the entire voltage and temperature ranges.

Table 13. AC Programming Specifications

Symbol

T_RSCLK

T_FSCLK

T_SSCLK

Description

Rise time of ISSP CLK

Conditions

Min

1

Typ

–

Max

20

–

Units

ns

Fall time of ISSP CLK

1

–

ns

Data setup time to falling edge of ISSP

CLK

40

–

ns

T_HSCLK

Data hold time from falling edge of ISSP

CLK

40

–

ns

F_SCLK

Frequency of ISSP CLK

Flash erase time (Block)

Flash block write time

0

–

8

MHz

ms

ns

T_ERASEB

T_WRITE

T_DSCLK2

18

25

85

Data out delay from falling edge of ISSP 3.0 ≤ DVDD ≤ 3.6

CLK

Document Number: 001-44048 Rev. *G

Page 21 of 36

[+] Feedback

CYONS2110

AC SPI Specifications

Table 14 lists guaranteed maximum and minimum specifications for the entire voltage and temperature ranges.

Table 14. AC SPI Master Specifications

Parameter

f_SCLK

Description

Min

–

Typ

–

Max

Unit

MHz

ns

SPI CLK frequency^[12]

F_IMO/2

t_SETUP

SPI MISO to SPI CLK setup time

SPI CLK to SPI MISO hold time

SPI MOSI to SPI CLK setup time

SPI CLK to SPI MOSI hold time

60

40

–

t_HOLD

–

ns

t_{OUT_SU}

t_{OUT_H}

–

ns

–

ns

Table 15. AC SPI Slave Specifications

Parameter

f_SCLK

Description

Min

–

Typ

–

Max

12

–

Unit

MHz

ns

SPI CLK frequency^[12]

t_LOW

Minimum SPI CLK low width^[13]

Minimum SPI CLK high width^[13]

SPI MOSI to SPI CLK setup time

SPI CLK to SPI MOSI hold time

SPI CLK to SPI MISO hold time

SPI SS to SPI MISO valid

41.67

25

35

–

t_HIGH

–

ns

t_SETUP

t_HOLD

t_{OUT_H}

t_{SS_MISO}

–

ns

–

ns

–

ns

–

100

140

35

20

25

ns

t_{SCLK_MISO}SPI CLK to SPI MISO valid

–

ns

t_{SS_HIGH}

t_{SS_CLK}

t_{CLK_SS}

Minimum SPI SS high width

–

ns

Time from SPI SS low to first SPI CLK

Time from last SPI CLK to SPI SS high

–

ns

–

ns

Notes

12. Clock frequency is half of clock input to SPI block.

13. Value corresponds to 50% duty cycle at 12 MHz.

Document Number: 001-44048 Rev. *G

Page 22 of 36

[+] Feedback

CYONS2110

Figure 9. SPI Master Timing Diagram, Modes 0 and 2

Figure 10. SPI Master Timing Diagram, Modes 1 and 3

Document Number: 001-44048 Rev. *G

Page 23 of 36

[+] Feedback

CYONS2110

Figure 11. SPI Slave Timing Diagram, Modes 0 and 2

Figure 12. SPI Slave Timing Diagram, Modes 1 and 3

Document Number: 001-44048 Rev. *G

Page 24 of 36

[+] Feedback

CYONS2110

AC Comparator Specifications

The device includes two general purpose comparators, using internal or external signals from the analog mux bus. Table 16 lists

guaranteed maximum and minimum specifications for the entire voltage and temperature ranges.

Table 16. AC Low Power Comparator Specifications

Symbol

Description

Comparator response time, 50 mV 50 mV overdrive does not include

overdrive offset voltage.

Conditions

Min

Typ

Max

Units

T_LPC

–

100

ns

2

AC I C Specifications

The device includes an I²C slave block with an input filter that suppresses spikes and glitches on the clock and data lines. The block

can be configured for standard or fast mode. Table 17 lists guaranteed maximum and minimum specifications for the entire voltage

and temperature ranges.

Table 17. AC Characteristics of the I²C SDA and SCL Pins

Standard Mode

Fast Mode

Symbol

Description

Units

Min

0

Max

100

–

Min

0

Max

400

–

F_SCLI2C

I2C_SCL clock frequency

kHz

μs

ns

μs

ns

T_HDSTAI2CHold time for START and Repeated START condition

4.0

4.7

4.0

4.7

0

0.6

1.3

0.6

0

T_LOWI2C

T_HIGHI2C

LOW period of the I2C_SCL clock

HIGH period of I2C_SCL clock

–

T_SUSTAI2CSetup time for a START and Repeated START condition

T_HDDATI2CData hold time

–

T_SUDATI2CData setup time

250

4.0

4.7

–

100^[14]

0.6

1.3

0

–

T_SUSTOI2CSetup time for STOP condition

–

T_BUFI2C

T_SPI2C

Bus free time between a STOP and START condition

–

Pulse width of spikes that are suppressed by the input filter

–

50

Figure 13. Timing for Fast/Standard Mode on the I²C Bus

I2C_SDA

T_SUDATI2C

T_SPI2C

T_SUSTAI2C

T_BUFI2C

T_HDDATI2C

T_HDSTAI2C

I2C_SCL

T_HIGHI2CT_LOWI2C

T_SUSTOI2C

P

S

Sr

Repeated START Condition

STOP Condition

START Condition

Note

14. A Fast-Mode I2C-bus device can be used in a Standard Mode I2C-bus system, but the requirement t

≥ 250 ns must then be met. This automatically is the

SUDATI2C

case if the device does not stretch the LOW period of the SCL signal. If such device does stretch the LOW period of the SCL signal, it must output the next data bit

to the SDA line t + t = 1000 + 250 = 1250 ns (according to the Standard-Mode I2C-bus specification) before the SCL line is released.

rmax

SUDATI2C

Document Number: 001-44048 Rev. *G

Page 25 of 36

[+] Feedback

CYONS2110

AC USB Specifications

The device includes an integrated full-speed USB block. Table 18 lists guaranteed maximum and minimum specifications for the entire

voltage and temperature ranges.

Table 18. AC Characteristics – USB Data Timing Specifications

Symbol

Tdrate

Description

Full-speed data rate

Conditions

Average bit rate

Min

12–0.25%

–18.5

–9

Typ

12

0

Max

Units

12 + 0.25 MHz

Tdjr1

Tdjr2

Tudj1

Tudj2

Tfdeop

Tfeopt

Tfeopr

Tfst

Receiver data jitter tolerance

Driver differential jitter

To next transition

To pair transition

To next transition

To pair transition

To SE0 transition

18.5

9

ns

–

–3.5

–4.0

–2

–

3.5

4.0

5

Driver differential jitter

–

Source jitter for differential transition

Source SE0 interval of EOP

Receiver SE0 interval of EOP

–

160

–

175

–

82

–

Width of SE0 interval during differential

transition

–

14

Table 19. AC Characteristics – USB Driver

Symbol Description

Transition rise time

Conditions

50 pF

Min

4

Typ

–

Max

20

Units

ns

Tr

Tf

Transition fall time

50 pF

4

–

20

ns

TR

Rise/fall time matching

Output signal crossover voltage

0.8V - 2.5V

90

1.3

–

111

2.0

%

Vcrs

–

V

Document Number: 001-44048 Rev. *G

Page 26 of 36

[+] Feedback

CYONS2110

PCB Land Pads and Keepout Zones

Figure 14 and Figure 15 show the recommended land pad architecture and keepout zones. The pads on the 42-pin device are a

subset of the JEDEC MO-220 52-pin QFN standard. For detailed layout instructions, see application note AN48995, Mechanical

Design Considerations for the OvationONS^TMII Laser Navigation System-on-Chip.

Figure 14. Land Pad Architecture and Spacing

Figure 15. PCB Keep Out Zones

Document Number: 001-44048 Rev. *G

Page 27 of 36

[+] Feedback

CYONS2110

Orientation of Axes

Figure 16 describes the relationship between the package and the x/y axes when using the API provided by Cypress’s PSoC Designer

software. Note that there is a 90-degree rotation between the orientation below and the orientation described in the register section

of the Technical Reference Manual. If PSoC Designer is not used, the application firmware should read and invert the Y count register

for X data, and read the X count register for Y data.

Figure 16. Sensor Orientation

PCB Mounting Height and Thickness

Figure 17 shows the recommended thickness and mounting height of the PCB above the tracking surface.

Figure 17. PCB Height and Thickness

Document Number: 001-44048 Rev. *G

Page 28 of 36

[+] Feedback

CYONS2110

Thermal Impedances

Table 20. Thermal Impedances per Package

[15]

Package

Typical θ_JA

42 PQFN^[16]

24 °C/W

Solder Reflow Peak Temperature

Following is the minimum solder reflow peak temperature to achieve good solderability.

Table 21. Solder Reflow Peak Temperature

Package

Minimum Peak Temperature^[17]

Maximum Peak Temperature

42 PQFN

240°C

260°C

Notes

15. T = T + Power x θ .

JA

J

A

16. To achieve the thermal impedance specified for the QFN package, the center thermal pad must be soldered to the PCB ground plane.

17. Higher temperatures may be required based on the solder melting point. Typical temperatures for solder are 220 ± 5°C with Sn-Pb or 245 ± 5°C with Sn-Ag-Cu paste.

Refer to the solder manufacturer specifications. For a recommended soldering profile, refer to Application Note 49035, Manufacturing Considerations for the Ovation-

TM

ONS Laser Navigation System-on-Chip.

Document Number: 001-44048 Rev. *G

Page 29 of 36

[+] Feedback

CYONS2110

Laser Safety Considerations

The CYONS2110 laser navigation SoC and the CYONSLENS2000

lens are designed and tested to enable manufacturers to achieve

eye safety certification with minimal effort. This section provides

guidelines for complying with the Class 1 emission requirements of

IEC/EN 60825-1.

Laser Output Power Test Procedure

To verify the laser output level, follow the steps shown in the

“VCSEL Power Calibration and Verification” section of the

technical reference manual.

Registration Assistance

When installed and operated in accordance with all requirements in

this datasheet, the kit consisting of the CYONS2110 Laser

Navigation SoC and CYONSLENS2000 satisfies CDRH 21 CFR

1040 per Laser Notice #50 and IEC/EN 60825-1 Class 1.

The mouse or end-product supplier is responsible for certifying

the end-use product with respect to the drive voltage, manuals

and labels, and operating temperature specifications.

Additionally, for products sold in the US, a CDRH report must be

filed for each model produced, and test and inspection of the

product’s characteristics as they relate to laser safety and the

CDRH requirements must be performed.

Laser Output Power

The CYONS2110 sensor package contains an integrated

VCSEL and drive circuitry. Before shipping, Cypress adjusts the

laser output power to eye-safe levels, taking into account

specified variations in supply voltage, temperature, lens

transmission, and VCSEL polarization, and factors such as

VCSEL aging and test equipment accuracy. The output remains

within eye-safe limits under reasonably foreseeable

single-faults, as required by the IEC standard.

When filing a report with the CDRH, the supplier can refer to the

product report filed by Cypress for the CYONS2xxx family of

products. The Cypress report is based on the previously-noted

limits for voltage and temperature, and describes how the sensor

design includes consideration of drive circuit failures, laser

output variation with temperature, drive circuit variation with

temperature and voltage, polarization sensitivity of molded

optics, and measurement uncertainties.

From the perspective of a manufacturer, laser emission remains

within the Class 1 limit, as defined in IEC 60825-1, Edition 2,

2007, provided the following requirements are met.

Cypress can provide assistance to customers who wish to obtain

registration. Supporting documentation, including a verification

test procedure to demonstrate end-product compliance with IEC

and CDRH requirements is available. For further information,

contact a Cypress representative.

■ The supply voltage applied to pins DVDD and AVDD of the SoC

must be in the range of 2.7 to 3.6V.

■ The operating temperature must be between 5 and 45 °C.

■ The laser output power must not be increased by any means,

including but not limited to firmware, hardware, or mechanical

modifications to the sensor or lens.

■ The mechanical housing must be designed such that the

CYONSLENS2000 cannot be removed by the user.

■ The device firmware must initialize the VCSEL driver as

described in the “VCSEL Driver” chapter of the OvationONS II

technical reference manual or by using the NAV or LaserNAV

User Modules in Cypress’s PSoC Designer software.

The manufacturer must ensure these conditions are always met

and demonstrate end-product compliance to the appropriate

regulatory standards.

Document Number: 001-44048 Rev. *G

Page 30 of 36

[+] Feedback

CYONS2110

Development Tool Selection

Evaluation Tools

This section presents the development tools available for all

current PSoC device families including the CYONS2110.

You can purchase the evaluation tools from the Cypress Online

Store.

Software

CY3210-MiniProg1

PSoC Designer

The CY3210-MiniProg1 kit enables a user to program PSoC

devices using the MiniProg1 programming unit. The MiniProg is

a small, compact prototyping programmer that connects to the

PC via a provided USB 2.0 cable. The kit includes:

At the core of the PSoC development software suite is PSoC

Designer, used to generate PSoC firmware applications. PSoC

Designer

is

available

free

of

charge

at

http://www.cypress.com/psocdesigner and includes a free C

compiler with version Service Pack 4.5 or later.

■ MiniProg programming unit

■ MiniEval socket programming and evaluation board

■ 28-pin CY8C29466-24PXI PDIP PSoC device sample

■ 28-pin CY8C27443-24PXI PDIP PSoC device sample

■ PSoC Designer software CD

PSoC Programmer

Flexible enough to be used on the bench in development, yet

suitable for factory programming, PSoC Programmer works

either as a standalone programming application or it can operate

directly from PSoC Designer. PSoC Programmer software is

compatible with both PSoC ICE-Cube In-Circuit Emulator and

PSoC MiniProg. PSoC programmer is available free of charge at

http://www.cypress.com/psocprogrammer.

■ Getting Started guide

■ USB 2.0 cable

Mouse Design Kits

CY3210-PSoCEval1

Two kits featuring the OvationONS II family of products are

available. The reference design kit provides a complete

hardware, firmware, and software solution, ready for production.

The demonstration kit provides tested hardware and firmware

that demonstrate the capabilities of the OvationONS II device.

The CY3210-PSoCEval1 kit features an evaluation board and

the MiniProg1 programming unit. The evaluation board includes

an LCD module, potentiometer, LEDs, and plenty of bread-

boarding space to meet all of your evaluation needs. The kit

includes:

■ CY4631 Wired Mouse Reference Design Kit

■ Wireless Mouse Demonstration Kit

■ Evaluation board with LCD module

■ MiniProg programming unit

■ 28-pin CY8C29466-24PXI PDIP PSoC device sample (2)

■ PSoC Designer software CD

■ Getting Started guide

Development Kits

You can purchase the development kits from the Cypress Online

Store.

CY3215-DK Basic Development Kit

■ USB 2.0 cable

The CY3215-DK kit enables prototyping and development with

PSoC Designer. This kit supports in-circuit emulation and the

software interface enables users to run, halt, and single step the

processor and view the content of specific memory locations.

Advanced emulation features are also supported through PSoC

Designer. The kit includes:

CY3214-PSoCEvalUSB

The CY3214-PSoCEvalUSB evaluation kit features a devel-

opment board for the CY8C24794-24LFXI PSoC device. Special

features of the board include both USB and capacitive sensing

development and debugging support. This evaluation board also

includes an LCD module, potentiometer, LEDs, an enunciator

and plenty of bread boarding space to meet all of your evaluation

needs. The kit includes:

■ PSoC Designer software CD

■ ICE-Cube In-Circuit Emulator

■ ICE Flex-Pod for CY8C29x66 family

■ Cat-5 adapter

■ PSoCEvalUSB board

■ LCD module

■ Mini-Eval programming board

■ 110 ~ 240 V power supply, Euro-Plug adapter

■ iMAGEcraft C compiler (registration required)

■ ISSP cable

■ MIniProg programming unit

■ Mini USB cable

■ PSoC Designer and example projects CD

■ Getting Started guide

■ Wire pack

■ USB 2.0 cable and Blue Cat-5 cable

■ Two CY8C29466-24PXI 28-PDIP chip samples

Document Number: 001-44048 Rev. *G

Page 31 of 36

[+] Feedback

CYONS2110

CY3207ISSP In-System Serial Programmer (ISSP)

Device Programmers

The CY3207ISSP is a production programmer. It includes

protection circuitry and an industrial case that is more robust than

the MiniProg in a production-programming environment.

You can purchase the device programmers from the Cypress

Online Store.

CY3216 Modular Programmer

Note CY3207ISSP needs special software and is not compatible

The CY3216 Modular Programmer kit features a modular

programmer and the MiniProg1 programming unit. The modular

programmer includes three programming module cards and

supports multiple Cypress products. The kit includes:

with PSoC Programmer.

The kit includes:

■ CY3207 programmer unit

■ PSoC ISSP software CD

■ 110 ~ 240 V power supply, Euro-Plug adapter

■ USB 2.0 cable

■ Modular programmer base

■ Three programming module cards

■ MiniProg programming unit

■ PSoC Designer software CD

■ Getting Started guide

Third Party Tools

Several tools have been specially designed by third-party

vendors to accompany PSoC devices during development and

production. Specific details for each of these tools are found at

http://www.cypress.com.

■ USB 2.0 cable

Document Number: 001-44048 Rev. *G

Page 32 of 36

[+] Feedback

CYONS2110

Package Diagrams

Figure 18. QFN Package

TOP VIEW

SIDE VIEW

BOTTOM VIEW

0.50-0.60

0.05 MAX

1.40 MAX

8.300 SQ

[2X]

SEE DETAIL - B

SEE DETAIL - A

2

1

0.20 MAX

+0.05

(PIN1 ID)

0.50-0.60

0.42-0.00 X 45° [4X]

SEATING PLANE

+0.025

[2X] Ø0.64 -0.025 THRU

DETAIL - A

SCALE: 2/1

NOTES:

1. ALL DIMENSIONS ARE IN MM , [ MIN/MAX]

2. REFRENCE JEDEC # MO-220

3. PKG WEIGHT: 0.2 grams

+0.025

Ø0.64 -0.025 THRU

4. APERTURE MOLD CAVITY I.D.

001-44934 *C

DETAIL - B

SCALE: 2/1

NON-SOLDERABLE PADS

Document Number: 001-44048 Rev. *G

Page 33 of 36

[+] Feedback

CYONS2110

Figure 19. Lens

001-44677 *B

Ordering Information

The CYONS2110 and CYONSLENS2000 are sold separately. When placing orders, order both part numbers

Part Number Package Application

CYONS2110-LBXC

42 Pin PQFN

Lens - 4 mm height

High Performance wired and wireless

Molded optic

CYONSLENS2000-C

Ordering Code Definition

XXXX

CYONS

-XXX C

Temperature range:

Commercial

42-pin PQFN package

Wired laser navigation system-on-chip

Optical navigation sensor

Company ID: CY = Cypress

Document Number: 001-44048 Rev. *G

Page 34 of 36

[+] Feedback

CYONS2110

Numeric Naming

Document Conventions

Hexadecimal numbers are represented with all letters in

uppercase with an appended lowercase ‘h’ (for example, ‘14h’ or

‘3Ah’). Hexadecimal numbers may also be represented by a ‘0x’

prefix, the C coding convention. Binary numbers have an

appended lowercase ‘b’ (for example, ‘01010100b’ or

‘01000011b’). Numbers not indicated by an ‘h’, ‘b’, or ‘0x’ are

decimal.

Acronyms Used

Table 22 lists the acronyms used in this document.

Units of Measure

The units of measure in Table 23 lists the abbreviations used to

measure the devices.

Table 22. Acronyms

Acronym

Description

Acronym

Description

AC

Alternating Current

LDO

Low Drop Out (regulator)

Light Emitting Diode

Low Power Comparator

Least-significant Bit

ADC

API

Analog to Digital Converter

Application Programming Interface

Center for Devices and Radiological Health

Counts per Inch

LED

LPC

CDRH

CPI

LSb

LVD

Low Voltage Detect

CPU

DAC

DC

Central Processing Unit

Digital to Analog Converter

Direct Current

M8C

Cypress’ 8-bit CPU Core

Microcontroller Unit

MCU

MIPS

MSb

Million Instructions per Second

Most-significant Bit

DSP

ESD

GND

GPIO

HEX

Hi-Z

Digital Signal Processor

Electrostatic Discharge

Ground

MUX

PC, PCB

PDIP

PGA

Multiplexer

Printed Circuit, Printed Circuit Board

Plastic Dual In-Line Package

Programmable Gain Amplifier

Power On Reset

General Purpose I/O

Hexadecimal

High Impedance

POR

PQFN

PSoC

PSRR

PWM

QFN

2

I C

Inter-Integrated Circuit (bus)

In-circuit Emulator

Plastic Quad Flat No-Leads (package)

Programmable System-on-Chip

Power Supply Rejection Ratio

Pulse Width Modulator

ICE

IDAC

IDE

DAC-Controlled Current Source

Integrated Development Environment

International Electrotechnical Commission

Internal Low Speed Oscillator

Internal Main Oscillator

Input/Output

IEC

Quad Flat No-Leads (package)

System on Chip

ILO

SoC

IMO

I/O

SPI

Serial Peripheral Interface (bus)

Static Random Access Memory

Universal Serial Bus

SRAM

USB

JEDEC

LCD

Joint Electron Devices Engineering Council

Liquid Crystal Display

VCSEL

Vertical Cavity Surface Emitting Laser

Table 23. Units of Measure

Symbol

Unit of Measure

Symbol

Unit of Measure

°C

degree Celsius

μV

mA

ms

mV

nH

nm

ns

microvolts

milliampere

millisecond

millivolt

g

acceleration of gravity

1024 bytes

inches per second

kilohertz

KB

in/s

kHz

kΩ

kV

nanohenry

nanometer

nanosecond

ohm

kilohm

kilovolt

MHz

μA

μF

μH

μs

megahertz

Ω

microampere

microfarad

pF

pp

V

picofarad

peak-to-peak

volt

microhenry

microsecond

W

watt

Document Number: 001-44048 Rev. *G

Page 35 of 36

[+] Feedback

CYONS2110

Document History Page

Document Title: CYONS2110 OvationONS™ II Wired / Wireless Laser Navigation System-on-Chip

Document Number: 001-44048

Orig. of

Change

Submission

Date

Revision

ECN

Description of Change

**

2261927

2580125

FJZ

See ECN CYONS2110 New Data Sheet.

*A

*B

10/07/08

25/09/09

Extensive Updates

2769396 FJZ/AESA

Updated Getting Started and Development Tools sectionsUpdated thermal

impedance, wireless kit info, Flash specs, storage temperature, I2C footnote,

external mode powering, reference schematic, power specifications, pin table,

and c compiler information.

*C

*D

2889331

2903558

FJZ

03/09/10

04/20/10

Added Table of Contents. Updated package diagram and sales links.

Update LVD, USB, SPI Master and SPI Slave specs, numerous minor updates

for improved clarity and consistency

*E

*F

*G

2936335

3092209

3126503

MMCY

FJZ

05/24/2010 Updated content to match the new template and style guide.

No technical updates.

11/22/2010 Corrected error in Pin Description.

Removed invalid reference to application note in Registration Assistance.

FJZ

01/03/2011 Updated Figure 19. Changed posting to external web

Worldwide Sales and Design Support

Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office

closest to you, visit us at Cypress Locations.

Products

PSoC Solutions

Automotive

cypress.com/go/automotive

cypress.com/go/clocks

cypress.com/go/interface

cypress.com/go/powerpsoc

cypress.com/go/plc

psoc.cypress.com/solutions

PSoC 1 | PSoC 3 | PSoC 5

Clocks & Buffers

Interface

Lighting & Power Control

Memory

cypress.com/go/memory

cypress.com/go/image

cypress.com/go/psoc

Optical & Image Sensing

PSoC

Touch Sensing

USB Controllers

Wireless/RF

cypress.com/go/touch

cypress.com/go/USB

cypress.com/go/wireless

any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for

medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as

critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems

application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign),

United States copyright laws and international treaty provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create derivative works of,

and compile the Cypress Source Code and derivative works for the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction with a Cypress

integrated circuit as specified in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source Code except as specified above is prohibited without

the express written permission of Cypress.

Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not

assume any liability arising out of the application or use of any product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where

a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer

assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Use may be limited by and subject to the applicable Cypress software license agreement.

Document Number: 001-44048 Rev. *G

Revised January 3, 2011

Page 36 of 36

OvationONS™, OptiCheck™, and PSoC Designer™ are trademarks and PSoC and CapSense are registered trademarks of Cypress Semiconductor Corp. All other trademarks or registered trademarks

referenced herein are property of the respective corporations.

[+] Feedback

厂商	型号	描述	页数
CYPRESS	CYONS1001-LBXC	OvationONS⑩激光导航传感器[ OvationONS⑩ Laser Navigation Sensors ]	24 页
CYPRESS	CYONS1001G-LBXC	OvationONS⑩激光导航传感器[ OvationONS⑩ Laser Navigation Sensors ]	24 页
CYPRESS	CYONS1001L	这款OvationONS ™ 1L - 激光导航传感器[ OvationONS⑩ 1L - Laser Navigation Sensor ]	9 页
CYPRESS	CYONS1001L-LBXC	这款OvationONS ™ 1L - 激光导航传感器[ OvationONS⑩ 1L - Laser Navigation Sensor ]	9 页
CYPRESS	CYONS1001T0-LBXC	OvationONS⑩激光导航传感器[ OvationONS⑩ Laser Navigation Sensors ]	24 页
CYPRESS	CYONS1001U-LBXC	OvationONS⑩激光导航传感器[ OvationONS⑩ Laser Navigation Sensors ]	24 页
CYPRESS	CYONS1001X	OvationONS⑩激光导航传感器[ OvationONS⑩ Laser Navigation Sensors ]	24 页
CYPRESS	CYONS1001X_09	这款OvationONS激光导航传感器[ OvationONS Laser Navigation Sensors ]	24 页
CYPRESS	CYONS2000	这款OvationONS ？ II有线激光导航系统单芯片[ OvationONS? II Wired Laser Navigation System-on-Chip ]	36 页
CYPRESS	CYONS2000-LBXC	这款OvationONS ？ II有线激光导航系统单芯片[ OvationONS? II Wired Laser Navigation System-on-Chip ]	36 页
