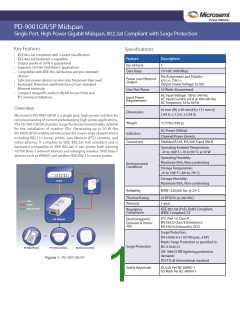

PD-9001GR/SP Midspan
Single Port, High Power Gigabit Midspan, 802.3at Compliant with Surge Protection
Key Features
Specifications
•
•
•
•
•
IEEE 802.3at compliant with 2-event classification
IEEE 802.3af backward compatible
Feature
Description
Output power of 30 W is guaranteed
Supports 10/100/1000 Base-T applications
Compatible with IEEE 802.3af devices and pre-standard
devices
No. of Ports
Data Rates
1
10/100/1000 Mbps
Pin Assignment and Polarity:
4/5 (+), 7/8 (–)
Output Power Voltage: 55 Vdc
Power over Ethernet
Output
•
•
Safe: low power devices receive only the power they need
Automatic Detection and Protection of non–standard
Ethernet terminals
User Port Power
30 Watts (Guaranteed)
•
Compact design fits easily in WLAN Access Point and
IP Cameras installations
AC Input Voltage: 100 to 240 Vac
AC Input Current: 0.8 A @ 100-240 Vac
AC Frequency: 50 to 60 Hz
Input Power
Requirements
Overview
62 mm (W) x 38 mm (H) x 151 mm (L)
2.44 in. x 1.5 in. x 5.94 in
Dimensions
Weight
Microsemi’s PD-9001GR/SP is a single port, high-power solution for
remote powering of current and emerging high power applications.
The PD-9501GR/SP provides Surge Protection functionality optimal
for the installation of outdoor PDs. Generating up to 30 W, the
PD-9001GR/SP enables remote power for a new range of applications
including 802.11n access points, pan-tiltzoom (PTZ) cameras, and
video-phones. It complies to IEEE 802.3at PoE standard and is
backward compatible to IEEE 802.3af. It can power both existing
10/100 Base-T network devices and emerging wireless 1000 Base-T
devices such as WiMAX and wireless IEEE 802.11n access points.
0.75 lbs (340 g)
AC Power (Yellow)
Indicators
Channel Power (Green)
Connectors
Shielded RJ-45, EIA 568 A and 568 B
Operating Ambient Temperature:
-4º to 104º F (-10 to 50º C) @ 30 W
Operating Humidity:
Maximum 90%, Non-condensing
Environmental
Conditions
Storage Temperature:
-4º to 158º F (-20º to 70º C)
Storage Humidity:
Switch
Maximum 95%, Non-condensing
Reliability
MTBF: 240,000 hrs. @ 25º C
UPS
Thermal Rating
Warranty
25 BTU/Hr (@ 240 VAC)
1-year
Data
Power
Data & Power
IEEE 802.3at (PoE), RoHS Compliant,
WEEE Compliant, CE
Regulatory
Compliance
FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity), VCCI
PoE Midspan
Electromagnetic
Emission & Immu-
nity
Surge Protection:
or
or
EN 61000-4-5 (10/700 µsec, 4 KV)
Meets Surge Protection as specified in:
IEC-61643-21
GR-1089-CORE lightning protection
demands
Surge Protection
Safety Approvals
IP Video Phone
PTZ Dome Camera
WLAN Access Point
Figure 1: PD-9001GR/SP
ITU-T K.45 International standard
UL/cUL Per IEC 60950-1
GS Mark Per IEC 60950-1
