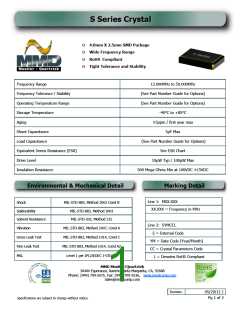

S Series Crystal
4.0mm X 2.5mm SMD Package
Wide Frequency Range
RoHS Compliant
Tight Tolerance and Stability
Frequency Range
12.000MHz to 50.000MHz
Frequency Tolerance / Stability
Operating Temperature Range
Storage Temperature
Aging
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
±5ppm / first year max
Shunt Capacitance
5pF Max
Load Capacitance
(See Part Number Guide for Options)
See ESR Chart
Equivalent Series Resistance (ESR)
Drive Level
10µW Typ / 100µW Max
500 Mega Ohms Min at 100VDC ±15VDC
Insulation Resistance
Environmental & Mechanical Detail
Marking Detail
Line 1: MXX.XXX
Shock
MIL-STD-883, Method 2002 Cond B
XX.XXX = Frequency in MHz
Solderability
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
Solvent Resistance
Line 2: SYMCCL
Vibration
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
S = Internal Code
Gross Leak Test
Fine Leak Test
MSL
YM = Date Code (Year/Month)
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536, www.mmdcomp.com
Sales@mmdcomp.com
Revision:
05/29/12 J
Pg 1 of 2
Specifications are subject to change without notice.
