MATERIAL AND FINISH:
Housing: Nylon 66, black, UL-94V-0 rated
Contacts: Bronze, Nickel plated
MECHANICAL SPECIFICATIONS:
Insertion force: 5KG max.
Withdrawal force: 1.5KG min.
Life test: 5,000 cycles min. of insertion and
withdrawal
D
C
B
A
D
C
B
A
ELECTRICAL SPECIFICATIONS:
Rated current: 15A
25.8±0.2
28.4 REF.
20.0
C
US
2X 2.2±0.2
7.00±0.15
Rated voltage: 125VAC
Insulation resistance: 1000 Mohm min. @ 500VDC
Dielectric withstanding voltage: 1500VAC for one
minute
12.0
2X 4.8
8.60±0.15
3.50
16.0±0.1
Contact resistance: 30 mohm max.
12.70±0.15
3.3x2.7 TYP.
RoHS
COMPLIANT
+0.1
22.2
+0.1
12.2
RECOMMENDED
PANEL CUTOUT
(Panel Thickness 0.7mm ~ 1.0mm)
2X 0.6±0.1
9.9
22.0
25.7 REF.
TOLERANCE
UNLESS OTHERWISE SPECIFIED
X
X.X
X.XX
±
±
±
1
0.4
0.20
Phone: 973 560-0019
Whippany, New Jersey
Fax: 973 560-0076

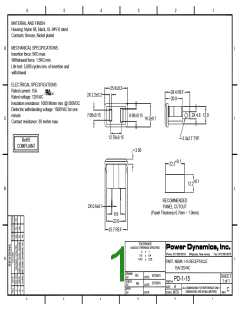

PART: NEMA 1-15 RECEPTACLE
15A/125VAC
DRAWN
BY
CHECK
BY
APPR
BY
GQ
07/26/01
07/26/01
SHEET
1 of 1
DATE:
DATE:
DATE:
PART #: PD-1-15
PB
SIZE:
A
ALL DIMENSIONS FOR REFERENCE ONLY
C
DIMENSIONS ARE IN MILLIMETERS
SCALE:
REV:
NTS
